2-Pack USB Type-C Female 5-Pin SMD Socket PCB Solder Connector

2-Pack USB Type-C Female 5-Pin SMD Socket for PCB Soldering & DIY Repair

Upgrade or repair your electronics with these compact USB Type-C Female 5-Pin SMD/SMT solder connectors. Designed as a direct replacement for Micro-USB 5-Pin female ports, these surface-mount jack sockets are ideal for PCB prototyping, board-level repairs, and DIY electronics projects. Made in Mainland China.

Key Features

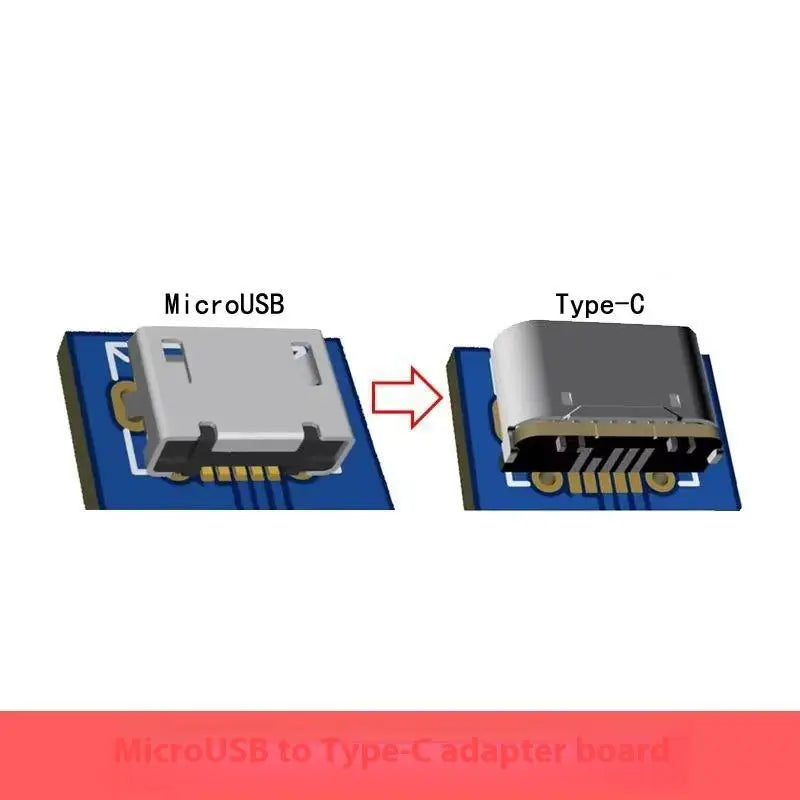

• Drop-in Micro-USB Replacement: Designed to replace standard Micro-USB 5-Pin female connectors — perfect for upgrading legacy devices to Type-C.
• Fast Power & Data: Supports up to DC 5V / 2A charging output and high-speed data transfer when paired with a compatible USB 2.0 Type-C power source.
• USB 2.0 Compliant: Compatible with USB Base Specification 2.0, USB 2.0 Hi-Speed (480 Mbps), and USB 1.1 Low-Speed (1.5 Mbps).
• Wide Peripheral Compatibility: Connect mice, keyboards, smartphones, speakers, and any device using a Micro-USB or Type-C interface.
• SMD/SMT Design: Surface-mount design makes these sockets suitable for both hand soldering and automated assembly workflows.
• Durable Construction: Built from a robust plastic and metal composite for long-lasting performance on the board.

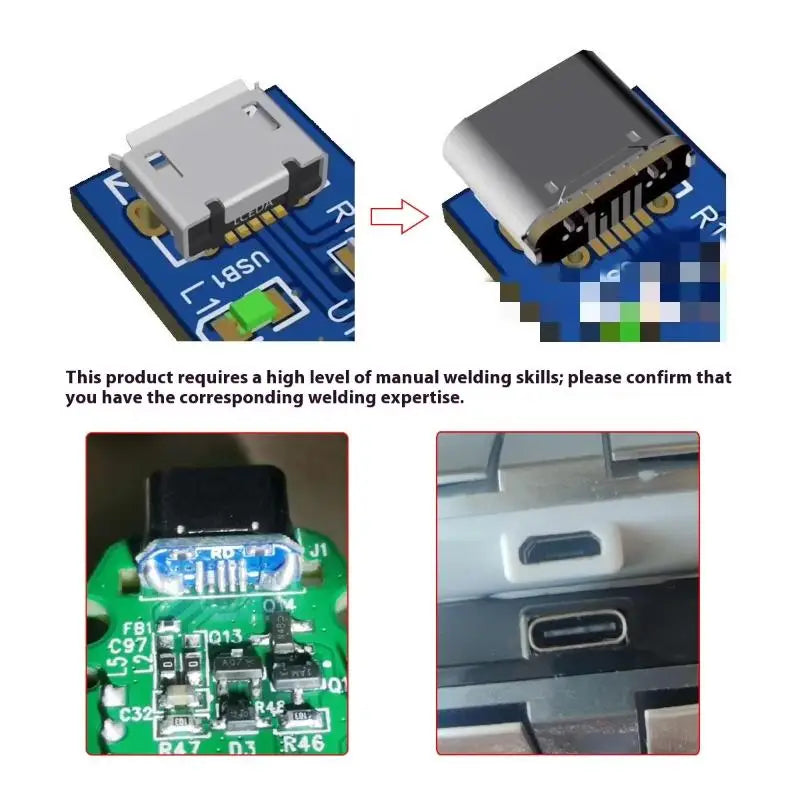

• DIY-Ready: Requires manual soldering — ideal for hobbyists, electronics engineers, and repair technicians with soldering experience.

Specifications

• Connector Type: USB Type-C Female, 5-Pin
• Mount Type: SMD / SMT (Surface Mount)
• Material: Plastic + Metal
• Voltage: DC 5V / 2A
• Data Standard: USB 2.0 Hi-Speed (480 Mbps) / USB 1.1 (1.5 Mbps)
• Country of Origin: Made in Mainland China

Package Contents

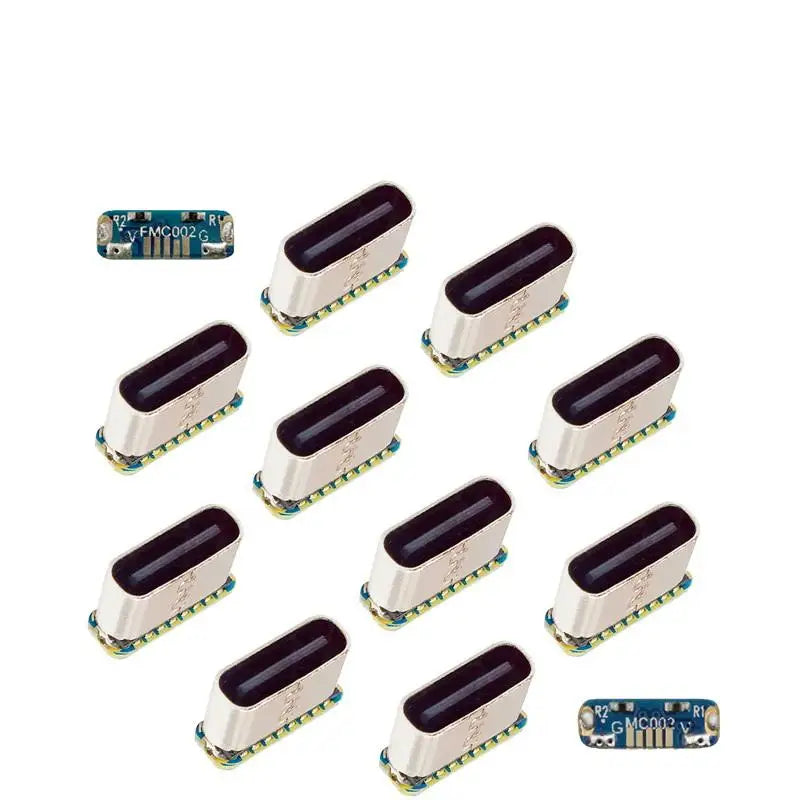

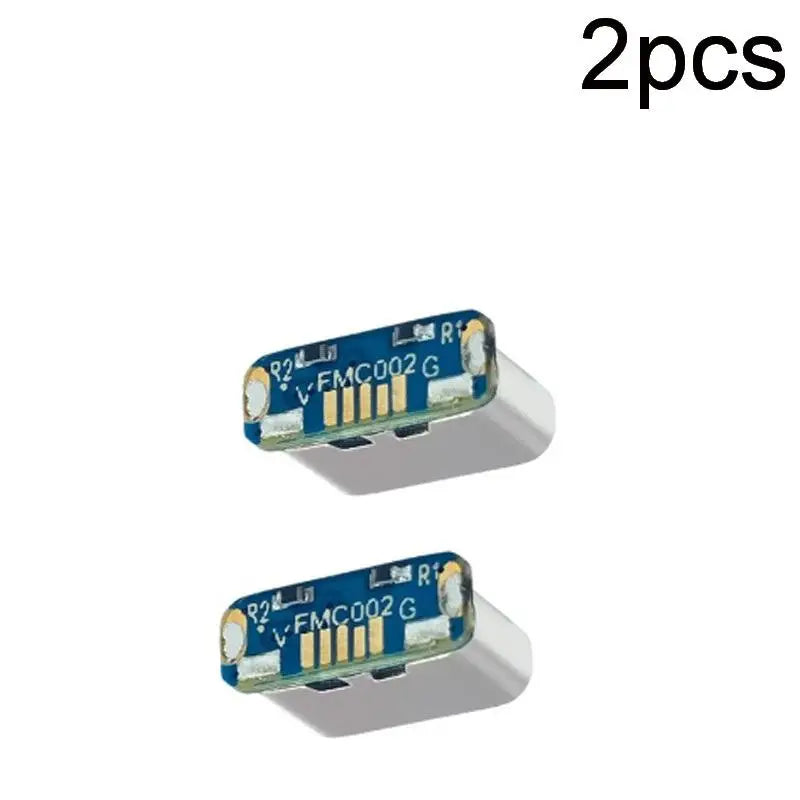

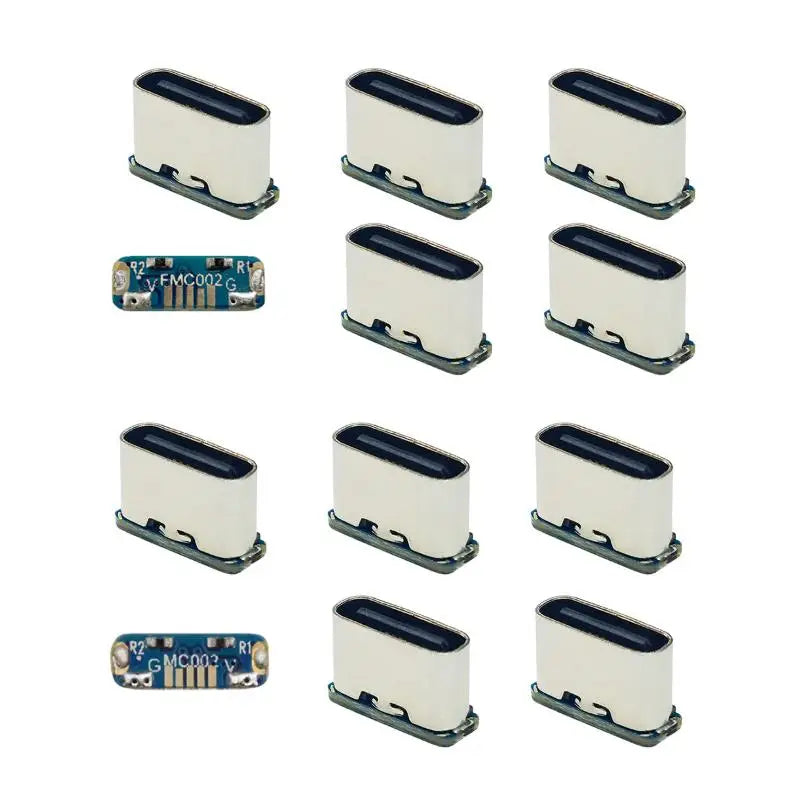

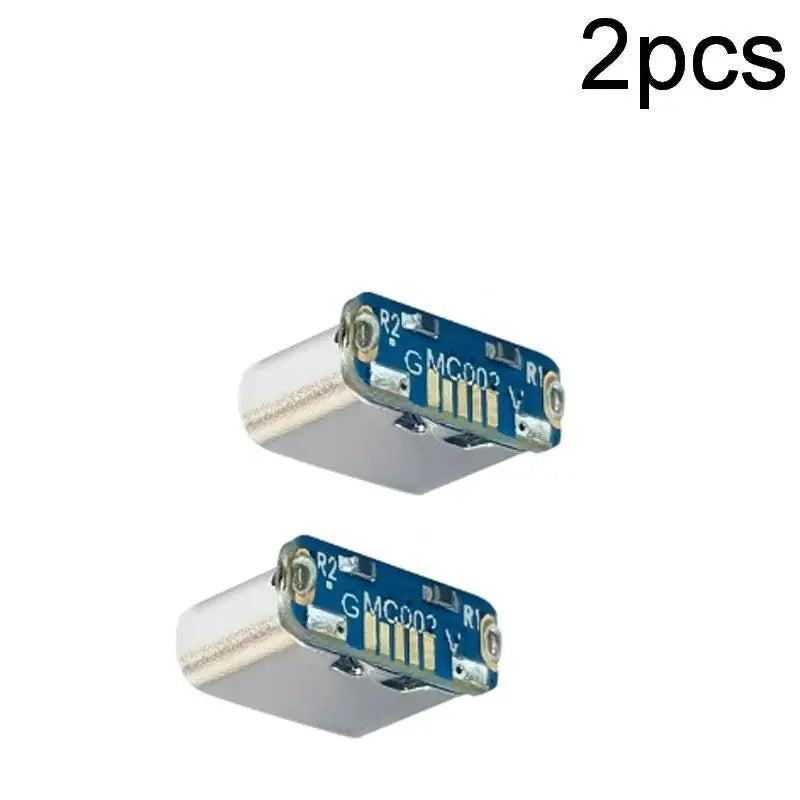

• 2 × USB Type-C Female 5-Pin SMD Solder Connectors

Note: Soldering skills are required. Colors may vary slightly due to monitor brightness and lighting conditions. Allow for minor measurement tolerances.

Related Products You May Like

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler

For more information on USB standards and connector specifications, visit the National Institute of Standards and Technology (NIST).

Learn more: USB hardware

Frequently Asked Questions

Q: Are these USB Type-C female connectors suitable for beginners?

A: These SMD Type-C solder connectors require proficiency in manual soldering techniques. They are best suited for hobbyists, electronics engineers, or repair technicians who are comfortable with PCB soldering. Beginners should practice on scrap boards before attempting a repair.

Q: What is the maximum power and data throughput of these Type-C 5-Pin sockets?

A: These connectors support up to DC 5V / 2A power delivery and are compliant with USB 2.0 Hi-Speed (480 Mbps) and USB 1.1 Low-Speed (1.5 Mbps) data standards — ideal for charging and data-transfer applications on most consumer electronics.

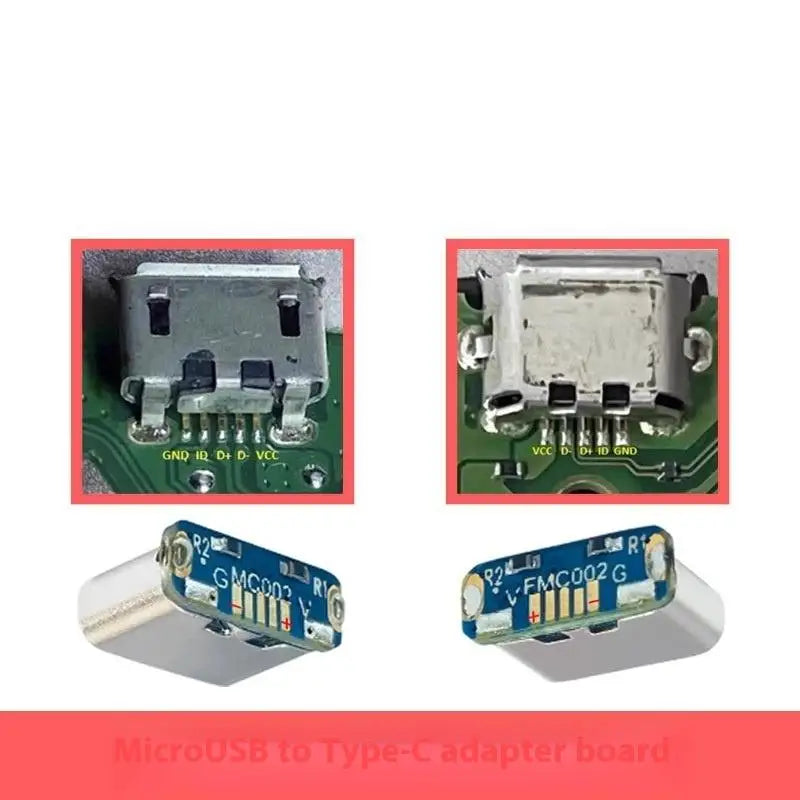

Q: Can these connectors replace a Micro-USB port on a PCB?

A: Yes. These Type-C female 5-pin sockets are specifically designed to serve as a replacement for Micro-USB 5-Pin female ports, making them a popular choice for DIY upgrades and board-level repairs on devices like speakers, chargers, and custom electronics projects.
