2-Pack Hinge Drilling Locator – Cabinet Door Positioning Jig
2-Pack Hinge Drilling Locator – Cabinet Door Positioning Jig
Couldn't load pickup availability
Drill Perfect Hinge Holes Every Time
Say goodbye to misaligned cabinet doors and crooked hinges. This 2-Pack Hinge Hole Drilling Locator is the must-have woodworking jig for anyone installing or replacing door hinges on furniture cabinets. Made from durable ABS plastic, it's lightweight, precise, and incredibly easy to use — even for first-time DIYers.
Made in Mainland China.
Why You'll Love It
- Accurate Positioning Every Time – Built-in specification markings guide you to mark base screw holes with pinpoint accuracy, eliminating guesswork.

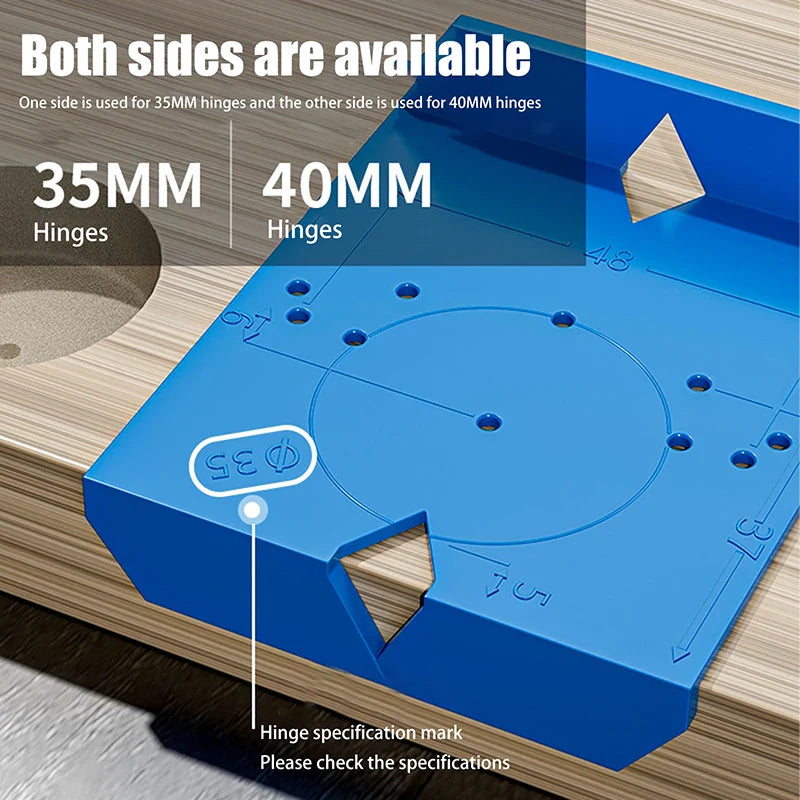

- Compatible with 35mm & 40mm Drill Bits – Works with standard cemented carbide Forstner or hinge-cup drill bits for clean, efficient holes.
- Lightweight & Portable – Compact ABS construction (62 × 69mm / 2.44 × 2.72 in) fits easily in any toolbox or apron pocket.
- Home DIY Friendly – No special skills required. Simple step-by-step use makes hinge installation quick and professional-looking.
- Pack of 2 – Work on two doors simultaneously or keep a spare on hand.
How to Use
- Determine the desired hinge position and draw the center connecting line between the two boards.

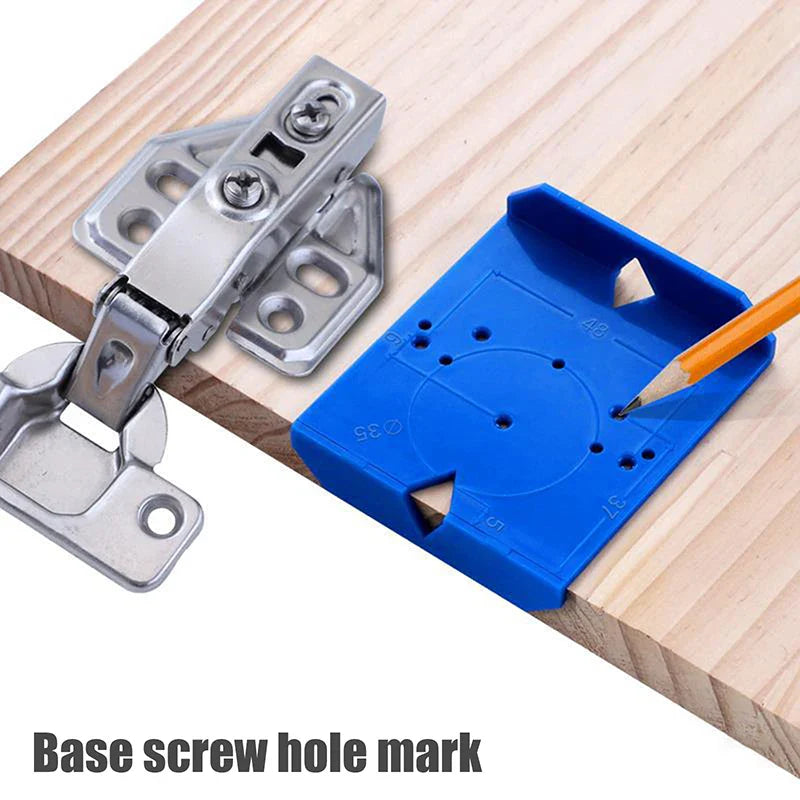

- Align the locator to the specification markings and mark the base screw hole positions on the door.
- Mark the corresponding hole positions on the cabinet frame board as well.
- Drill both sets of holes following the marked positions.
- Install the hinges — perfectly aligned, first try.
Specifications
| Material | ABS Plastic |
| Colour | Blue |
| Compatible Drill Sizes | 35mm / 40mm |

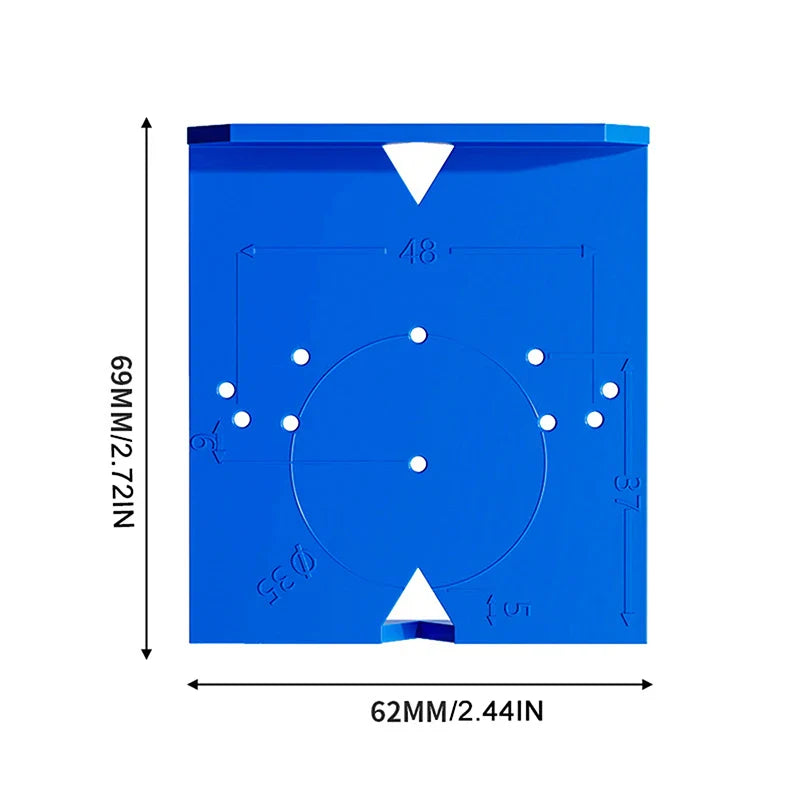

| Dimensions | 62 × 69mm (2.44 × 2.72 in) |
| Package Contents | 2 × Hinge Hole Drilling Locators |
| Origin | Made in Mainland China |
Related Tools You May Like
- 1/4" Hex Wire Twister Drill Attachment – Rebar Tie Wire Tool
- 1/2" DN15 Adjustable Garden Sprinkler Head | Lawn Irrigation
For best practices on workshop safety when using drilling tools, visit the OSHA Tools & Equipment Safety resource.
Learn more: List of tools and equipment
Frequently Asked Questions
Q: What drill bit sizes does this hinge drilling locator support?
A: This hinge hole drilling locator is designed for use with standard 35mm and 40mm cemented carbide hinge-cup or Forstner drill bits, which are the most common sizes used for European-style concealed cabinet hinges.
Q: Is this hinge jig suitable for beginners?
A: Absolutely! The hinge drilling locator is designed with clear specification markings and a straightforward step-by-step process, making it ideal for home DIY enthusiasts and woodworking beginners who want professional-quality results without complicated setup.
Q: What types of doors or cabinets is this positioning jig compatible with?
A: This woodworking hinge jig template is suitable for furniture doors, kitchen cabinets, wardrobe panels, and most other wooden board applications where European-style cup hinges are used. It works on both the door panel and the cabinet frame.
Q: How many locators are included in the package?
A: The package includes 2 hinge hole drilling locators, allowing you to work more efficiently or keep a backup on hand for future projects.
