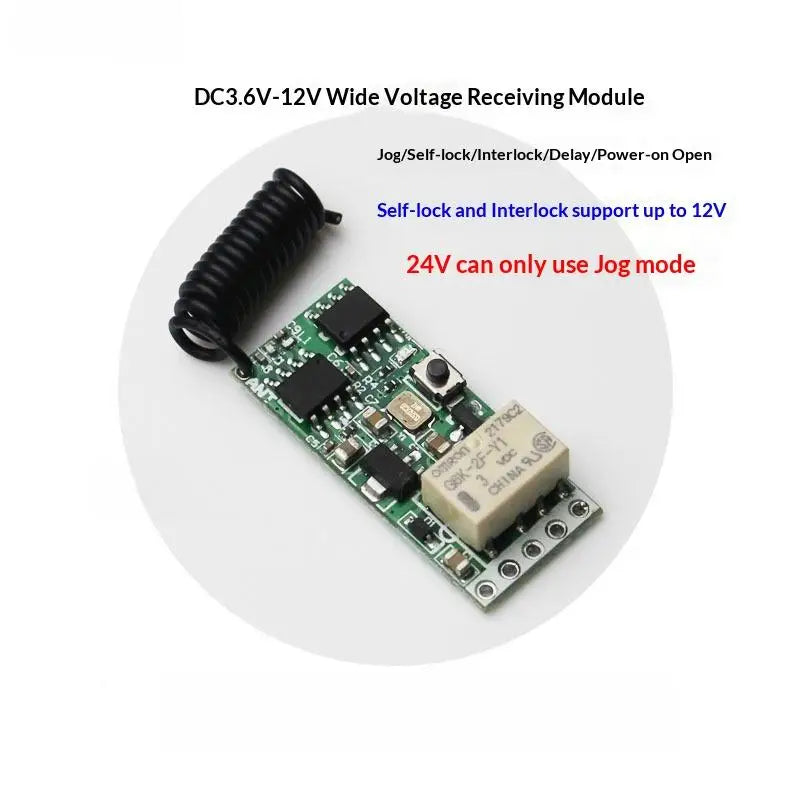

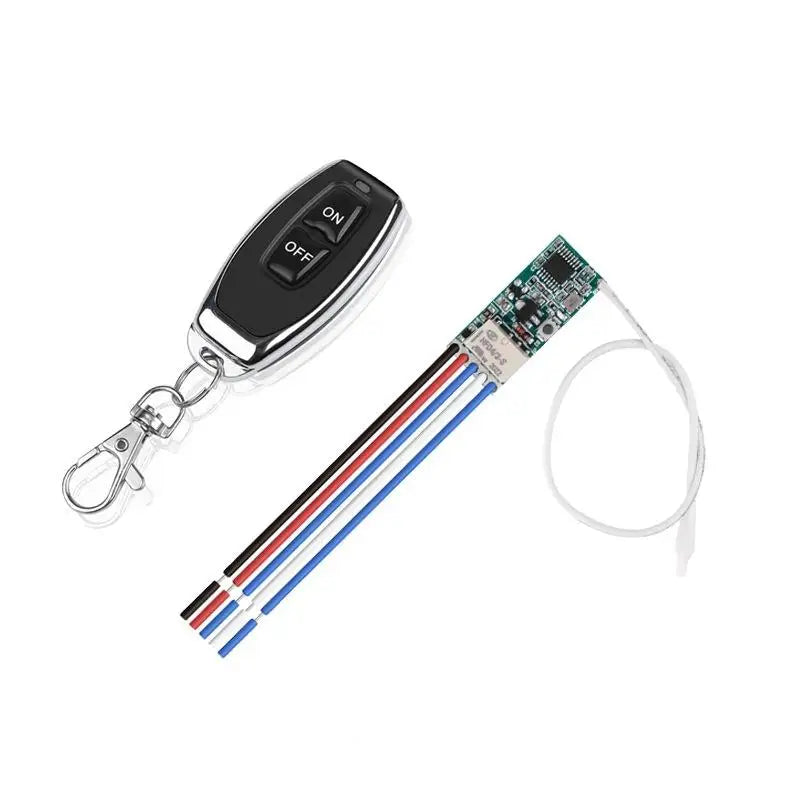

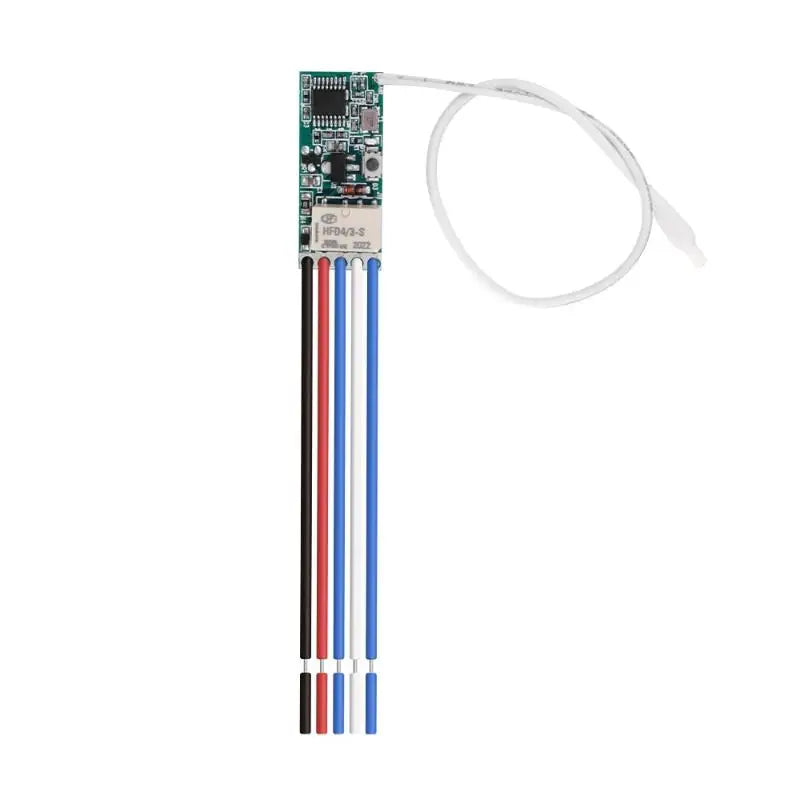

433mhz DC 3V 6V 12V 24V Mini Relay Wireless RF Remote Control Switch

$25.06 USD

~~$25.56 USD~~ $25.06 USD

Sale Sold out

Shipping calculated at checkout.

Color A1 A4 A5 A2 A3

Voltage 0

Discover the 433mhz DC 3V 6V 12V 24V Mini Relay Wireless RF Remote Control Switch — a standout decor pick featuring wireless design for dependable, everyday performance.

Specifications

Material: PVC

Description

1. Working voltage: 3-12V

2. Standby current: ≈ 6mA (without power-saving mode)

3. Working current: (module's own working current, non external load current) generally 7.5mA

4. Load power: 30W, 1A/30VDC 0.3A/125VAC

5. Receiving frequency: 433.920MHz

6. Receiver sensitivity: -100dBM

7. Port output impedance: 50ohm

8. Modulation type: ASK/OOK

9. Supporting encoding format: 1527 learning code

10. Learning method: Key press learning

11. Working mode: jog, self-locking, interlock, clear code, set switch status (whether to turn on or off when on/off)

12. Storage quantity: Maximum storage of 12 sets of instructions

13. Working temperature: -20~80 degrees Celsius

14. Size: 30.3 * 13 * 6.8mm

15. Application scope: Motor drive, signal switch, micro control, lighting control, etc

16. Recommended solution: 110V 30W UV disinfection lamp control (US standard), DIY remote control for models, electronic lock remote control for smart door locks, LED light strip remote control, etc.

17. Materials: Plastic, Metal

18. Packing: 1 set

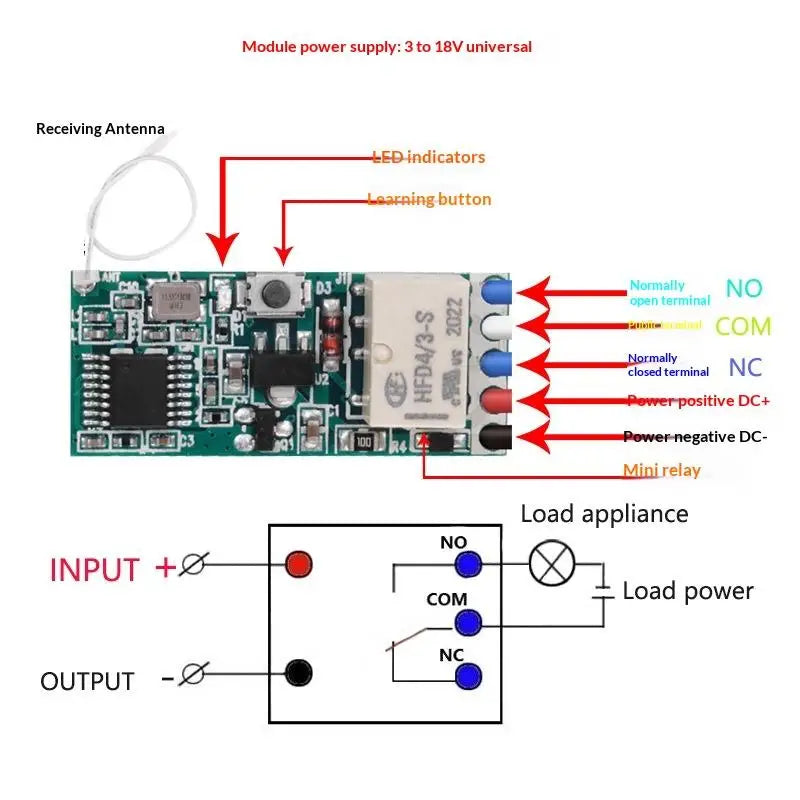

Working mode operation:

Clear data: Connect the wires, turn on the power, press the learning button on the controller, and press it continuously for 8 times to automatically clear all remote controls for learning codes. After clearing, the remote control that was previously learned to code will no longer be controlled. Choose the mode you want to learn coding.

1. Jogging learning method:

Press the code matching button on the control board once, and the LED indicator light will flash once. After the LED indicator light is on, press the remote control button that requires code matching. The LED indicator light on the control board will flash continuously three times, indicating successful learning of code matching.

2. Self locking learning method:

Press the code matching button on the control board twice in a row, and the LED indicator light will flash twice. After the LED indicator light is on, press the remote control button that requires code matching, and the LED indicator light on the control board will flash three times in a row. Learning code matching is successful.

3. Interlocking learning method:

Press the code matching button on the control board three times in a row, and the LED indicator light will flash three times. After the LED indicator light is on, press the remote control button that requires code matching, and the LED indicator light on the control board will flash three times in a row. Learning code matching is successful.
