1600W Solar Grid Tie Inverter 120V 230V IP65 Waterproof Aluminum

$724.96 USD

~~$969.84 USD~~ $724.96 USD

Sale Sold out

Shipping calculated at checkout.

Color A

Discover the 1600W Solar Grid Tie Inverter 120V 230V IP65 Waterproof Aluminum — a standout decor pick featuring waterproof design for dependable, everyday performance.

Specifications

Brand Name: Qiilu

1600W Solar Grid Tie Micro Inverter 120V 230V IP65 Waterproof Aluminum Alloy for Outdoor Roof

Specification:

Item Type: Micro Inverter
Material: Aluminum alloy, electronic components
Weight: Approx. 3550g/125.22oz
Size: 37x30.5x4cm/14.57x12.01x1.57in
Model: WVC 1600
Maximum Input Power: 1600W
Output Voltage Mode: 120 230V auto identify AC voltage
Solar Panel Open Circuit Voltage Range: 30-54VOC
Peak Power Tracking Voltage: 22-60V
Minimum Maximum Start Up Voltage: 22-60V
Maximum DC Short Circuit Current: 4x18A
Maximum Input Operating Current: 4x16A
Output Parameters: 120V 230V
Peak Output Power: 1600W
Rated Output Power: 1550W
Rated Output Current: 13.3A (120V), 6.95A (230V)
Rated Voltage Range: 80-160VAC (120V), 180-280VAC (230V)
Rated Frequency Range: 48-51Hz 58-61Hz
Power Factor: >95%
Number of Connected Units Per String Circuit: 3 units (single phase) (120V), 6 units (single phase) (230V)
Output Efficiency: 120V 230V
Static MPPT Efficiency: 99.50%
Maximum Output Efficiency: 95%
Night Time Power Loss: Total Harmonic Distortion: Appearance and Technical Features:
Operating Temperature Range: -40°C to +65°C
Waterproof Rating: IP65 NEMA3R
Heat Dissipation Mode: Self cooling
Communication Mode: 433MHz
Power Transmission Mode: Reverse transmission, load priority use

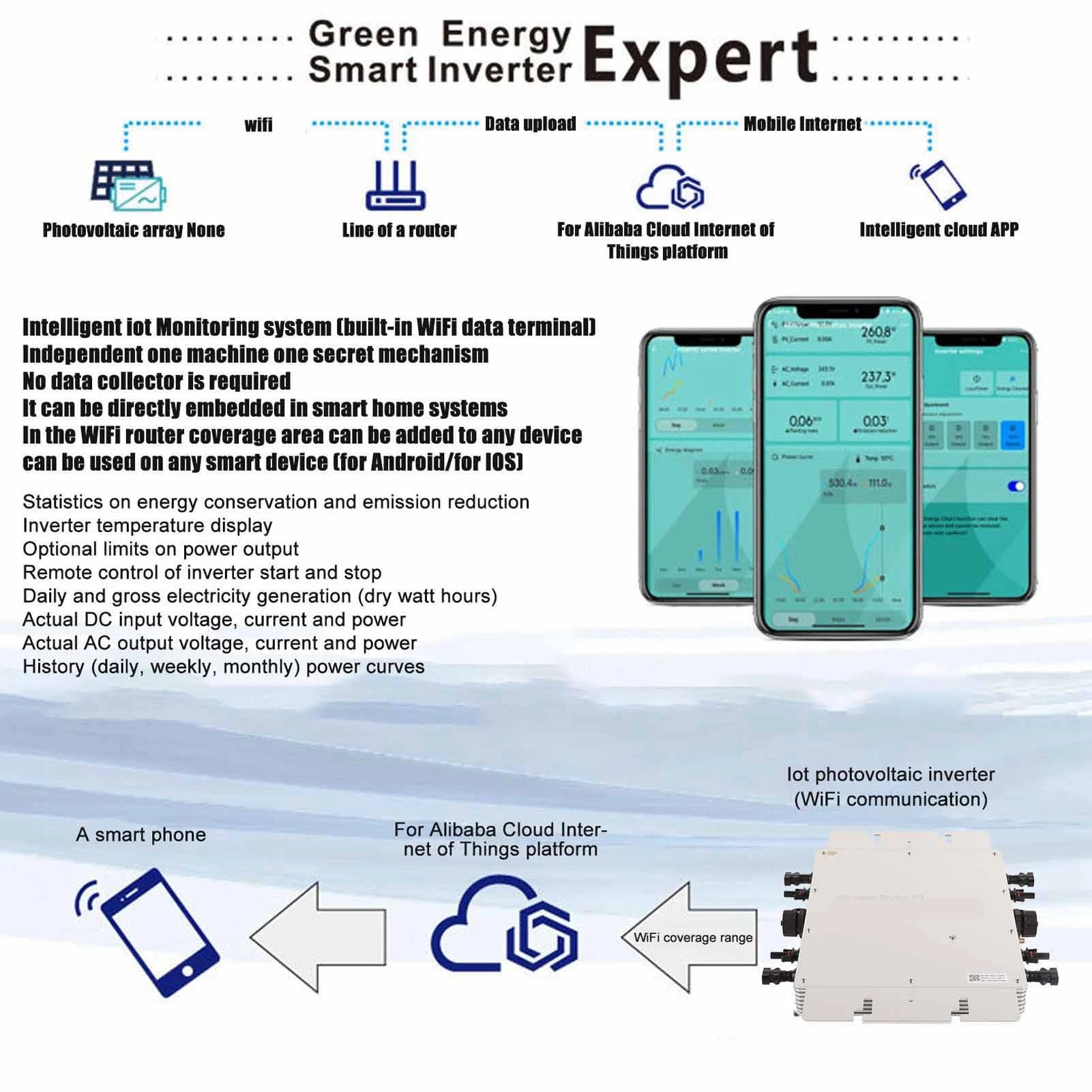

Monitoring System: Mobile APP
Electromagnetic Compatibility:
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Grid disturbance:
EN61000 3 2 Safety Regulation EN62109.UL STD.1741
Grid Testing: DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.
Use: Solar power generation equipment
Applicable Scenarios: Solar power generation system (rooftop, outdoor)

How to Use:

Step 1 Attach the inverter to the photovoltaic panel bracket with the screws provided with the machine. The inverter is mounted on the bracket of the PV panel. Step 2 Connect the DC connection on the PV panel with positive and negative terminals Connect it to the DC input of the inverter. Step 3 Open the waterproof cover of the inverter AC output connector and connect the AC connection cable to the AC waterproof plug. Step 4 Connect the AC output cable to the AC main cable; Step 5 Repeat steps 1 to 3 to install and connect all inverters; Step 6 Connect the AC main cable to the utility grid to start your green energy journey.

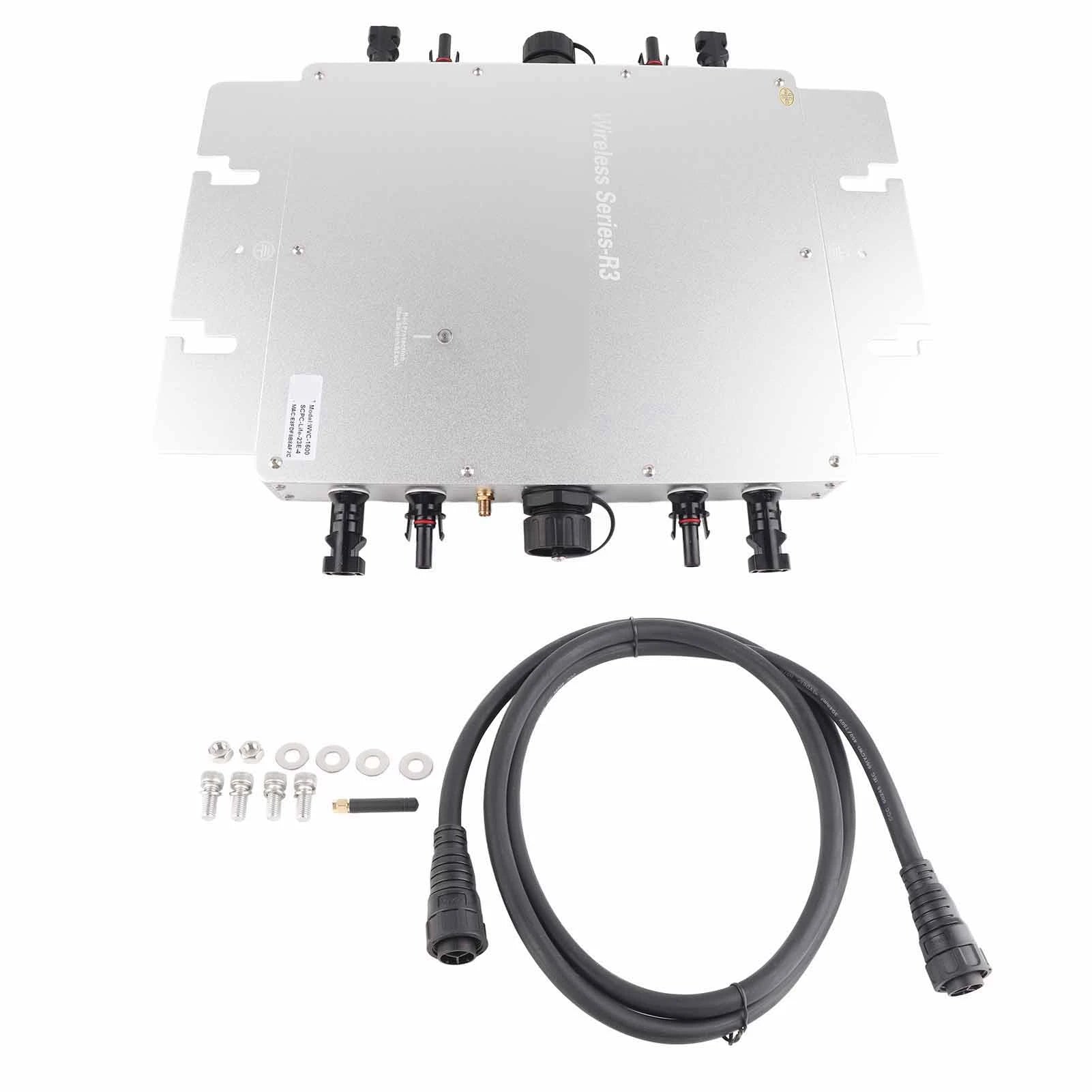

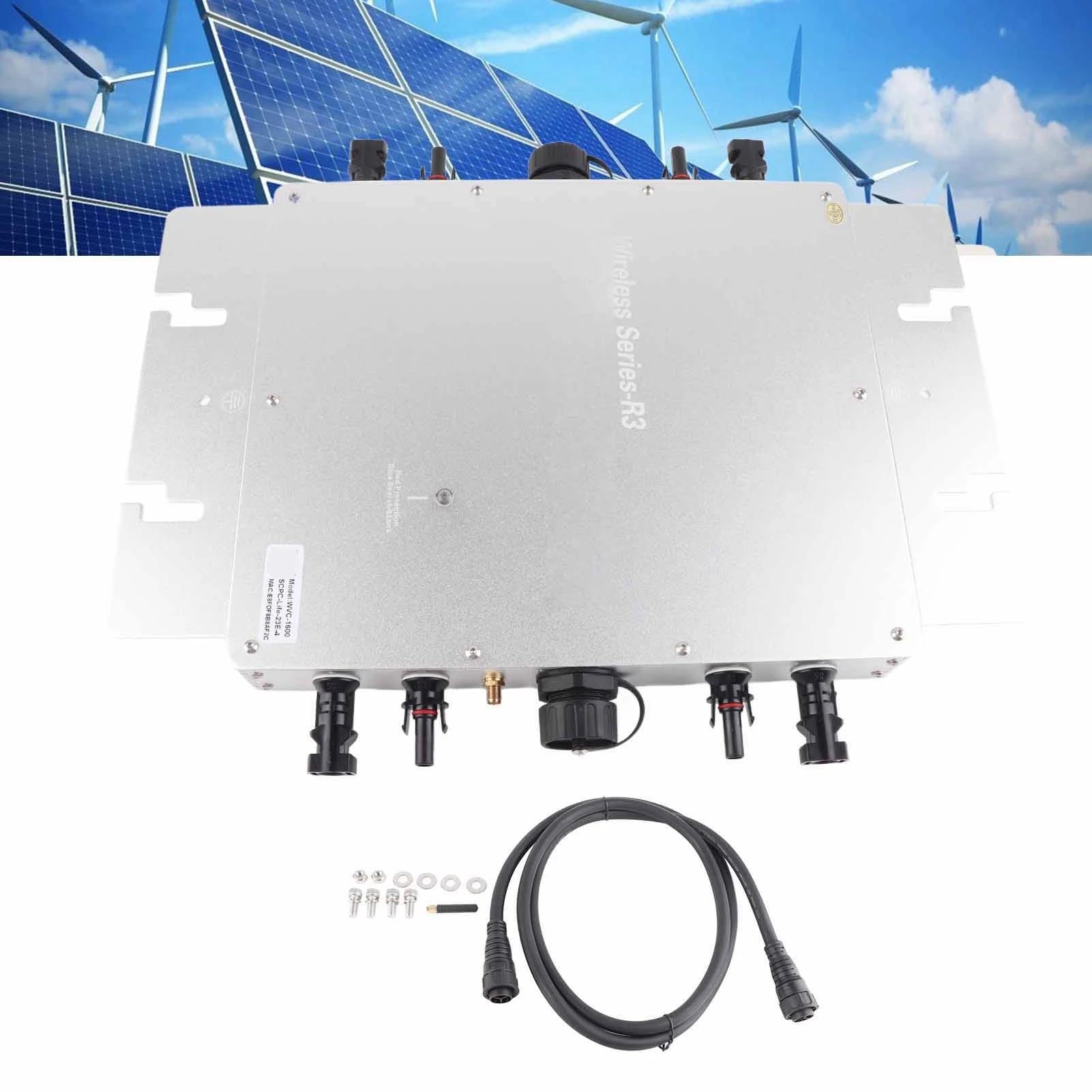

Package List:

1 x Solar Inverter

1 x Cable Wire

1 x Instruction Manual

4 x Screw

4 x Nut

4 x Washer

4 x Gasket

1 x Antenna

Before installing micro inverter products, please read this manual and pay attention to the installation details. This manual contains important instructions to follow when installing and maintaining microinverters in order to reduce the danger of electric shock and ensure safety. To reduce the danger of electric shock and to ensure safe installation and operation of Kaideng MicroInverters Always follow the following safety symbols present in this document to indicate hazardous conditions and important safety instructions.
