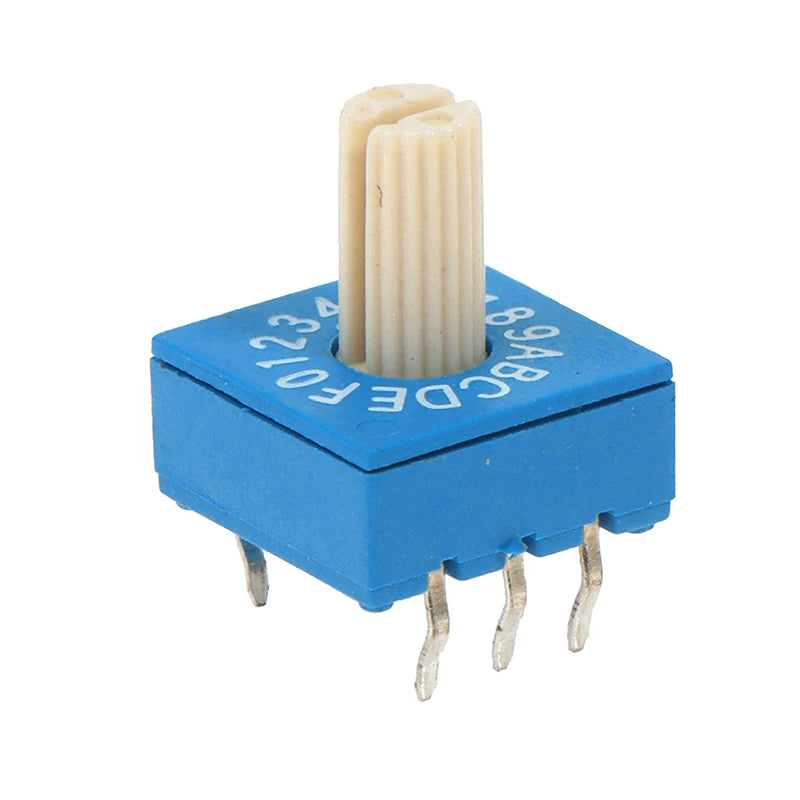

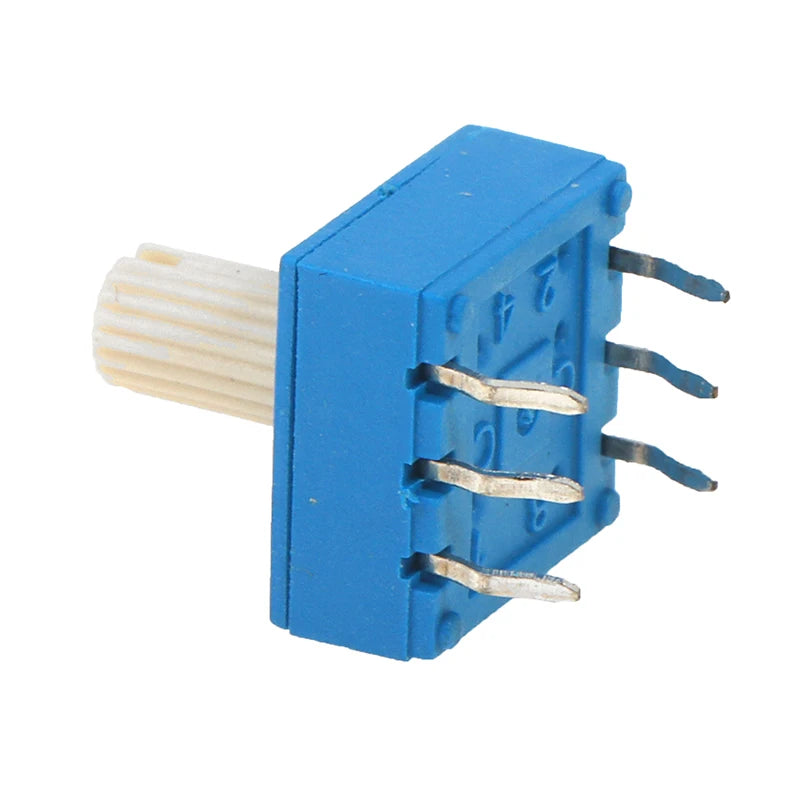

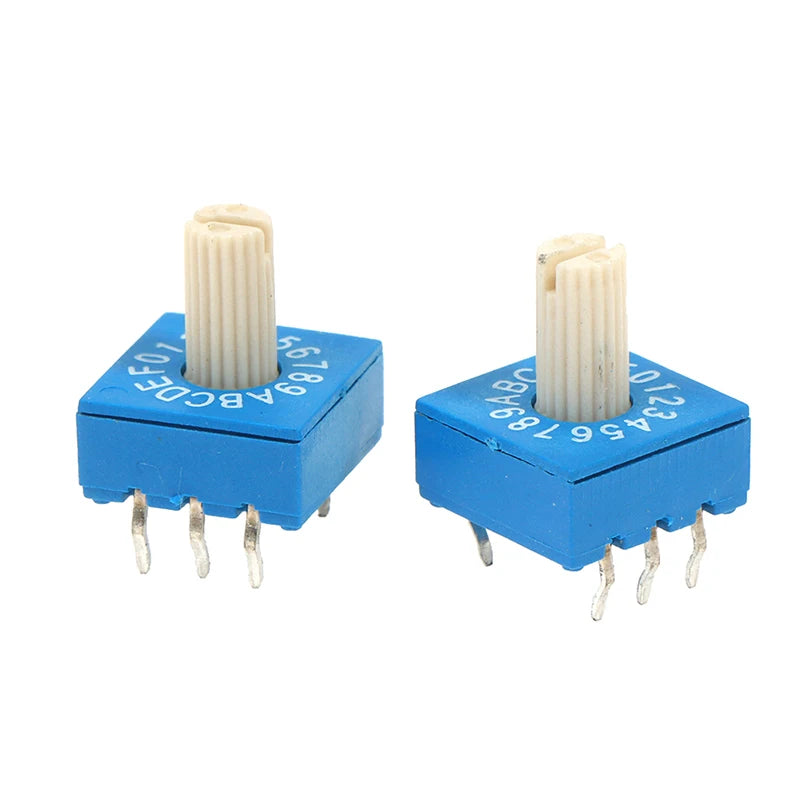

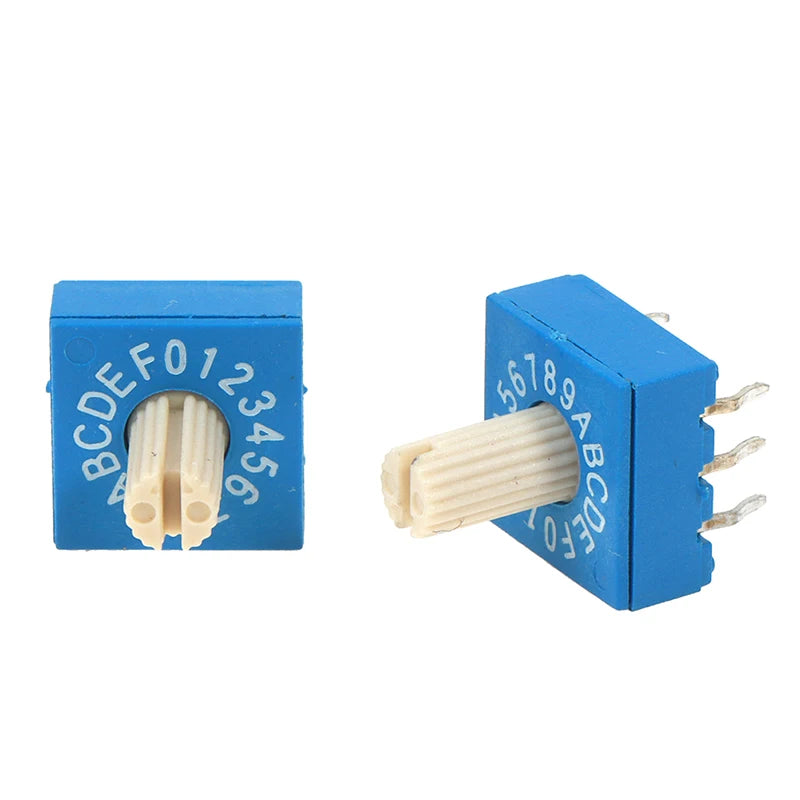

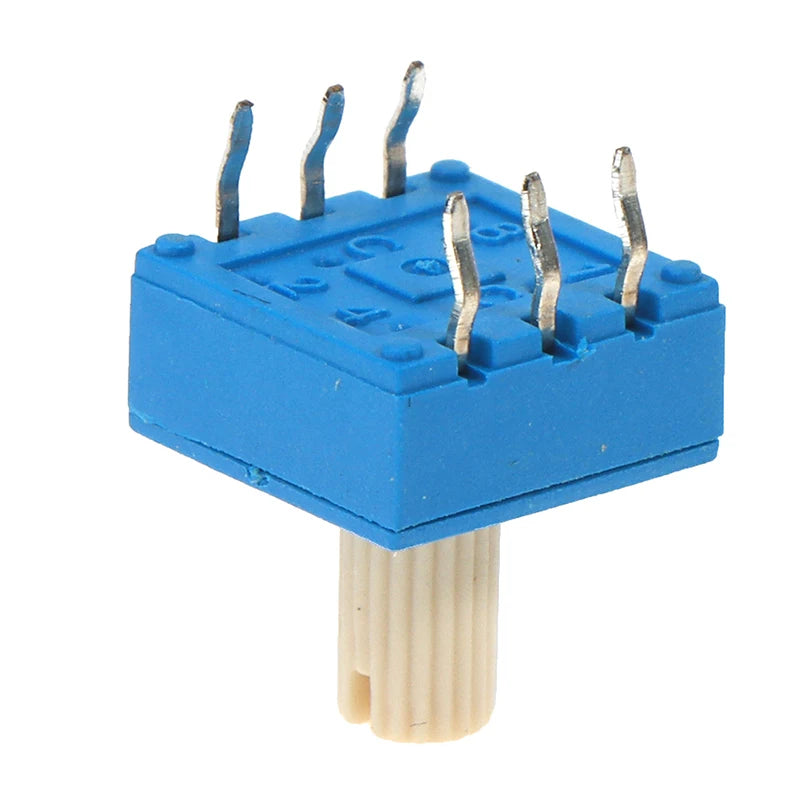

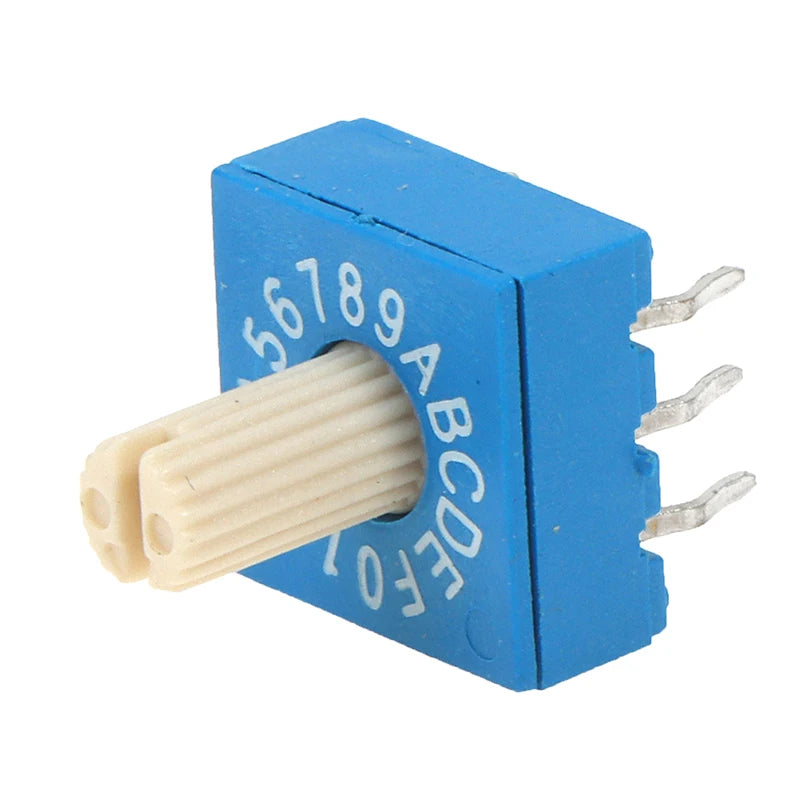

16-Bit Rotary Encoder Switch 0-F 8421C BCD Code with Handle

16-Bit Rotary Encoder Switch — 0-F Range, 8421C BCD Positive Code

This compact 16-position rotary encoder switch is an essential component for electronics enthusiasts, engineers, and DIY makers. With a 0-F (0–15) hexadecimal range and 8421C BCD positive code output, this switch offers reliable, precise position selection in a space-saving form factor. The integrated handle makes manual adjustment quick and intuitive, making it ideal for control panels, instrument enclosures, prototyping boards, and embedded system projects.

Key Features

• 16-Bit Encoding: Covers the full 0–F (hexadecimal) range, providing 16 selectable positions for versatile input control.
• 8421C BCD Positive Code: Industry-standard Binary Coded Decimal output ensures straightforward integration with microcontrollers, PLCs, and logic circuits.
• 3:3 Switch Configuration: Compact footprint suitable for panel mounting and PCB installation alike.
• Built-In Handle: Allows easy manual rotation and precise position selection without additional tools.
• Durable Construction: Made from a combination of plastic and metal for lasting performance in both prototyping and production environments.
• Wide Application: Perfect for frequency selection, address setting, mode control, and parameter adjustment in electronic devices.

Specifications

• Type: Rotary Encoder Switch
• Code Type: 8421C BCD Positive Code
• Position Range: 0–F (16 positions)
• Material: Plastic + Metal
• Color: As shown in pictures
• Package Includes: 1 × Rotary Encoder Switch with Handle
• Country of Origin: Made in China

Who Is This For?

Whether you're an electronics hobbyist building your next project on a DIY maker board, a technician assembling control panels, or a student learning digital electronics, this rotary encoder switch is a reliable, cost-effective component to have in your toolkit. Its standard BCD output means it's compatible with a wide range of Arduino, Raspberry Pi, and other microcontroller-based setups.

Looking for more project essentials? Check out our related products:
— "1% Better Every Day" Motivational Canvas Wall Art Print
— "Everything Is Figureoutable" Sage Green Quote Canvas Wall Art

For more information on electronic components and safe DIY electronics practices, visit the U.S. Consumer Product Safety Commission (CPSC).

Learn more: Rotary switch

Frequently Asked Questions

Q: What does "8421C BCD Positive Code" mean for a rotary encoder switch?

A: BCD (Binary Coded Decimal) 8421C is a standard encoding format where each decimal digit is represented by a 4-bit binary number using the weights 8, 4, 2, and 1. "Positive code" means the output is in standard (non-inverted) logic. This makes the 8421C rotary encoder switch easy to interface with most digital circuits, microcontrollers, and PLCs without the need for additional signal inversion.

Q: Can I use this rotary encoder switch with an Arduino or Raspberry Pi?

A: Yes! The 16-bit rotary encoder switch with 8421C BCD output is compatible with Arduino, Raspberry Pi, and most other microcontroller platforms. Simply connect the output pins to your digital input pins and read the BCD value to determine the selected position (0–F). It's a popular choice for setting addresses, modes, or parameters in embedded projects.

Q: What is included in the package?

A: Each package includes 1 piece of the 16-bit (0-F) rotary encoder switch with handle. No additional components or tools are required for basic installation.

Q: Is this switch suitable for panel mounting?

A: Yes, this rotary encoder switch is designed for panel mounting applications as well as PCB installation. Its compact 3:3 configuration and integrated handle make it a great choice for instrument panels, control boxes, and enclosures.
