16/19/22MM 5-Wire Quick Connector for LED Push Button Switch

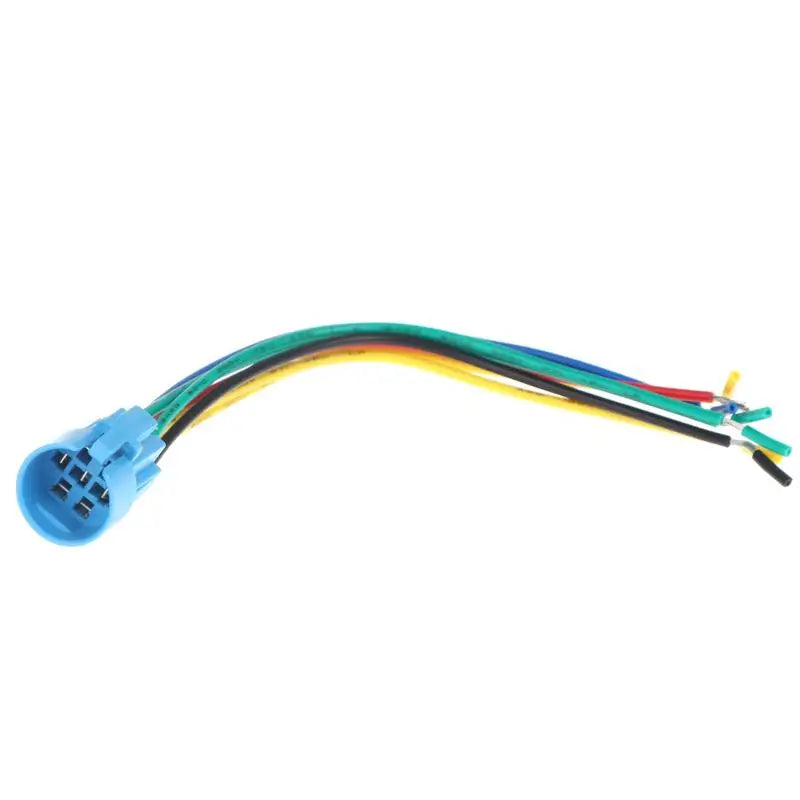

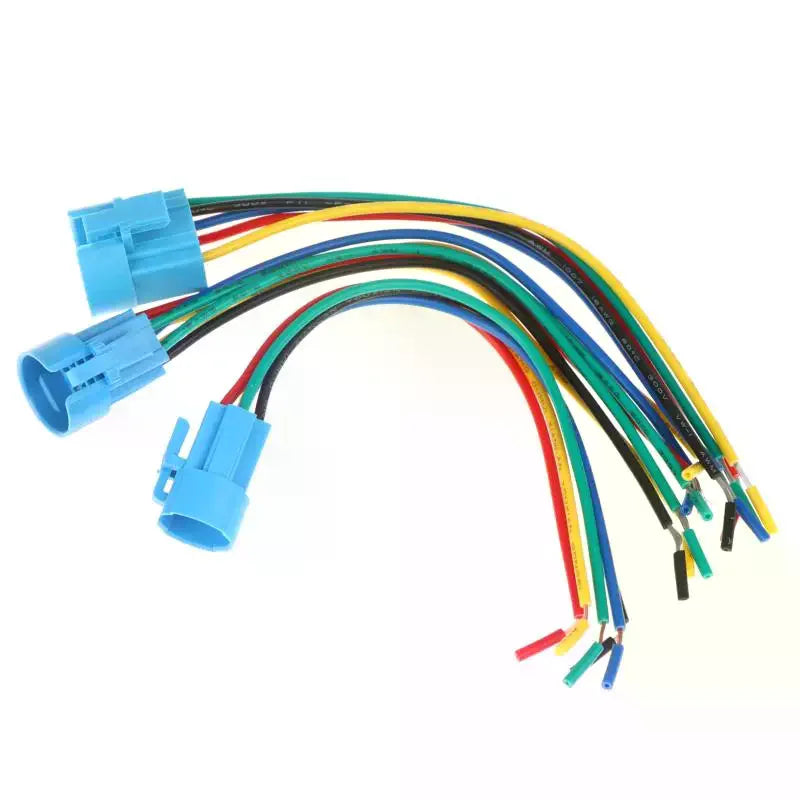

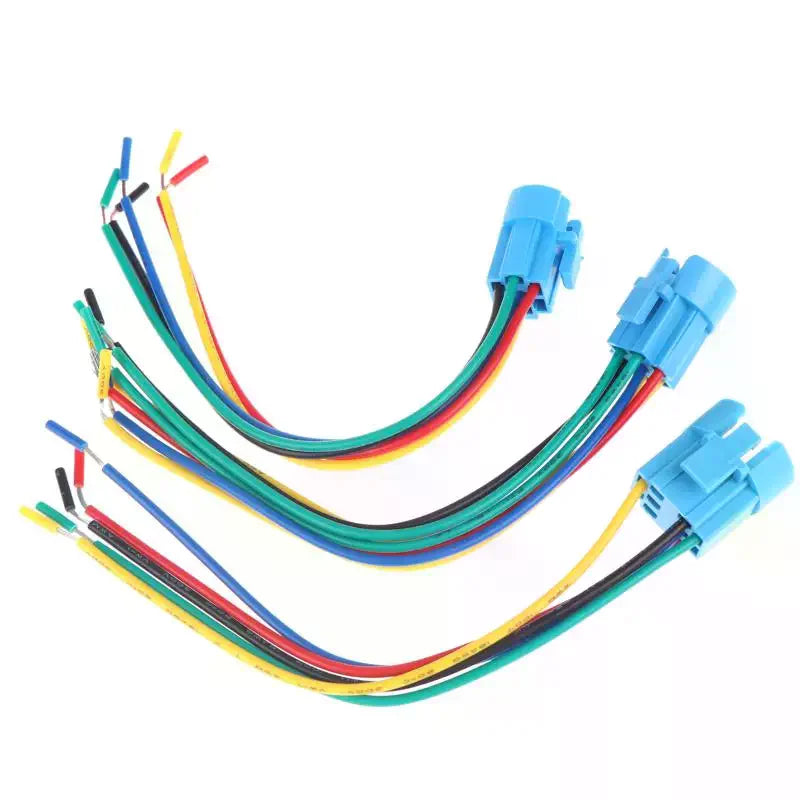

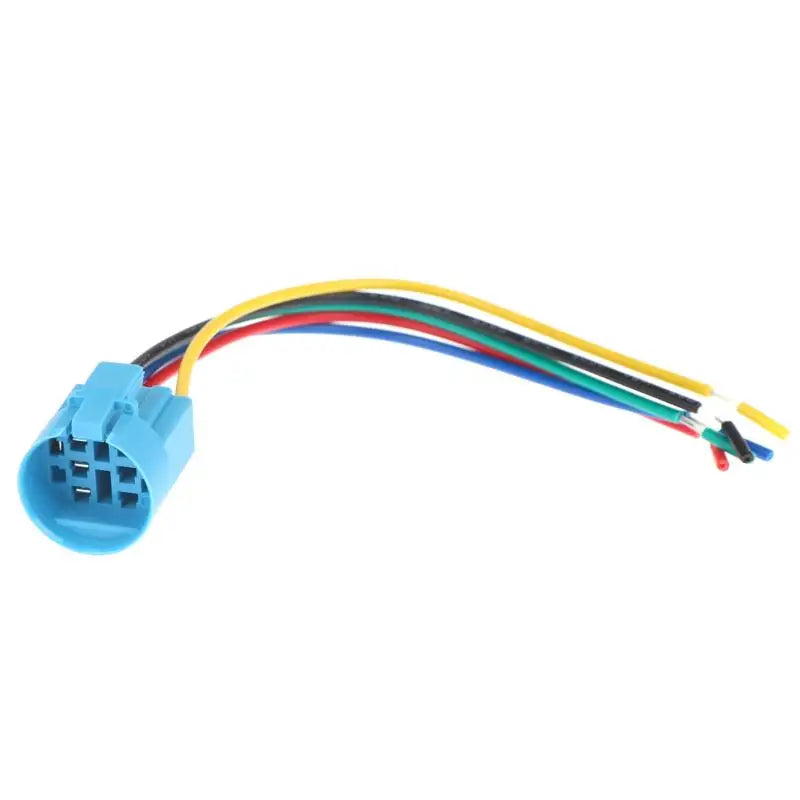

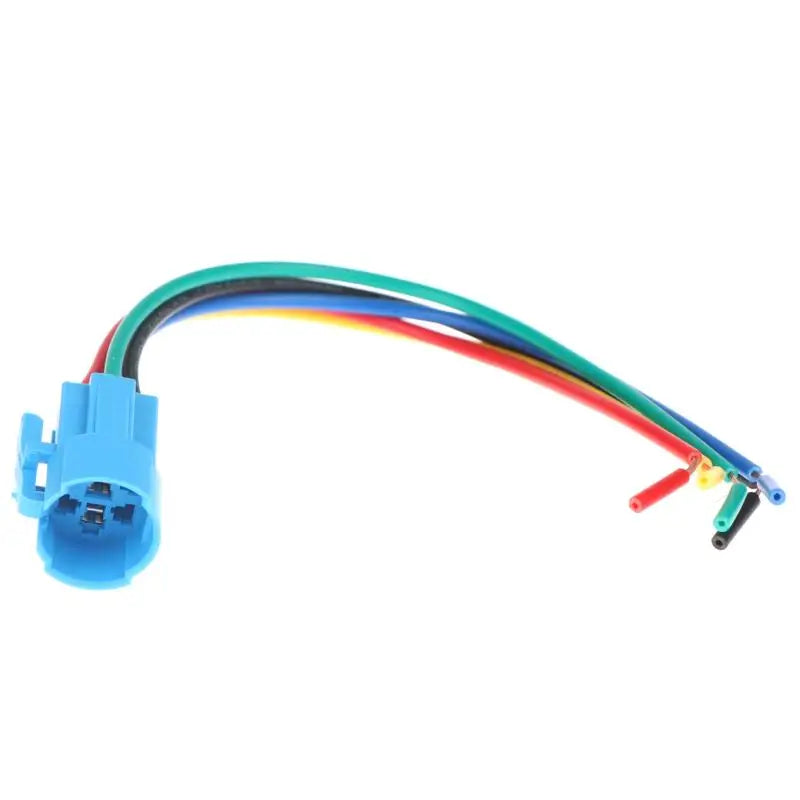

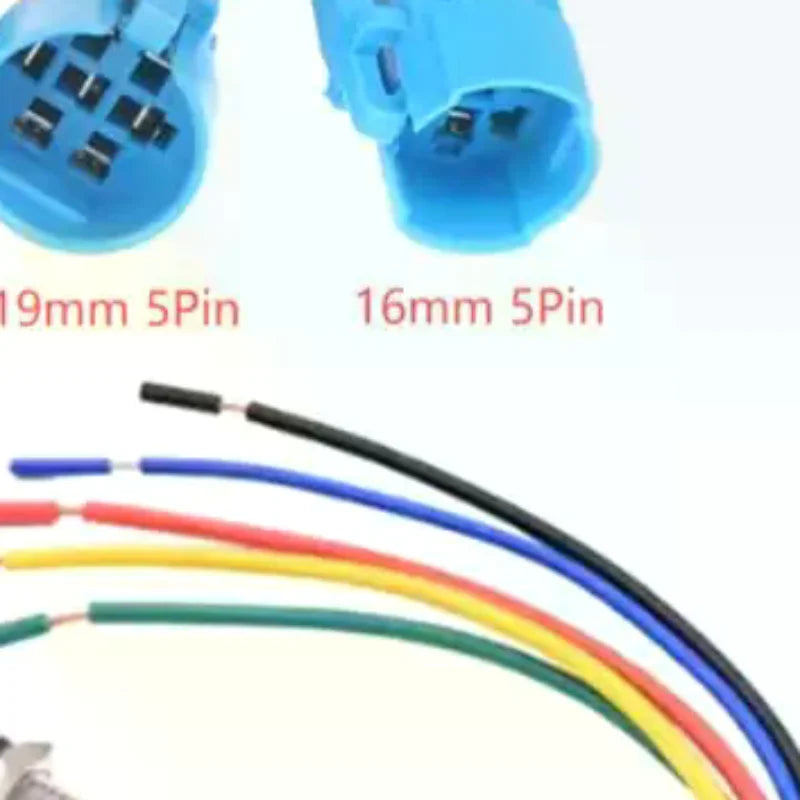

5-Wire Quick Connector for LED Push Button Switches — 16mm, 19mm & 22mm

Simplify your wiring projects with this versatile 5-wire cable quick connector socket harness, designed specifically for 16mm, 19mm, and 22mm metal push button switches. Whether you're wiring LED indicator lights, control panels, machinery, or DIY electronics, this plug-and-play connector assembly makes wiring fast, clean, and reliable — no soldering required.

Key Features

• Universal Fit: Compatible with 16mm, 19mm, and 22mm panel mount push button switches
• 5-Wire Design: Supports multi-function LED illuminated switches (power, ground, signal, and LED leads)
• Quick-Connect Assembly: Snap-on socket harness for fast, tool-free installation and removal
• Low Voltage Safe: Rated for low voltage applications — below 50V AC or 75V DC (EU LVD compliant)
• Durable Plastic Construction: Lightweight yet robust blue plastic housing resists wear and vibration
• High Quality: New manufacture, built for reliable electrical contact and long-term use
• Package Includes: 1 × Connector socket harness assembly

Specifications

• Compatible Sizes: 16mm / 19mm / 22mm push button switches
• Number of Wires: 5
• Material: Plastic
• Color: Blue
• Voltage Rating: Below 50V AC or 75V DC
• Package Quantity: 1 Piece
• Made in: Mainland China

Perfect For

• LED illuminated push button switch wiring
• Control panel and dashboard assemblies
• Industrial machinery and automation
• Automotive and marine switch harness builds
• DIY electronics and maker projects

Please Note: Allow 2–3% dimensional variance due to manual measurement. Actual color may vary slightly from images due to monitor display differences.

Helpful Electrical Wiring Resources

For general electrical safety guidance, visit the U.S. Consumer Product Safety Commission – Electrical Safety Resource.

You May Also Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Don't Overthink" Motivational Quote Canvas Wall Art Print

Learn more: Twist-on wire connector

Frequently Asked Questions

Q: What push button switch sizes are compatible with this 5-wire quick connector?

A: This quick connector socket harness is designed to fit 16mm, 19mm, and 22mm panel mount metal push button switches, making it highly versatile for a wide range of applications including LED-illuminated switches used in control panels, automotive dashboards, and DIY electronics projects.

Q: Do I need to solder this wire harness connector to my switch?

A: No soldering is required. This is a quick-connect assembly — the socket harness simply snaps onto the terminals of compatible 16mm, 19mm, or 22mm push button switches, allowing for fast and clean installation or removal without any special tools.

Q: What is the voltage rating for this 5-wire LED switch connector?

A: This connector is rated for low voltage applications only — below 50V AC or 75V DC, in compliance with EU LVD (Low Voltage Directive) standards. It is ideal for LED indicator circuits, control signal wiring, and other low-voltage switch harness applications.

Q: How many wires does this connector include and what are they used for?

A: The connector includes 5 wires, which accommodate the typical connections needed for an LED illuminated push button switch: power, ground, normally open (NO), normally closed (NC), and LED signal leads. This makes it suitable for multi-function illuminated switch assemblies.
