1550nm FTTH Passive Optical Receiver – Fibre to RF Converter
1550nm FTTH Passive Optical Receiver – Fibre to RF Converter
Couldn't load pickup availability

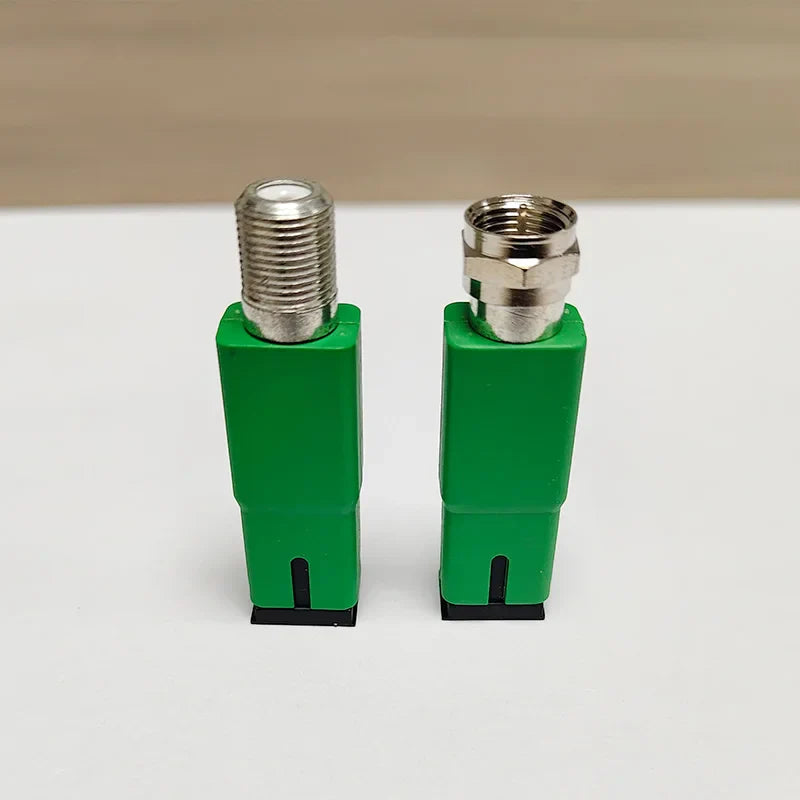

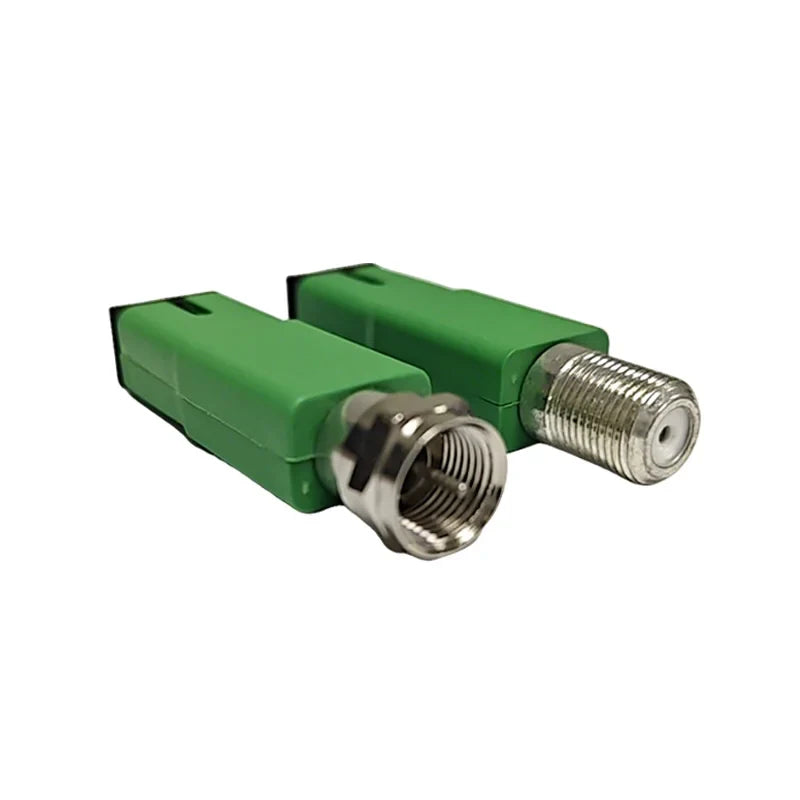

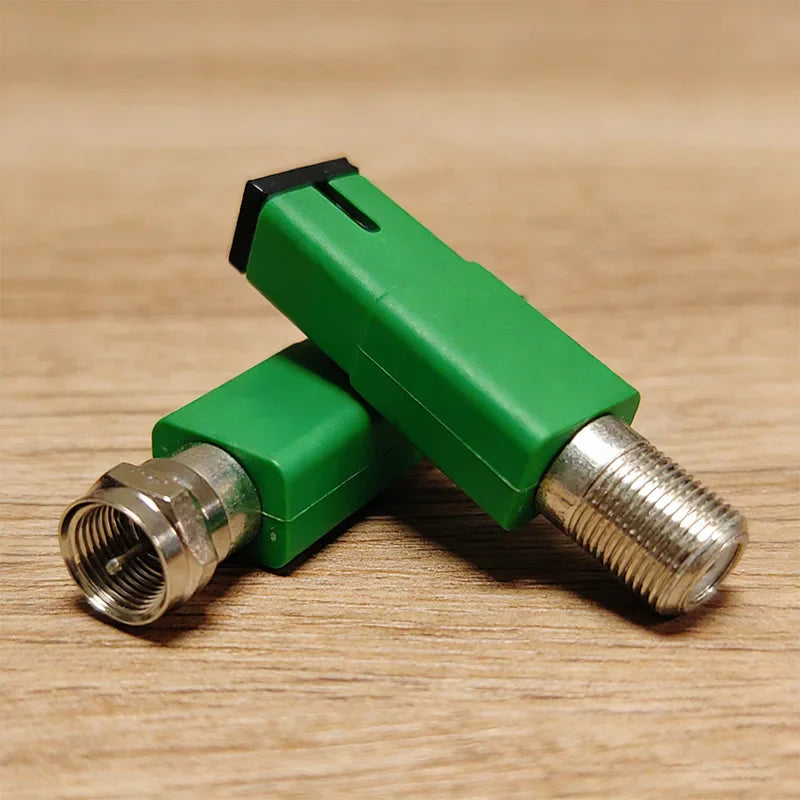

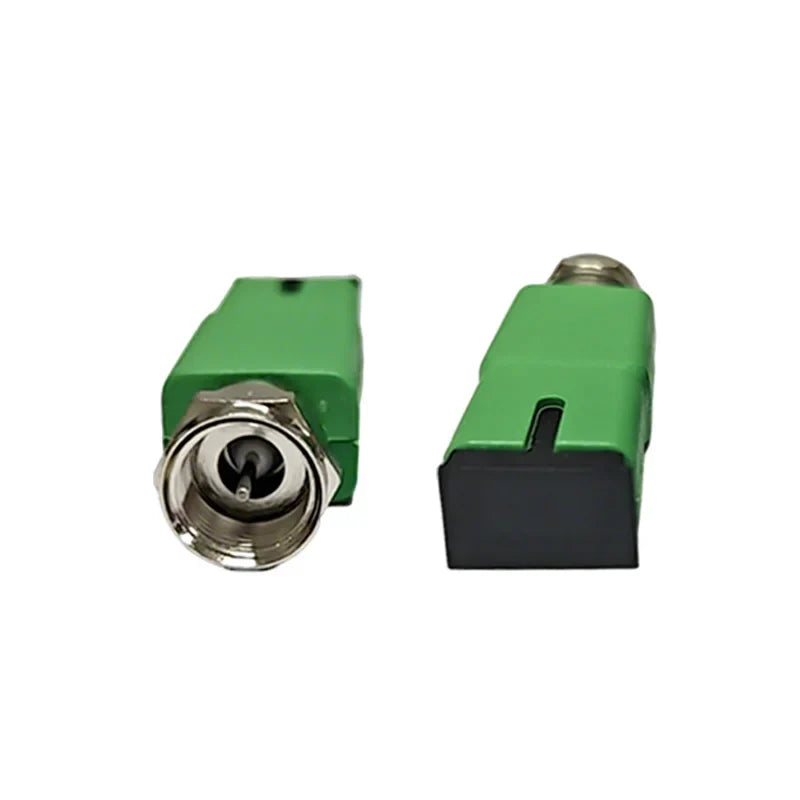

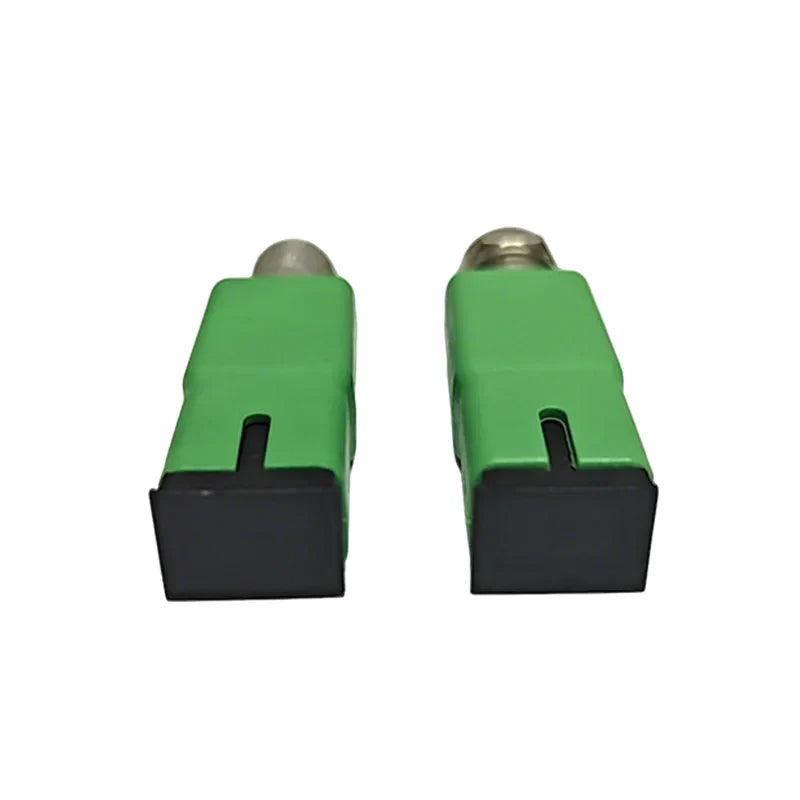

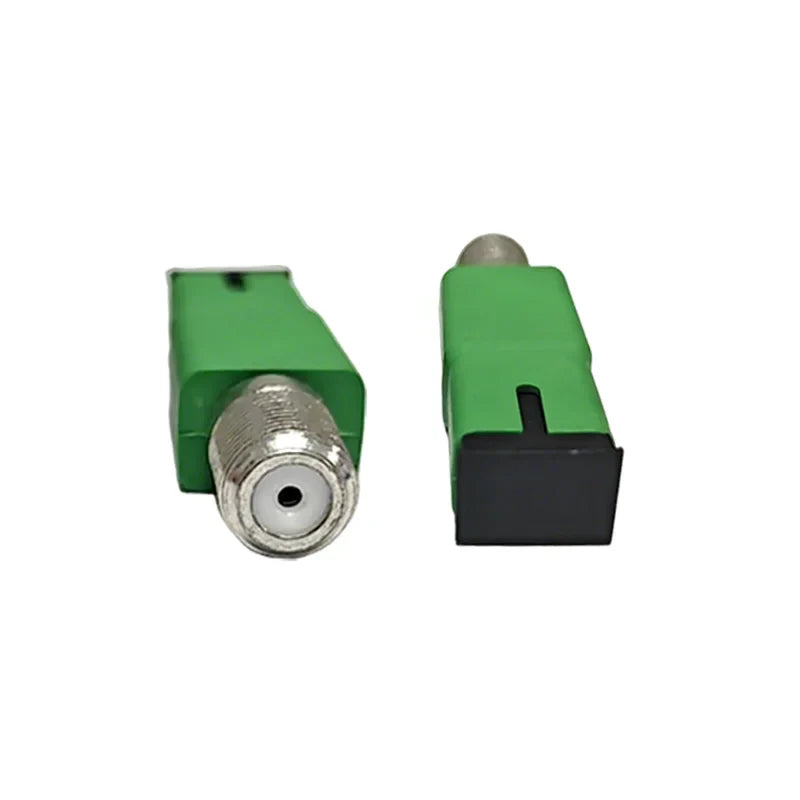

Tuoying RX-16 Passive Optical Receiver – Fibre-Optic to RF Signal Conversion
The Tuoying RX-16 1550nm Passive Optical Receiver is a compact, high-performance analogue optical receiver designed for FTTH (Fibre to the Home) and Cable TV (CATV) networks. It seamlessly converts incoming optical signals to electrical RF signals, making it an essential component for modern broadband and cable distribution systems — no external power supply required.
Key Features
- Passive Design: No power supply needed — simple, reliable, and cost-effective for last-mile fibre installations.
- Wide Frequency Range: Operates across 45–1000 MHz, supporting a full range of analogue and digital cable TV channels.
- 1550nm Wavelength: Optimised for standard single-mode fibre FTTH networks at 1550nm.
- Optical Receive Range: –10 to +2 dBm input optical power, ensuring stable performance across varying signal levels.
- High Output Level: Delivers a typical output of 40 dBµV at Popt = –10 dBm / 550 MHz.
- Excellent Flatness: Frequency response flatness ≤1 dB across the full 45–1000 MHz band.
- Compact Form Factor: Ultra-small 35 × 13.2 × 14.2 mm body fits neatly into enclosures and distribution boxes.
- SC/APC Input Connector: Industry-standard SC/APC optical fibre input interface for low-loss connectivity.
- F-Type RF Output: British-system male F connector for direct connection to CATV splitters, amplifiers, or set-top boxes.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1550 nm |
| Optical Receive Range | –10 to +2 dBm |
| Frequency Range | 45–1000 MHz |
| Output Level (Typical) | 40 dBµV @ Popt = –10 dBm, 550 MHz |
| Frequency Response Flatness | ≤1 dB (45–1000 MHz) |
| Impedance | 75 Ω |
| Input Connector | SC/APC (Optical Fibre) |
| Output Connector | F-Type Male (British System) |
| Power Supply | Passive (No Power Required) |
| Dimensions | 35 × 13.2 × 14.2 mm |
| Colour | White |
| Net Weight | 30 g |
| Packaging | Kraft Paper Box (127 × 123 × 34 mm) |
Ideal Applications
- FTTH (Fibre to the Home) last-mile signal distribution
- Cable TV (CATV) analogue and digital signal networks
- HFC (Hybrid Fibre-Coaxial) network endpoints
- Broadband RF signal conversion and distribution systems
- Professional audio/video signal transmission infrastructure
About Tuoying
Tuoying is a specialist manufacturer focused on digital television, professional audio/video signal processing, and network transmission equipment. With expertise spanning encoding, modulation, RF front-end design, and IPTV systems, Tuoying's products are trusted across professional broadcast and telecommunications installations worldwide.
Made in Mainland China.
Related Products
- 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
- 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone
- 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
For further reading on fibre-optic broadband network standards and infrastructure, visit the NIST Communications Technology Laboratory.
Frequently Asked Questions
Q: What is the Tuoying RX-16 1550nm Passive Optical Receiver used for?
A: The RX-16 is used to convert optical signals from a fibre-optic network (at 1550nm wavelength) into electrical RF signals for Cable TV (CATV) or FTTH distribution. It supports a frequency range of 45–1000 MHz and requires no external power supply, making it simple to integrate into any HFC or FTTH network endpoint.
Q: Does the passive optical receiver require a power supply?
A: No — the RX-16 is a fully passive device. It draws no external power, which simplifies installation significantly and eliminates the need for a power outlet near the receiver location.
Q: What connectors does the RX-16 optical receiver use?
A: The optical input uses a standard SC/APC connector for low-reflection fibre-optic connection, while the RF output uses a male F-type connector (British system), compatible with standard CATV coaxial cable infrastructure.
Q: What optical input power range is supported?
A: The RX-16 supports an optical receive range of –10 to +2 dBm, providing reliable performance across typical FTTH and CATV signal levels delivered from optical line terminals (OLTs) or optical amplifiers.
