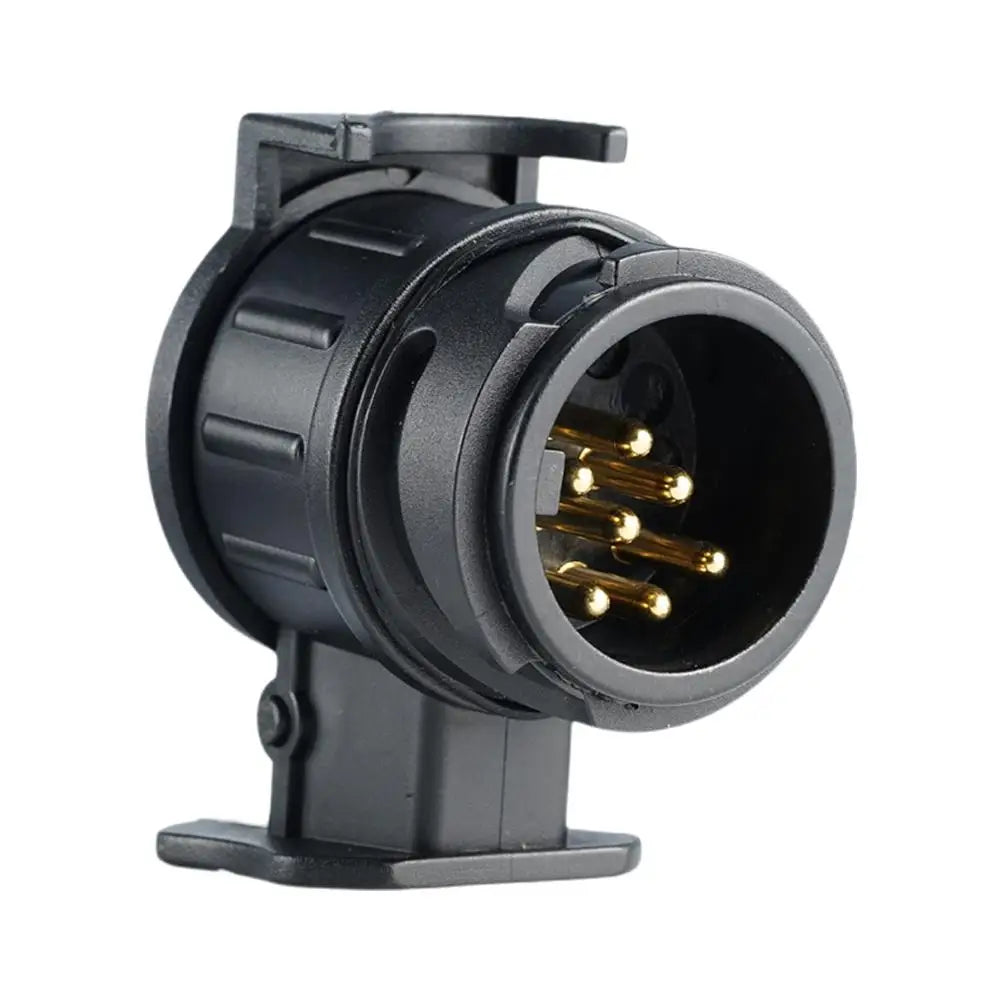

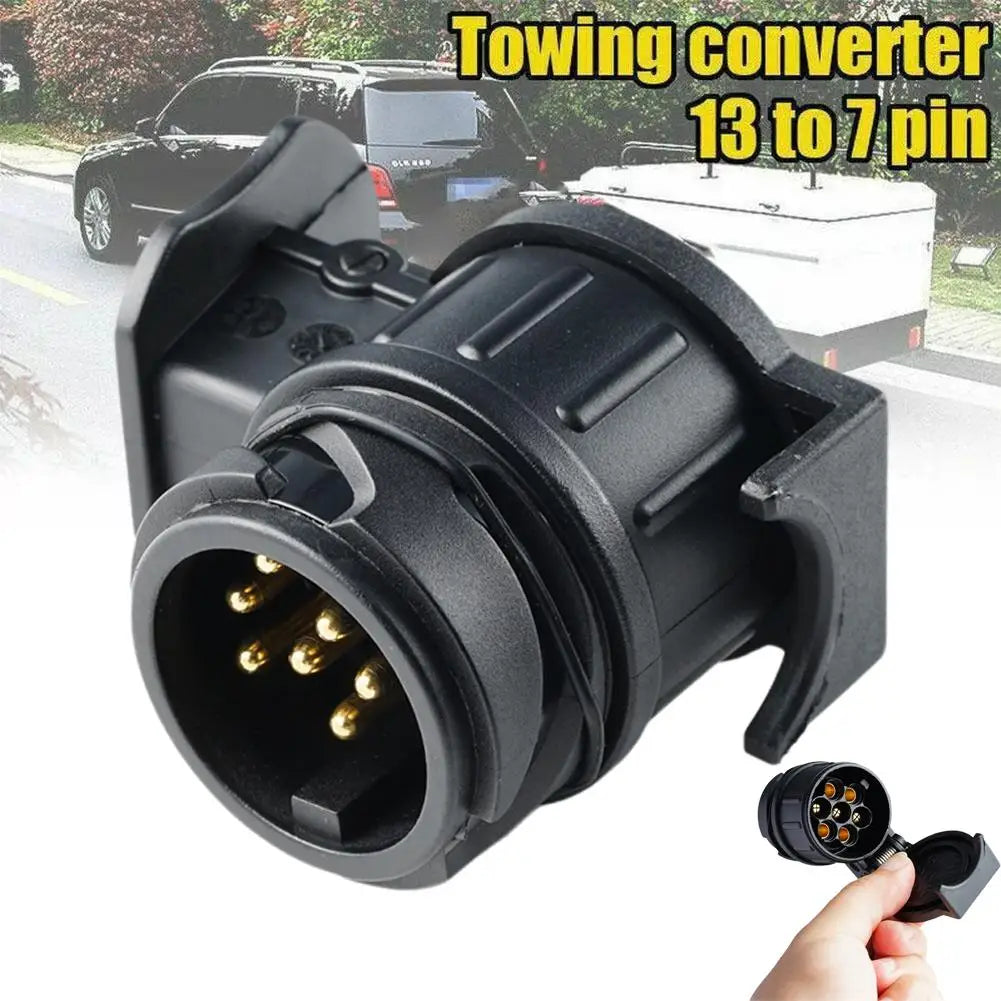

13 to 7 Pin Trailer Adapter – 12V Waterproof Towbar Connector

13 to 7 Pin Trailer Plug Adapter – Waterproof Towbar Socket Converter

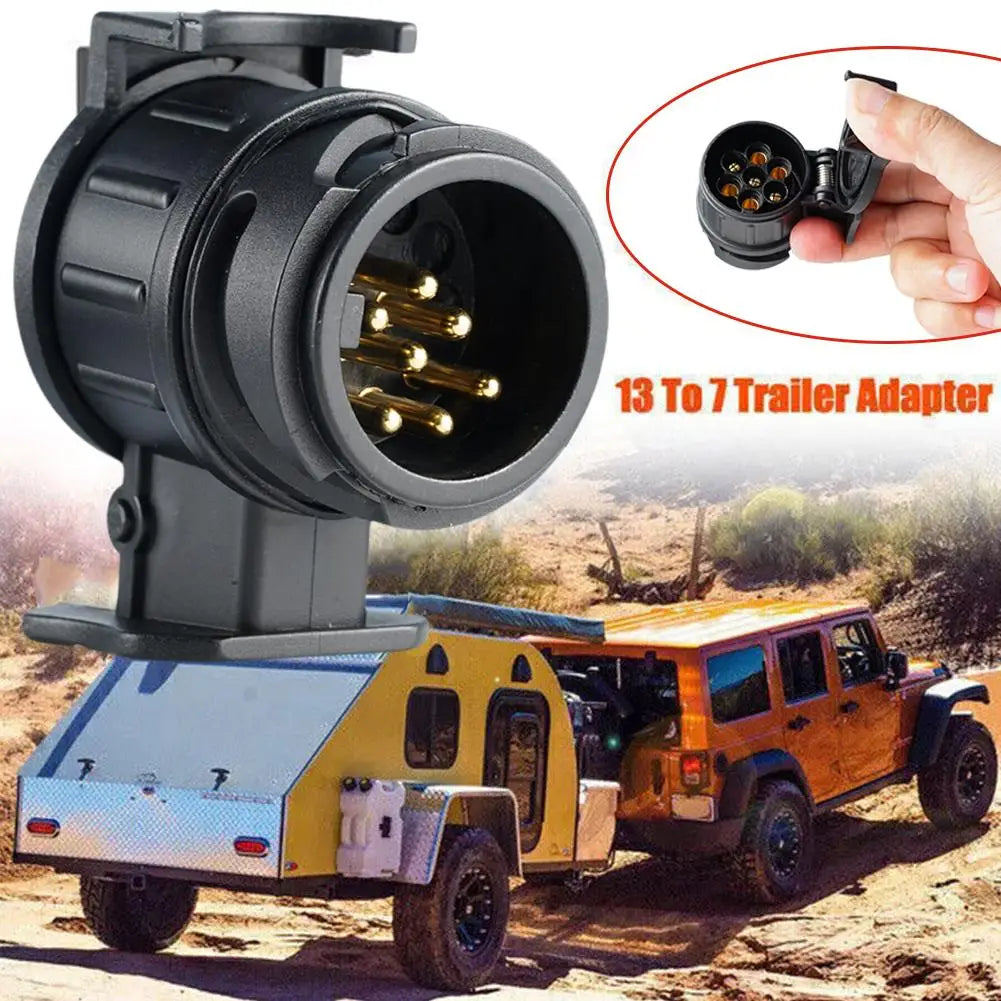

Seamlessly connect your European-standard trailer to any 13-pin towbar socket with this robust 13 to 7 pin trailer adapter. Designed for caravans, horse boxes, boat trailers, and utility trailers, this 12V adapter transfers all essential lighting signals — indicators, brake lights, fog lamps, and tail lights — from your tow vehicle to your trailer with zero fuss.

Key Features

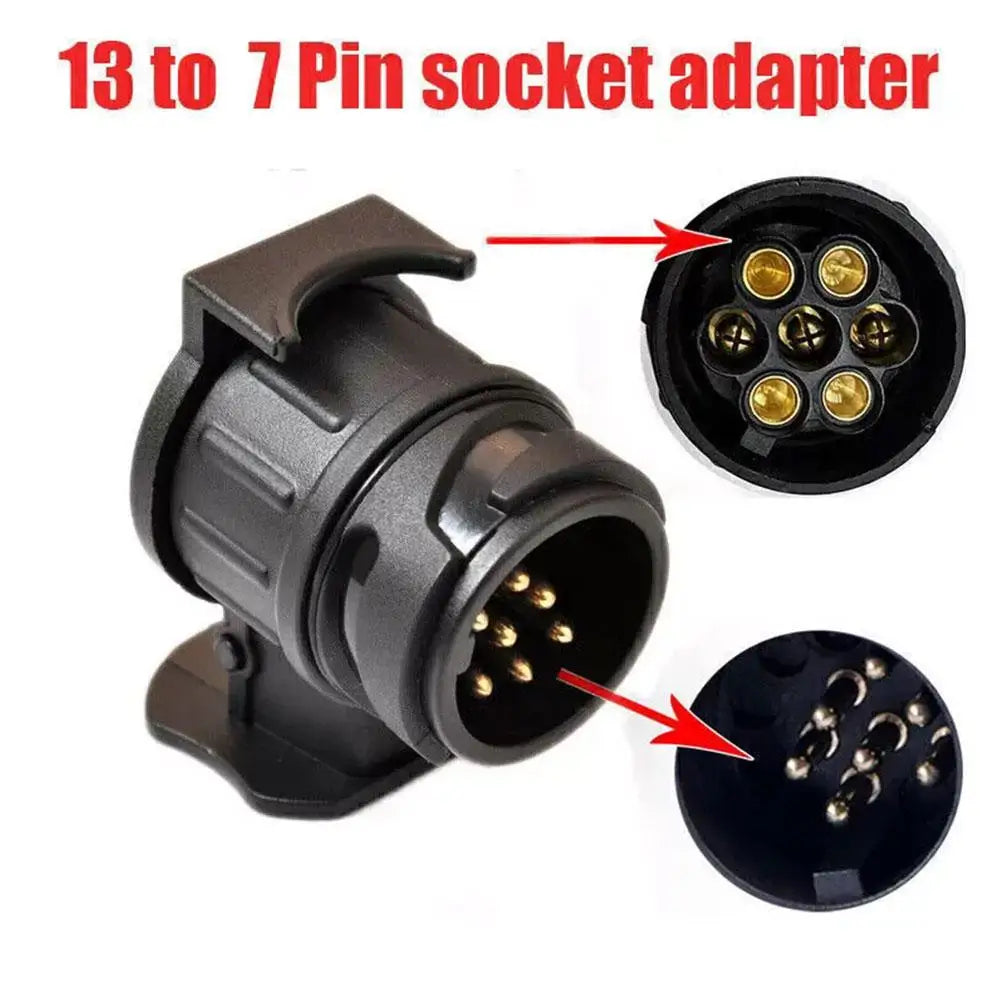

• Universal European Standard Compatibility: Converts your car's 13-pin socket to a 7-pin female socket for older trailers and caravans.

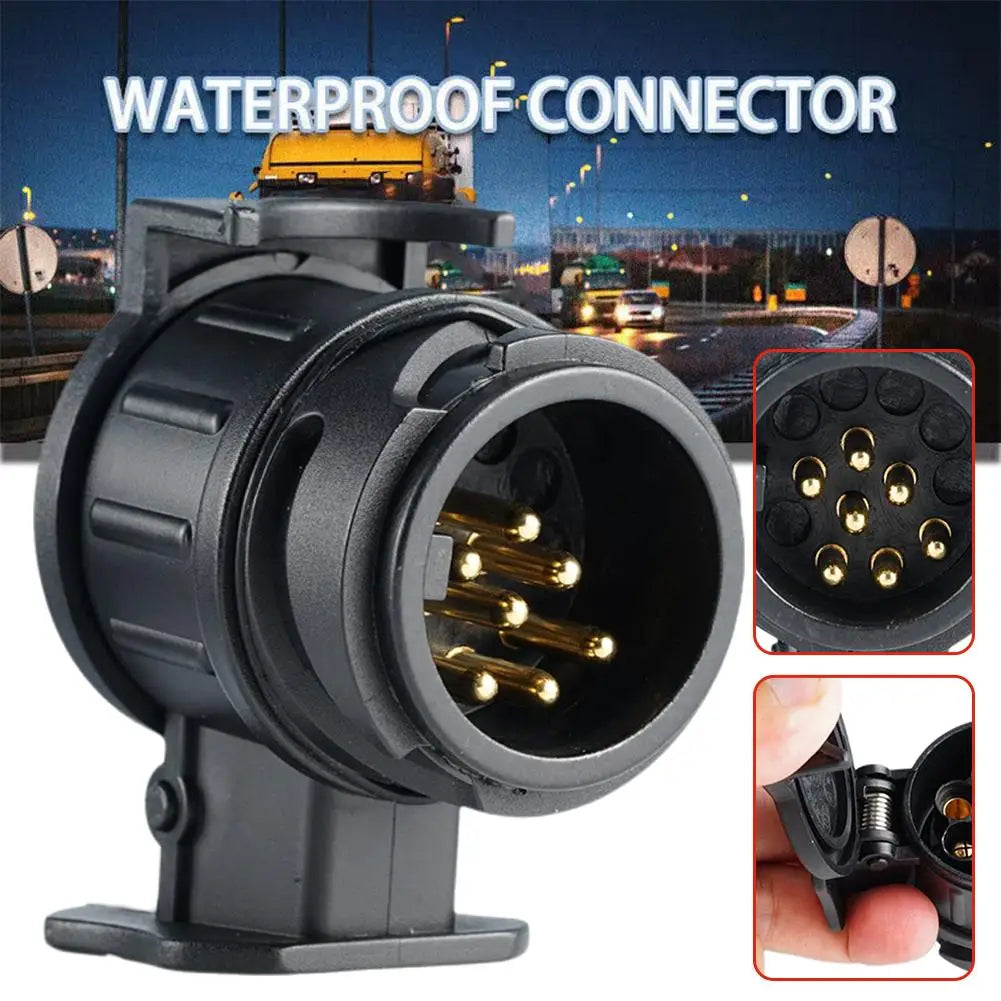

• Weatherproof Protection: Spring-loaded locking flap shields the connection from rain, dust, and debris when not in use — and locks the 7-pin plug securely in place when connected.
• Full Signal Transfer: Passes left/right indicators, brake lights, rear fog lamps, tail lights, and number plate lights reliably every time.
• 12V System Compatible: Works with standard 12V vehicle electrical systems — ideal for cars, SUVs, and light trucks.
• Secure & Stable Connection: Ensures a firm, rattle-free link between your tow vehicle and trailer, eliminating intermittent signal faults.
• Easy Plug-and-Play: No wiring or special tools required — simply plug in and tow with confidence.

Pin Wiring Reference

7-Pin (12N Black Cable) Connections

• Pin 1 – Yellow: Left / H Direction Indicator
• Pin 2 – Blue: Rear Fog Lamps
• Pin 3 – White: Earth Return
• Pin 4 – Green: Right / H Direction Indicator
• Pin 5 – Brown: Right / H Tail & Number Plate Lamp
• Pin 6 – Red: Brake Lights
• Pin 7 – Black: Left / H Tail & Number Plate Lamp

13-Pin Connections

• Pin 1 – Yellow: Left Indicator
• Pin 2 – Blue: Fog Light
• Pin 3 – White: Earth Return
• Pin 4 – Green: Right Indicator
• Pin 5 – Brown: Right Tail / Side Light
• Pin 6 – Red: Brake / Stop Lights
• Pin 7 – Black: Left Tail / Side Light
• Pin 8 – Pink: Reversing Light
• Pin 9 – Orange: 12V Permanent Power from Battery
• Pin 10 – Grey: 12V Ignition-On (Battery Charging / Fridge)
• Pin 11 – White/Black: Earth for Terminal 10
• Pin 12 – White/Blue: Not Usually Used
• Pin 13 – White/Red: Earth for Terminal 9

Product Details

• Voltage: 12V DC

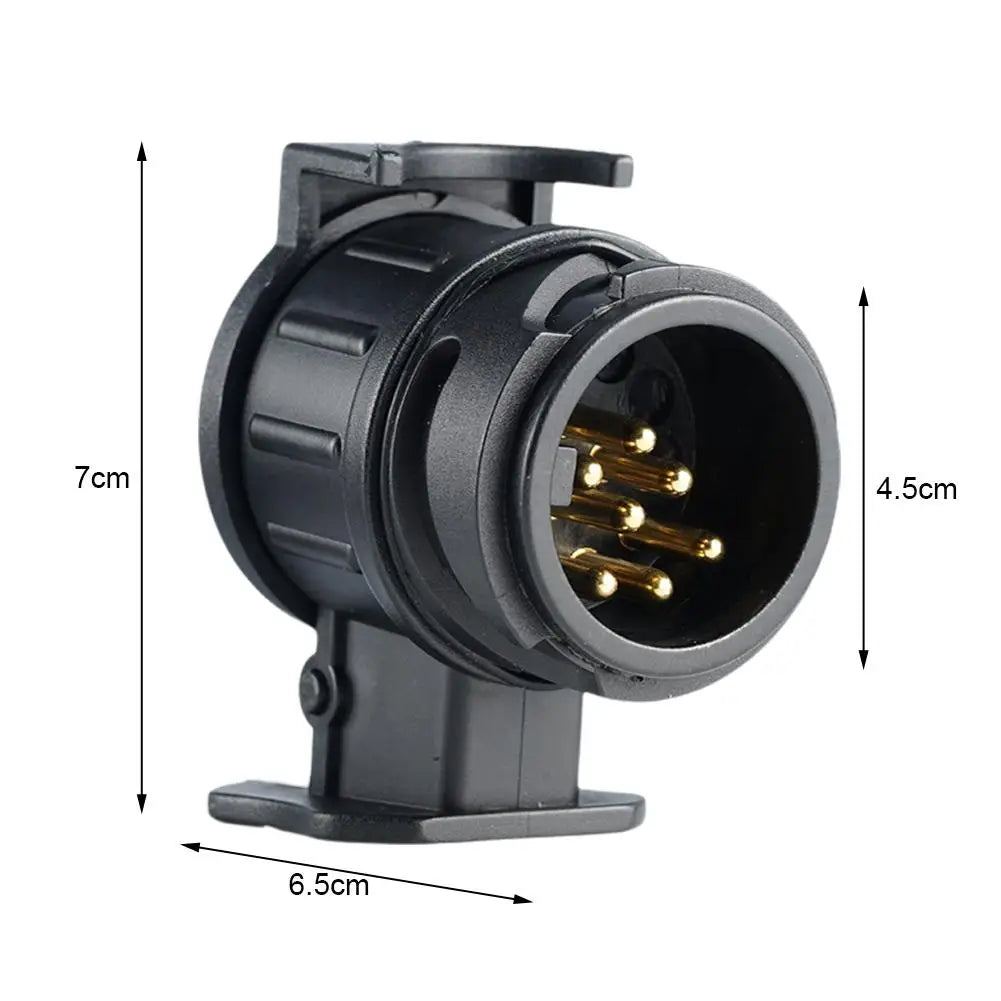

• Connector Type: 13-pin male to 7-pin female
• Standard: European trailer wiring standard
• Weather Resistance: Waterproof spring-locking flap
• Country of Origin: Made in China

Related Products You May Like

• 1.3m Spiral Cable Protector – Protect Your Vehicle Cables
• 1-Channel SCR Solid State Relay Module DC3-24V 40A

For guidance on safe trailer wiring and towing electrical standards, refer to the U.S. Consumer Product Safety Commission (CPSC) and NIST for electrical connector standards.

Frequently Asked Questions

Q: Is this 13 to 7 pin trailer adapter compatible with all European-standard trailers?

A: Yes. This adapter is designed to comply with the European trailer wiring standard, converting a 13-pin socket (found on most modern European tow vehicles) to a 7-pin female socket compatible with the vast majority of older caravans, horse boxes, and utility trailers using the standard 12N black cable configuration.

Q: Does the waterproof flap really protect the connections when not in use?

A: Absolutely. The spring-loaded locking flap snaps shut over the 7-pin socket opening when no trailer is connected, keeping out rain, road spray, dust, and dirt. When you plug in your trailer's 7-pin connector, the flap locks it securely in place to prevent accidental disconnection while towing.

Q: Will this adapter work with a 12V fridge or battery charger connected via the trailer?

A: Yes. The 13-pin side of this adapter includes Pin 9 (12V permanent battery power) and Pin 10 (12V ignition-on power for battery charging or a fridge), so auxiliary 12V appliances wired through a compatible 13-pin trailer connector will function as expected.
