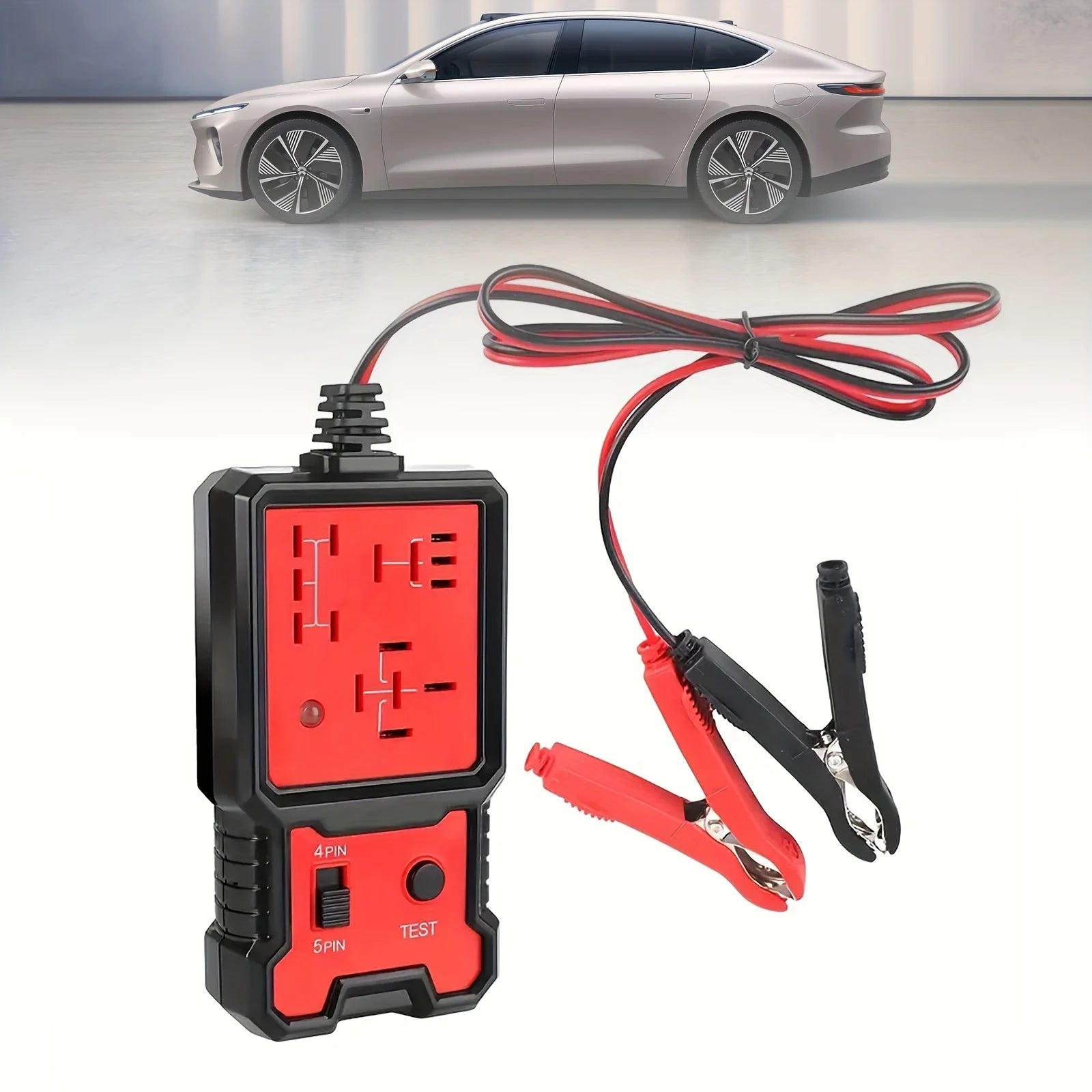

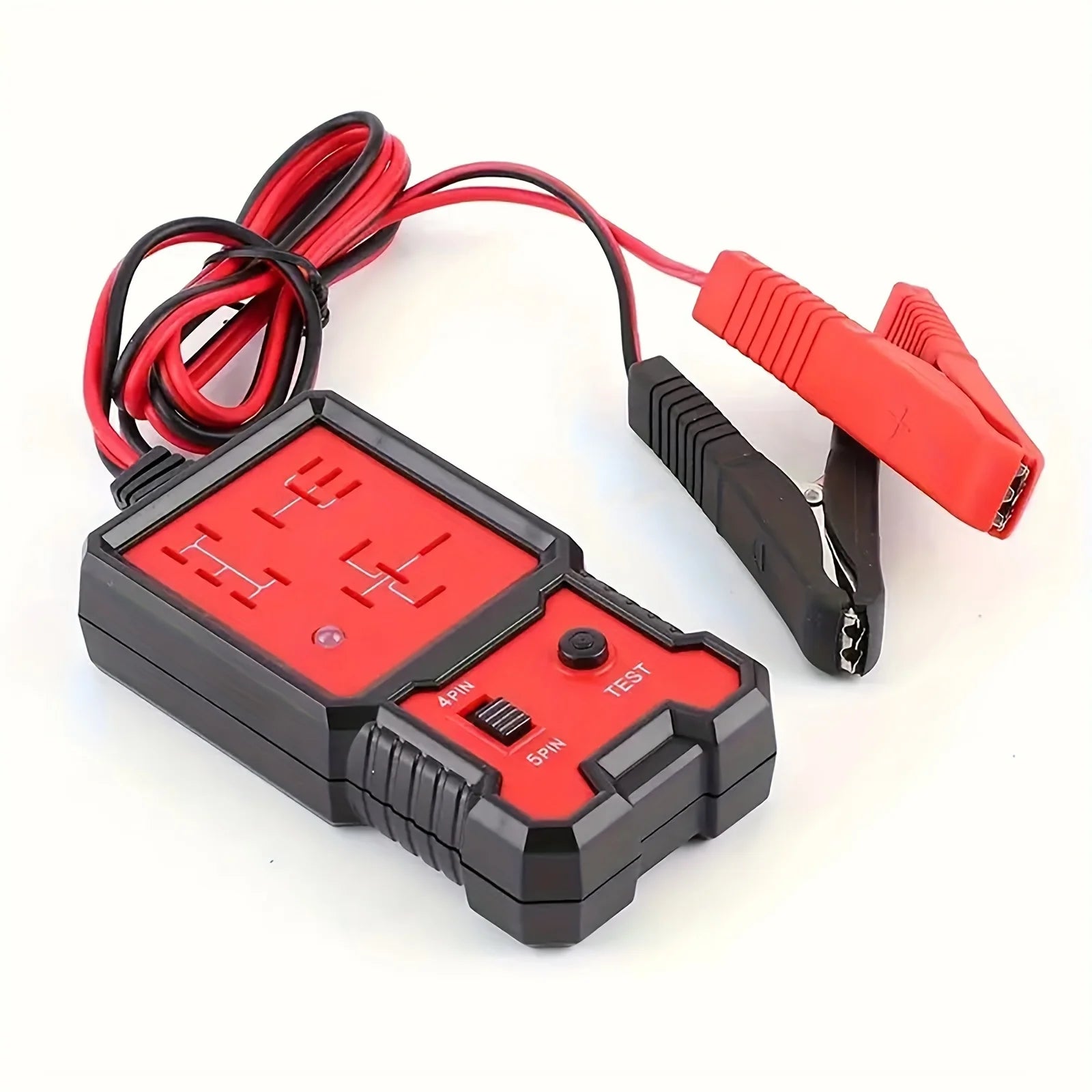

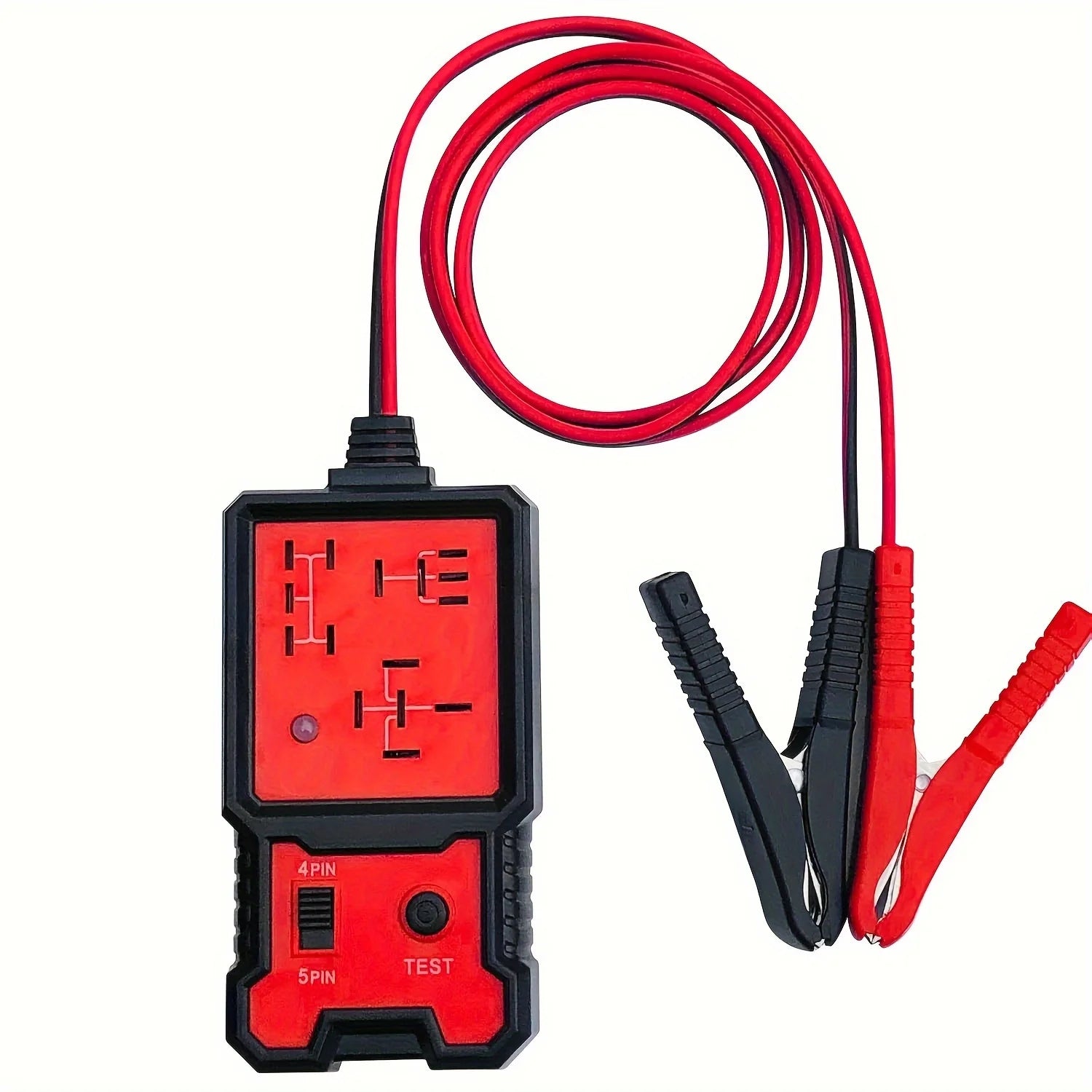

12V Automotive Relay Tester – 4-Pin & 5-Pin Universal Tool

Test & Diagnose Automotive Relays in Seconds

Keep your vehicle running at its best with this 12V Universal Automotive Relay Tester. Compatible with both 4-pin and 5-pin relays, this compact diagnostic tool helps mechanics and DIY car enthusiasts quickly identify faulty relays without guesswork. Simply connect the battery clamps, plug in the relay, and get an instant result — no more costly trips to the shop for simple relay diagnostics.

Whether you're troubleshooting a no-start condition, a failed fuel pump relay, or a malfunctioning horn relay, this tester gives you a fast, reliable answer right in your garage or on the roadside.

Made in Mainland China.

Key Features

• ✅ Universal Compatibility: Works with standard 4-pin and 5-pin automotive relays used in most 12V vehicles
• ✅ Battery Clamp Connection: Easy-to-use clamps connect directly to your vehicle's 12V battery for instant power
• ✅ Circuit Detection: Quickly identifies open, shorted, or faulty relay circuits
• ✅ Compact & Portable: Lightweight design fits easily in any toolbox or glove compartment
• ✅ No Battery Required: Powered directly via the included battery clamps — no separate battery needed
• ✅ Time & Money Saver: Pinpoint relay failures in seconds instead of spending hours on guesswork
• ✅ Beginner Friendly: Simple plug-and-test operation — no advanced electrical knowledge required

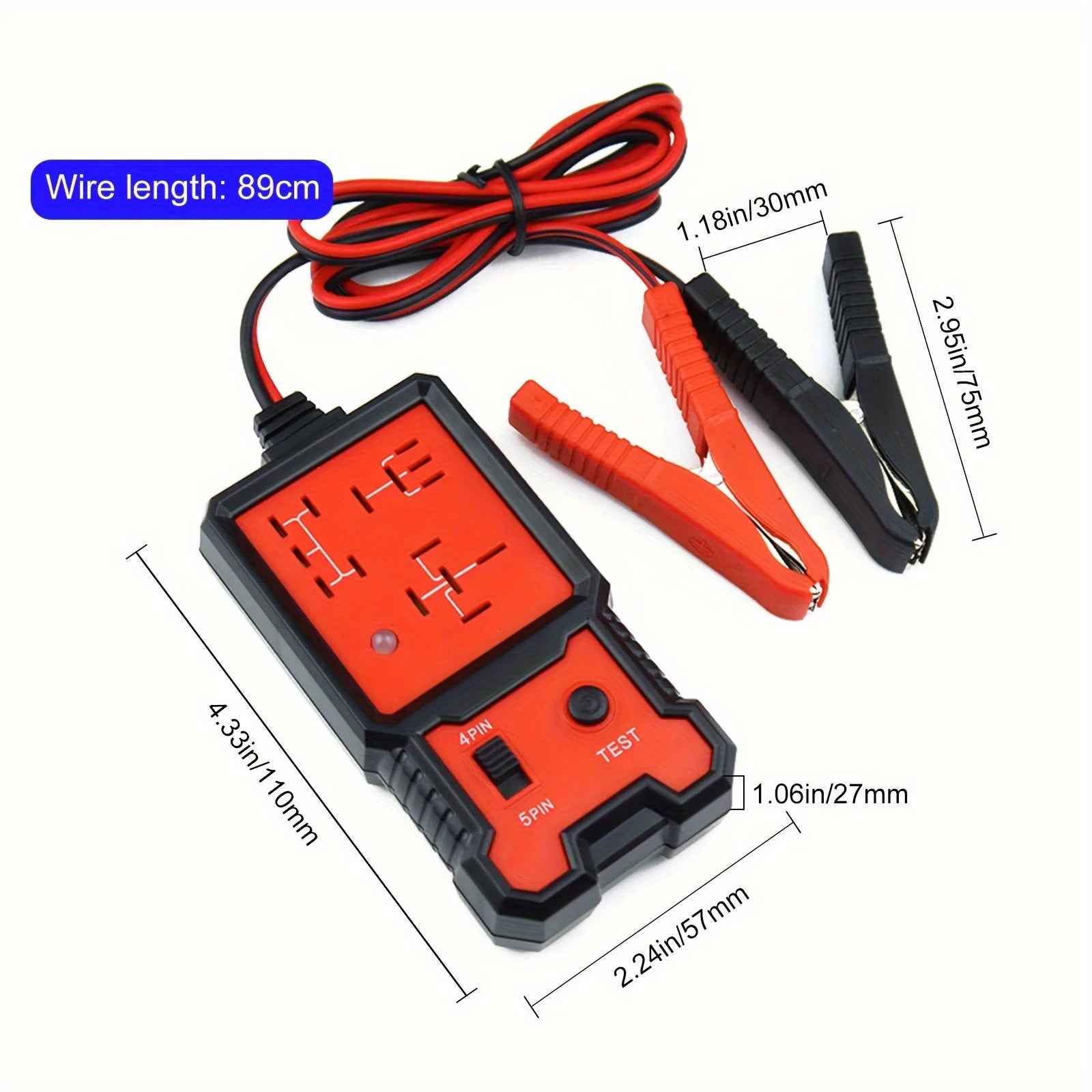

Specifications

• Operating Voltage: 12V DC
• Compatible Relay Types: 4-Pin & 5-Pin Automotive Relays
• Power Source: Vehicle battery via clamp leads
• Battery Included: No
• Country of Origin: Mainland China

Who Is This For?

This relay tester is ideal for:

• DIY home mechanics and hobbyists
• Professional automotive technicians
• Auto repair shops needing a quick relay-check tool
• Anyone dealing with electrical gremlins in their car, truck, or SUV

Related Automotive & Diagnostic Tools

Looking for more tools to keep your vehicle in top shape? Check out these related products:

• Automotive Cables & Jump Starters
• OBD2 & Vehicle Diagnostic Tools

Learn More About Automotive Electrical Systems

Understanding how relays work is key to effective vehicle diagnostics. Learn more from this trusted resource:

• Automotive Electrical Systems – National Institutes of Health Resource Library

Frequently Asked Questions

Q: What types of relays does this 12V automotive relay tester support?

A: This universal relay tester is designed to work with standard 4-pin and 5-pin automotive relays commonly found in 12V vehicles, including cars, trucks, vans, and SUVs. It covers the most widely used relay configurations in the automotive industry.

Q: Do I need a separate battery to power this relay tester?

A: No! The relay tester is powered directly through the included battery clamps, which connect to your vehicle's 12V battery. No separate batteries are required, making it incredibly convenient to use anywhere your car is parked.

Q: Can a beginner use this automotive relay tester?

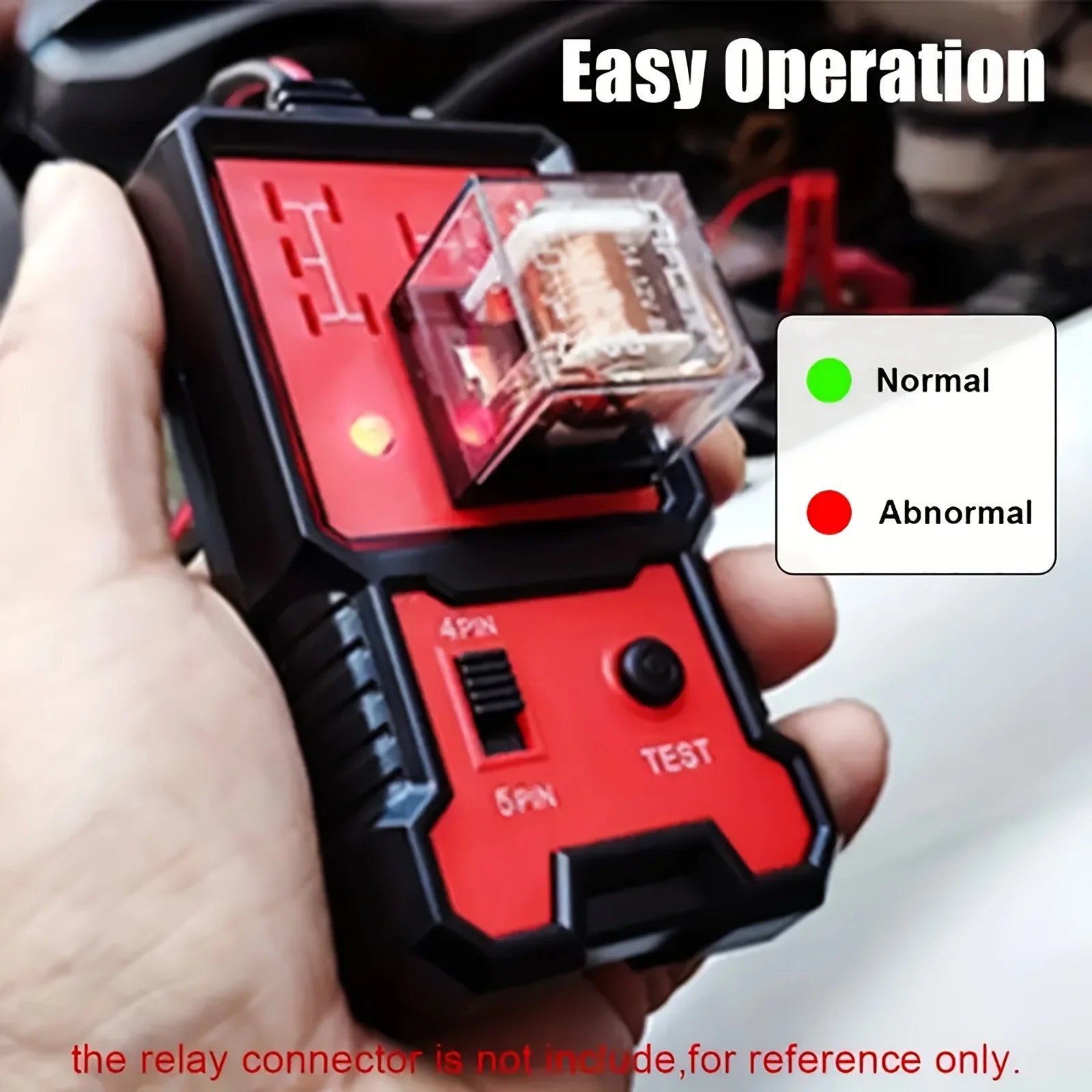

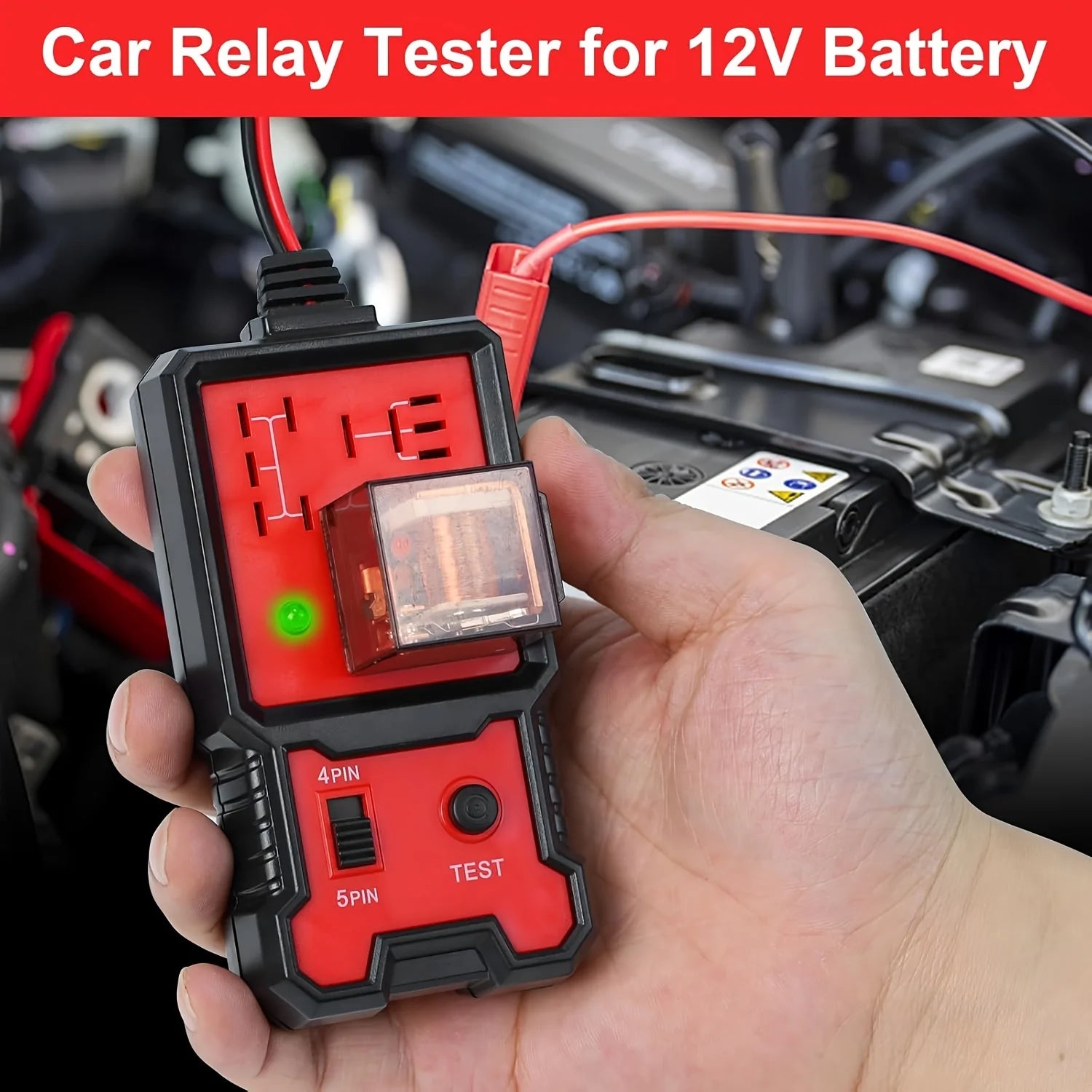

A: Absolutely. This tool is designed with simplicity in mind. Just connect the clamps to your 12V battery, insert the relay into the tester socket, and the tool will indicate whether the relay is functioning correctly or is faulty. No special electrical training is needed.

Q: What problems can this relay tester help me diagnose?

A: This circuit detector can help identify issues such as failed starter relays, faulty fuel pump relays, non-functional horn relays, AC compressor relay failures, and other common 12V relay-related electrical faults in your vehicle.
