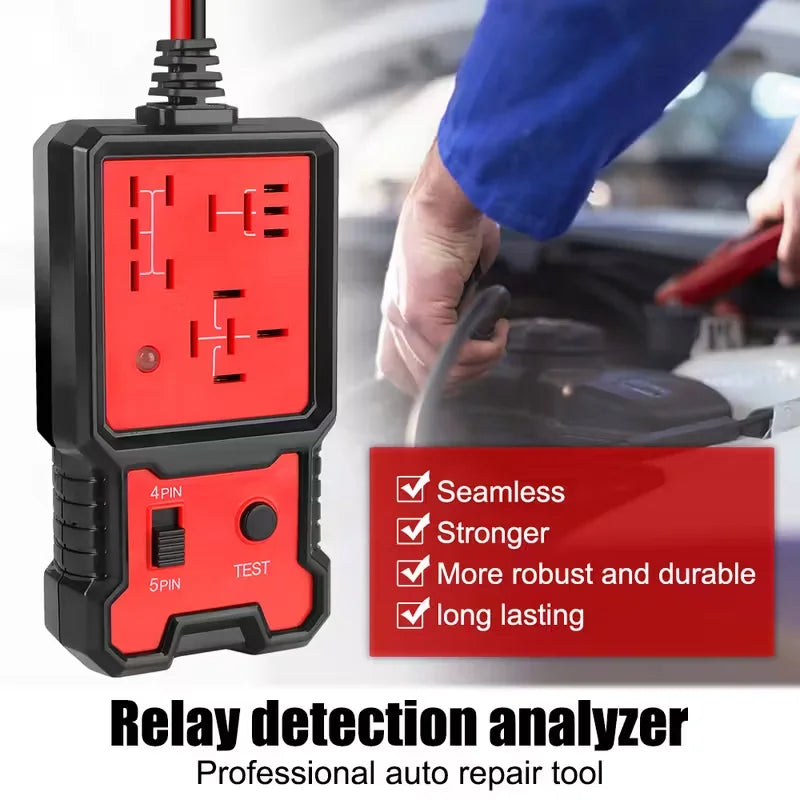

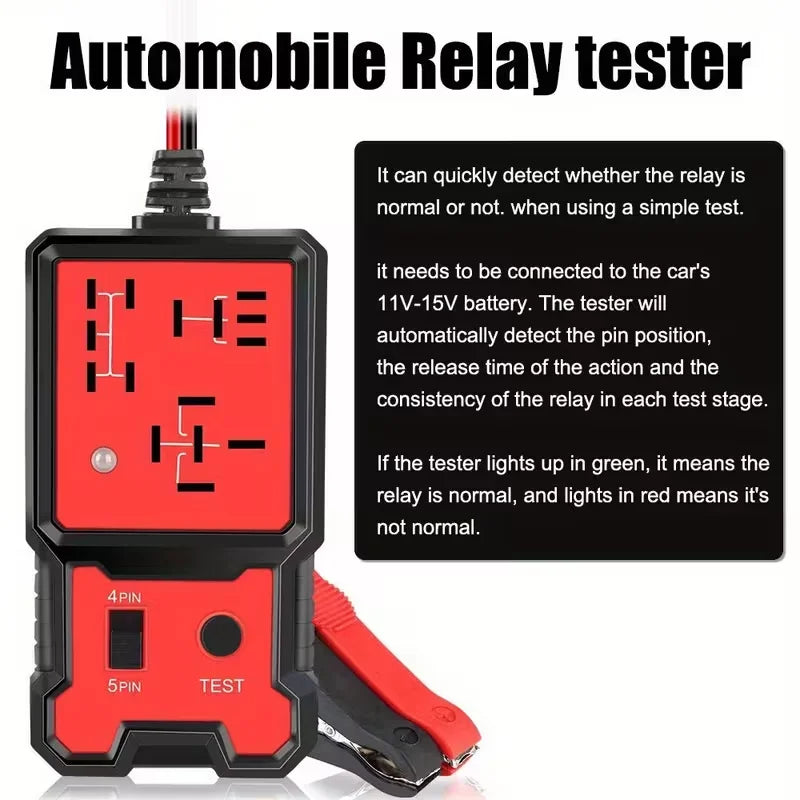

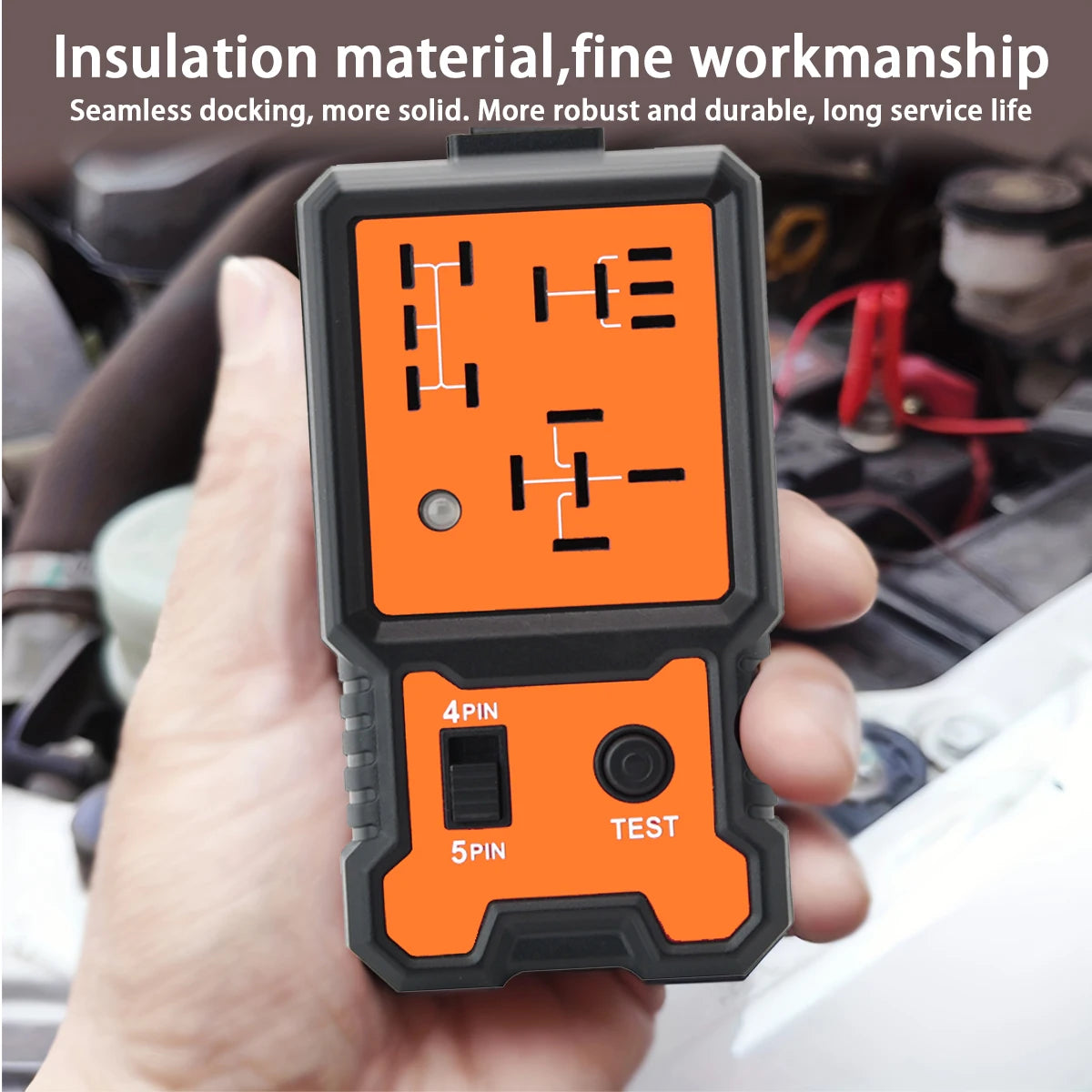

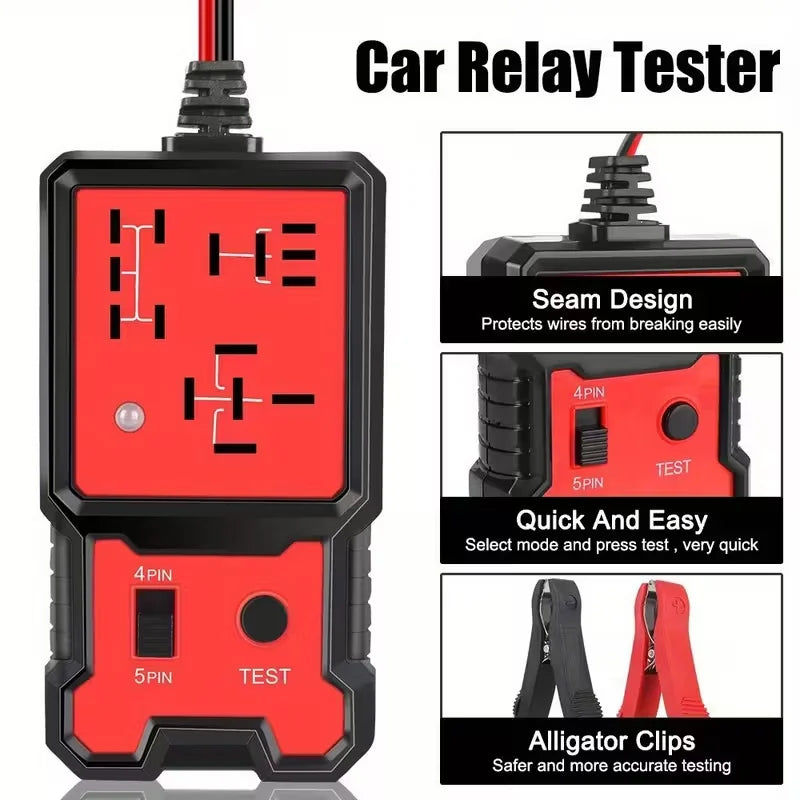

12V Automotive Relay Tester – 4-Pin & 5-Pin with Clamps

Diagnose Relay Problems Fast with the Compact 12V Automotive Relay Tester

Stop guessing which relay is causing your car trouble. This 12V automotive relay tester makes it quick and simple to test both 4-pin and 5-pin relays — no complex setup, no guesswork. Whether you're a professional mechanic or a weekend DIYer, this tool delivers accurate, reliable results right at your fingertips.

Key Features

• Universal 4-Pin & 5-Pin Compatibility: Tests the most common automotive relay types used in cars, trucks, SUVs, and other 12V vehicles.

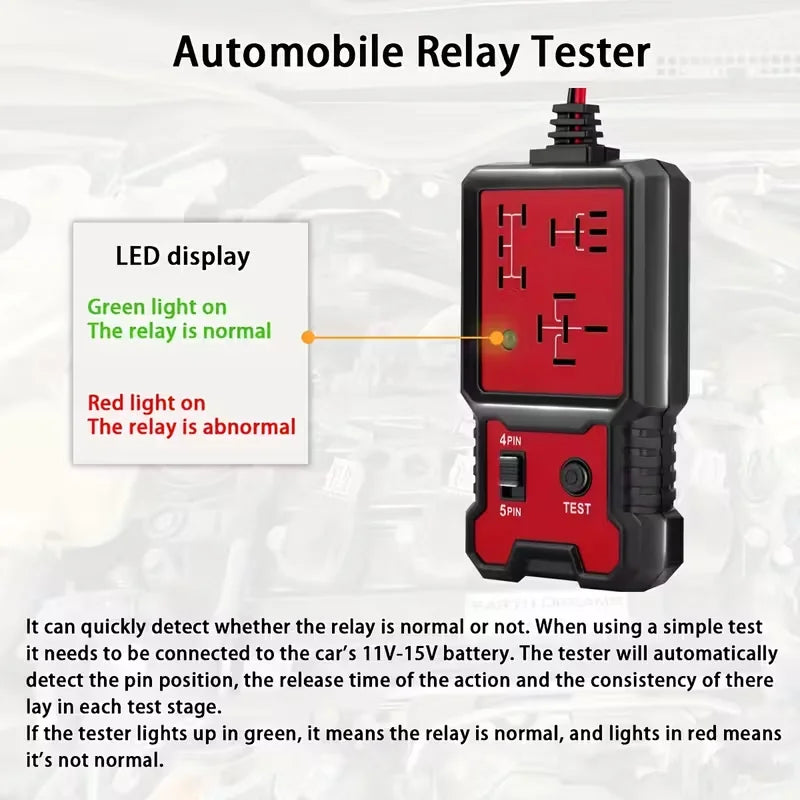

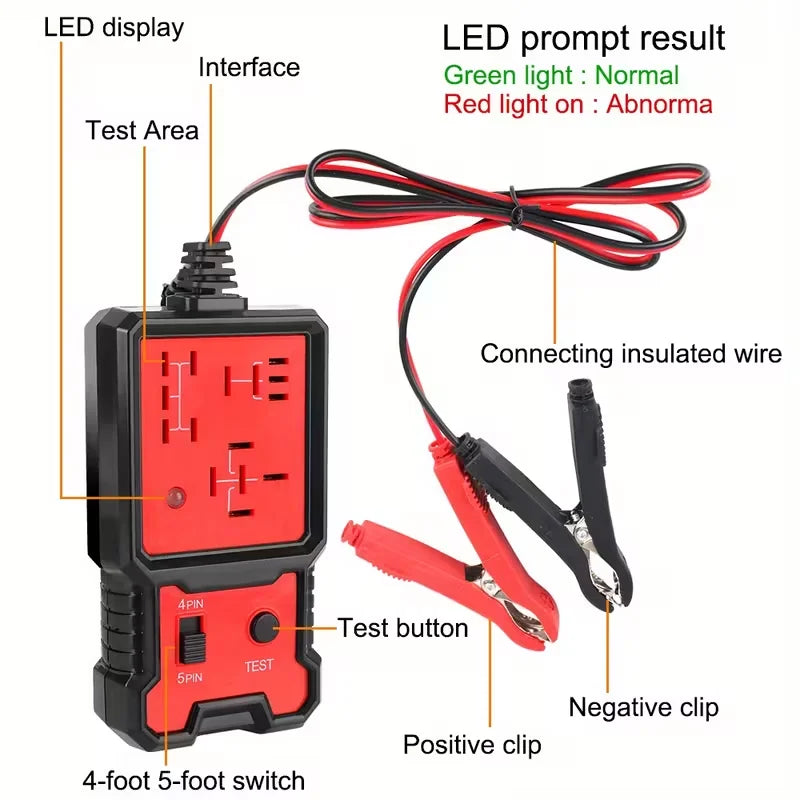

• Clear Terminal Display: Labeled terminal layout lets you instantly identify each pin connection — no guesswork or wiring confusion.
• SPDT Switch: Single-pole double-throw switch gives you precise, manual control over the test circuit for accurate diagnosis.
• Copper Contacts: Premium copper contacts ensure a reliable, low-resistance connection every time for dependable test results.

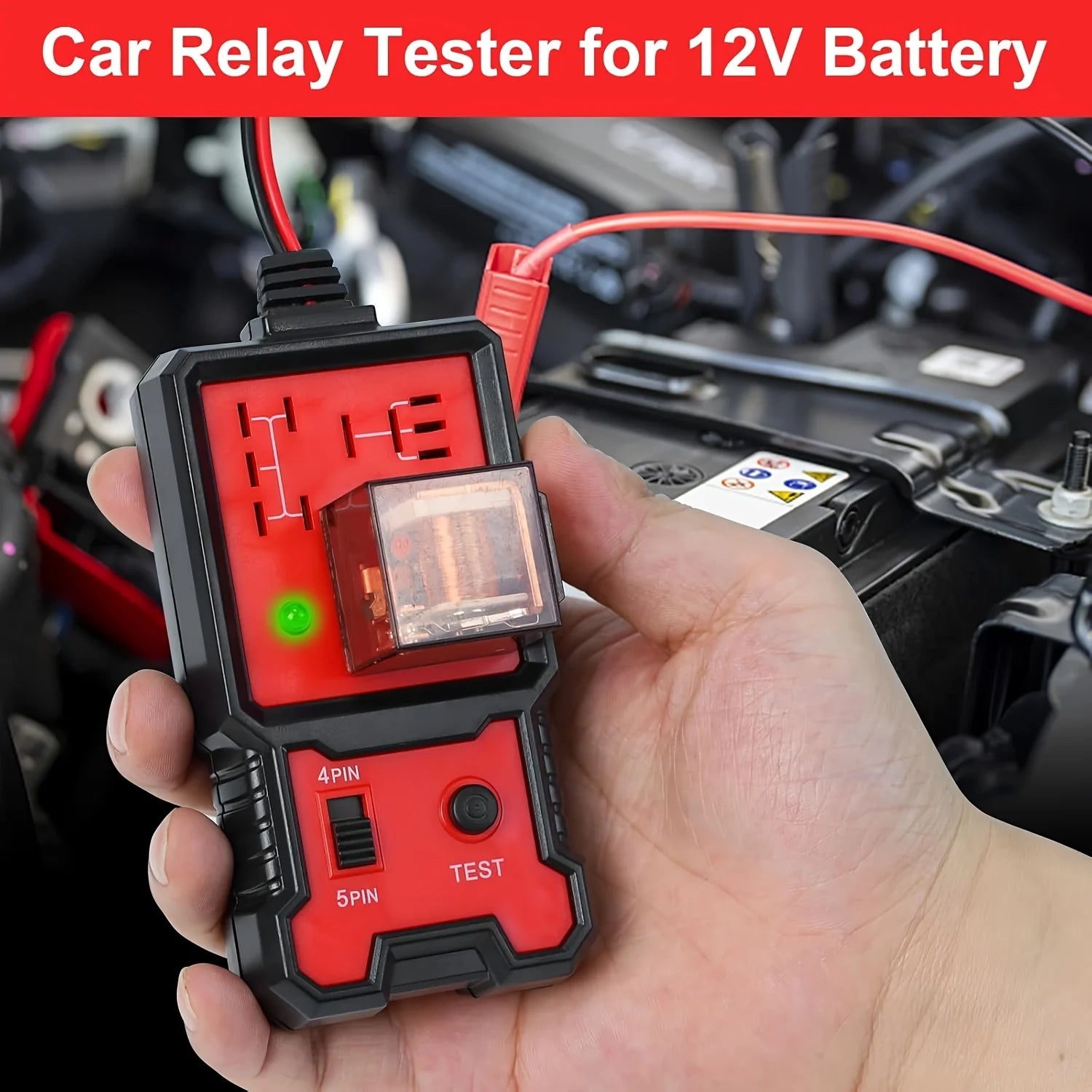

• Battery Clamp Power: Connects directly to your vehicle's 12V battery via clamps — no separate power supply needed. Also supports hard-wired operation.
• Compact & Portable: Lightweight and easy to store in your toolbox or glove compartment for on-the-go diagnostics.
• Easy to Use: Designed for all skill levels — simply connect, switch, and read the result. No technical expertise required.

What's in the Box

• 1 × 12V Automotive Relay Tester
• Battery clamp leads
• Note: Battery not included.

Specifications

Why Use a Relay Tester?

Automotive relays control critical systems like your starter, fuel pump, horn, and headlights. A faulty relay can mimic symptoms of more expensive problems. Testing with a dedicated relay tester is the fastest way to confirm whether a relay is the culprit — saving you time and money on unnecessary repairs. Learn more about automotive electrical diagnostics at the U.S. Consumer Product Safety Commission (CPSC) for safe tool use guidelines.

Related Products You May Like

• 1/2 Channel Tuya WiFi Smart Relay Switch | 16A, Alexa & Google Home
• Tuya WiFi Smart Relay Switch – Smart Automation Module

Learn more: Pico Technology

Frequently Asked Questions

Q: What types of automotive relays does this 12V relay tester support?

A: This automotive relay tester is compatible with the most commonly used 4-pin and 5-pin relays found in cars, trucks, and other 12V vehicles. It supports both SPST and SPDT relay configurations, making it a versatile tool for a wide range of automotive electrical diagnostics.

Q: Does the 12V relay tester come with a battery?

A: No, the battery is not included. The tester can be powered directly from your vehicle's 12V battery using the included clamp leads, or via a hard-wired connection to any 12V DC power source.

Q: Is this relay tester suitable for beginners with no automotive electrical experience?

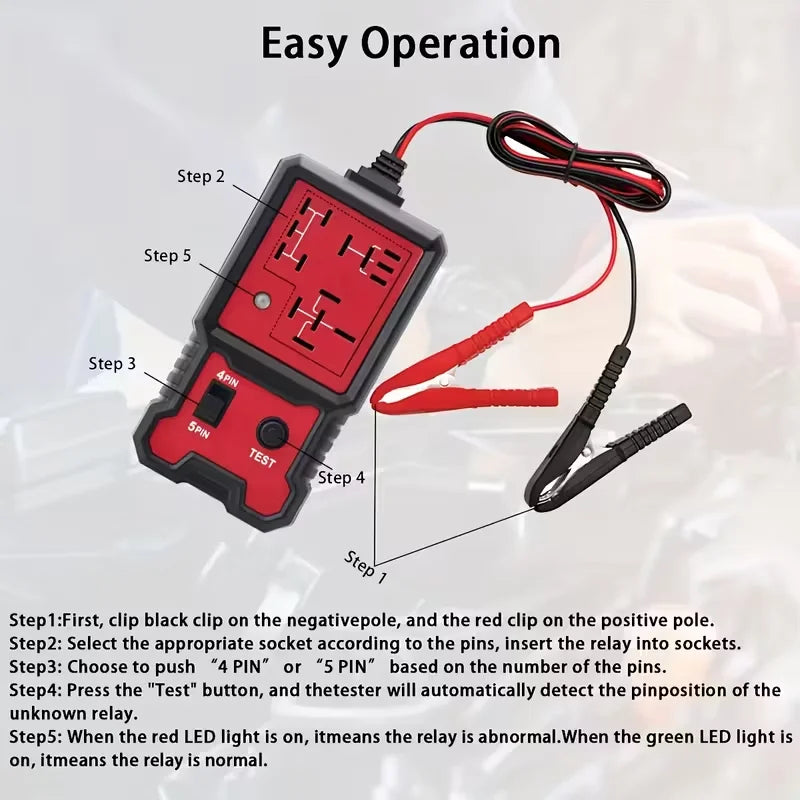

A: Absolutely! The tester features a clear terminal display with labeled pin connections and a simple SPDT switch, making it straightforward to use even if you have no prior experience with automotive electrical testing. Simply connect the clamps, insert the relay, flip the switch, and read the result.

Q: Can I use this tester for relays outside of automotive applications?

A: While this tester is optimized for 12V automotive relays, it can also be used to test any compatible 4-pin or 5-pin relay that operates on a 12V DC circuit, such as those used in marine or RV electrical systems.
