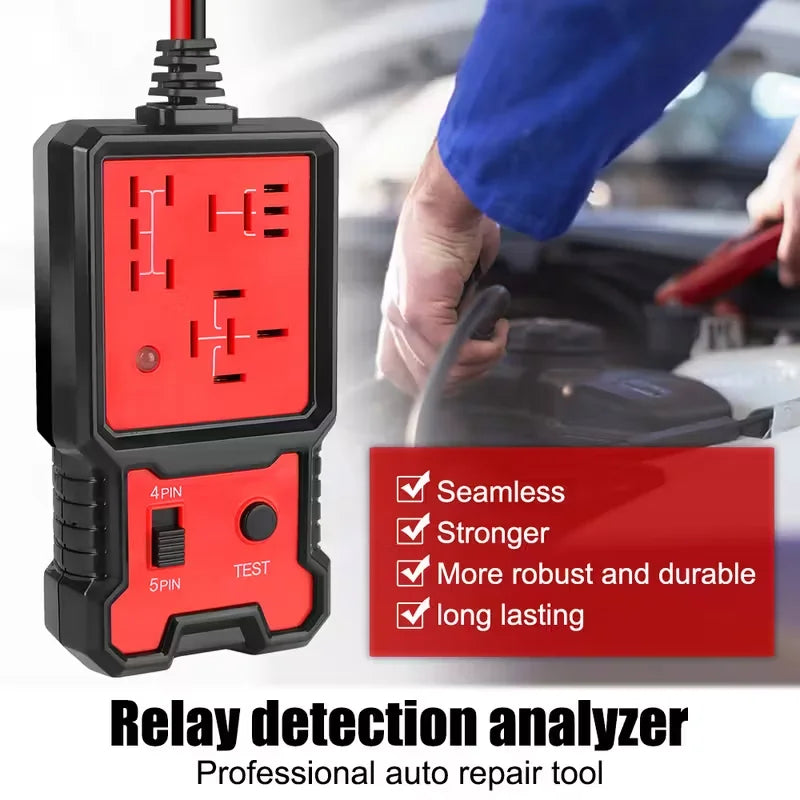

12V Automotive Relay Tester – 4-Pin & 5-Pin with Battery Clamp

Test Automotive Relays Fast & Accurately with This Compact 12V Relay Tester

Stop guessing and start diagnosing. This compact 12V automotive relay tester is built for DIY mechanics and professional technicians who need a reliable, no-fuss way to test 4-pin and 5-pin relays right at the workbench or in the field. With clear terminal labeling, an SPDT switch, and solid copper contacts, it takes the guesswork out of relay diagnosis and saves you time and money on unnecessary part replacements.

Whether you're chasing an electrical fault, troubleshooting a dead accessory circuit, or verifying a relay before installation, this tester delivers a clear pass/fail result in seconds.

Made in Mainland China.

Key Features

• Universal 4-Pin & 5-Pin Compatibility: Works with the most common automotive relay types found in cars, trucks, and SUVs.

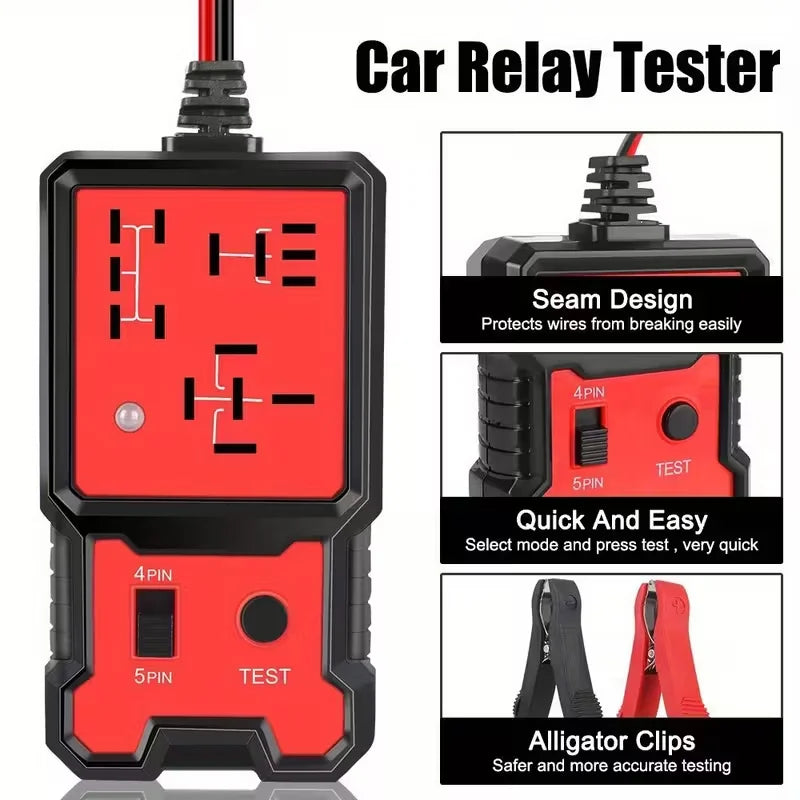

• Clear Terminal Display: Labeled terminals make it easy to orient your relay correctly every time — no guessing, no misreads.
• SPDT Switch: Single-pole double-throw switch lets you simulate relay activation and confirm proper switching action.
• Copper Contacts: High-conductivity copper ensures reliable electrical connections and accurate test results.

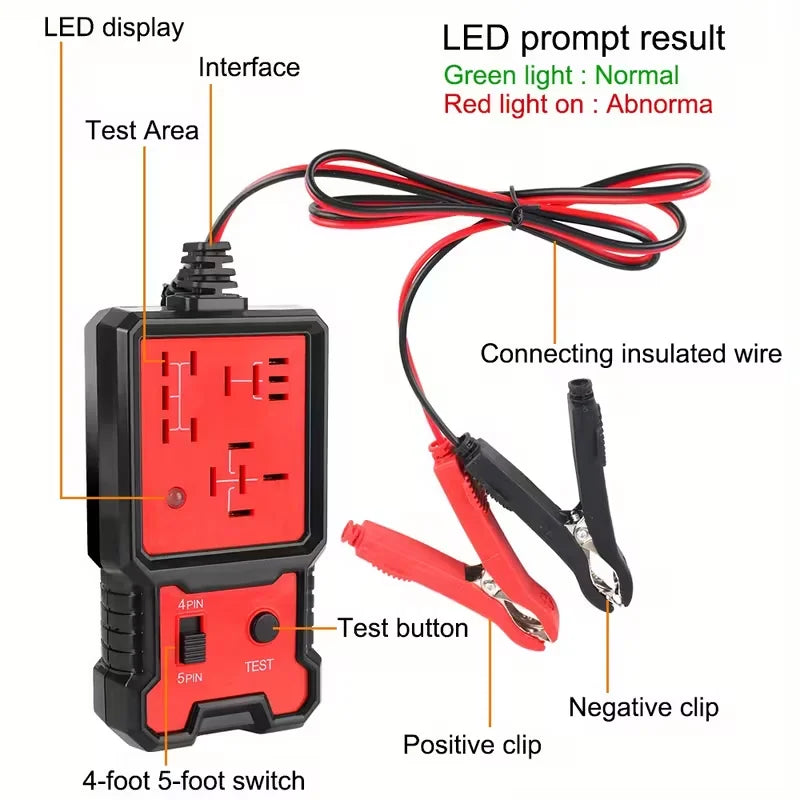

• Dual Power Options: Hard-wired with battery clamp leads for direct connection to your vehicle's 12V battery, or use a standalone 12V battery (not included).

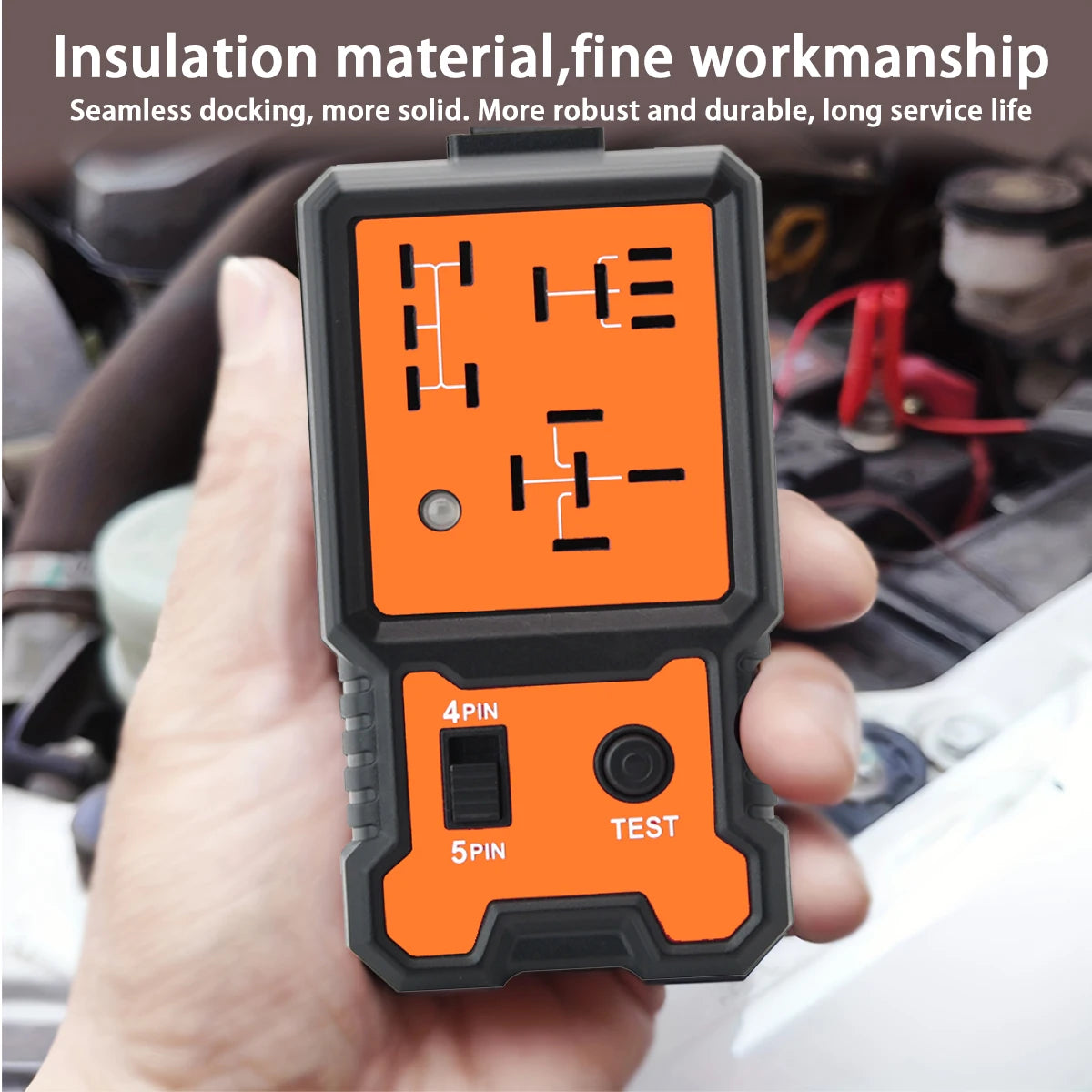

• Compact & Portable: Lightweight, handheld design slips easily into a toolbox or glove compartment.
• Suitable for European & Standard Relay Formats: Designed to cover a wide range of relay configurations.

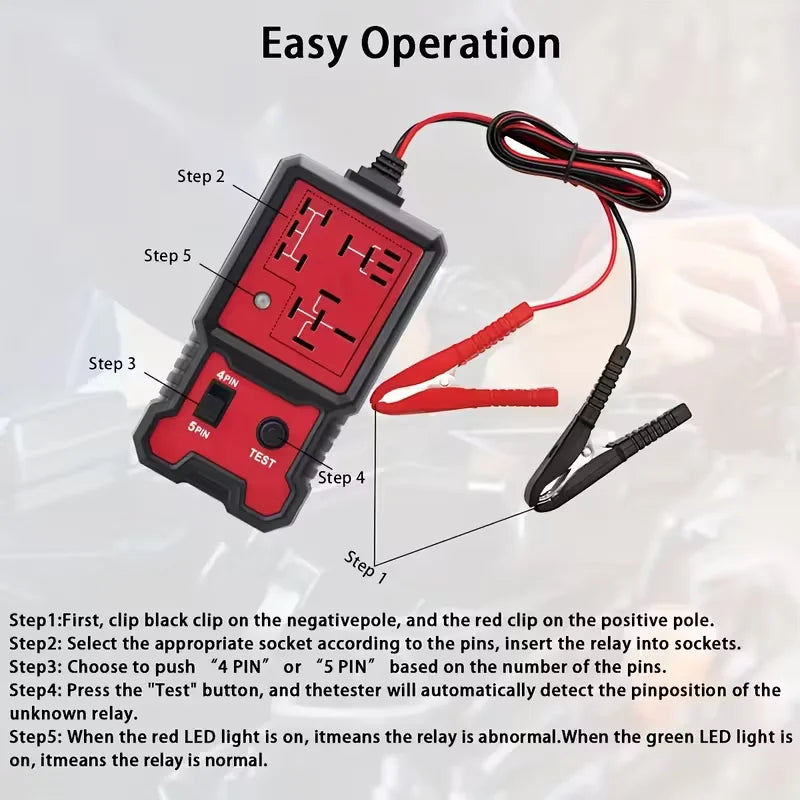

How to Use

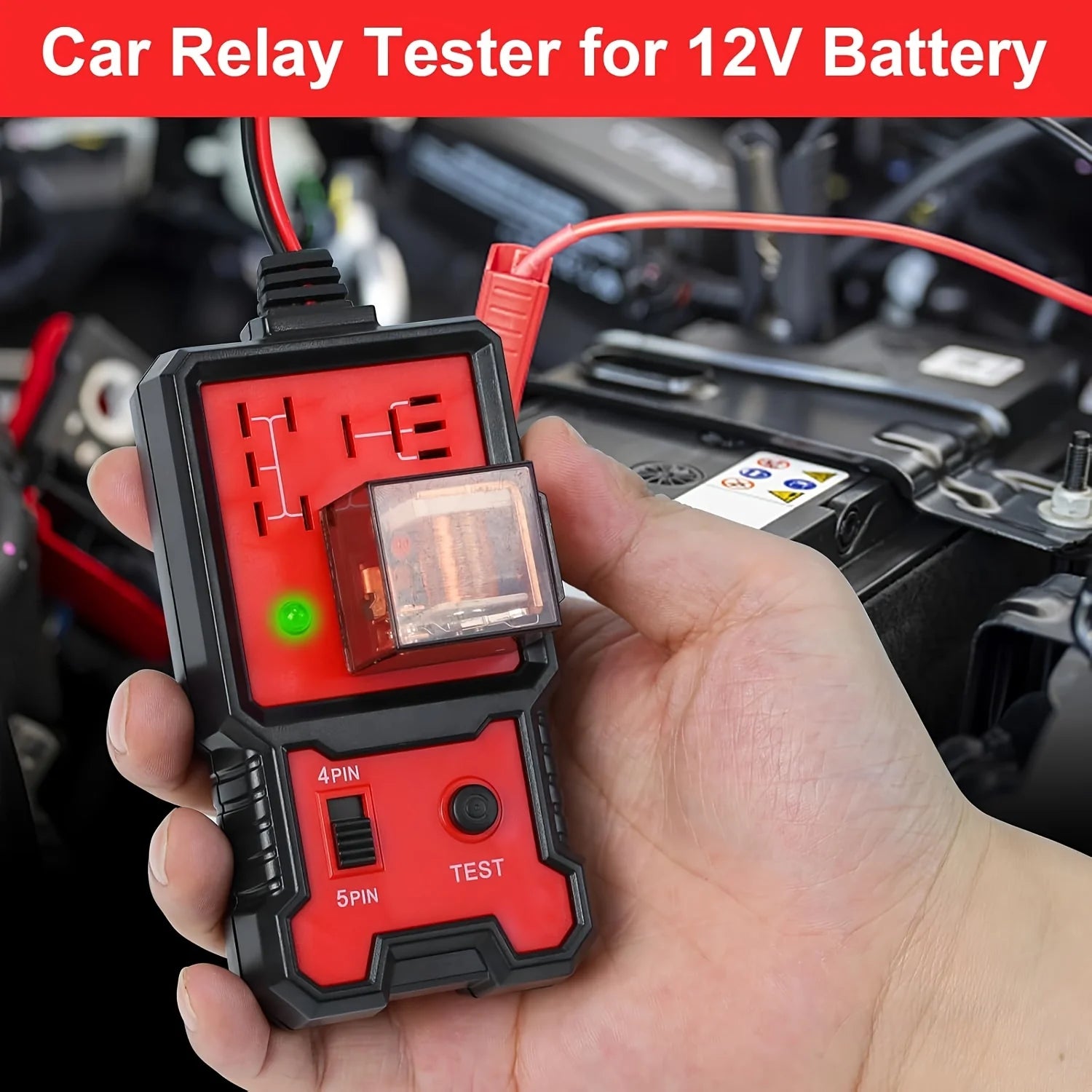

1. Connect the battery clamp leads to a 12V power source (vehicle battery or external 12V battery).
2. Insert the relay into the correct 4-pin or 5-pin socket.
3. Flip the SPDT switch to activate the relay.

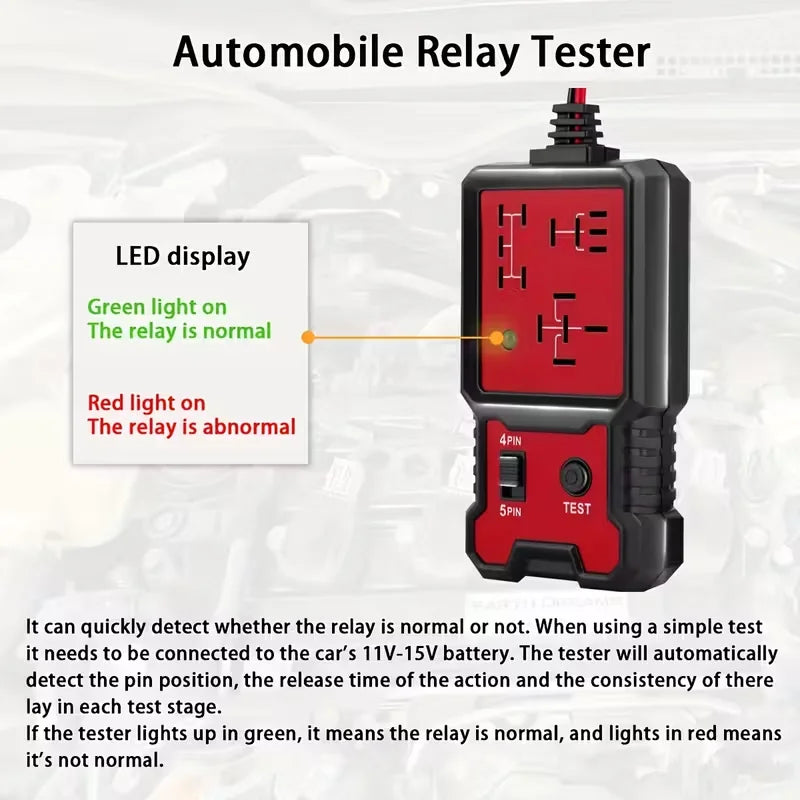

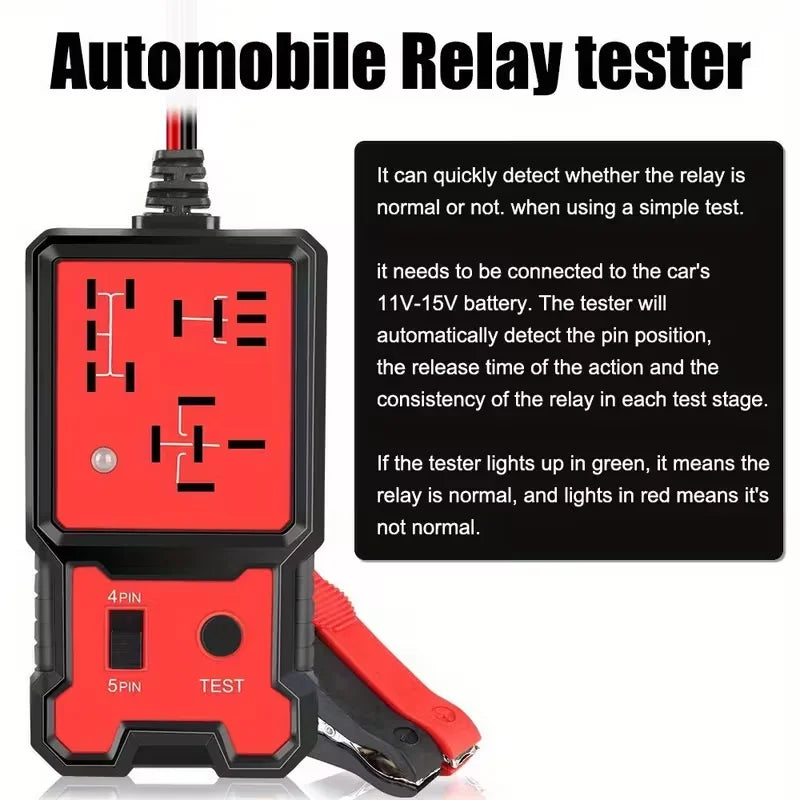

4. Read the result — indicator light or audible response confirms relay function.

Specifications

• Operating Voltage: 12V DC
• Compatible Relay Types: 4-Pin, 5-Pin (SPST, SPDT)
• Contact Material: Copper
• Power Method: Hard-wired battery clamp / external 12V battery (not included)
• Wireless: No

What's in the Box

• 1 × 12V Relay Tester with battery clamp leads
• Note: Battery not included

Related Products You May Like

• 1/2 Channel Tuya WiFi Smart Relay Switch | 16A, Alexa & Google Home
• Automotive Cables & Jump Starters

For more information on automotive electrical systems and relay diagnostics, visit the National Center for Biotechnology Information or consult your vehicle's service manual.

Frequently Asked Questions

Q: What types of relays can this 12V automotive relay tester test?

A: This relay tester is compatible with the most common 4-pin and 5-pin automotive relays, including SPST (single-pole single-throw) and SPDT (single-pole double-throw) relay configurations found in cars, trucks, and SUVs from most manufacturers, including European vehicle formats.

Q: Does this relay tester need a battery?

A: Yes, the tester requires a 12V DC power source. It comes with battery clamp leads so you can connect directly to your vehicle's 12V battery. You can also use a standalone 12V battery. Please note: the battery is not included.

Q: Can I use this relay tester without a car?

A: Absolutely. Since the tester uses battery clamp leads, you can connect it to any 12V external battery for bench testing relays independently of a vehicle — ideal for workshop use.

Q: What does the SPDT switch do on this relay tester?

A: The SPDT (single-pole double-throw) switch simulates the control signal that activates the relay coil. Flipping the switch energizes the coil through the tester, allowing you to instantly verify whether the relay is switching and functioning correctly.

Q: Is this relay tester suitable for European car relays?

A: Yes. This tester is designed to be compatible with standard 4-pin and 5-pin relay formats including those commonly used in European vehicles.
