Power Your IDE & SATA Drives from Any Wall Outlet

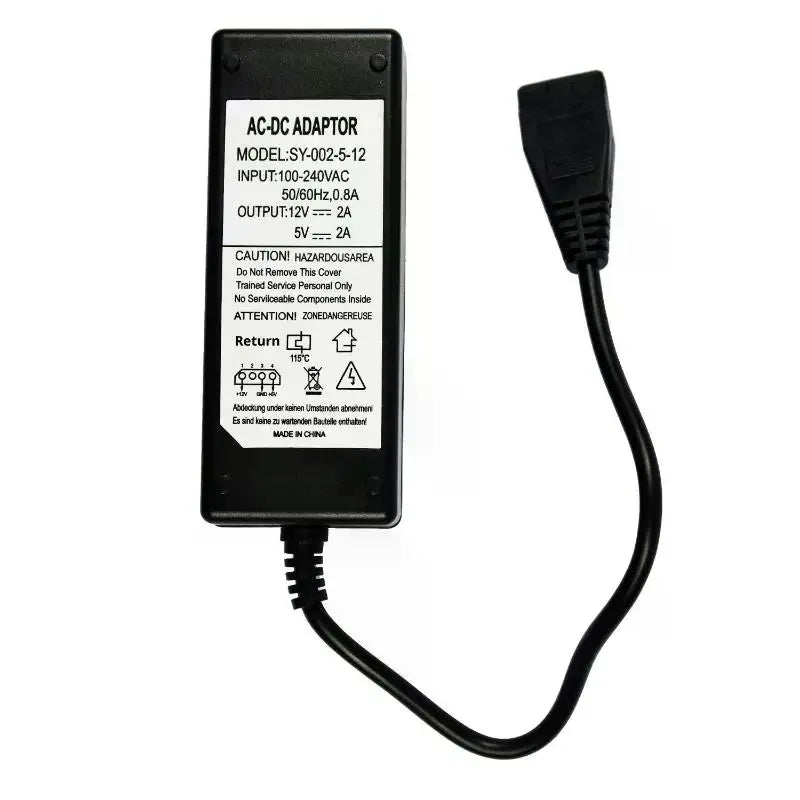

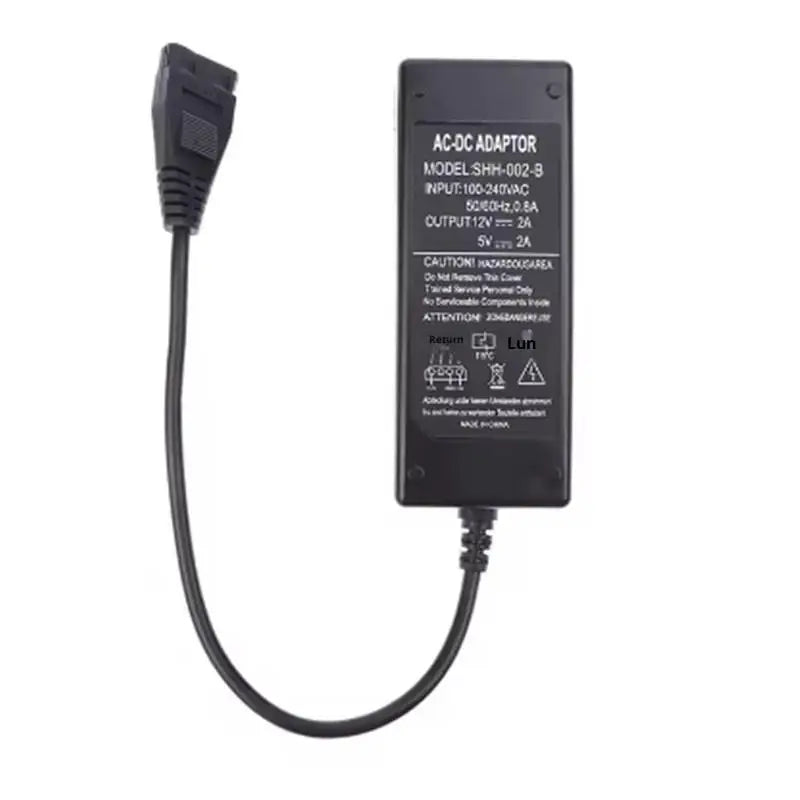

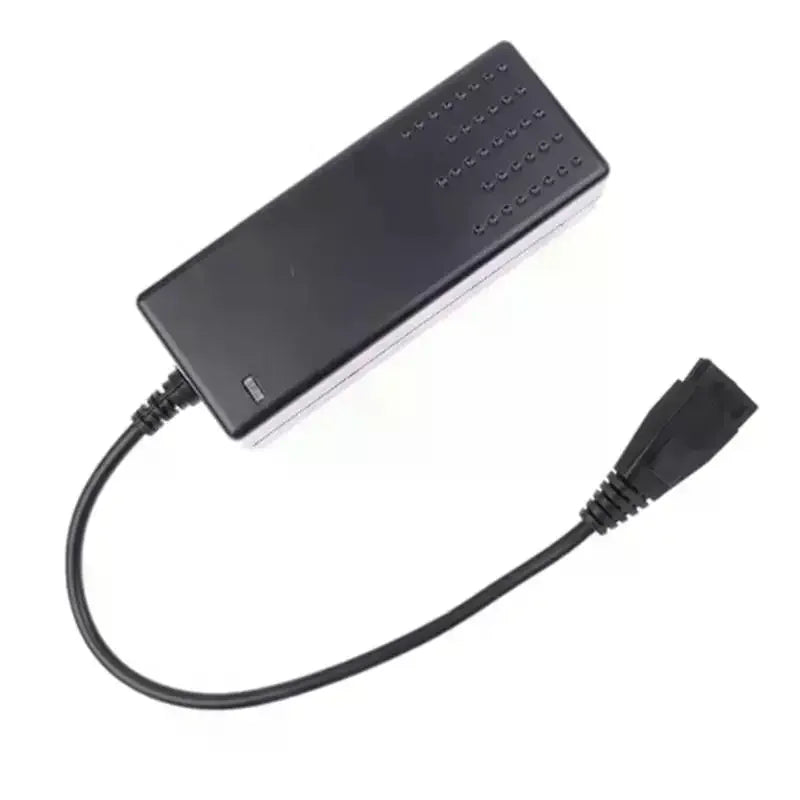

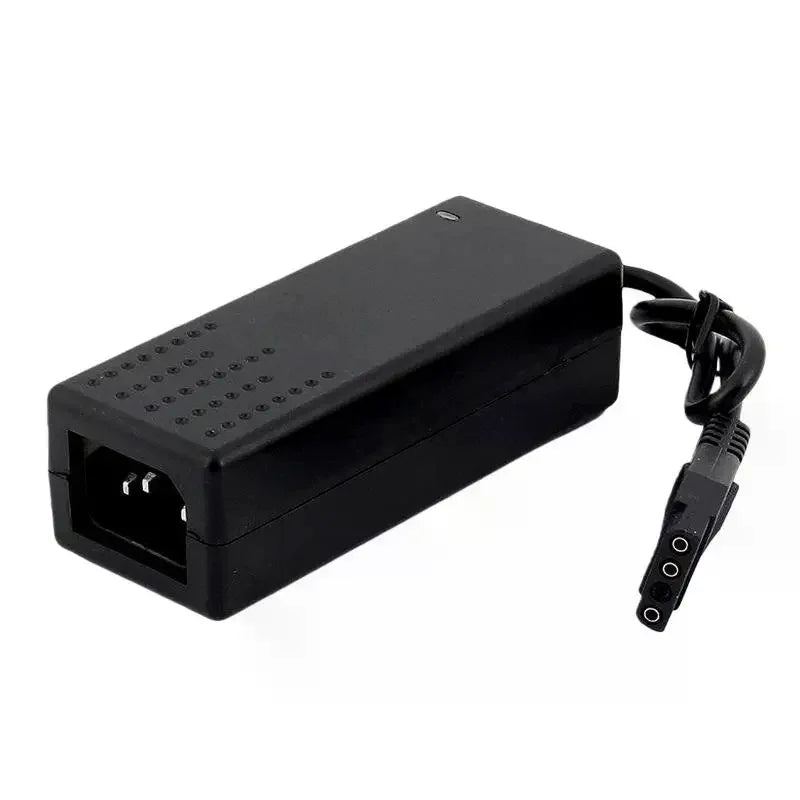

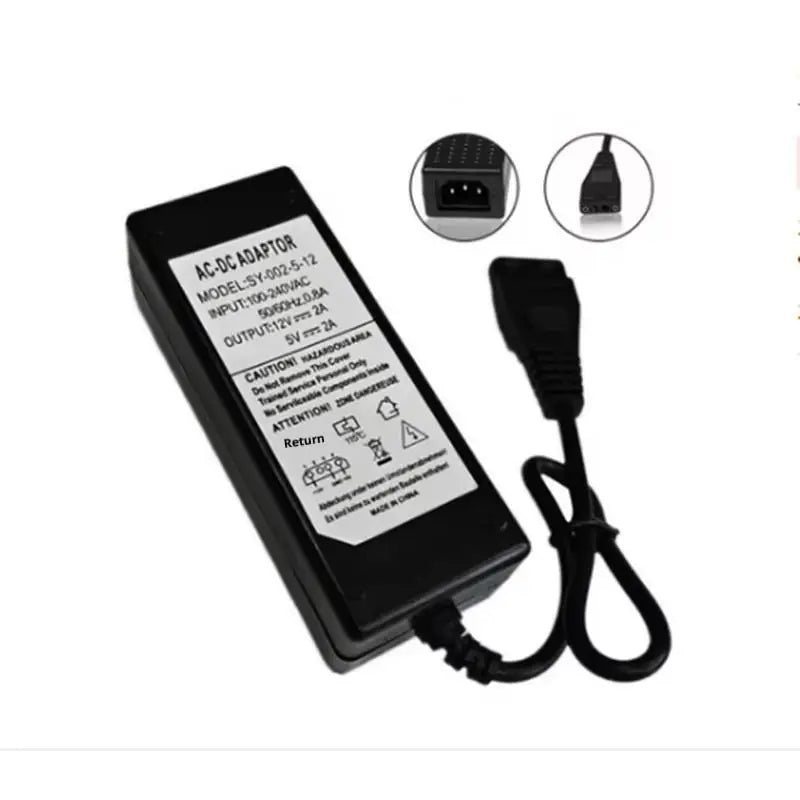

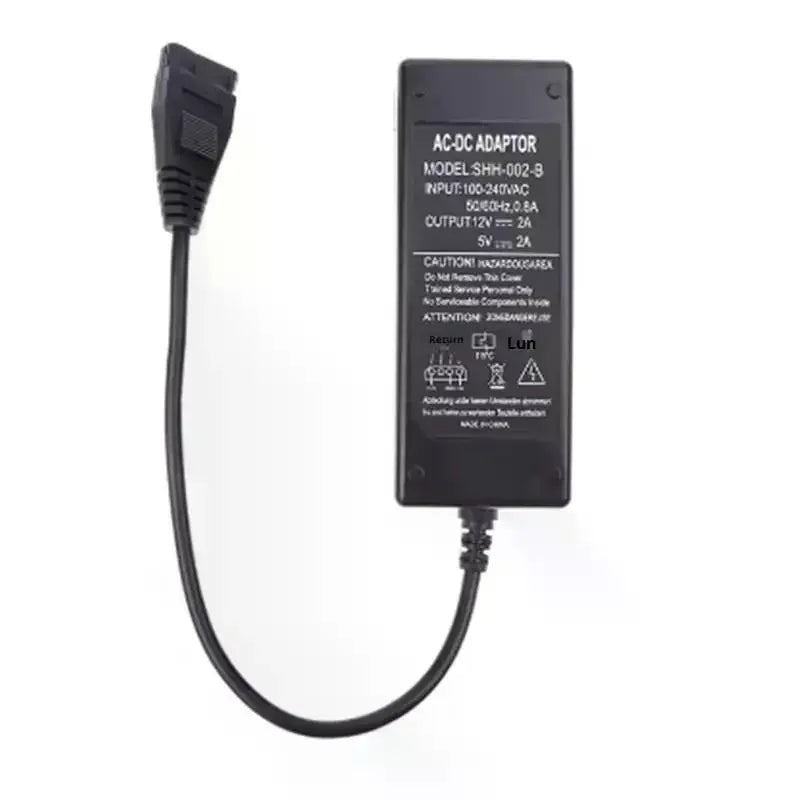

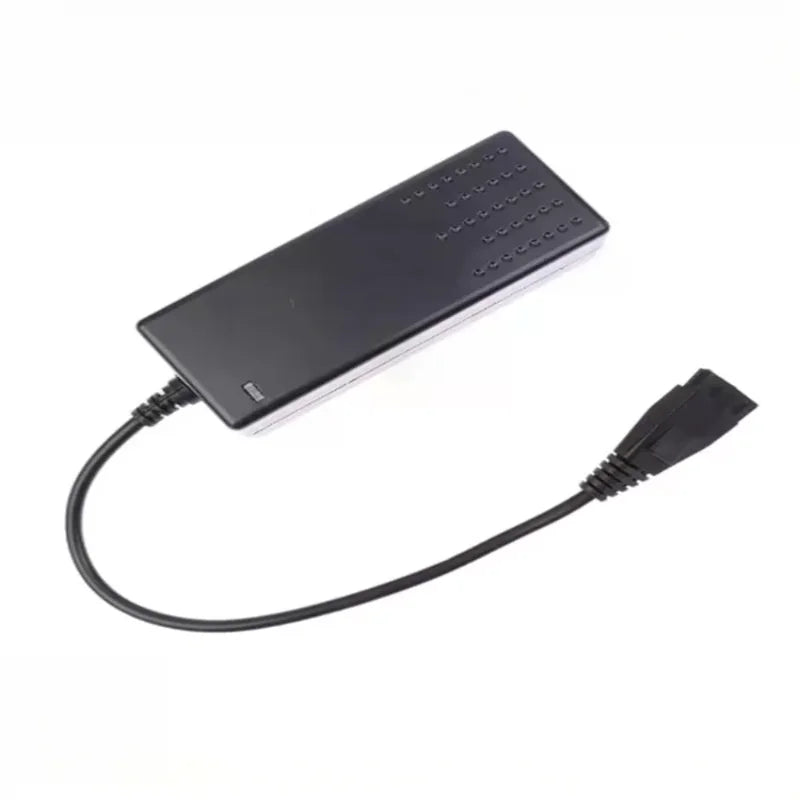

The KOQZM 12V/5V 2A AC-to-DC Power Supply Adapter lets you run 3.5" IDE hard drives, 5.25" IDE optical drives, CD/DVD-ROM drives, and SATA drives (with a separate SATA power cable) directly from a standard wall socket — no desktop PC or ATX power supply required. Perfect for DIY builds, data recovery projects, and bench testing. Made in Mainland China.
Key Features
- Universal AC Input: Accepts AC 100–240V, 50–60 Hz — works worldwide with any standard outlet.
- Dual Voltage Output: Delivers both DC 12V and DC 5V simultaneously to power a wide range of IDE/SATA devices.
- High Efficiency: 80–85% working efficiency with minimal DC ripple (100mVp-p) for stable, clean power delivery.
- Built-In Protections: Short-circuit, overload, and overvoltage protection safeguard your drives and the adapter itself.
- Compact & Reliable: High power density in a small, lightweight form factor. Plastic + metal construction with excellent insulation performance.
- 100% Aged-Tested: Full-load high-temperature burn-in testing ensures long service life and high reliability.
- Anti-Interference Design: Low working temperature and strong anti-interference performance for consistent operation.
Technical Specifications
| Input Voltage | AC 100–240V |
| Input Frequency | 50–60 Hz |
| Output Voltage | DC 12V & DC 5V |
| Rated Output Current | 2A (continuous 1.5A; up to 2A for max 5 min) |
| Output Voltage Regulation | ±5% |
| Output Ripple & Noise | 100mVp-p |
| Working Efficiency | 80–85% |
| Output Connector | 4-pin IDE (Molex-style) |
| Output Cable Length | 0.5 m |
| Working Temperature | 0°C – 50°C |
| Storage Temperature | −20°C – 85°C |
| Material | Plastic + Metal |
| Country of Origin | Mainland China |
What's Included
- 1× IDE/SATA Power Supply Adapter
Note: Data transfer cables and SATA power adapter cables are NOT included and must be purchased separately.
Compatibility
- 3.5" IDE Hard Disk Drives (HDD)
- 5.25" IDE Optical Drives (CD/DVD-ROM)
- SATA Hard Disk Drives (requires a separately purchased SATA power adapter cable)
Related Products You May Like
- 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
- 0.25mm 1000-Turn Precision Copper Inductor Coil for DIY Circuits
- 0.38" 1280x720P Micro Display DIY Kit with HDMI Driver Board
For guidance on electrical safety standards for power adapters and electronics, refer to the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: Will this IDE/SATA power supply adapter work with my country's wall outlet voltage?
A: Yes. The adapter accepts universal AC input from 100V to 240V at 50–60 Hz, making it compatible with wall outlets in virtually every country worldwide. No separate voltage converter is needed.
Q: Can I use this adapter to power a SATA hard drive?
A: Yes, but you will need to purchase a separate SATA power adapter cable (Molex 4-pin to SATA power). The adapter itself outputs via a standard 4-pin IDE (Molex) connector and is not natively SATA-terminated.
Q: Is the data transfer cable included in the package?
A: No. The package includes only the power supply adapter (1 unit). IDE or SATA data transfer cables must be purchased separately.
Q: How long can I run the adapter at full 2A output?
A: The adapter is rated for a continuous working current of 1.5A. Operating above 2A should not exceed 5 minutes at a time to prevent overheating and protect the unit's longevity.
