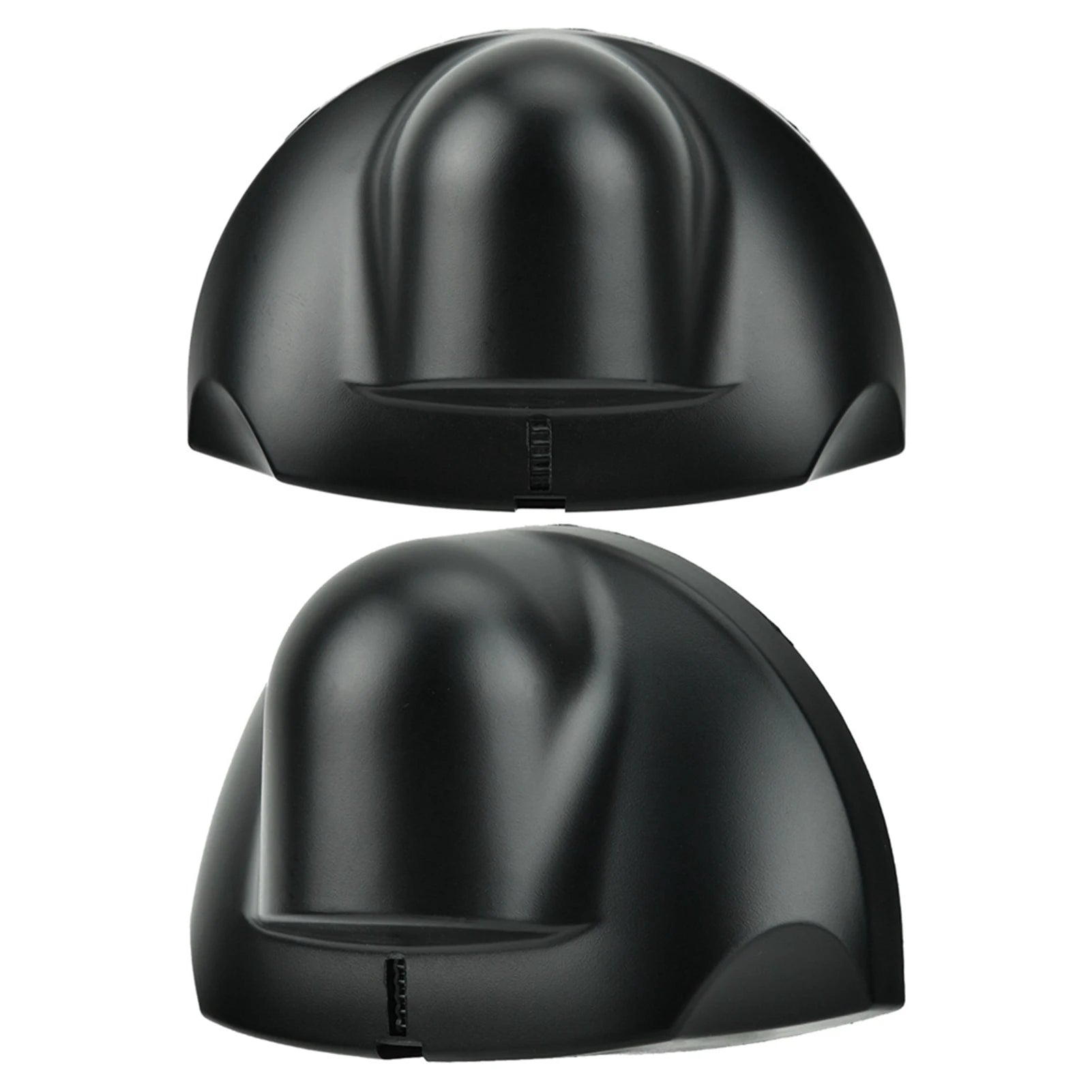

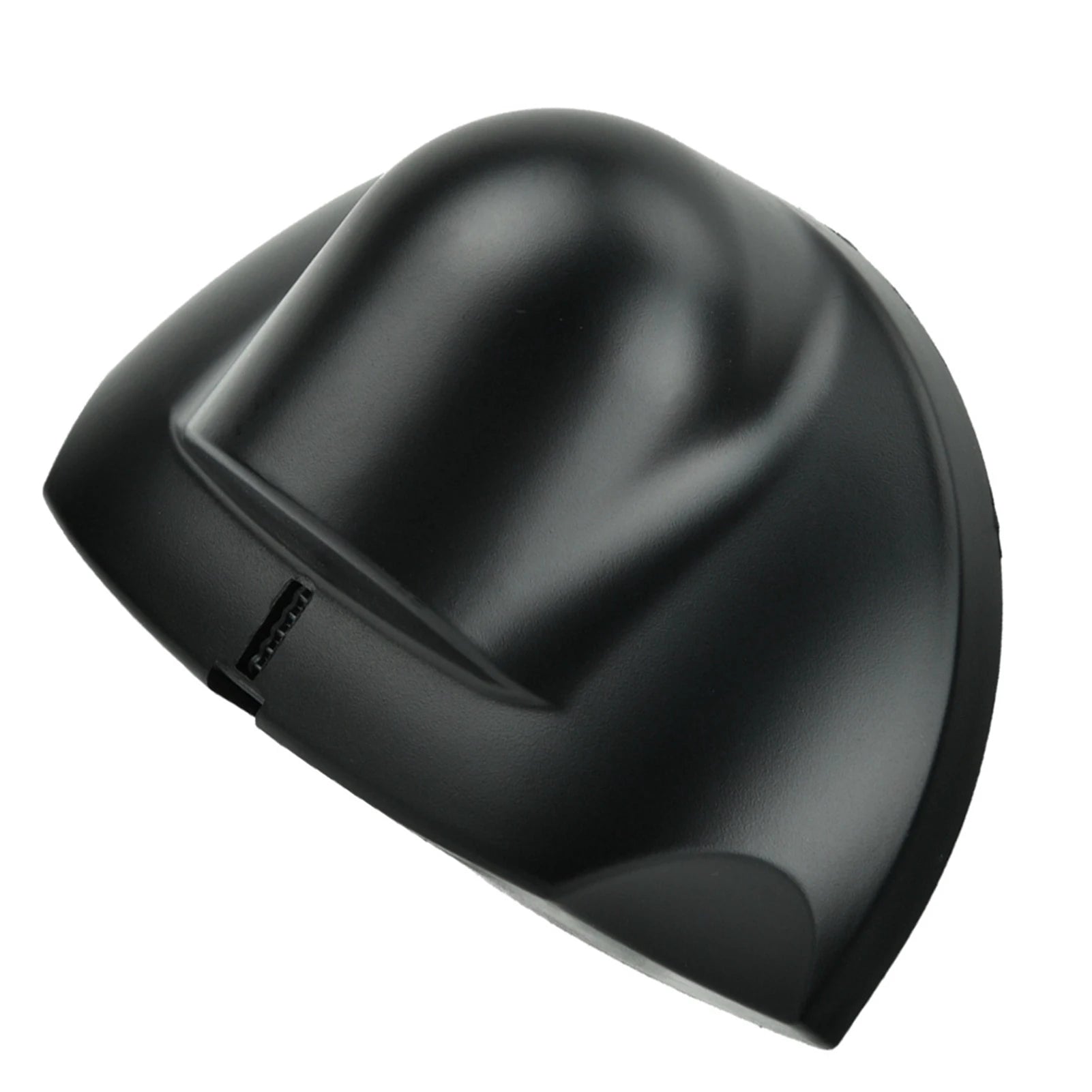

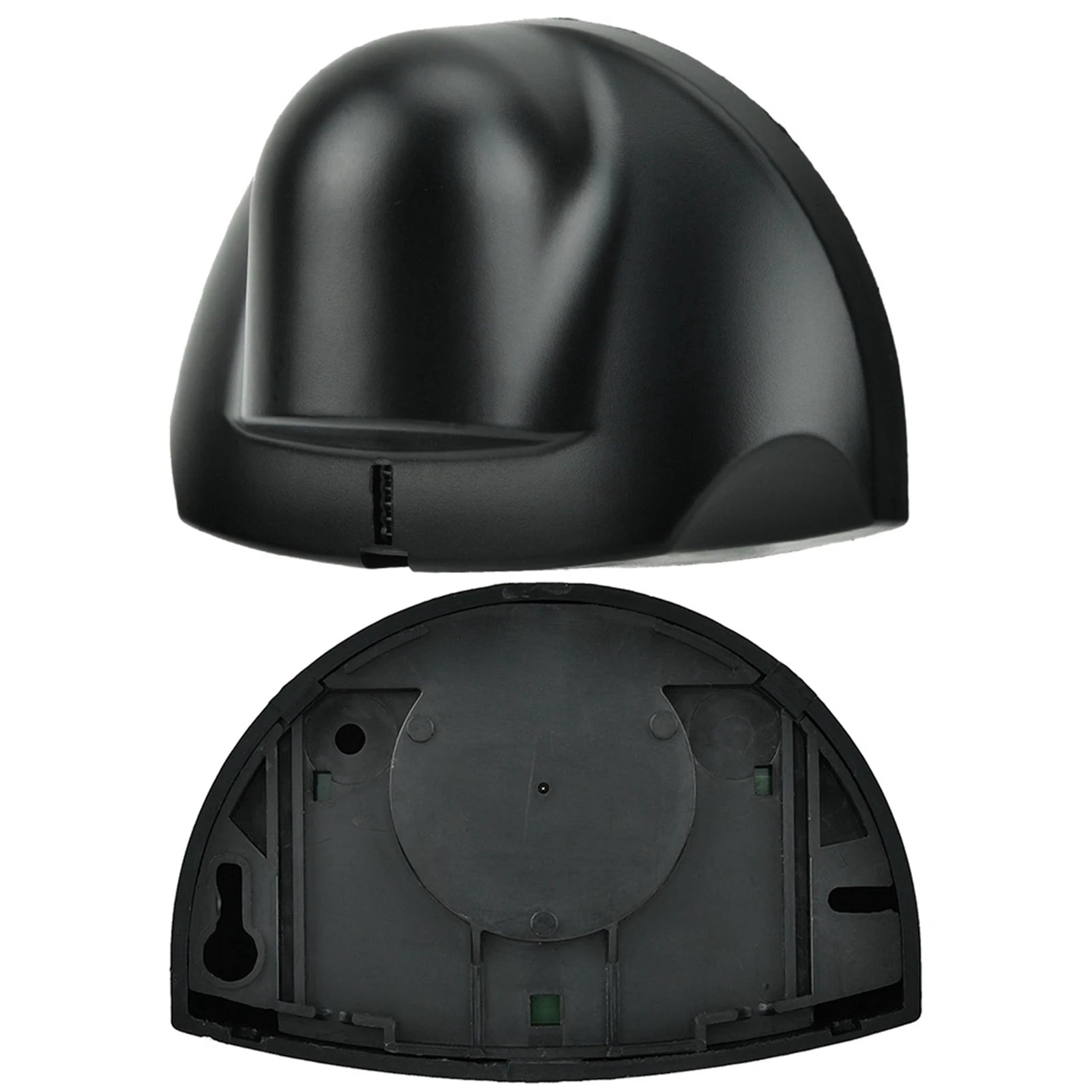

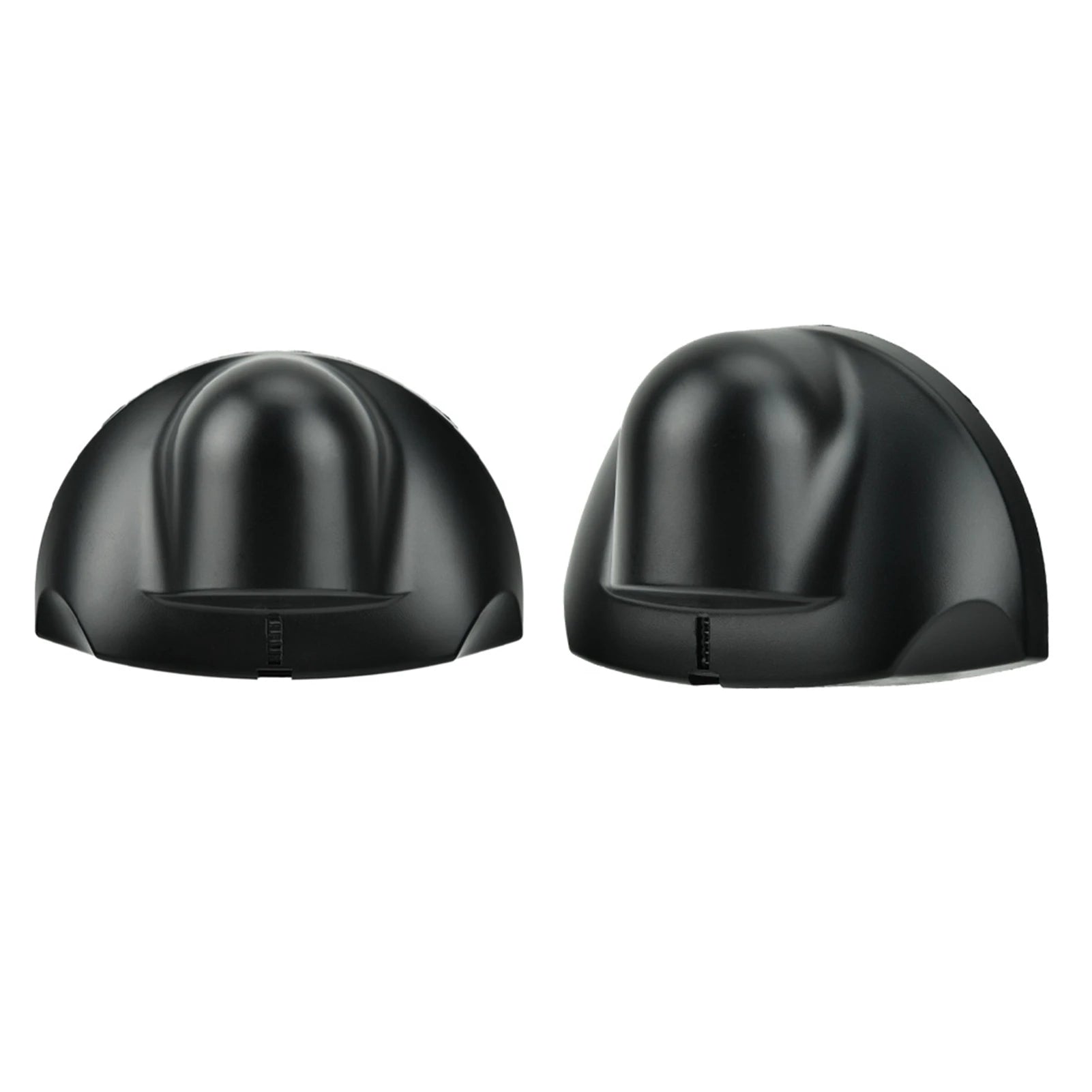

12-24V Automatic Door 24 125Ghz Microwave Motion Sensor Autodoor

Discover the 12-24V Automatic Door 24 125Ghz Microwave Motion Sensor Autodoor, a standout electronics pick designed for dependable everyday performance and lasting value.

Specifications

Certification: NONE,CE

12-24V Automatic Door 24.125Ghz Microwave Motion Sensor Autodoor Sensors:

Specification:

Features:
100% brand new and high quality .
It uses advanced motion tracking and 24.125GHz microwave sensor technology.
Optimizes sensors for all automatic door applications.
Adjust the sensor detection area by the four directions: left, right, up and down.
It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
Specifications:
Condition: Brand New
Material: ABS plastic
Color: Black
Technology: Microwave and Microwave Processors
Frequency: 24.125Ghz
Transmit Power: 20dBm EIRP
Transmission Frequency Density: 5mW / cm2
Installation Height: up to 3 Meters / 9.8 feet
Installation Angle: 0~90 Degrees (Longitudinal), -30~ + 30 Degrees (Horizontal)
Detection Mode: Exercise
Minimum Detection Speed: 5cm / s
Power: 2W (VA)
Detection Range: 4 (Width) * 2 (Depth) m (Mounting Height: 2m)
Maximum Voltage: 42AC / 60V DC
Maximum Current: 1A
Maximum Switching Power: 30W (DC) / 60VA (AC)
Retention Time: 0.5S
Guide Line: 2.5 m / 8.2 ft
Working Temperature: -20 ° C ~ + 55 ° C
Protection Level: IP54
Anti-jamming Performance: R&TTE1995 / 5 / EC, EMC 89/366 / EEC
Power Supply Voltage: 12-24V AC / DC
Packing Size: 15.8 * 11.5 * 6cm/6.2 * 4.5 * 2.4in

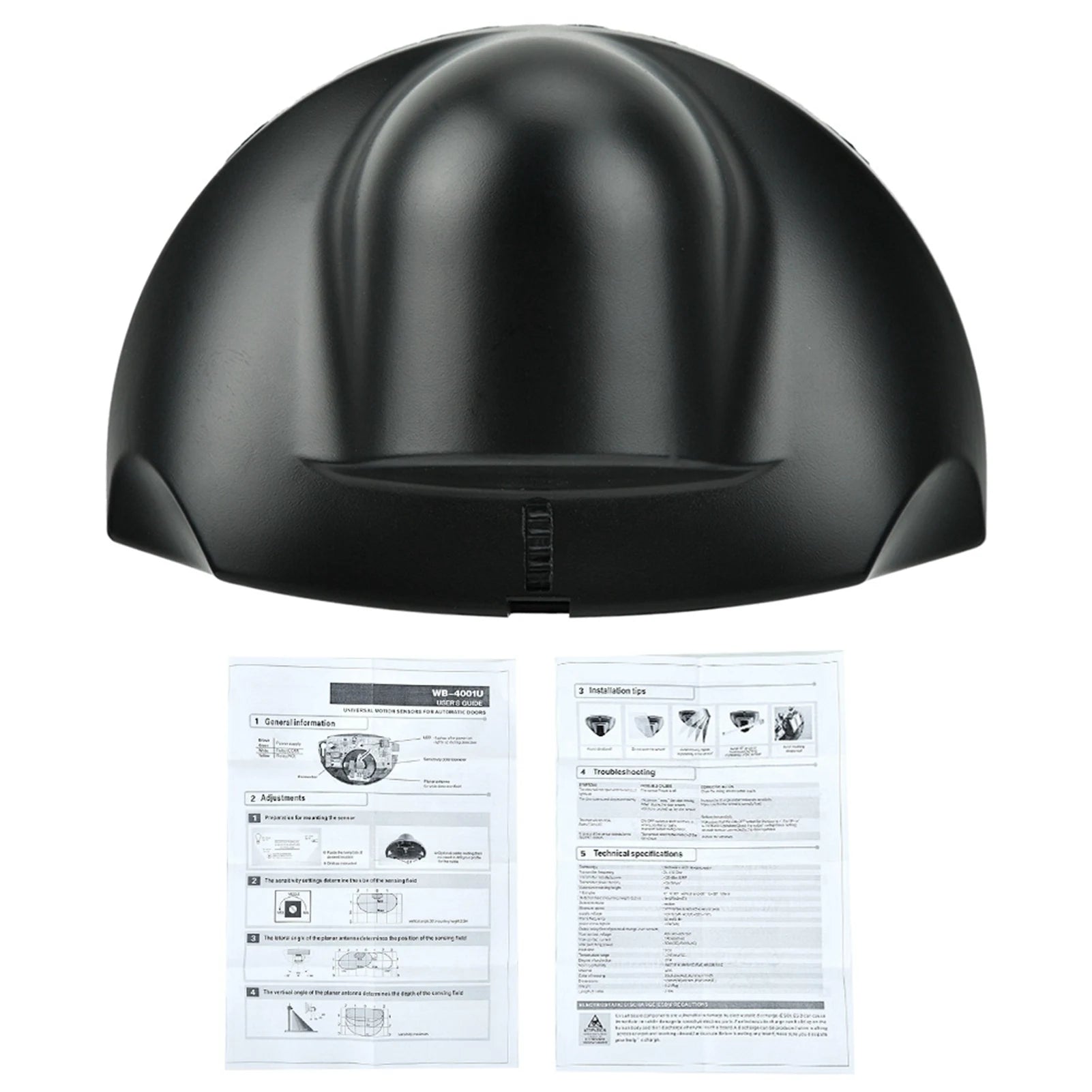

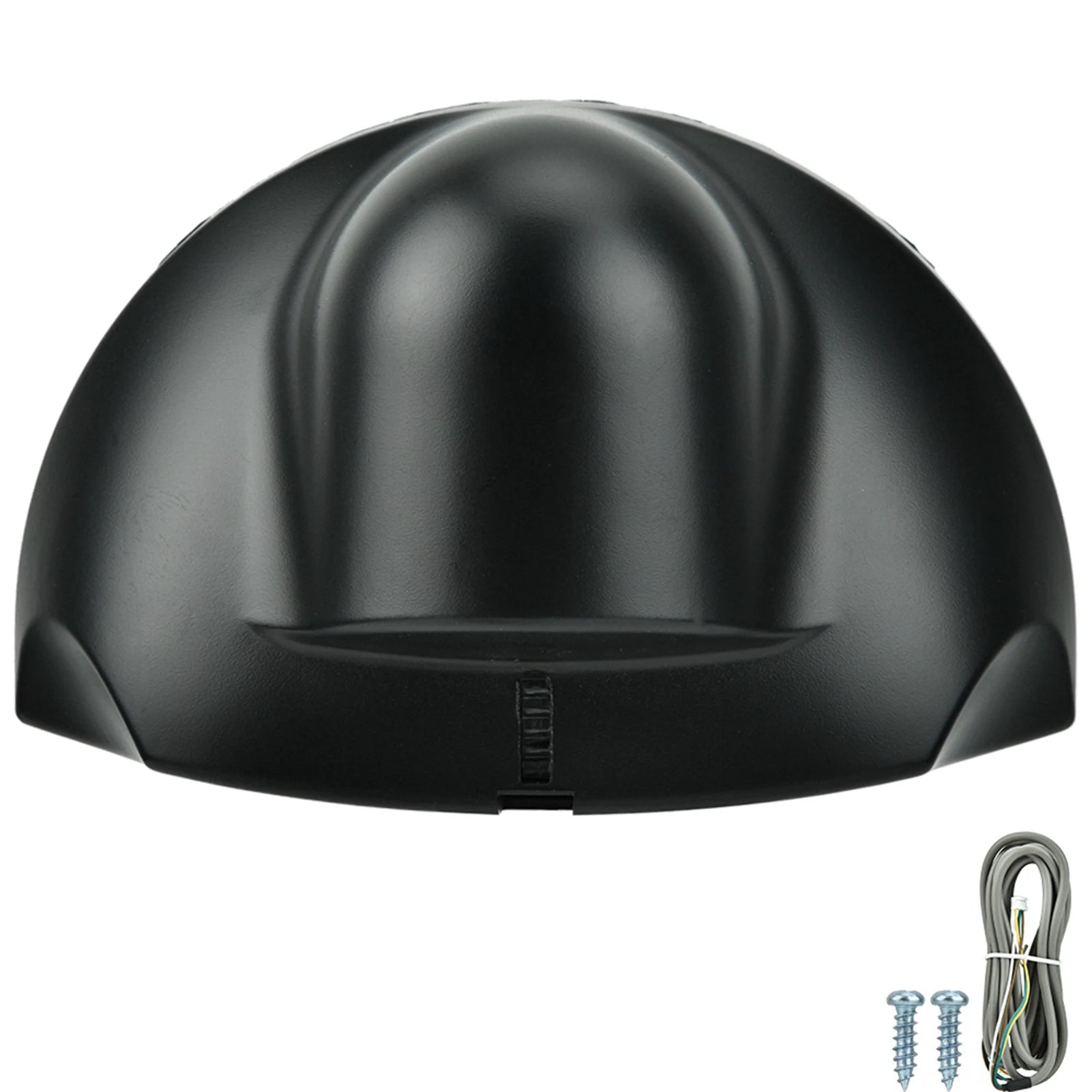

Package List:
1 * Microwave Sensor
1 * Connection Cable
1 * Positioning Jam
2 * Screws
1 * Instruction Manual
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
:

:
