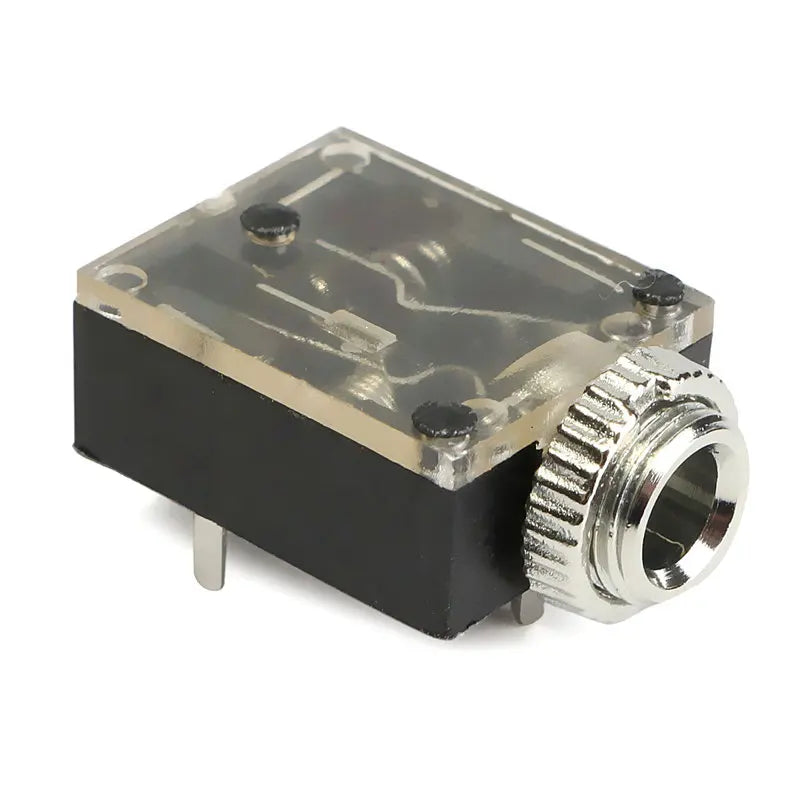

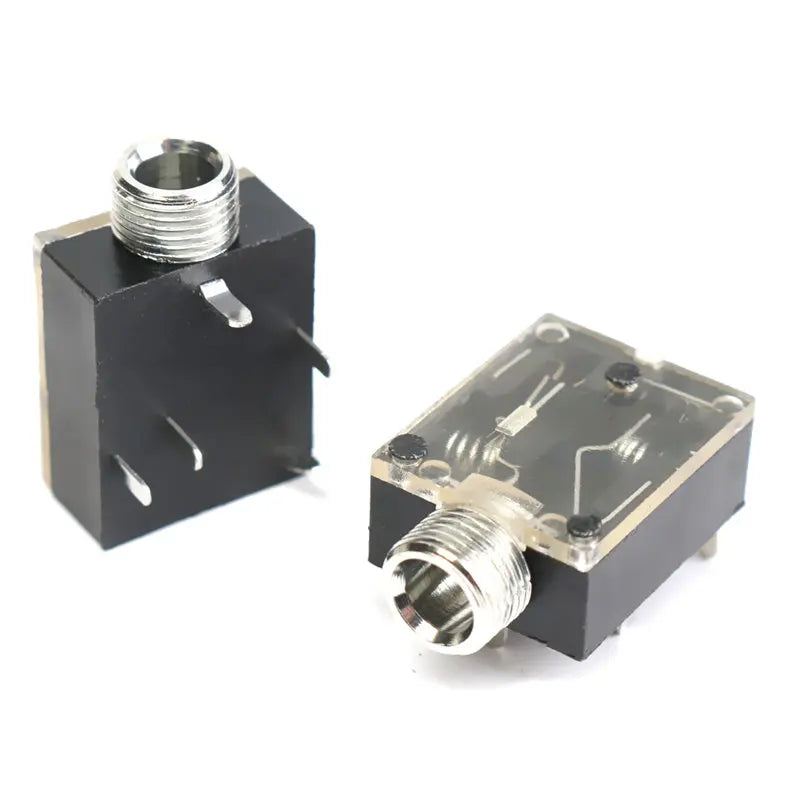

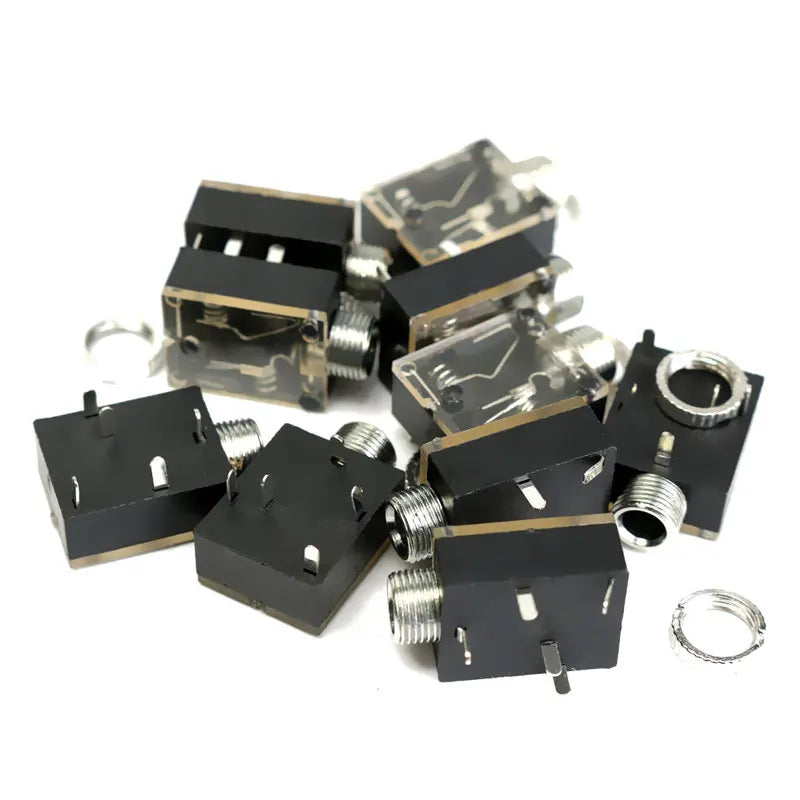

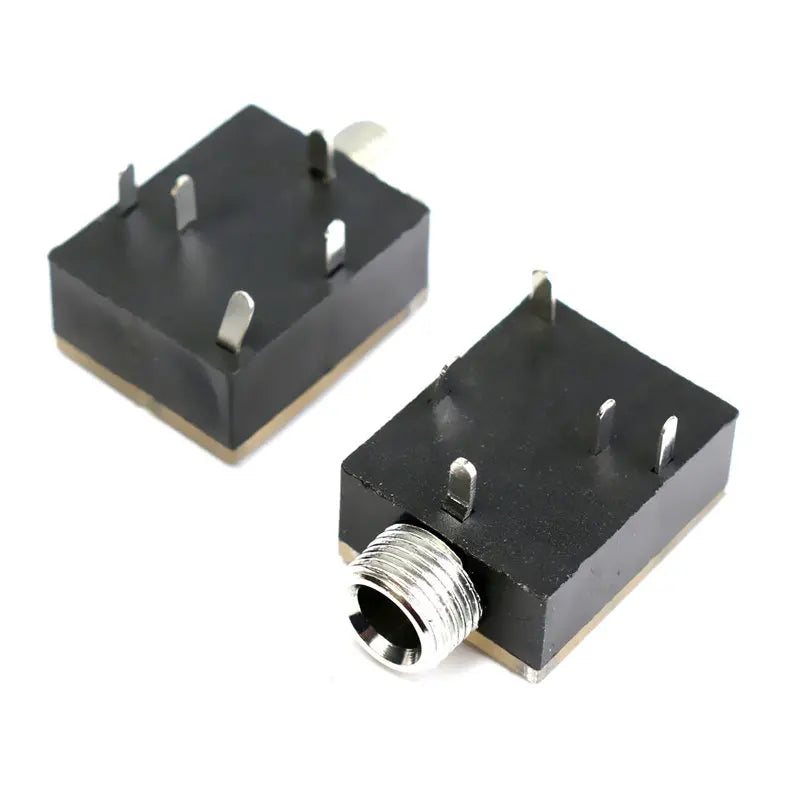

PJ-324 Headphone Jack Audio Nut 5-pin Interface Female PJ324

Discover the PJ-324 Headphone Jack Audio Nut 5-pin Interface Female PJ324, a standout vehicle parts & accessories pick designed for dependable everyday performance and lasting value.

Specifications

Certification: CE

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Model Number: PJ-324M

Voltage: None

semi_Choice: yes

PJ324M 3.5 headphone jack audio video socket audio jack socket 3.5MM headphone jack

Specifications:
Size: 14.2 * 11.5 * 6.3mm (excluding nuts and pins section)
Solder pin: 2.5mm high
Screw: long 3.5mm, 6mm diameter
Temperature: -30-70 ° C
Withstand Voltage: AC500V (50Hz) / min
Rated load: DC 30V 0.5A
Actuating Forc: 3-20N
Contact Resistance: <0.03Ω
Life: 5000 times

Pin Description:
1 needle ---ground electrode
2/5 needle --- left and right channels
3/4 needle --- After insert audio plug, automatic needle disconnect with 2/5

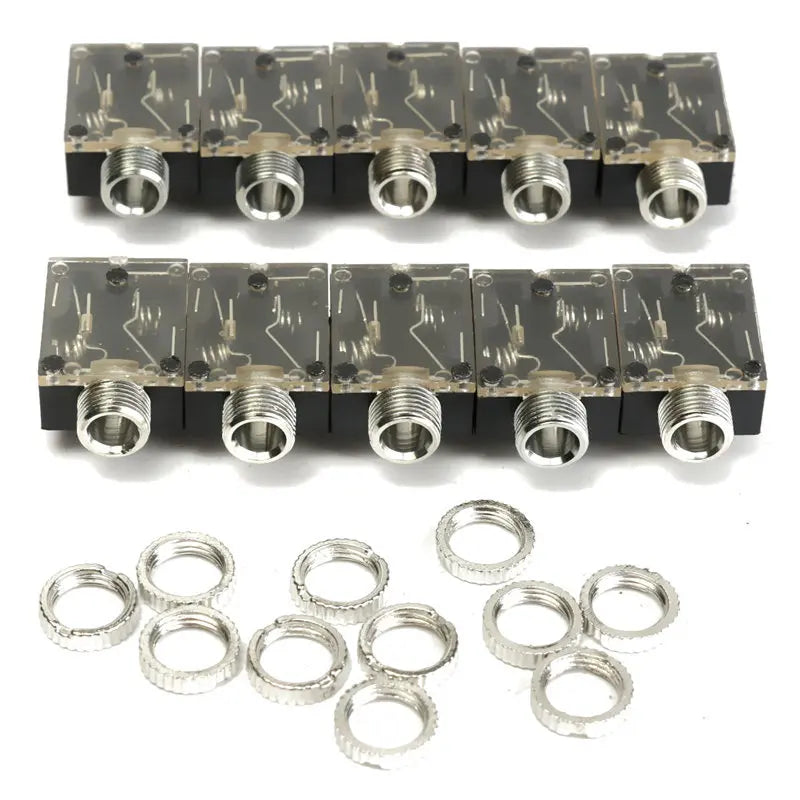

Package contains:
10x headphone jack
