1080P HD USB Camera Module for 3D Printer – 130/150° Wide Angle

1080P HD USB Camera Module for 3D Printers & Embedded Systems

Monitor your 3D prints in crisp full HD with this compact, plug-and-play USB camera module. Featuring a wide-angle lens of either 130° or 150° field of view, 2-megapixel resolution at up to 1920×1080, and a driver-free USB 2.0 UVC interface, it connects instantly to Linux, Windows, macOS, and OTG-capable Android devices — no software installation required.

Whether you're live-streaming a print job, building a custom surveillance rig, or integrating a camera into a Raspberry Pi or SBC project, this module delivers reliable, sharp imagery straight out of the box. Made in Mainland China.

Key Features

• Full HD Resolution: 2MP sensor with 1920×1080 max resolution for clear, detailed footage
• Wide Field of View: Choose 130° or 150° lens for broad scene coverage — ideal for monitoring large print beds
• Driver-Free Operation: USB 2.0 UVC standard means zero drivers needed on Linux, Windows, macOS, and OTG Android
• Fixed Focus Lens: Optimized for object distances of 20–100 cm — perfect for desktop and 3D printer setups
• Dual Output Formats: Supports both MJPG and YUV (YUY2) for compatibility with a wide range of capture software
• 4P+IR Lens Construction: F/2.0 aperture for improved low-light image quality

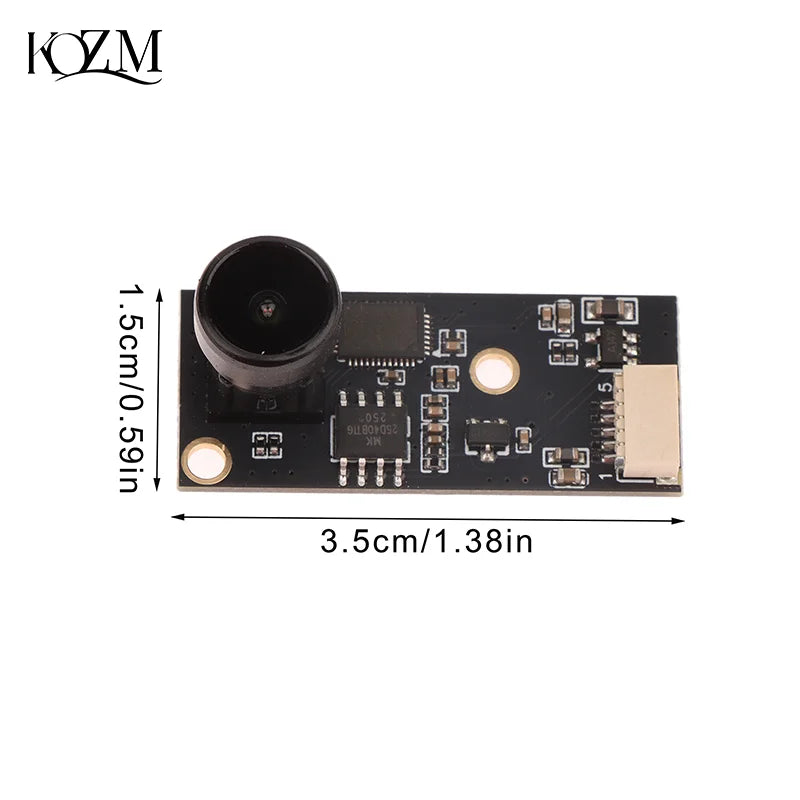

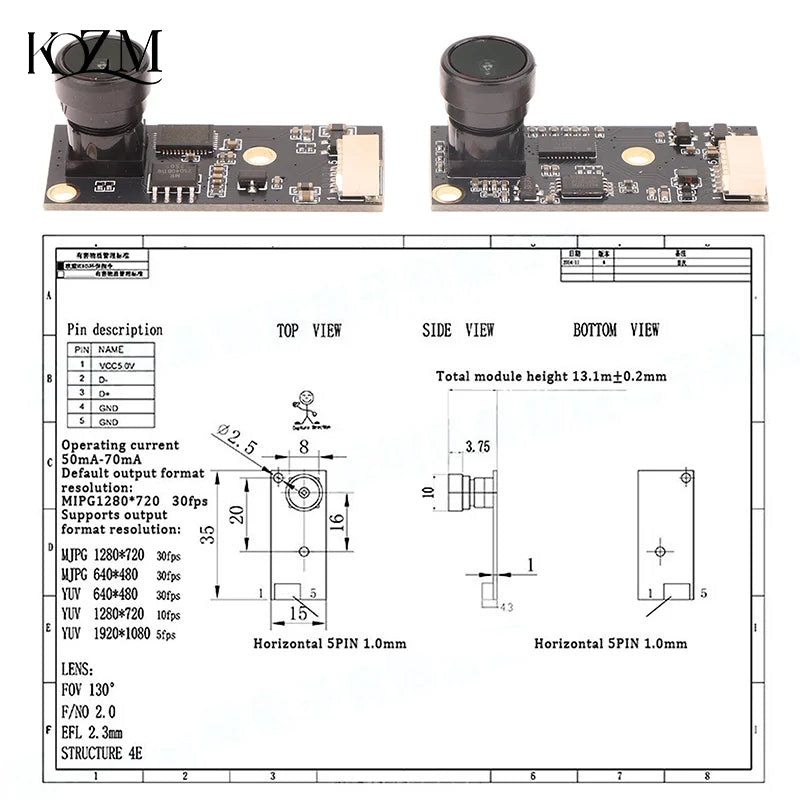

• Compact & Lightweight: Only 35×15×13.1 mm — easy to mount inside printer enclosures or custom housings

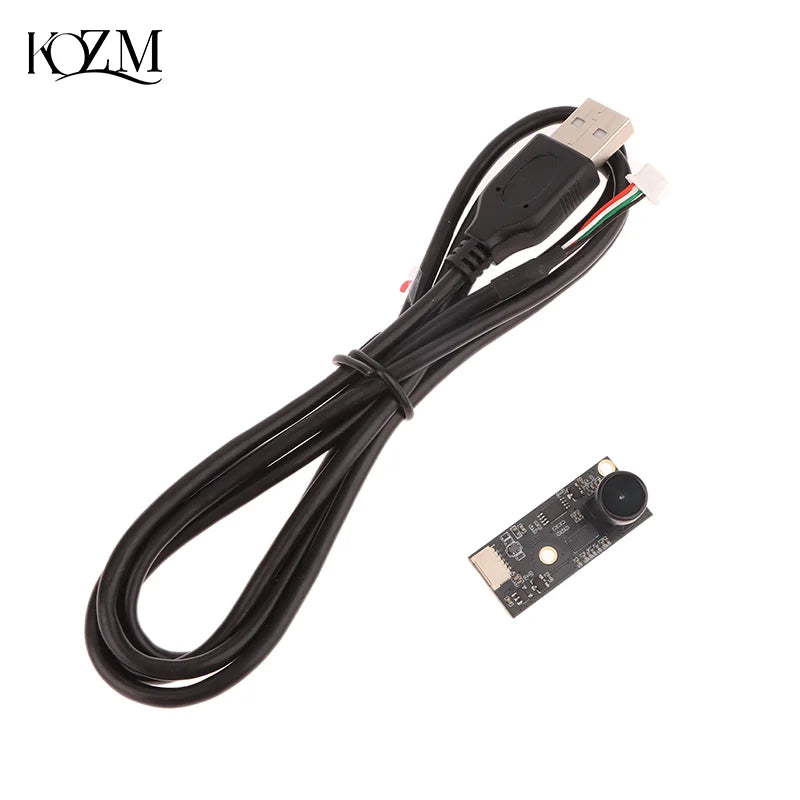

• 50 cm USB Cable: Included cable provides enough reach for most desktop and printer setups
• Wide Operating Temperature: Functions from -20°C to 70°C; stable image output from 0°C to 50°C
• Bus-Powered: Draws power directly from the USB port — no separate power supply needed

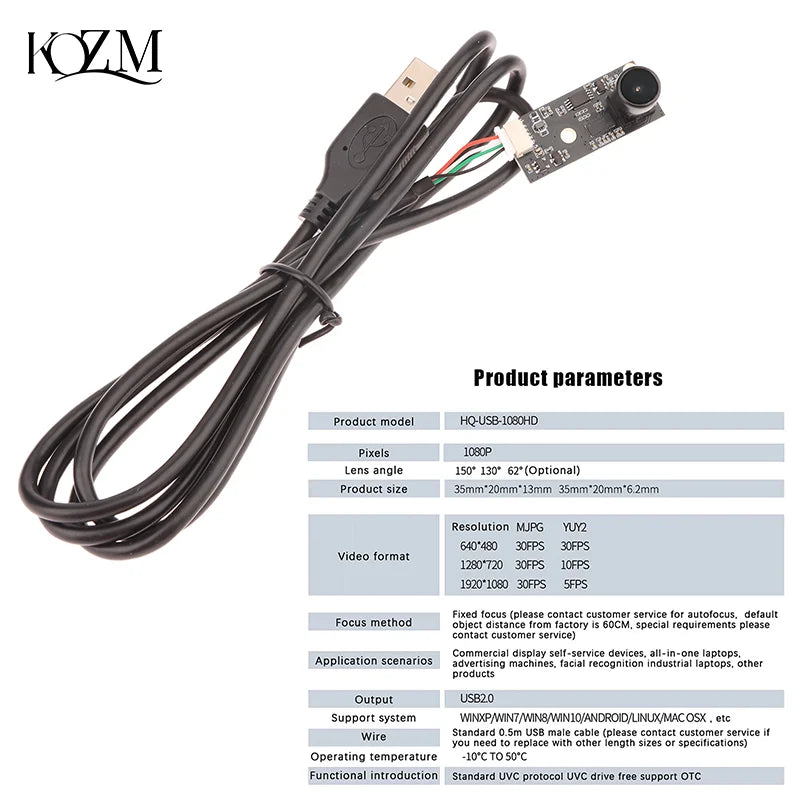

Technical Specifications

Compatible With

• 3D Printers (Creality, Ender, Voron, RatRig, and more)
• Raspberry Pi, Orange Pi, and other single-board computers
• Linux, Windows 7/8/10/11, macOS
• Android devices with OTG support
• OctoPrint, Mainsail, Fluidd, and other print monitoring platforms

Related Products You May Like

• 0.25mm 1000-Turn Precision Copper Inductor Coil for DIY Circuits
• 0.38" 1280×720P Micro Display DIY Kit with HDMI Driver Board
• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino

For guidance on safe use of electronic components and embedded systems, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Is this USB camera module compatible with OctoPrint for 3D printer monitoring?

A: Yes! This camera module uses the standard USB 2.0 UVC protocol, which is natively supported by OctoPrint, Mainsail, and Fluidd running on Raspberry Pi or similar Linux-based systems. Simply plug it in and configure your streaming URL — no additional drivers are needed.

Q: What is the difference between the 130° and 150° field-of-view options?

A: The 130° variant is well-suited for smaller or standard-size print beds where you need a clear, moderately wide view. The 150° ultra-wide option captures more of the surrounding area, making it ideal for larger format printers or when you want to monitor the full print volume from a single camera position.

Q: Does this camera require any drivers or software to install?

A: No drivers are required. The module is UVC-compliant, meaning it is automatically recognized as a standard webcam on Linux, Windows 7 and later, macOS, and OTG-enabled Android devices. It is truly plug-and-play right out of the box.

Q: What output formats does this camera support?

A: The camera supports both MJPG (Motion JPEG) and YUV/YUY2 formats, giving you flexibility to choose the format best suited for your streaming or recording software. MJPG is commonly preferred for smoother frame rates, while YUV is useful for raw color-accurate capture.
