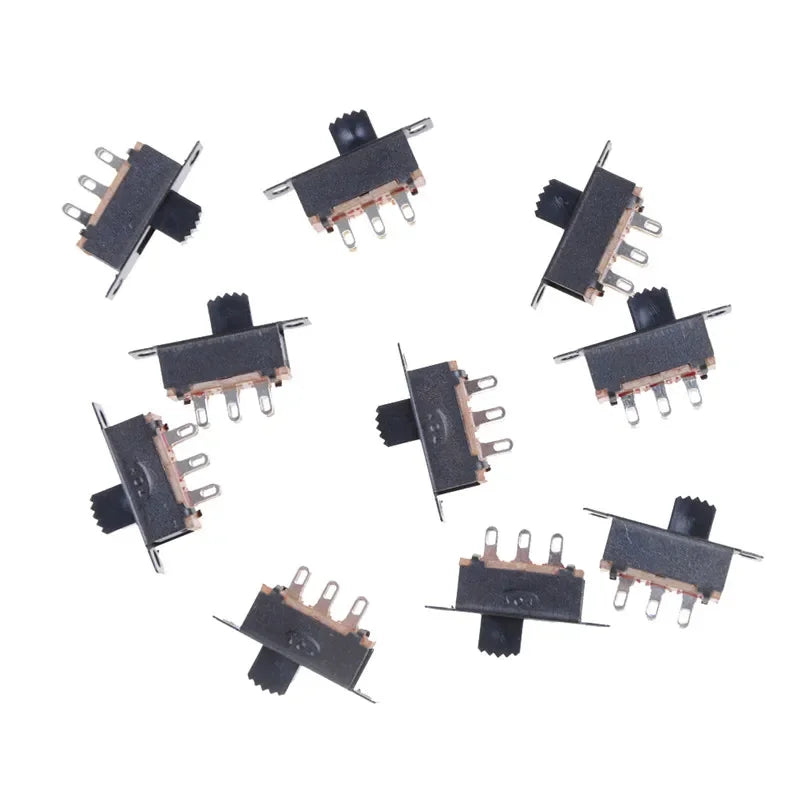

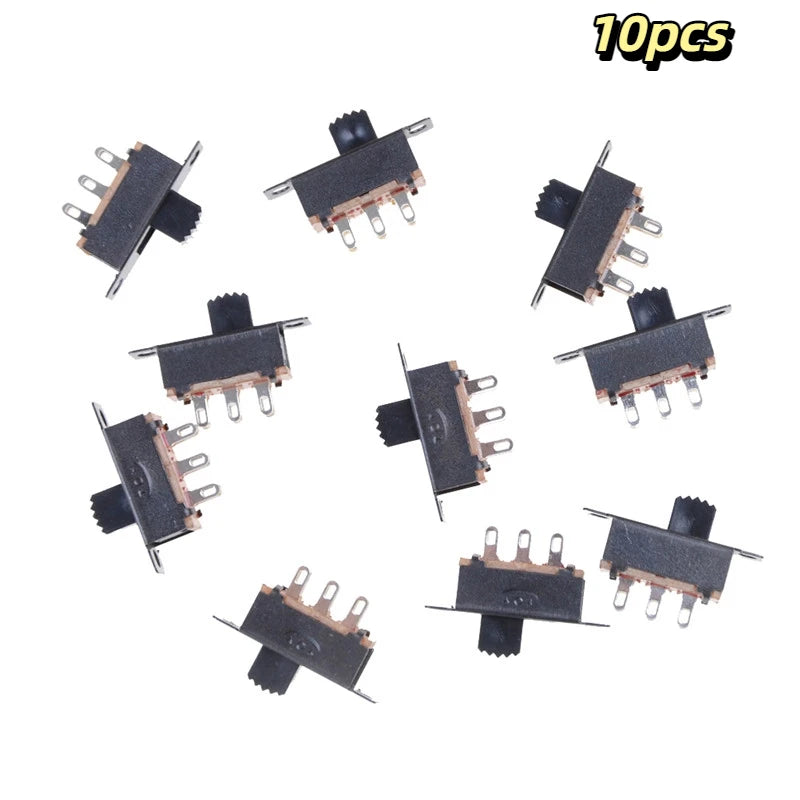

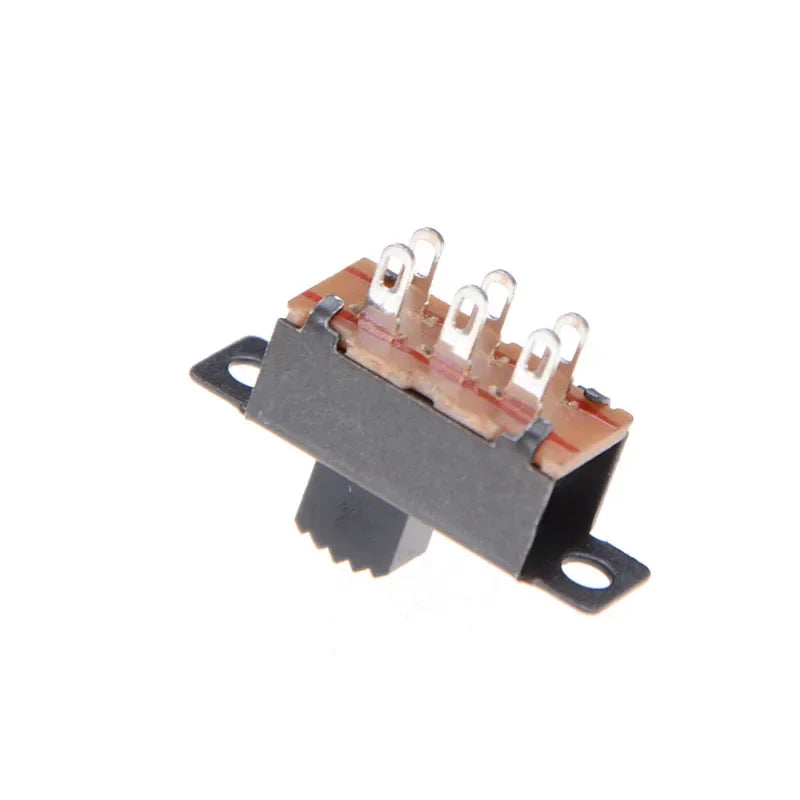

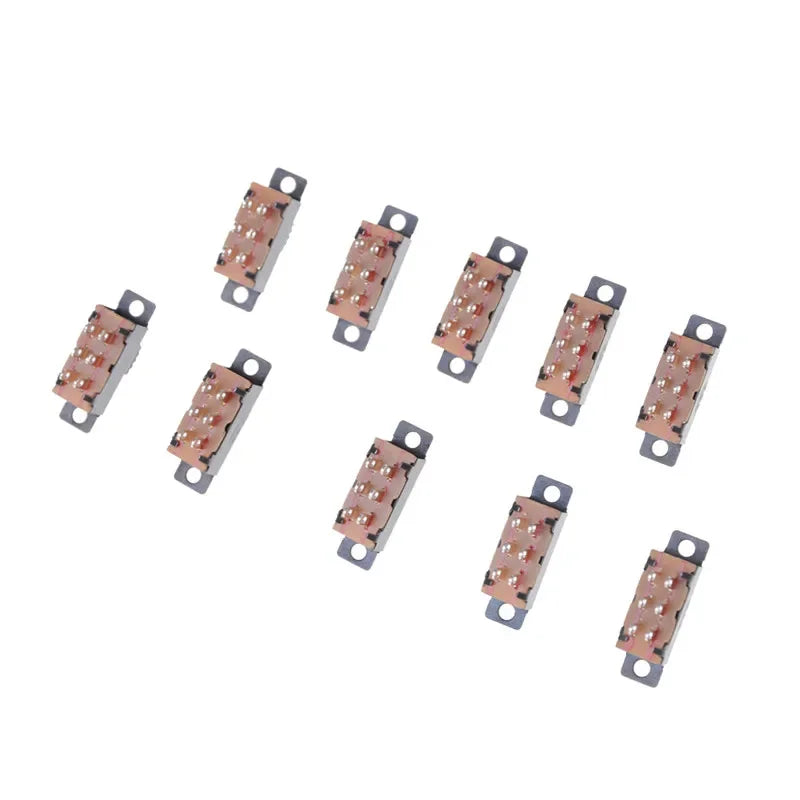

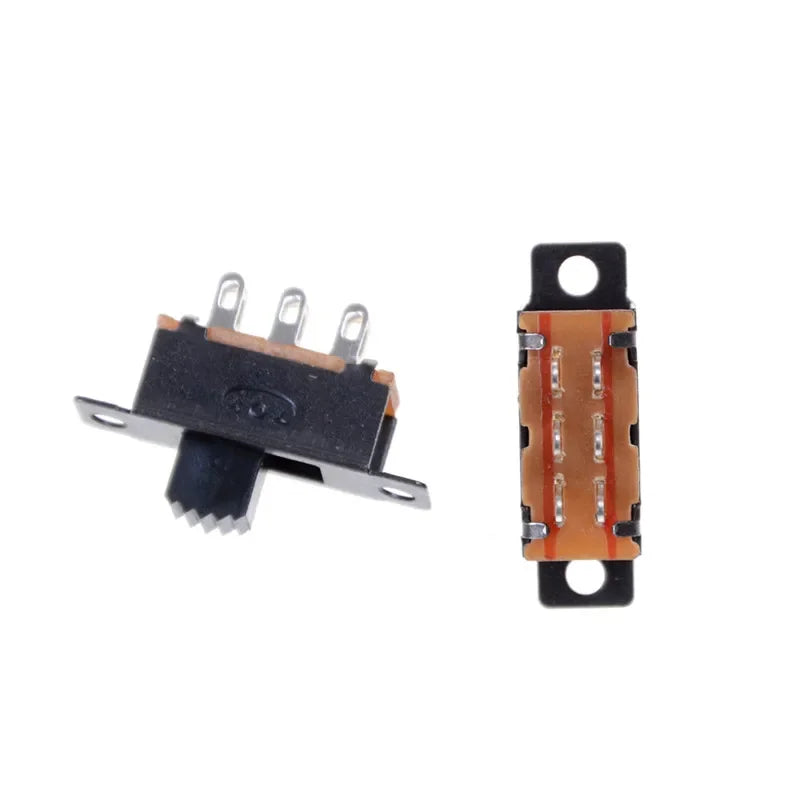

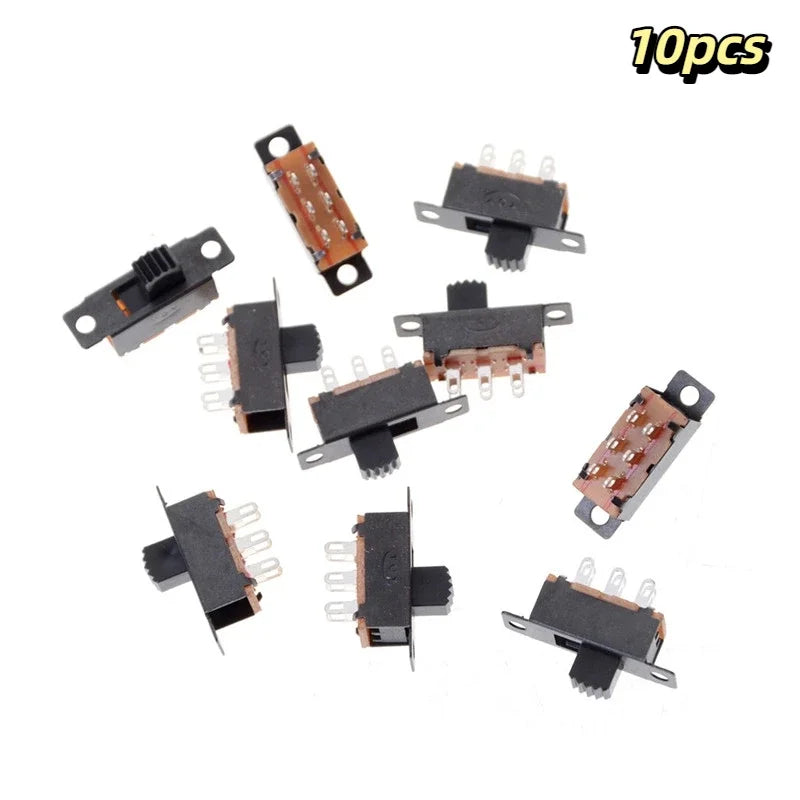

10-Pack DPDT 2P2T Vertical Slide Switch 6-Pin 0.5A 50V DC

10-Pack DPDT Vertical Slide Switches — Reliable Control for Your Electronics Projects

Get more done with less hassle. This pack of 10 DPDT (Double Pole Double Throw) vertical slide switches — model SS22F32 — gives you everything you need to add reliable on/off or signal-routing control to your DIY electronics builds, hobby circuits, and small appliance projects. With a compact panel-mount design and through-hole terminals, these switches are a go-to component for makers, hobbyists, and electronics enthusiasts.

Made in Mainland China.

Key Specifications

• Model: SS22F32
• Action Type: DPDT (Double Pole Double Throw) — 2 Position
• Poles: 2 Pole (2P2T)
• Terminals: 6 Pins
• Rated Load: 0.5A @ 50V DC
• Withstand Voltage: AC 500V for 1 minute
• Mounting Type: Through-Hole / Panel Mount
• Hole Diameter: 2.8mm (0.11")
• Switch Total Size: 23.5 × 7.6 × 18mm (0.92" × 0.3" × 0.71")
• Knob Size: 5.4 × 3.8 × 5.7mm (0.21" × 0.15" × 0.22")
• Terminal Size (each): 4.7 × 1.8mm (0.18" × 0.07")
• Material: Plastic body with metal terminals
• Package Contents: 10 × Slide Switches
• Total Weight: ~21g

What Can You Use These For?

These versatile DPDT slide switches are widely used across a huge range of small-power electronics applications, including:

• Audio/video equipment volume and input controls
• LED and light dimmer circuits
• Arduino, Raspberry Pi, and microcontroller projects
• RC toys and hobby gadgets
• DIY electronics enclosures and control panels
• Prototype boards and breadboard integration

Why You'll Love This Pack

• ✅ 10 switches per pack — great value for prototyping and bulk builds
• ✅ Compact vertical profile — fits tight PCB layouts with ease
• ✅ Sliding knob actuator — intuitive and smooth operation
• ✅ High withstand voltage — rated to AC 500V for safety testing
• ✅ Universal compatibility — standard 2.8mm hole diameter fits most standard panel cutouts

Related Products You May Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Best Seat In The House" Retro Quote Canvas Wall Art Print

Authoritative Reference

For guidance on electronics component safety standards and consumer product safety, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What does DPDT (Double Pole Double Throw) mean for a slide switch?

A: A DPDT slide switch controls two separate circuits simultaneously. "Double Pole" means two independent circuit paths, and "Double Throw" means each pole can connect to one of two outputs. This makes the SS22F32 ideal for switching between two signal sources or reversing polarity in small DC circuits.

Q: Are these slide switches compatible with Arduino or Raspberry Pi projects?

A: Yes! These 6-pin DPDT slide switches are rated at 0.5A and 50V DC, making them perfectly suited for low-voltage microcontroller projects like Arduino and Raspberry Pi builds. Their through-hole design also works well with standard breadboards and PCBs.

Q: How do I mount these switches to a panel or enclosure?

A: These switches are designed for through-hole panel mounting. Simply drill or cut a hole of 2.8mm (0.11") diameter in your panel or enclosure, insert the switch, and secure it in place. The terminals can then be soldered to your PCB or wired directly to your circuit.

Q: Can these switches handle AC voltage in live applications?

A: These switches are rated for 0.5A at 50V DC for regular operation. They are tested to withstand AC 500V for 1 minute (dielectric strength test), but they are NOT intended for mains AC wiring. They are designed for low-power DC electronics and control circuits only.
