Mini Circuit Breaker 1000V Disconnect PV Solar Miniature IP65

Discover the Mini Circuit Breaker 1000V Disconnect PV Solar Miniature IP65 — a standout decor pick featuring waterproof design for dependable, everyday performance.

Specifications

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Type: AIR,Difamat

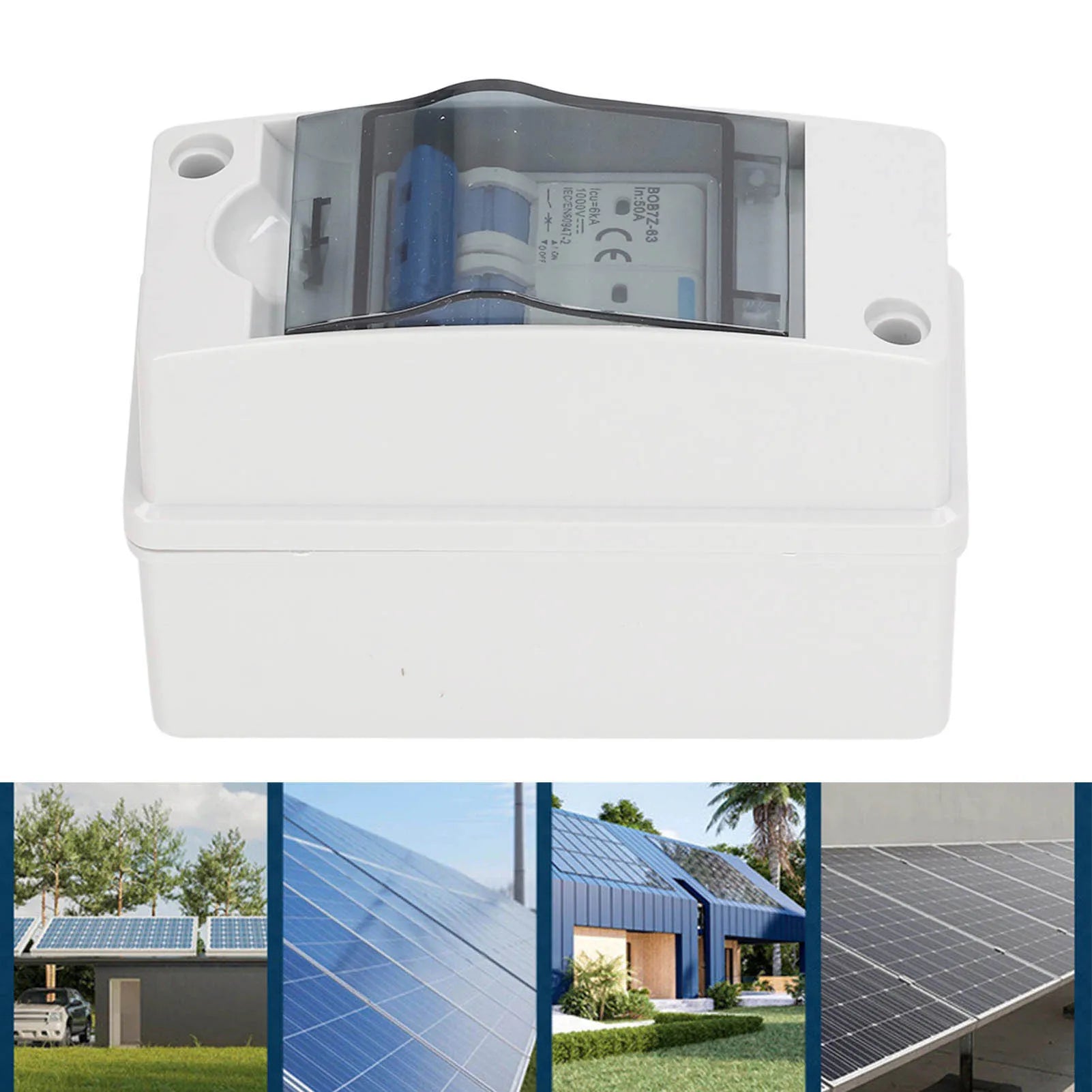

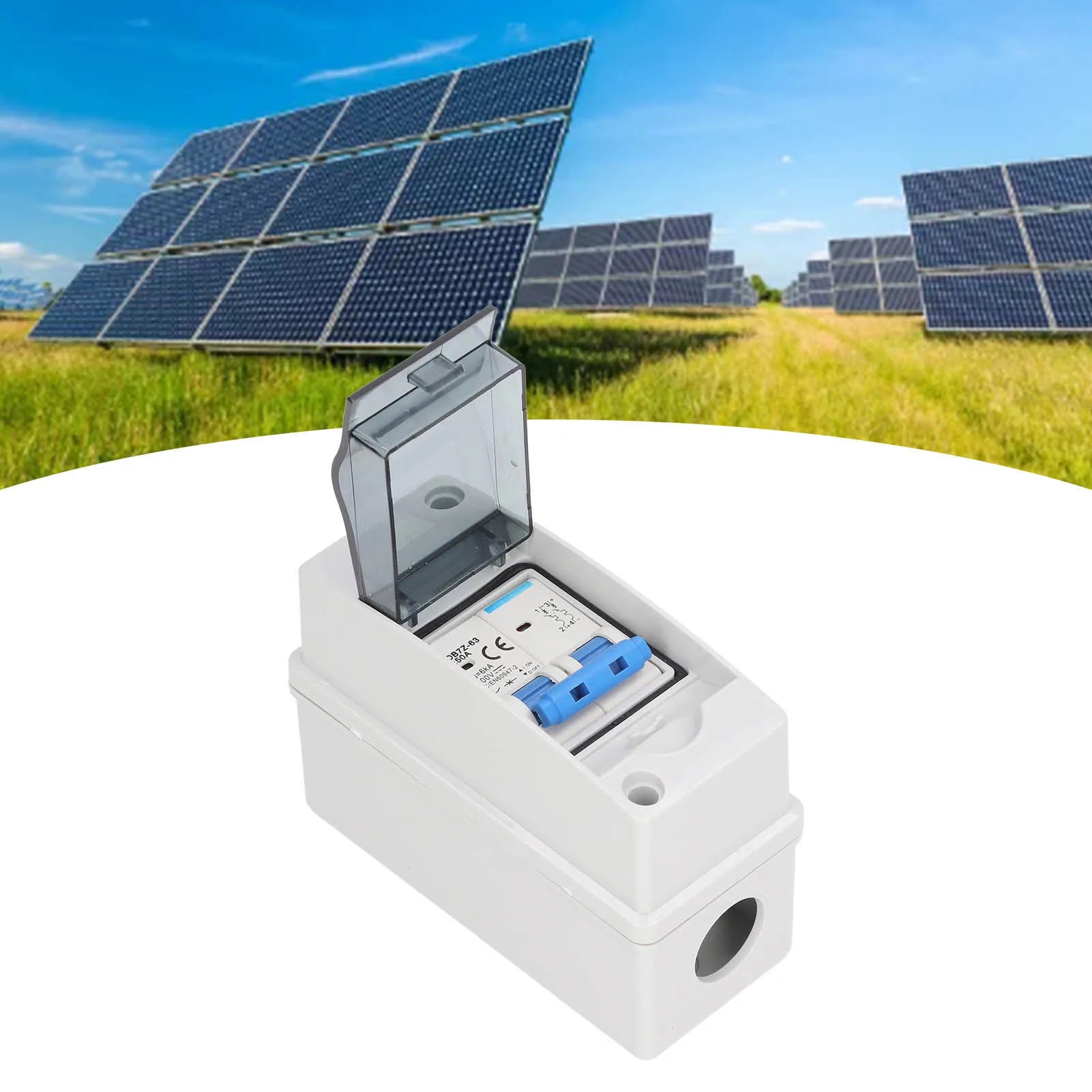

1000V DC Disconnect Switch PV Solar Miniature Circuit Breaker with IP65 Waterproof Distribution Box:

Feature:

1. EASY INSTALLATION: The solar photovoltaic DC distribution box is installed between the solar panel and the solar inverter, with fast installation, plug and play.

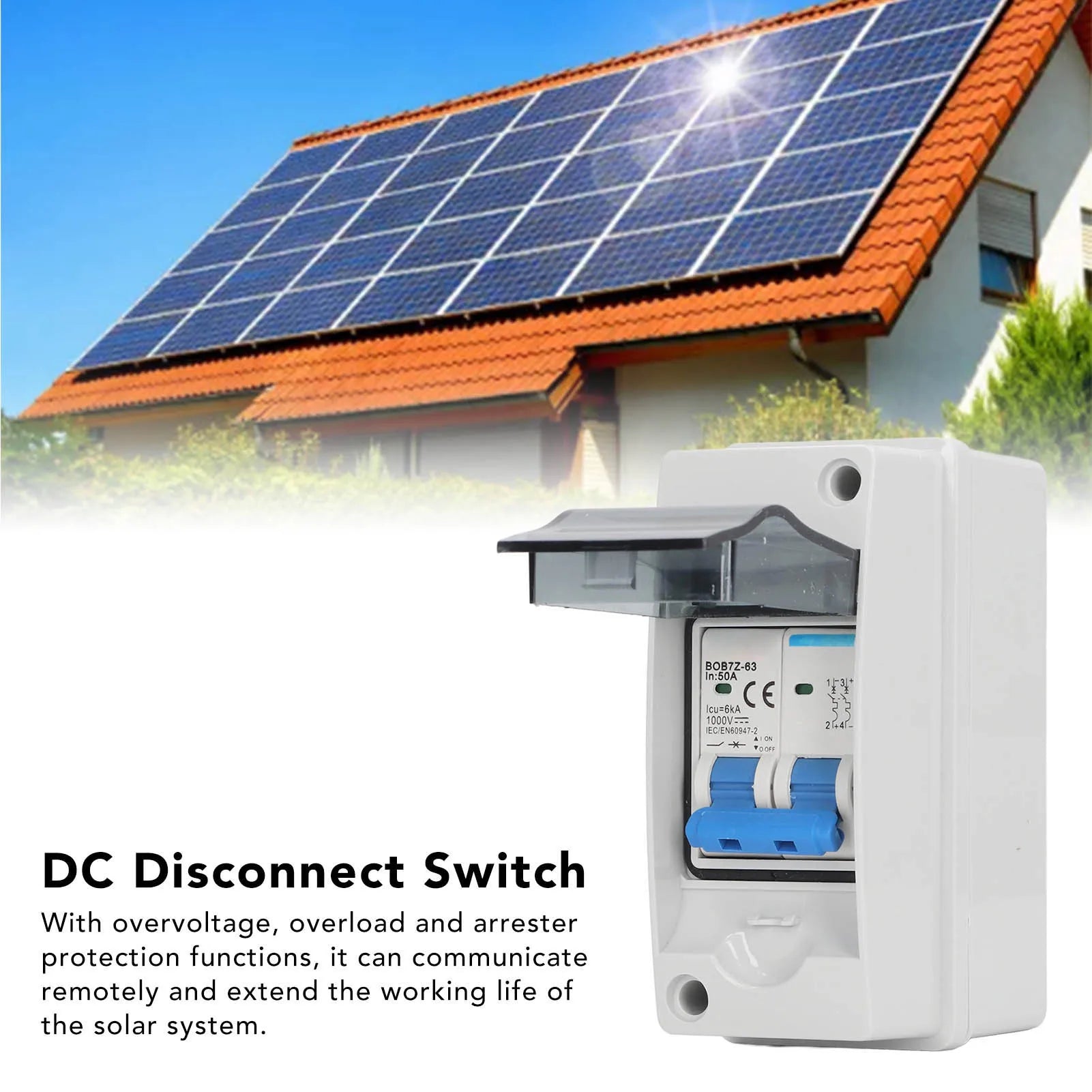

2. GOOD PROTECTION: With overvoltage, overload and arrester protection functions, it can communicate remotely and extend the working life of the solar system.

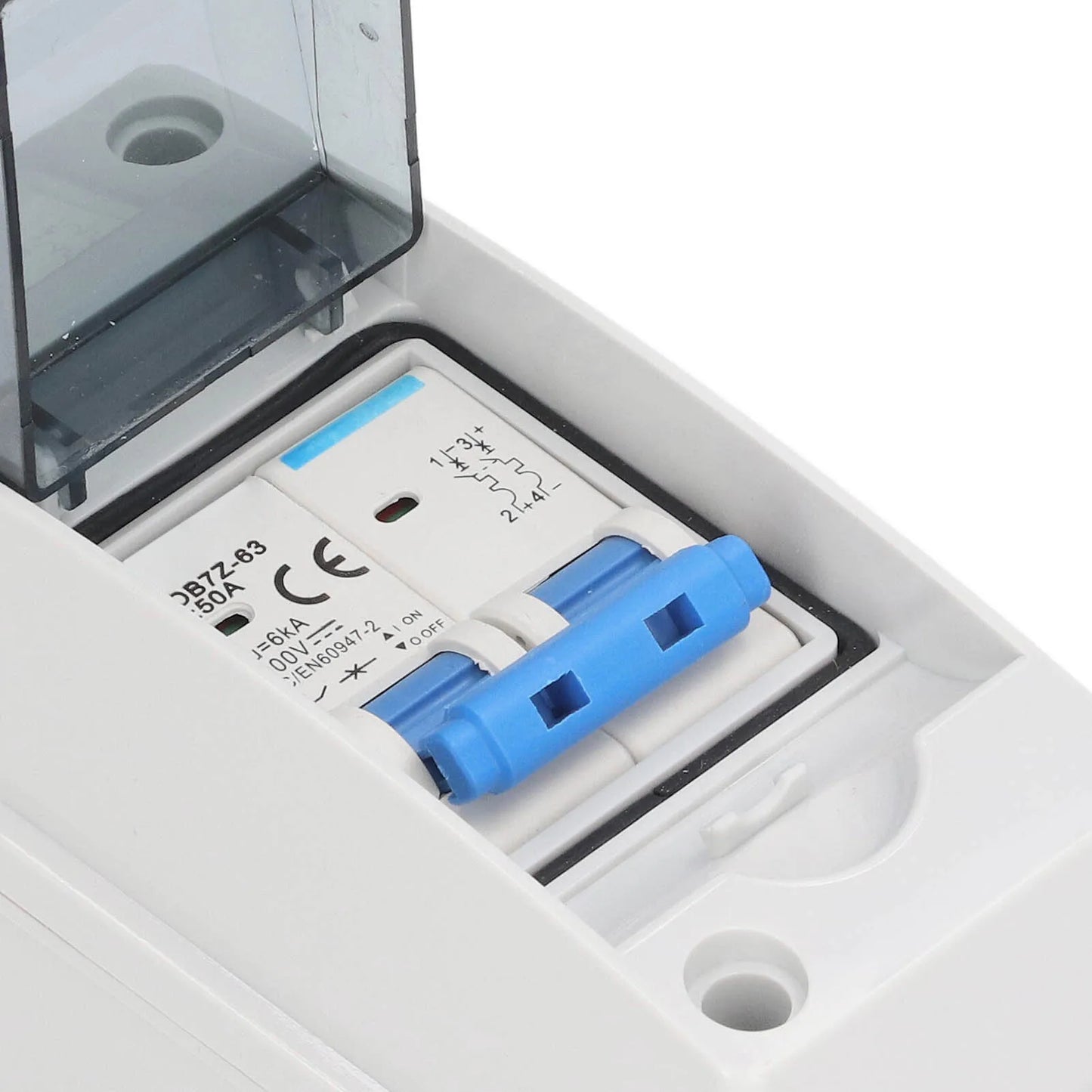

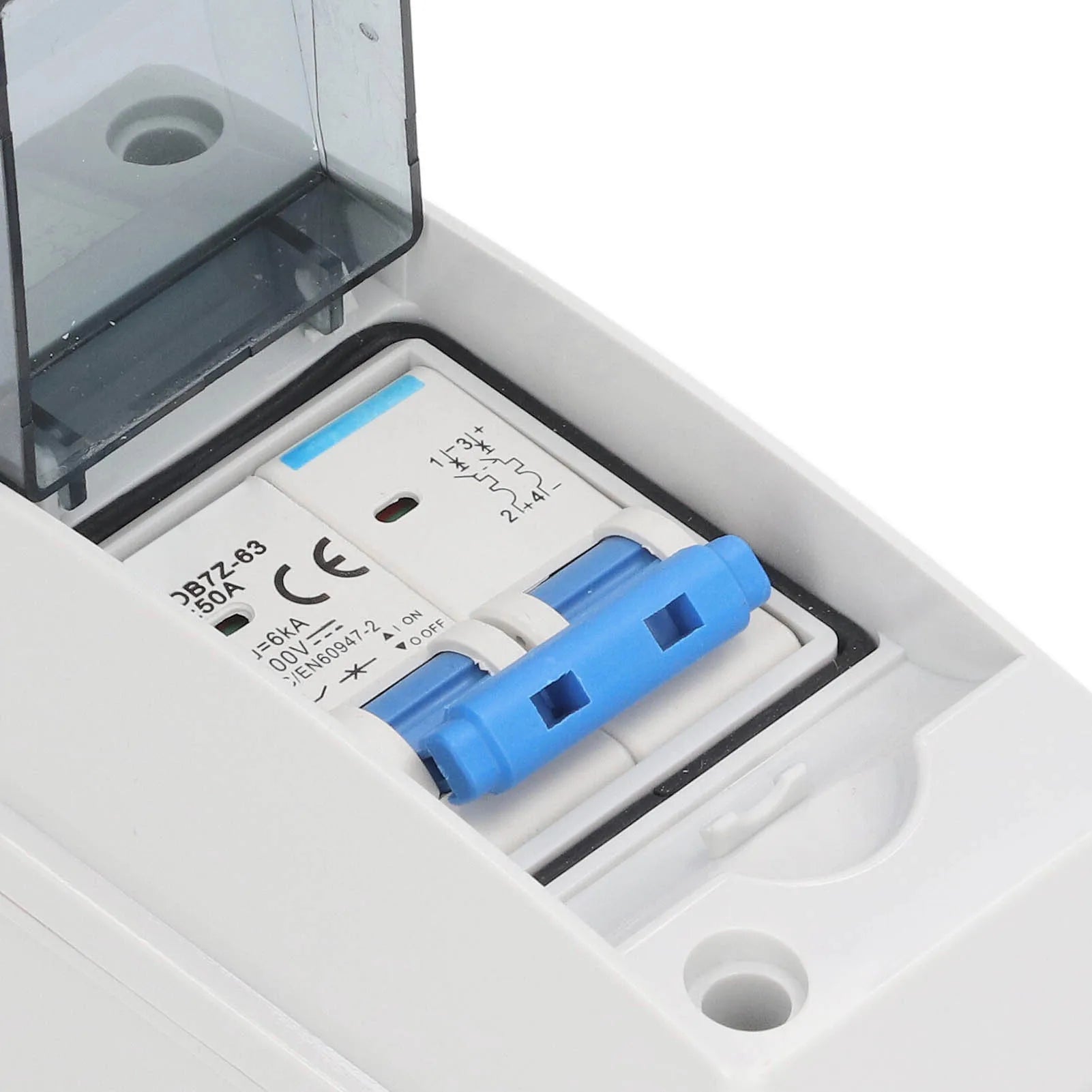

3. EXCELLENT PARTS: Equipped with reliable DC assembly to maximize the protection of the disconnector, the transparent cover is convenient for checking the status.
4. IP65 WATERPROOF: The distribution box has IP65 waterproof grade, allowing indoor and outdoor installation, and can be used in severe weather conditions.

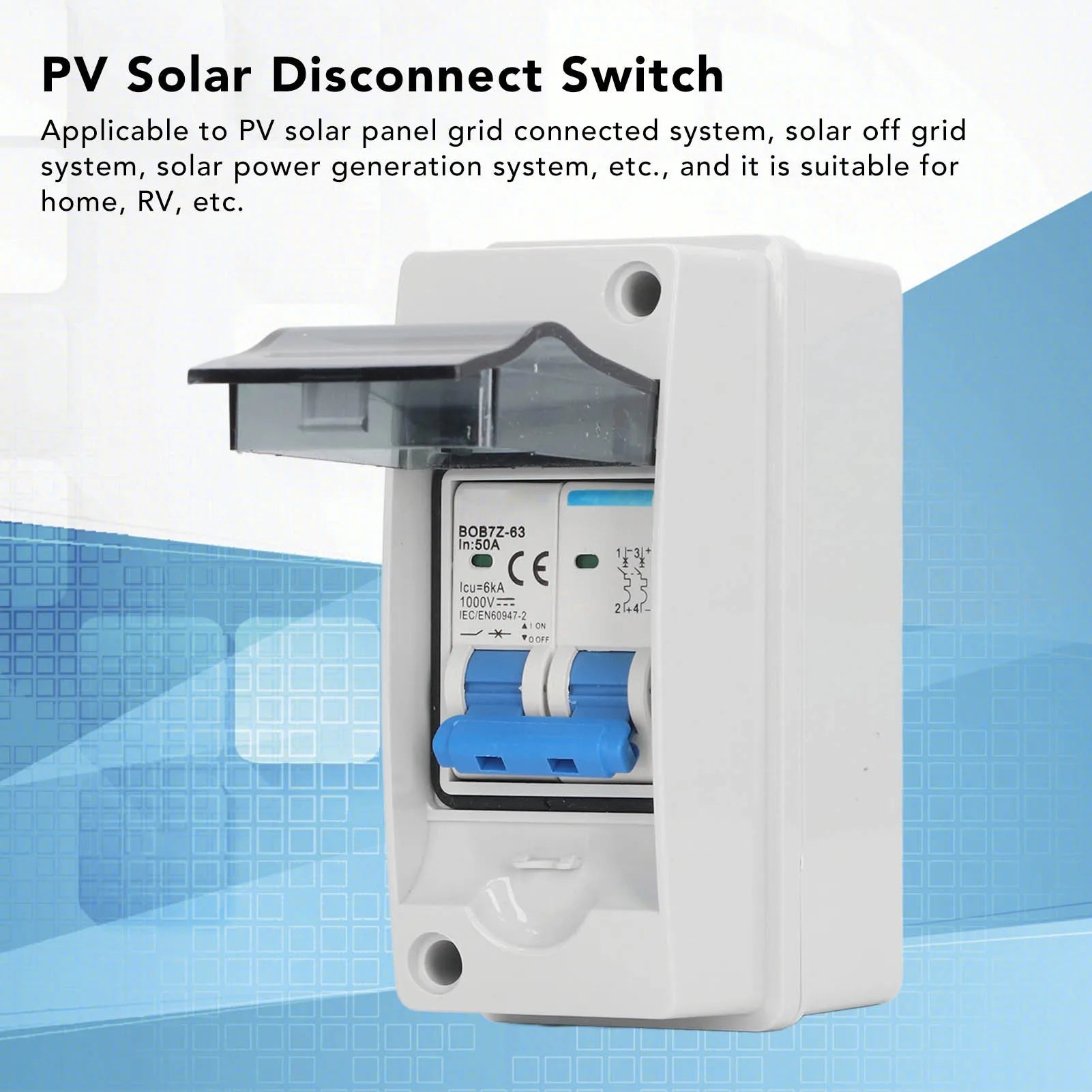

5. MULTIPLE USAGES: Applicable to PV solar panel grid connected system, solar off grid system, solar power generation system, etc., and it is suitable for home, RV, etc.

Specification:

Item Type: DC Disconnect Switch
Model: BOB7Z-63 50A
Maximum Voltage: 1000V
Each Input Maximum DC Short Circuit Current (Isc): 50A
Material: Polycarbonate, ABS
Protection Grade: IP65
Product Size: Approx. 120 x 52 x 90mm / 4.7 x 2 x 3.5in
Cable Inlet: PG20 4²
Output Cable Gland: PG20 4²
Rated Insulation Voltage (Ui): 1000V
Rated Current (Le): 50A
Maximum Working Voltage (Ucpv): 1000V
Rated Working Voltage: 1000V
Sectional Capacity (ICU): 6KA
Application: Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system, household, RV, etc.

How to Use:

Install to use

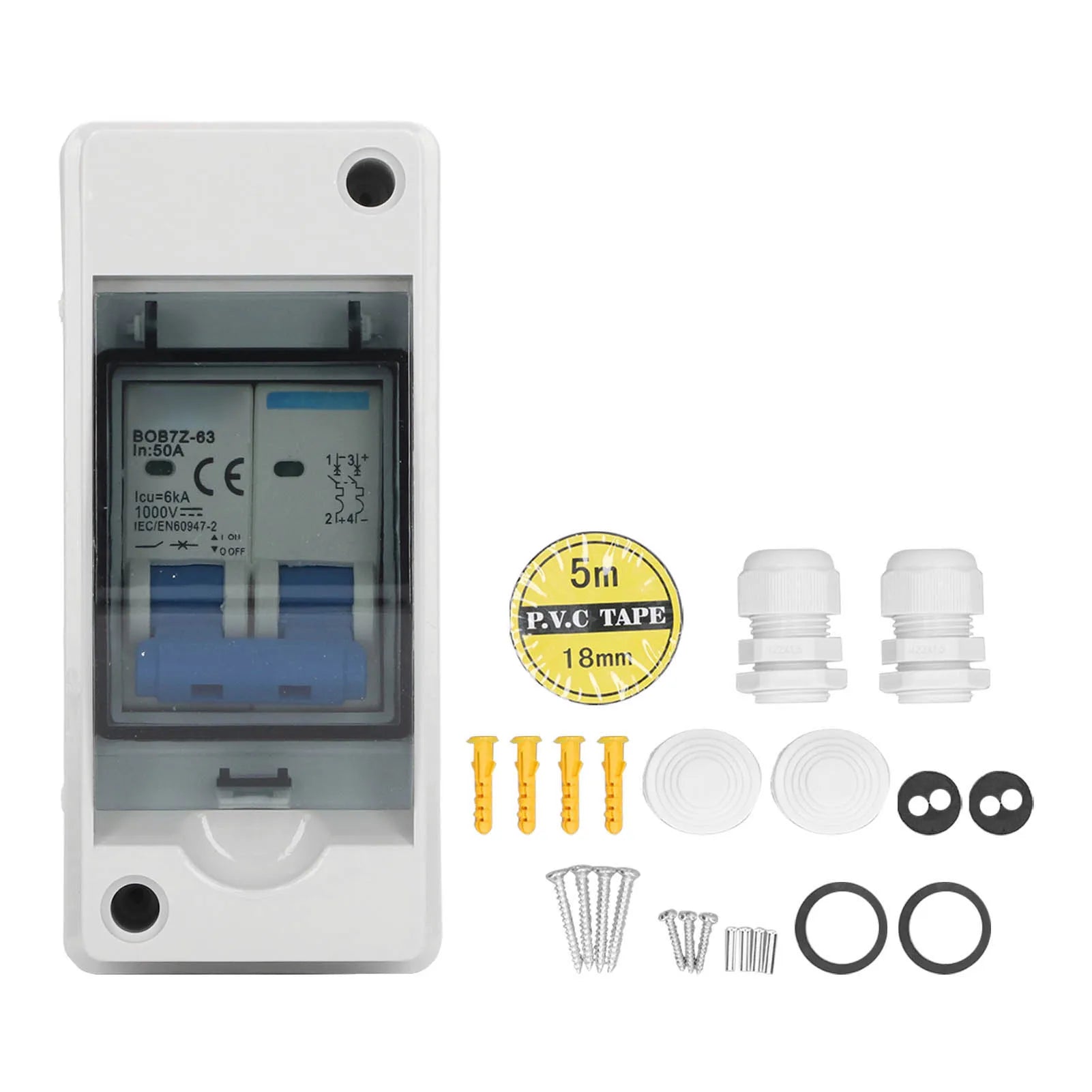

Package List:

1 x Disconnect Switch

2 x Connector Caps

2 x Connectors

2 x Waterproof Rings

2 x Waterproof Joints

3 x Short Point Screws

4 x Long Point Screws

4 x Flat Screws

4 x Expansion Pipes

1 x Waterproof Adhesive Tape

:

:
