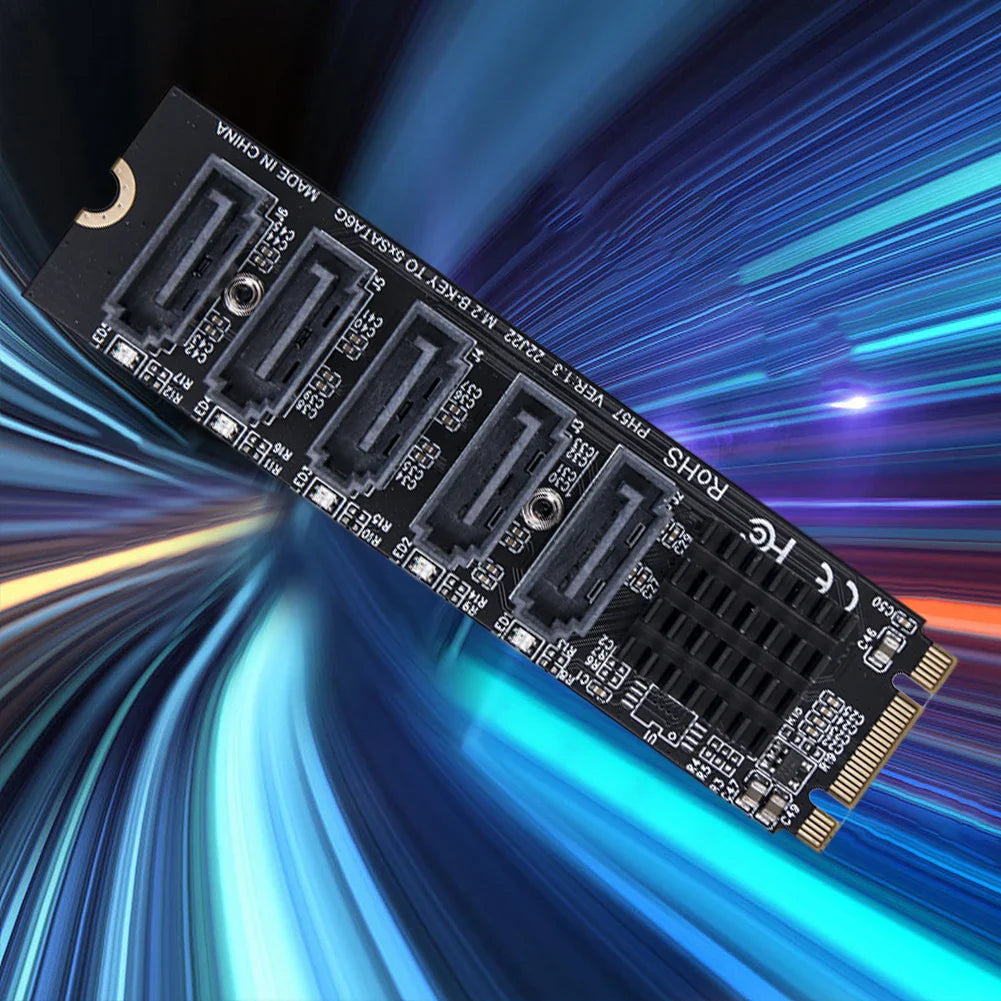

M.2 M-Key to SATA 3.0 Riser Card – 5/6 Port PCIe Adapter

Expand Your Storage with the M.2 M-Key to SATA 3.0 Riser Card

Unlock multi-drive storage potential with the Shunmaii M.2 M-Key PCI-E to SATA 3.0 Expansion Riser Card. Whether you're building a NAS server, a mining rig, or a high-capacity workstation, this compact adapter lets you add 5 or 6 SATA 3.0 ports directly from a single M.2 M-Key slot — no full-size PCIe slot required. With blazing-fast transfer speeds and broad OS compatibility, it's the ultimate storage expansion solution.

Made in Mainland China.

Why Choose This M.2 to SATA Adapter Card?

• Compact 22×80mm Form Factor: Designed specifically for M.2 (2280) interfaces, it installs quickly and fits virtually any M.2-equipped motherboard.
• High-Quality PCB Construction: Built from premium PCB material for excellent electrical performance, heat resistance, and long-term durability.
• Three Configuration Options: Choose the variant that best fits your setup — 5-port NGFF, 5-port NVMe, or 6-port NVMe to SATA 3.0.
• Broad OS Support: Compatible with macOS, Windows, and Linux — plug in and get going with minimal driver fuss.
• CE Certified: Meets European safety and compliance standards for electronics.

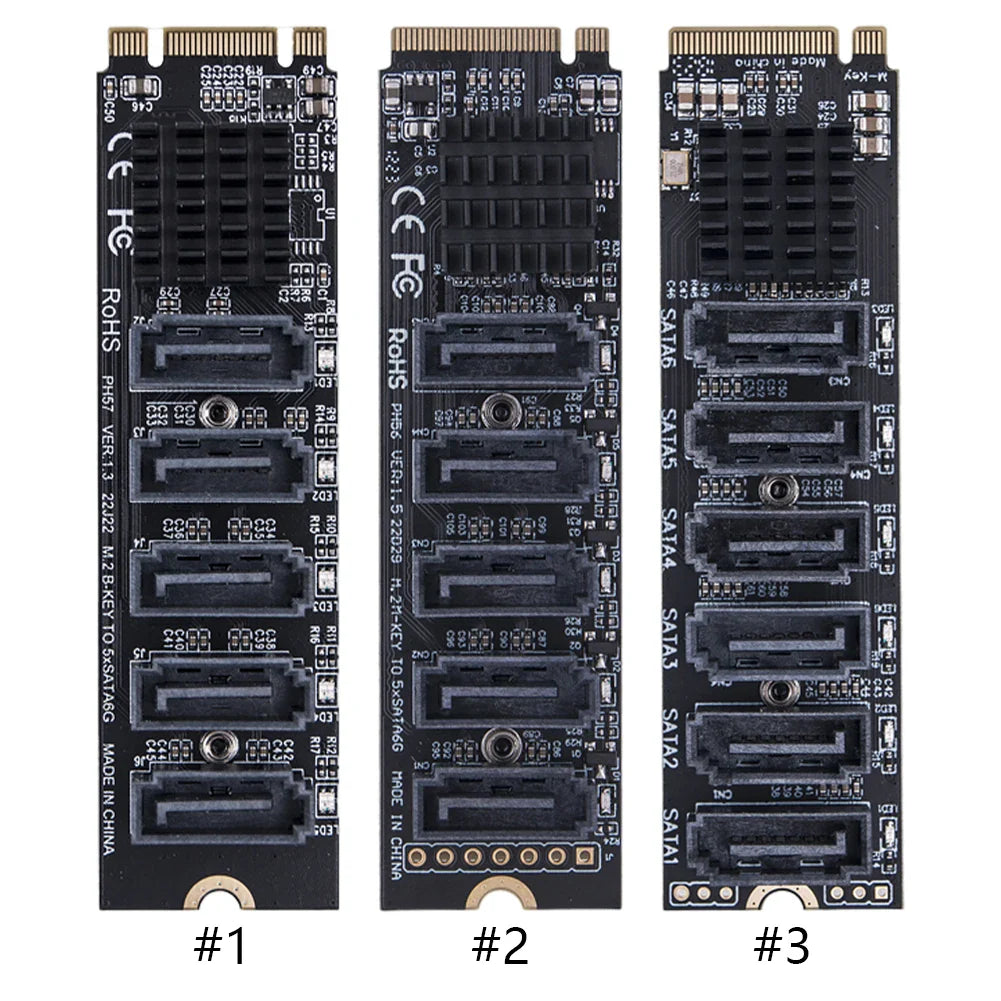

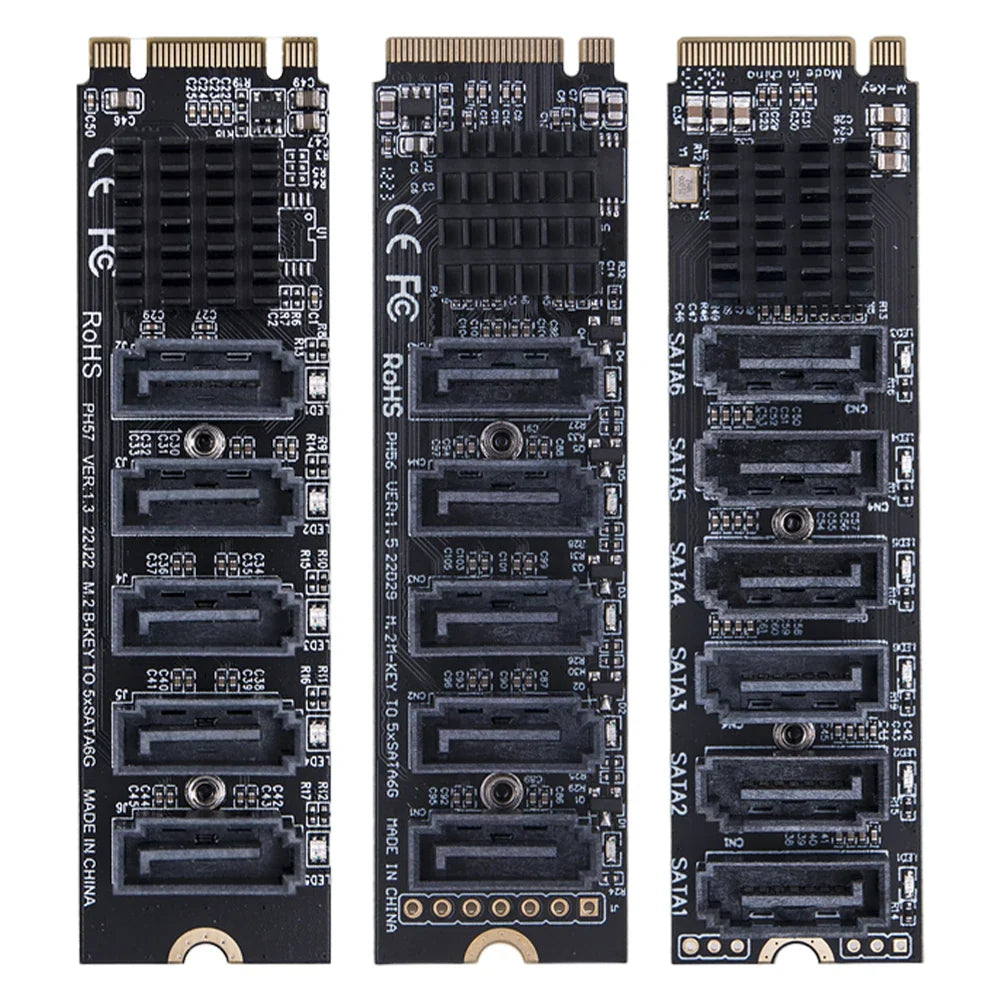

Available Configurations

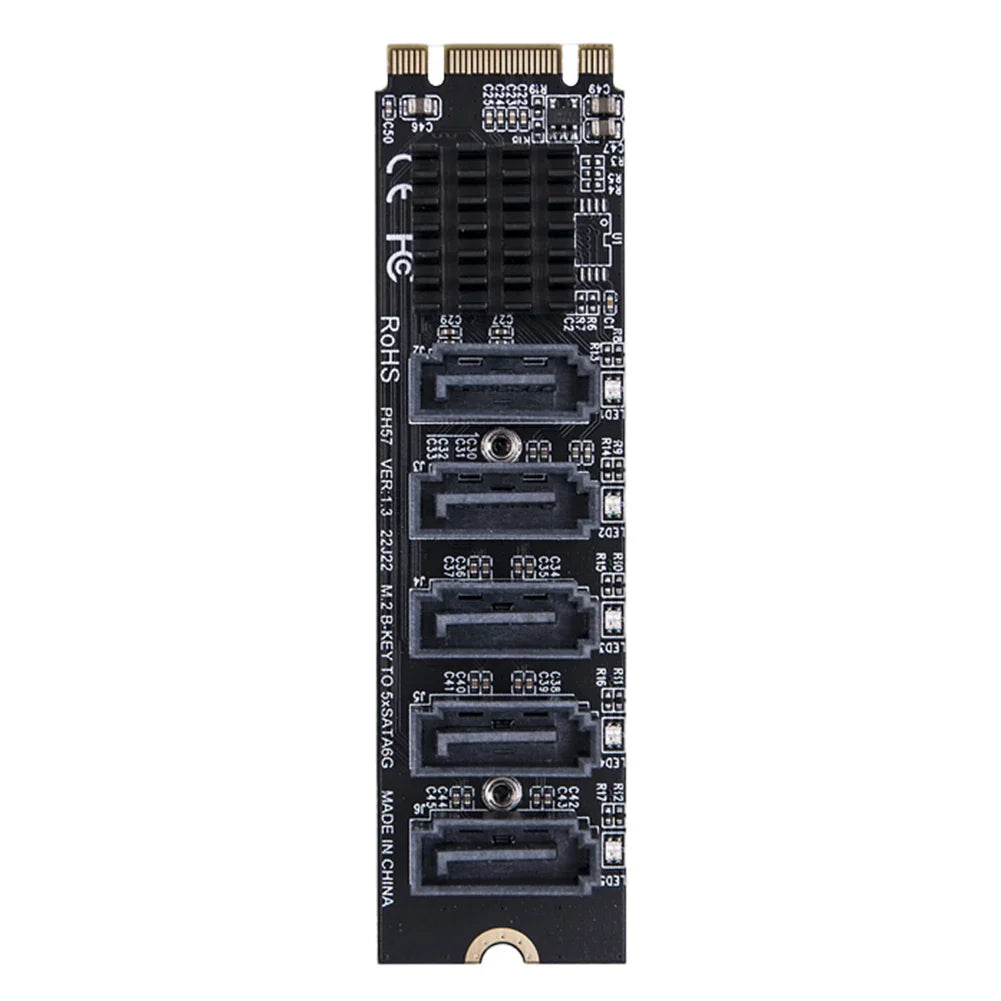

① 5-Port M.2 NGFF to SATA 3.0

• Transfer Rate: SATA 3.0 @ 6Gbps per port
• Requires motherboard PM (Port Multiplier) support
• Chip: JMB575
• Compatible with: macOS, Windows, Linux

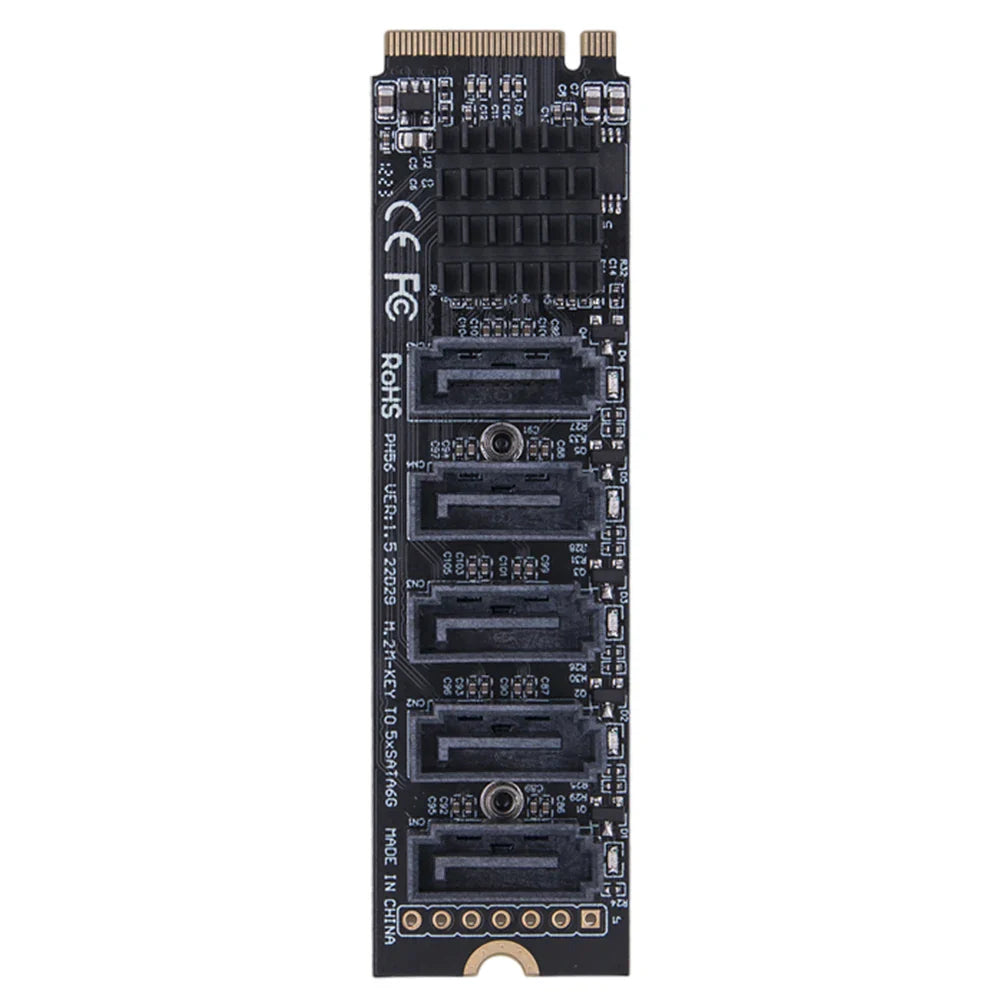

② 5-Port M.2 NVMe to SATA 3.0

• Upstream: PCIe 3.0 ×2 @ 16Gbps
• Downstream: SATA 3.0 @ up to 6Gbps per port
• Chip: JMB585
• Compatible with: macOS, Windows, Linux

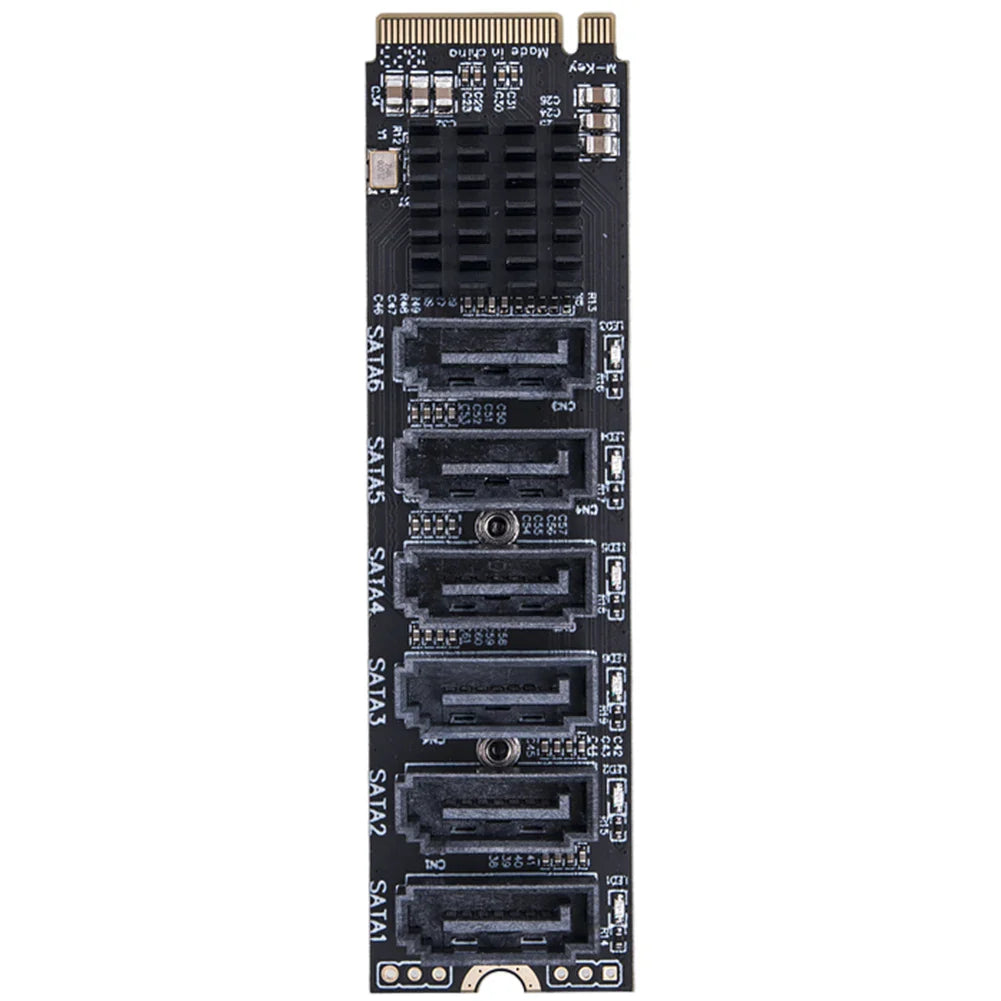

③ 6-Port M.2 NVMe to SATA 3.0

• Upstream: PCIe 3.0 ×2 @ 16Gbps
• Downstream: 6× SATA ports @ up to 6Gbps each
• Chip: A6M1166L
• Compatible with: macOS, Windows, Linux

Full Specifications

Related Products You May Like

• 100W Dual-Port Car Charger – Fast Charging
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection

For more on storage interface standards and compatibility, visit the National Institute of Standards and Technology (NIST) for technical reference information.

Note: Due to variations in monitor settings and lighting, the actual product color may differ slightly from images shown. Please allow ±1–2cm tolerance for manual measurements.

Learn more: Storage controller

Frequently Asked Questions

Q: What is the difference between the 5-Port NGFF and 5-Port NVMe versions of this M.2 to SATA riser card?

A: The 5-Port NGFF version uses the M.2 NGFF (SATA-based) interface with the JMB575 chip and requires your motherboard to support Port Multiplier (PM) functionality. The 5-Port NVMe version uses the M.2 M-Key PCIe 3.0 ×2 interface with the JMB585 chip, offering an upstream bandwidth of up to 16Gbps — making it a better choice for systems that don't support PM or need higher throughput.

Q: Is this M.2 to SATA adapter card compatible with Windows 11 and Linux?

A: Yes! All three variants of this riser card (5-Port NGFF, 5-Port NVMe, and 6-Port NVMe) are compatible with macOS, Windows (including Windows 10/11), and Linux operating systems. Most systems will detect the card automatically with built-in drivers.

Q: Can I use this riser card with an M.2 NVMe SSD slot, or does my motherboard need a specific type of M.2 slot?

A: The NVMe variants of this card require an M.2 M-Key slot that supports PCIe (NVMe), not a SATA-only M.2 slot. The NGFF variant requires a SATA-based M.2 M-Key or B+M Key slot. Always check your motherboard manual to confirm which M.2 slot types are available before purchasing.

Q: How many SATA drives can I connect to this expansion card?

A: Depending on the variant you choose, you can connect either 5 or 6 SATA drives simultaneously. Each SATA port supports up to 6Gbps (SATA 3.0 speed), making it ideal for HDDs, SSDs, and optical drives.
