Lockout Tagout Kit – Circuit Breaker LOTO Padlock & Hasp Set

Complete Lockout Tagout (LOTO) Kit for Industrial Safety

Keep your workplace safe and compliant with this comprehensive Electrical Circuit Breaker Lockout Tagout Kit. Designed for industrial, chemical, electrical, petroleum, and mining environments, this all-in-one LOTO station gives your team everything needed to safely isolate hazardous energy sources — protecting workers during maintenance, repairs, and equipment servicing.

Why Choose This LOTO Kit?

• Wide Application: Suitable for industrial plants, chemical facilities, electric power stations, petroleum refineries, coal mines, and flammable/explosive environments.
• Impact-Resistant Construction: Lock box crafted from reinforced ABS plastic. Padlocks feature non-conductive thermoplastic bodies, solid brass cylinders, and stainless steel hasps for durability and electrical safety.
• Tool-Free Installation: Miniature circuit breaker locks install with a simple button press — no tools required. Ideal for fast deployment during urgent lockout procedures.
• Precise Fit: Padlock beam diameter: 6mm; beam length: 38mm. Clamp-type breaker lock fits circuit breakers with handle width ≤16.5mm (0.65 in).
• Truly Complete Set: Everything you need in one bag — padlocks, keys, hasps, circuit breaker locks (MCPO & MCPI), plug lock box, tags, and cable ties.

Specifications

• Item Type: Lockout Tagout Kit
• Materials: ABS, Nylon, Stainless Steel, Brass
• Hasp Inner Diameter: Approx. 1 in / 25.4 mm
• Padlock Beam Diameter: Approx. 6 mm / 0.24 in
• Padlock Beam Length: Approx. 38 mm / 1.5 in
• MCPO Lock: Standard type, pins facing inward; requires 2 holes, hole spacing ≤13 mm (0.5 in)
• MCPI Lock: Standard type, pins facing outward; requires 2 holes
• Clamp-Type Breaker Lock: Fits plastic case circuit breakers with handle width ≤16.5 mm (0.65 in)
• Country of Origin: Made in China

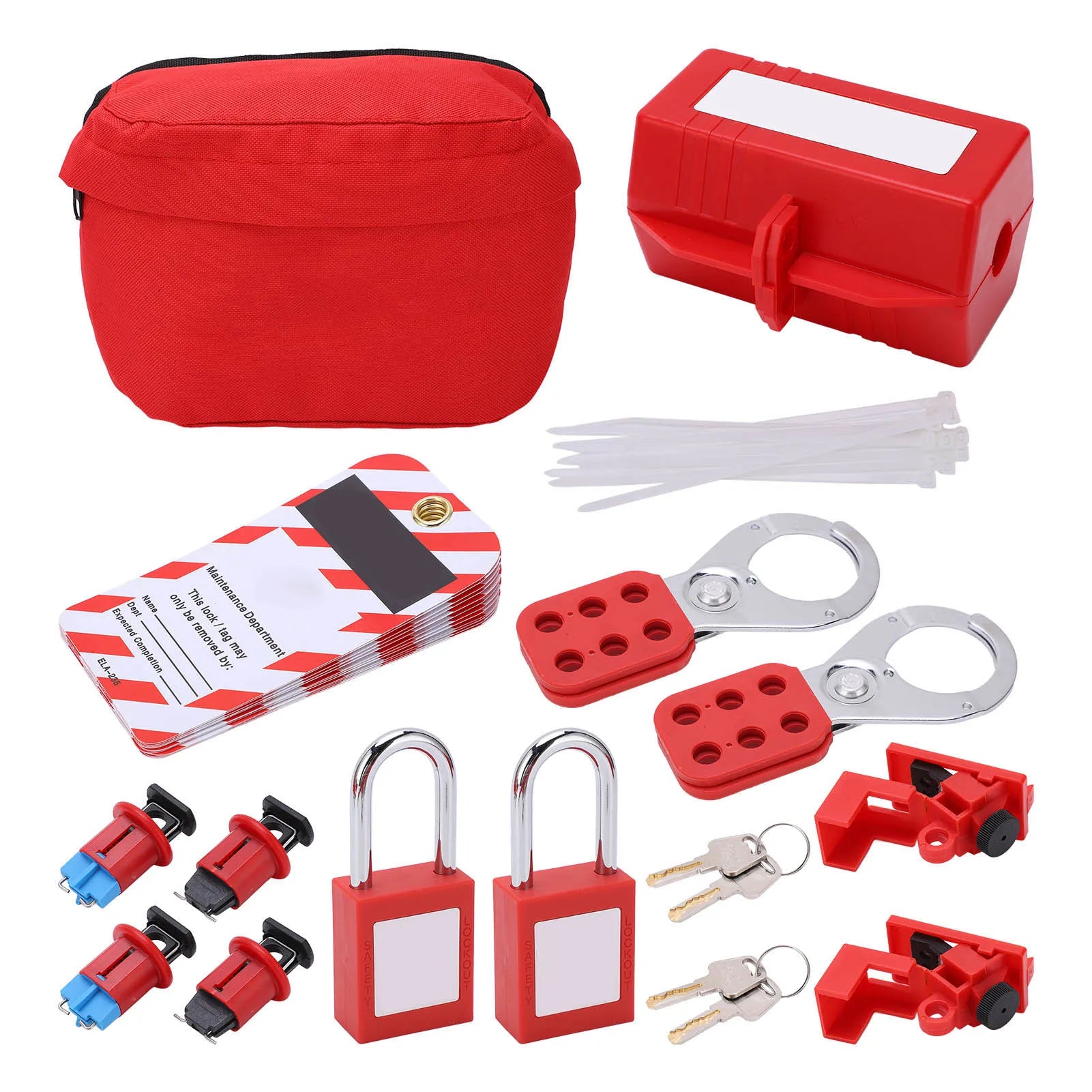

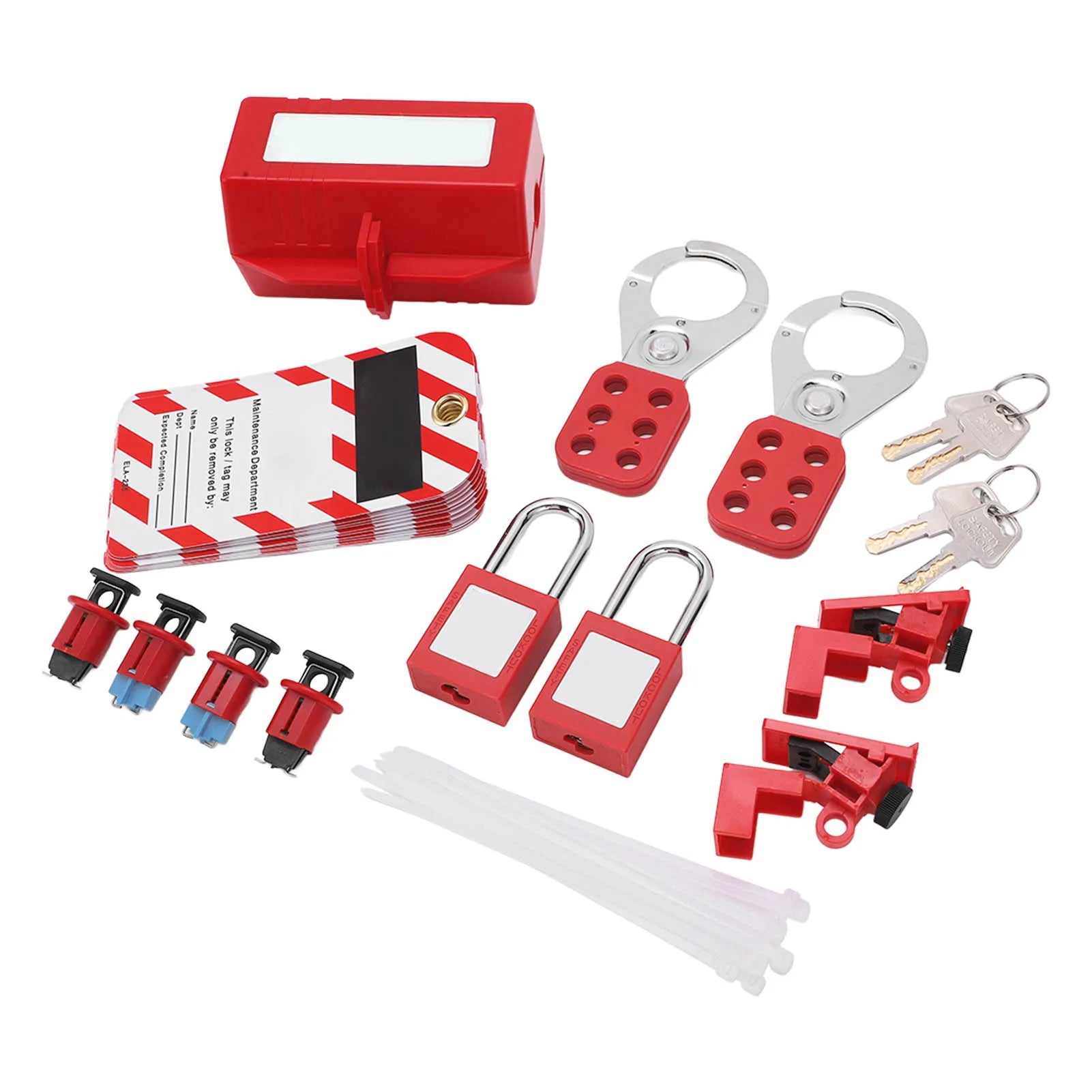

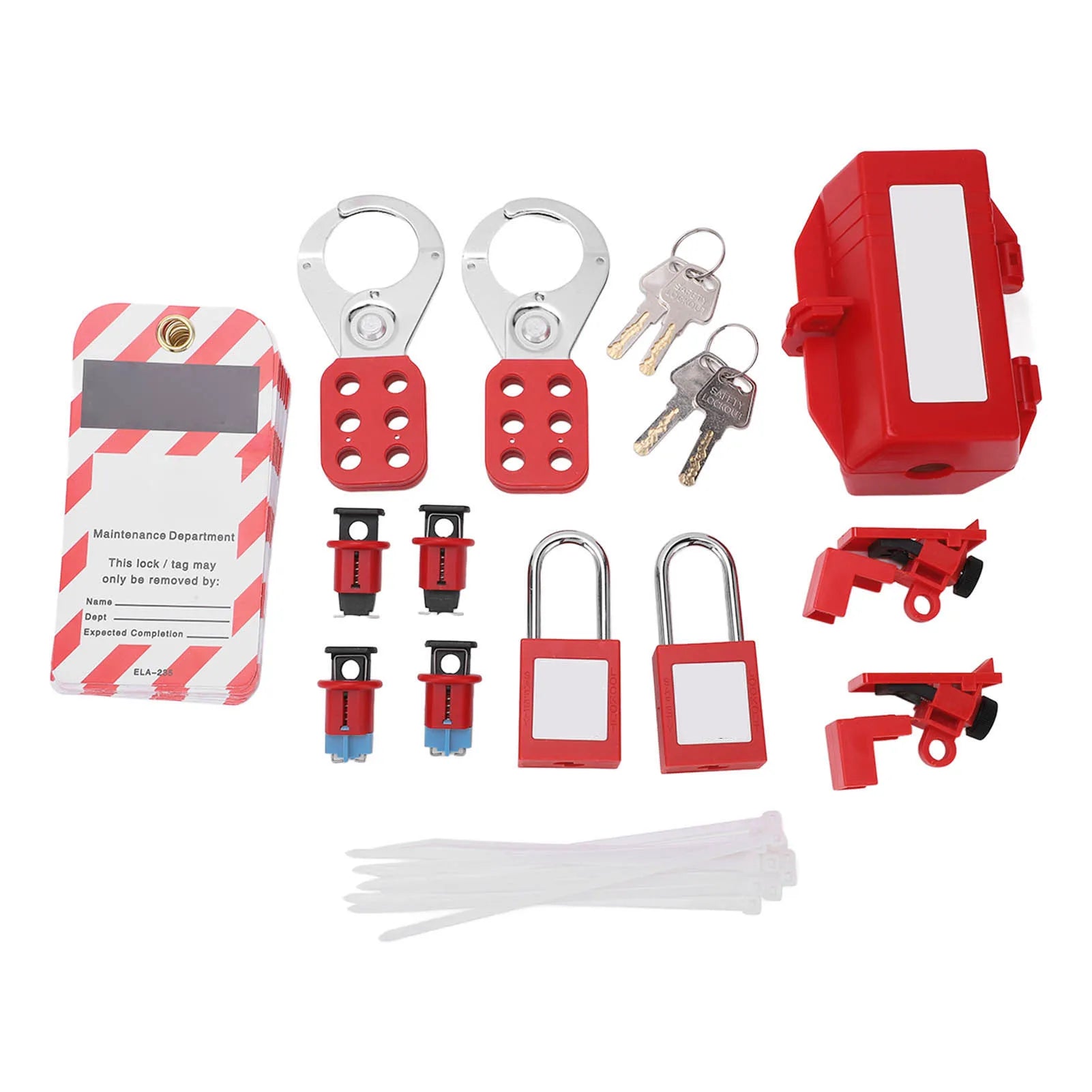

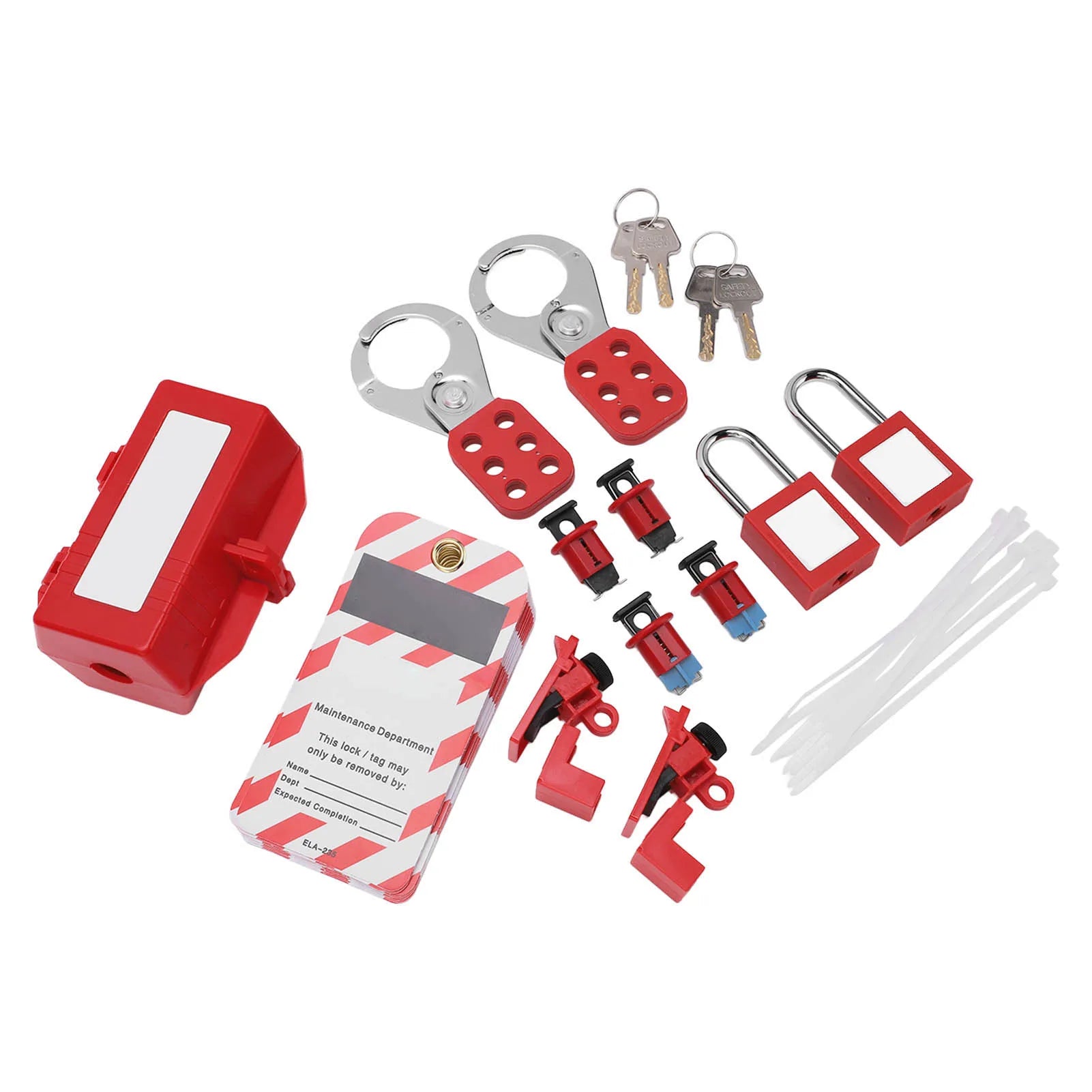

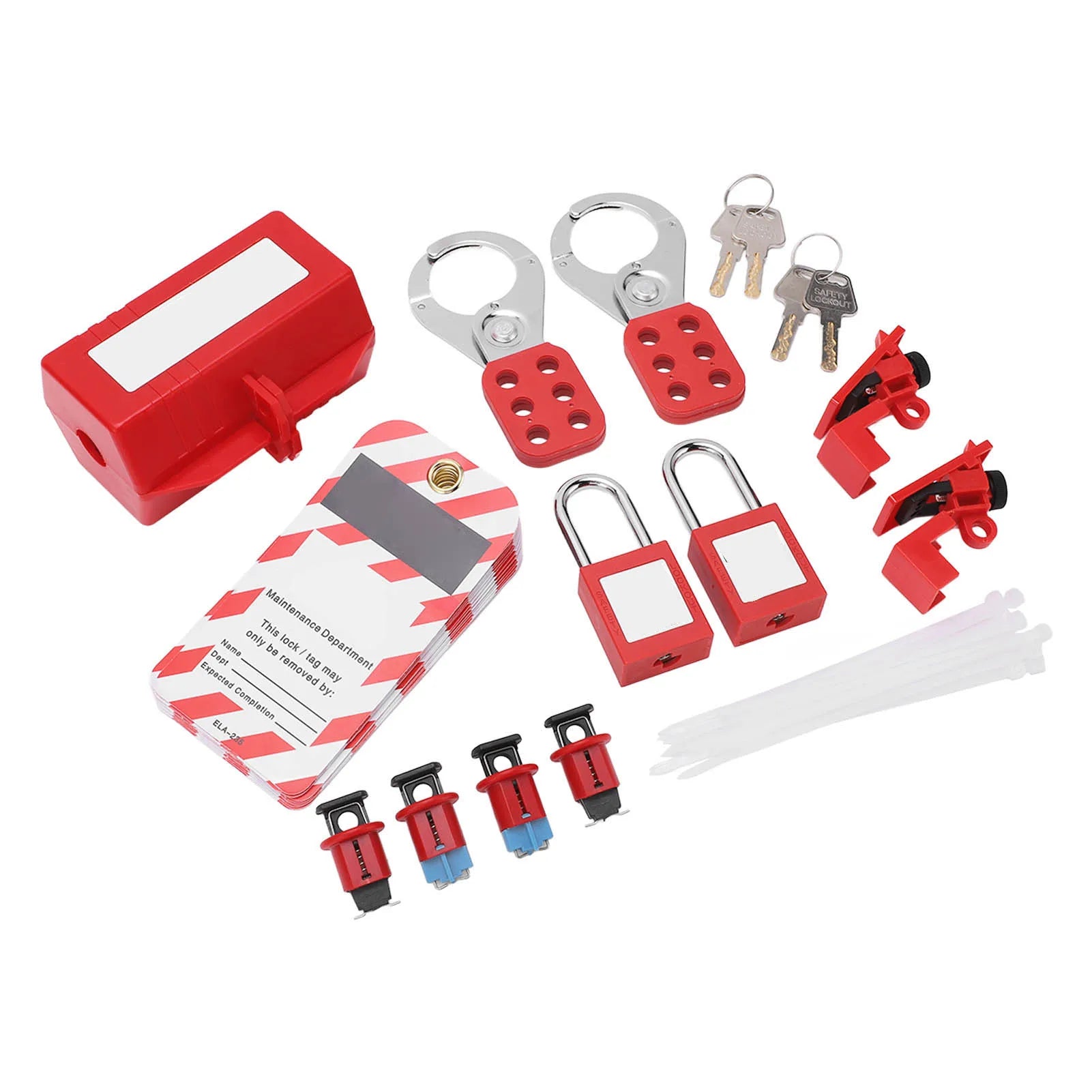

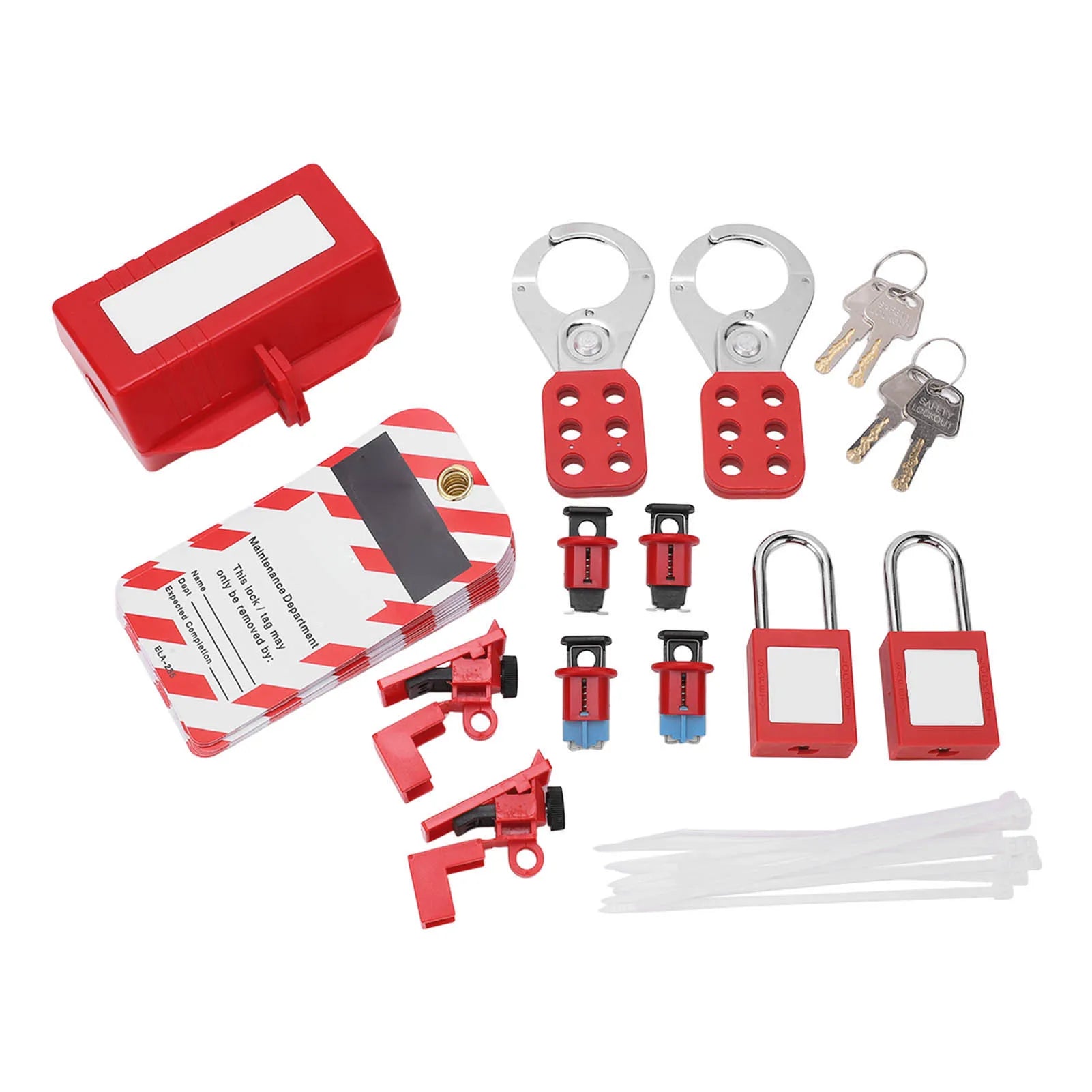

What's in the Box?

• 1 × Medium Storage Bag
• 2 × Padlock
• 4 × Key
• 1 × Small Plug Lock Box
• 2 × Hanging Hasp
• 2 × Medium Clamp-Type Circuit Breaker Lock
• 2 × Circuit Breaker Lock MCPO
• 2 × Circuit Breaker Lock MCPI
• 12 × Tag
• 12 × Cable Tie

Safety & Compliance

Lockout/tagout procedures are mandated by OSHA's Control of Hazardous Energy (Lockout/Tagout) Standard 29 CFR 1910.147. This kit is designed to help facilities meet LOTO requirements and protect workers from unexpected energization of equipment. Always follow your facility's energy control program.

Related Products You May Like

• 0.38mm Fine Nib Calligraphy Fountain Pen | Gold Trim Gift
• 1/2 Channel Tuya WiFi Smart Relay Switch | 16A, Alexa & Google Home

Learn more: Lockout–tagout

Frequently Asked Questions

Q: What types of circuit breakers is this lockout tagout kit compatible with?

A: This LOTO kit includes multiple circuit breaker lock types. The clamp-type circuit breaker lock fits plastic case circuit breakers with a handle width of 16.5mm (0.65 in) or less. The MCPO lock (pins facing inward) and MCPI lock (pins facing outward) both require the circuit breaker to have 2 holes with a hole spacing of ≤13mm (0.5 in). Always verify your specific breaker dimensions before applying the lock.

Q: Is this lockout tagout kit suitable for non-electrical applications?

A: Yes! While the kit is optimized for electrical circuit breaker lockout, the included hasps, padlocks, and tags can be used across a range of hazardous energy control applications — including pneumatic, hydraulic, and chemical isolation points — making it a versatile safety solution for any industrial or chemical facility.

Q: How many people can lock out a single point with this kit?

A: The 2 included hanging hasps allow multiple workers to attach their individual padlocks to the same hasp, ensuring that energy cannot be restored until every worker has removed their lock. This supports group lockout procedures as required by OSHA 1910.147.

Q: Are the padlocks in this kit non-conductive?

A: Yes. The padlocks feature non-conductive thermoplastic bodies, which are specifically designed to reduce the risk of electrical conductivity during lockout procedures on energized electrical systems.
