Acrylic Crack Monitor Gauge Ruler – Precision Wall Crack Measurement Tool

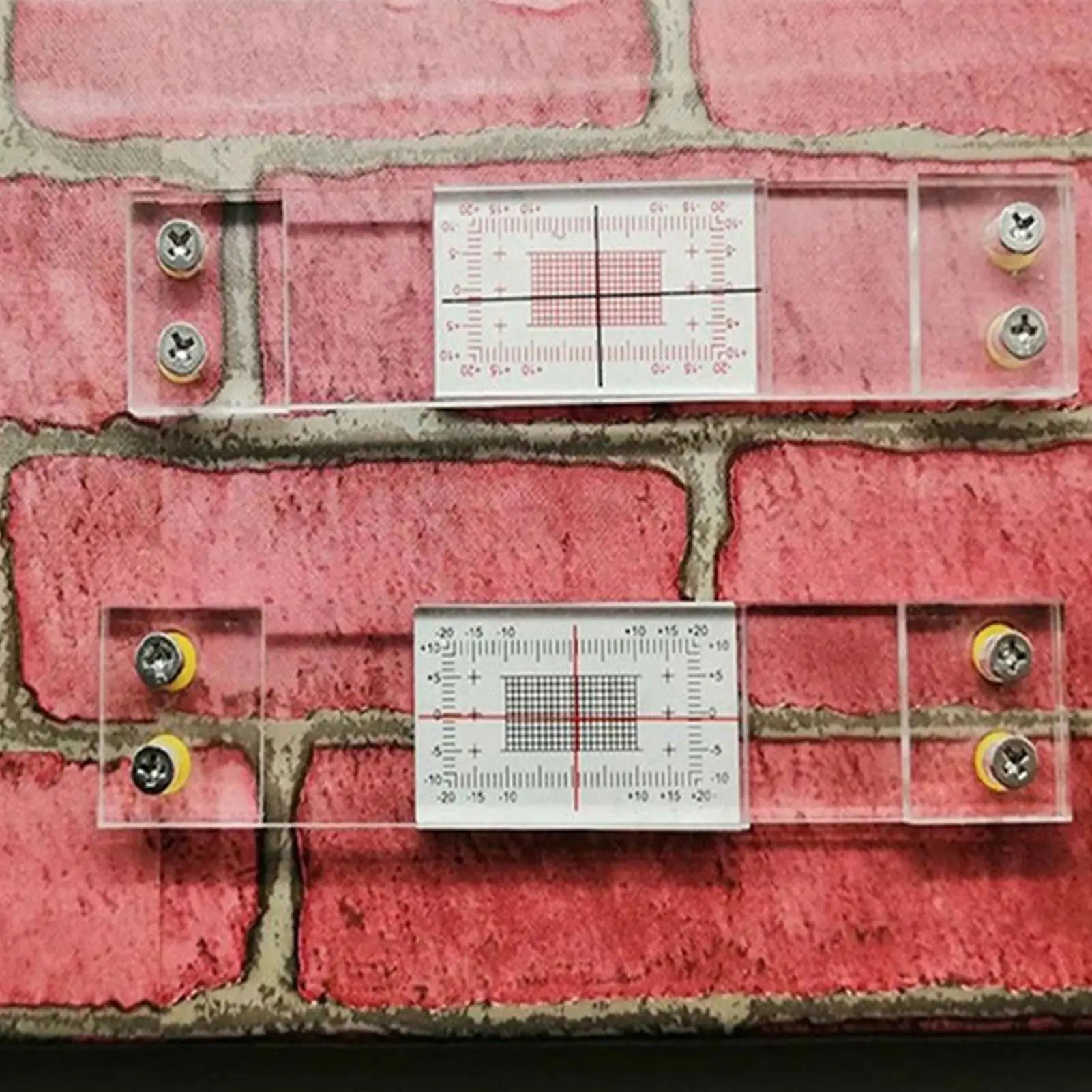

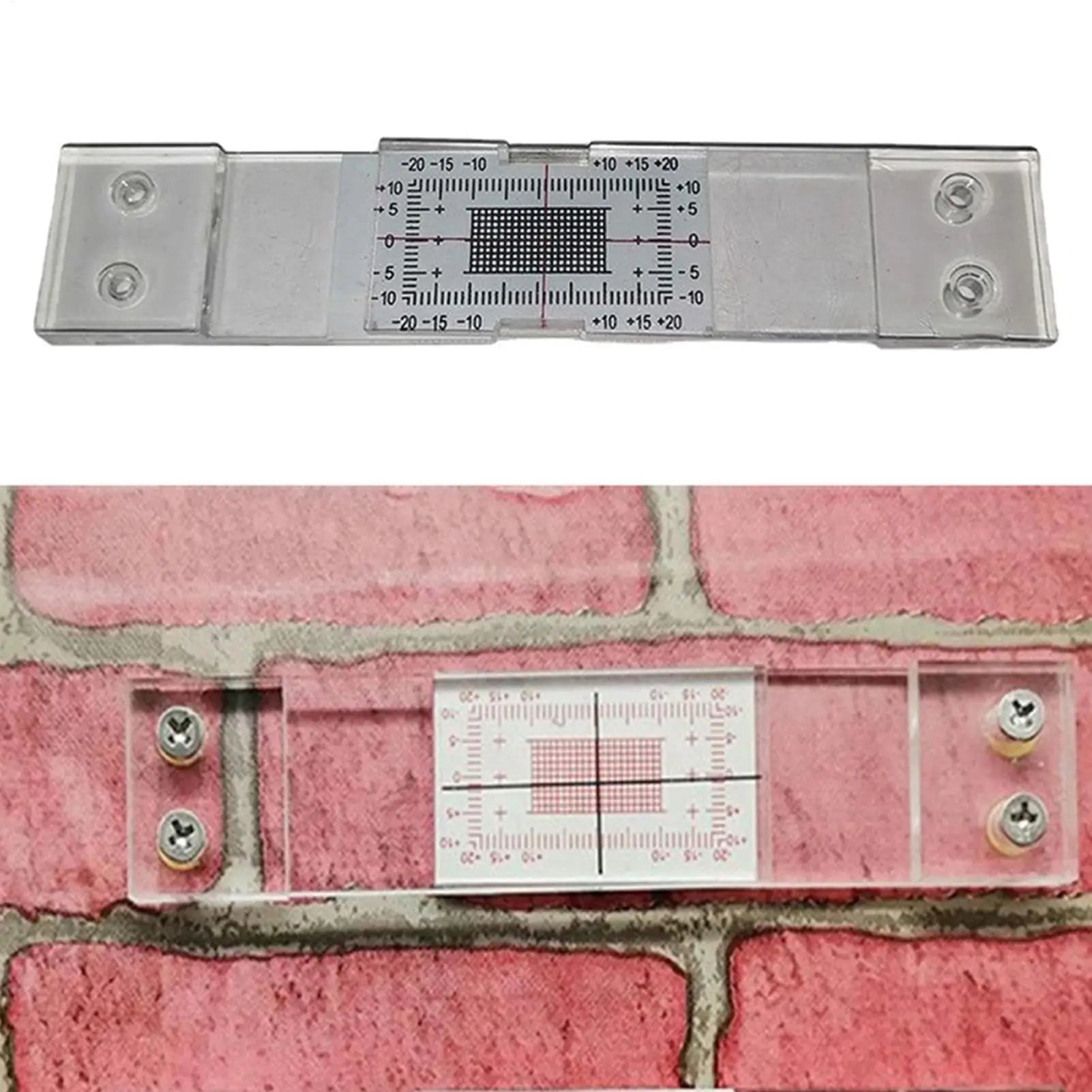

Keep a close eye on structural shifts in masonry, concrete, and building walls with this dependable Acrylic Crack Monitoring Gauge Ruler. Engineered for both construction professionals and home inspectors, this compact 2D crack monitor lets you track horizontal and vertical displacements accurately over time — no batteries, no complicated electronics, just clear analog readings you can rely on.

Key Features

• Clear Measurement Grid: Printed on high-quality, transparent acrylic for easy, precise readings at a glance.
• 2D Displacement Tracking: Monitors both horizontal and vertical crack movement simultaneously for comprehensive structural assessment.
• Double-Plate Construction: A transparent cursor plate pairs with a calibrated base plate, enabling repeatable, consistent measurements every time.
• Adjustable Setup: Two removable pins allow flexible positioning across various wall surfaces, corners, and joints.
• Manual Analog Mechanism: Simple, no-battery operation with chart and cursor markings that record movement clearly over time.
• Wide Measurement Range: Covers 0–80mm, suitable for monitoring minor hairline fractures through to more significant structural movement.

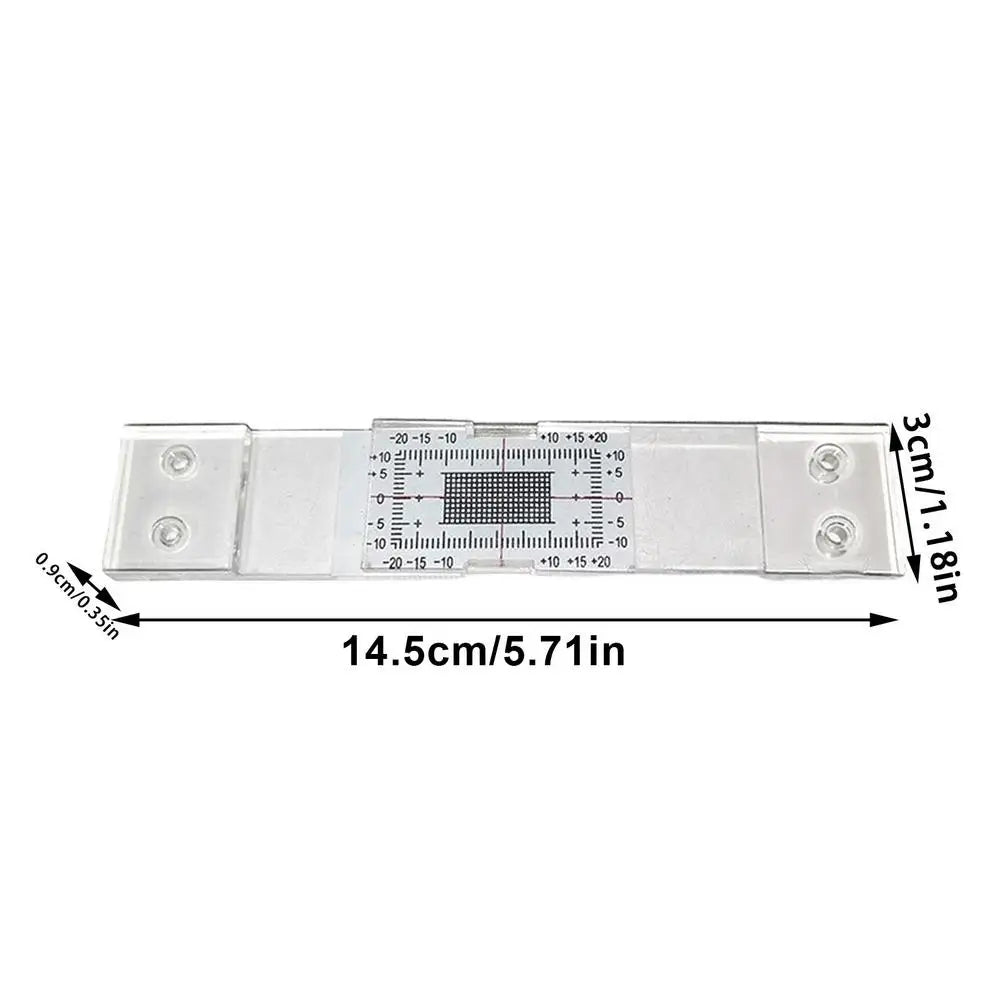

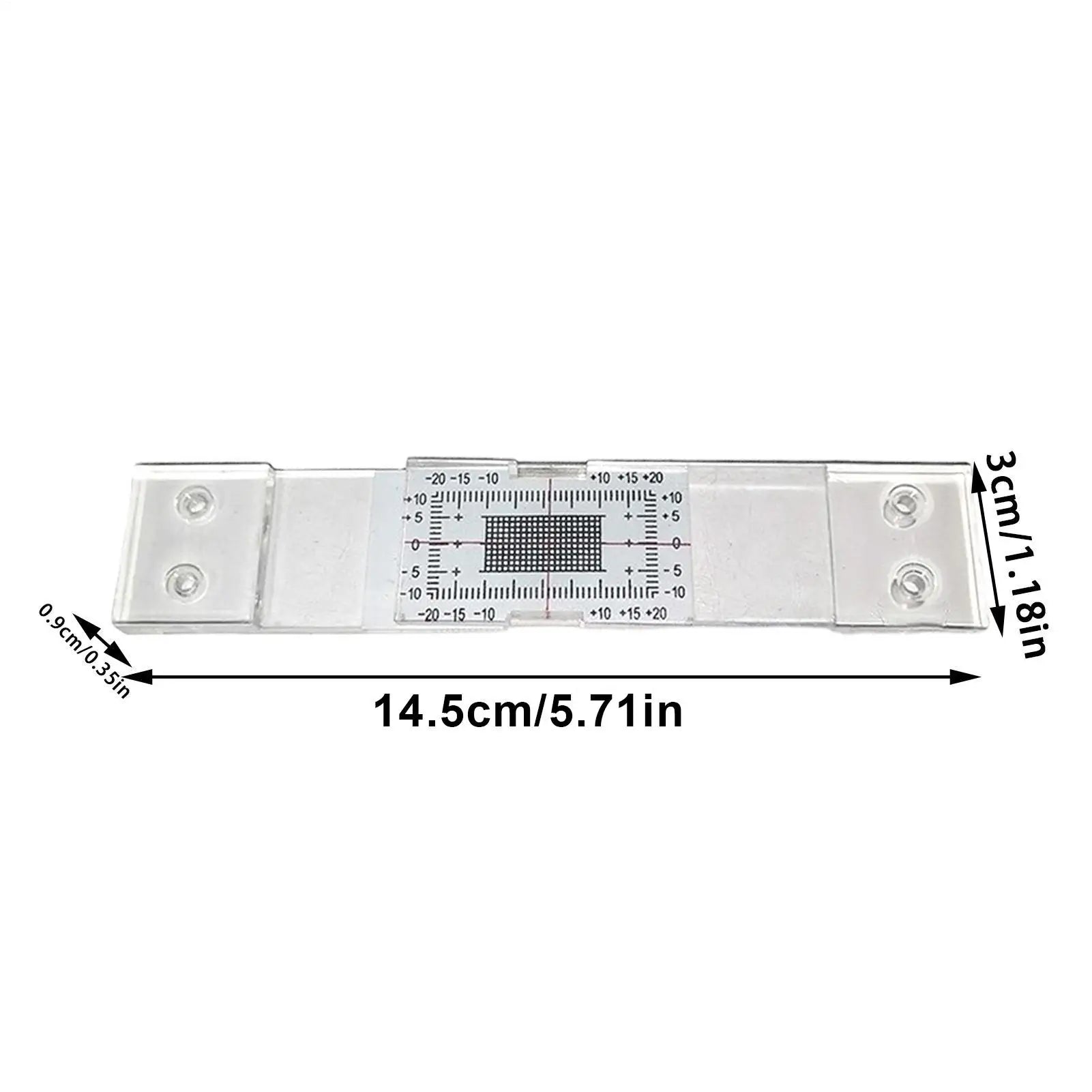

• Lightweight & Compact: At only ~50g and approximately 10 × 3 × 0.9 cm, it installs discreetly and travels easily to job sites.

Specifications

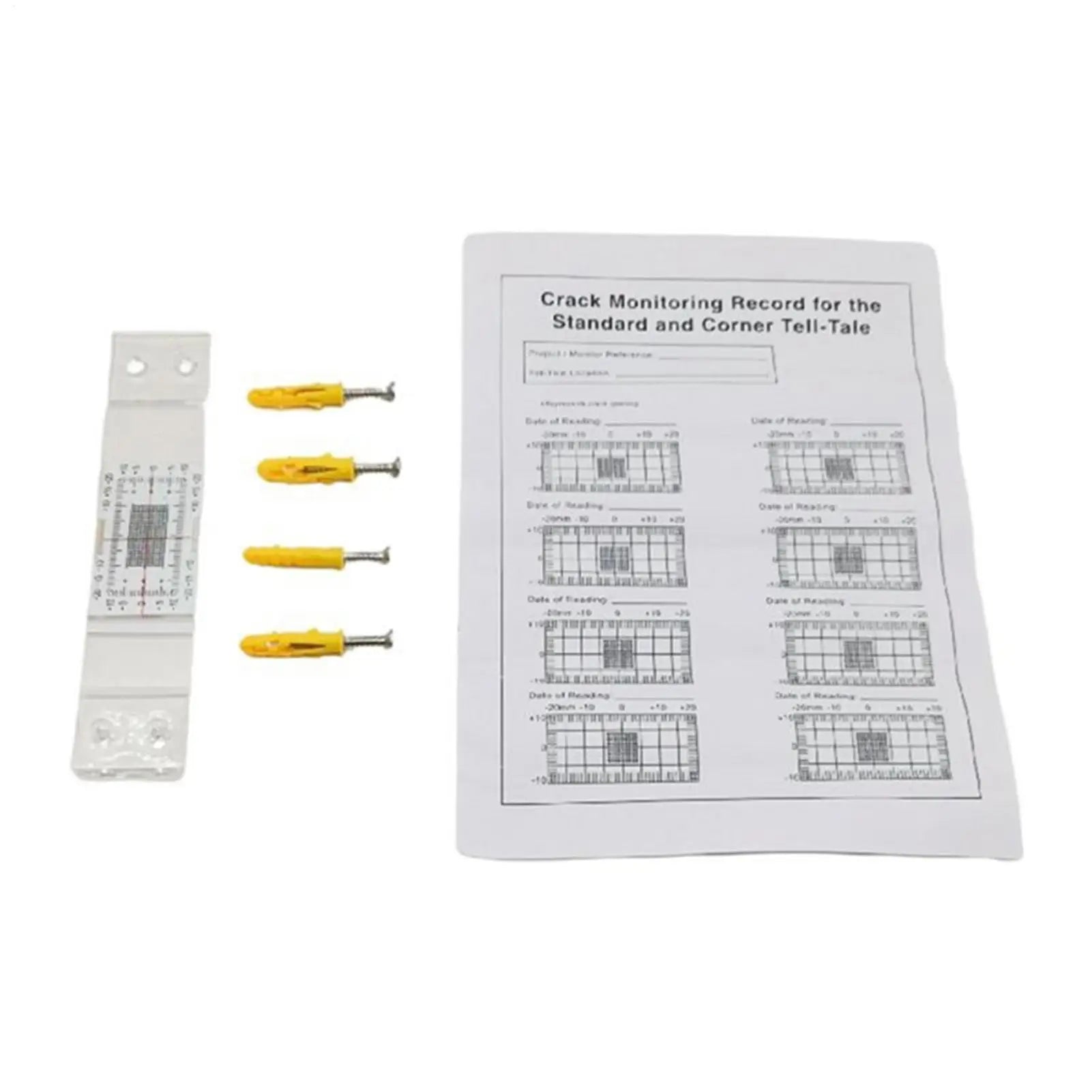

What's in the Box

• 1× Acrylic Concrete Crack Monitor Gauge Ruler

Ideal Applications

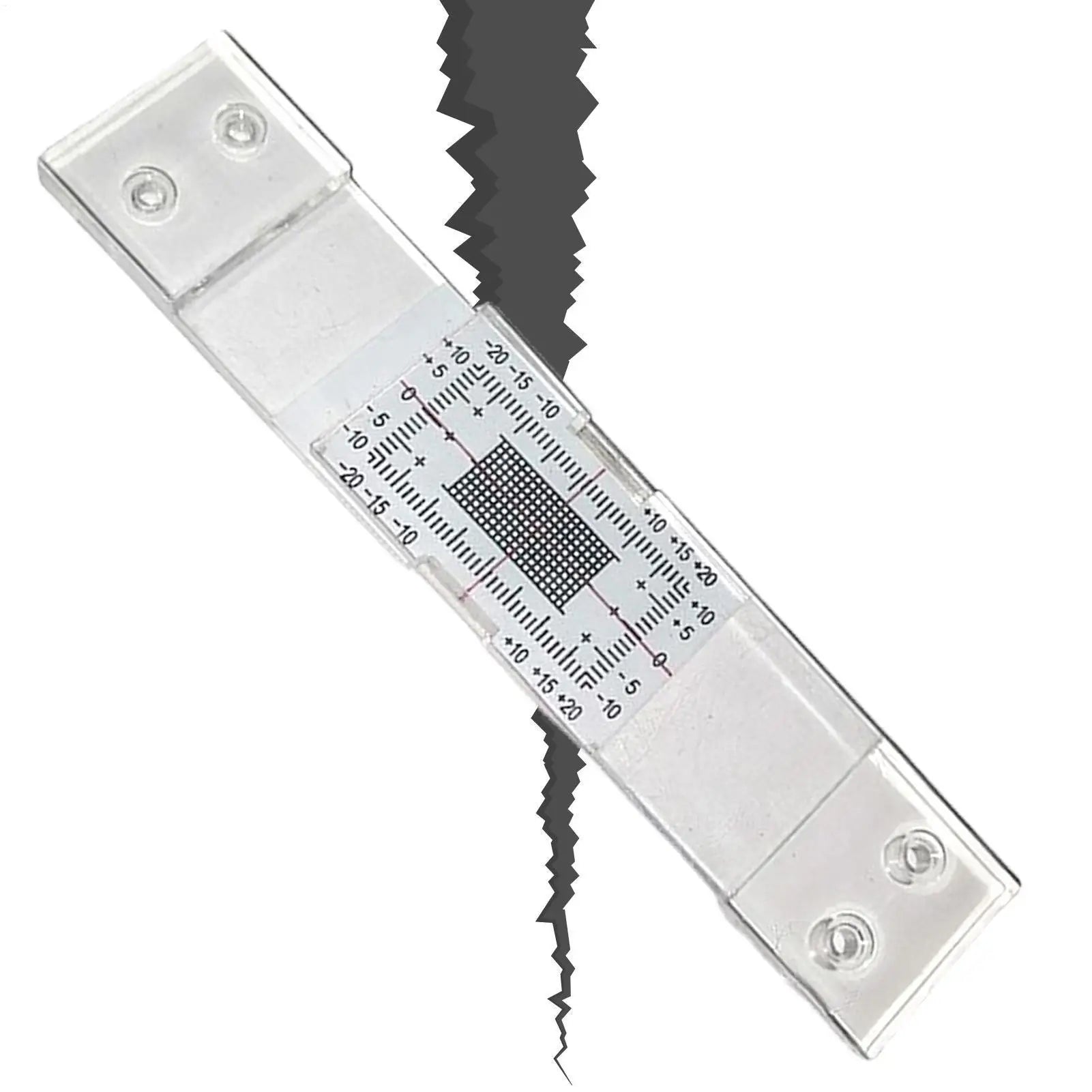

This crack gauge is perfect for construction sites, seismic retrofit inspections, home maintenance checks, and structural engineering assessments. Mount it across an existing crack on a wall, foundation, or corner joint, and track how the gap changes over days, weeks, or months — giving you reliable, documented data for informed decision-making.

For further guidance on building inspection and structural safety standards, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant safety information.

You May Also Like

• "1% Better Every Day" Motivational Canvas Poster | Wall Art
• "Don't Overthink" Motivational Quote Canvas Wall Art Print

Note: Due to different lighting and screen settings, item color may vary slightly from pictures. Please allow a 1–2 cm measurement tolerance due to manual measurement.

Frequently Asked Questions

Q: What surfaces can I use this crack monitoring gauge on?

A: This acrylic crack gauge ruler is designed for use on masonry, concrete, brick, plaster, and drywall surfaces. It's ideal for monitoring cracks in building walls, foundations, corners, and structural joints on both residential and commercial properties.

Q: How do I install and use the crack monitor gauge?

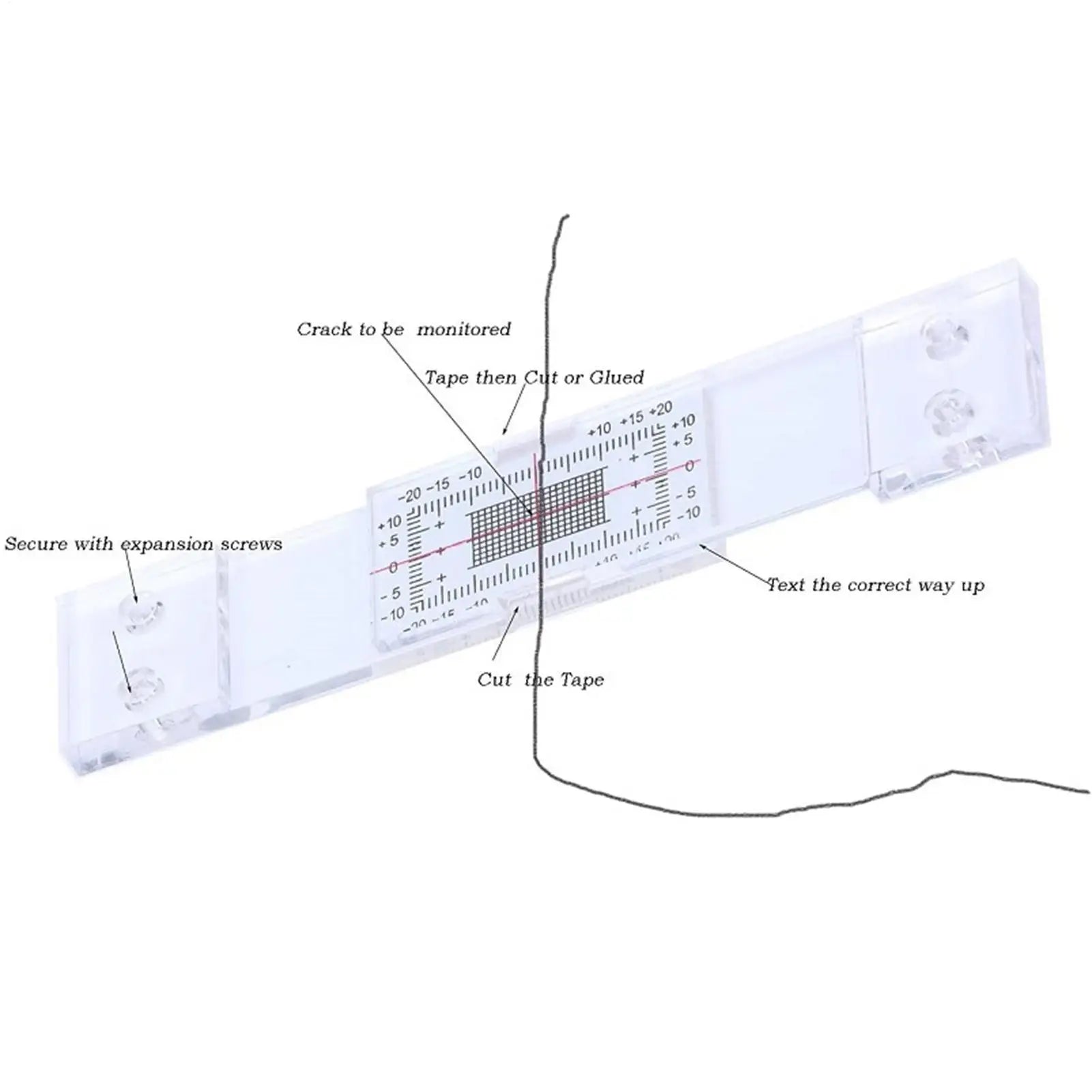

A: Simply align the dual-plate gauge over the crack so that the cursor plate overlaps the calibrated base plate. Secure it using the two removable pins. As the crack moves, you can read horizontal and vertical displacement directly from the printed grid. Record measurements regularly to build an accurate movement log over time.

Q: Does this crack gauge require batteries or any power source?

A: No — this is a fully analog, mechanical device. It requires no batteries, no electronics, and no external power. All readings are taken visually from the transparent acrylic scales, making it reliable for long-term outdoor and indoor monitoring.

Q: What is the measurement range of this crack gauge?

A: The crack monitoring gauge covers a measurement range of 0 to 80mm, making it suitable for tracking everything from hairline fractures to larger structural displacements over time.
