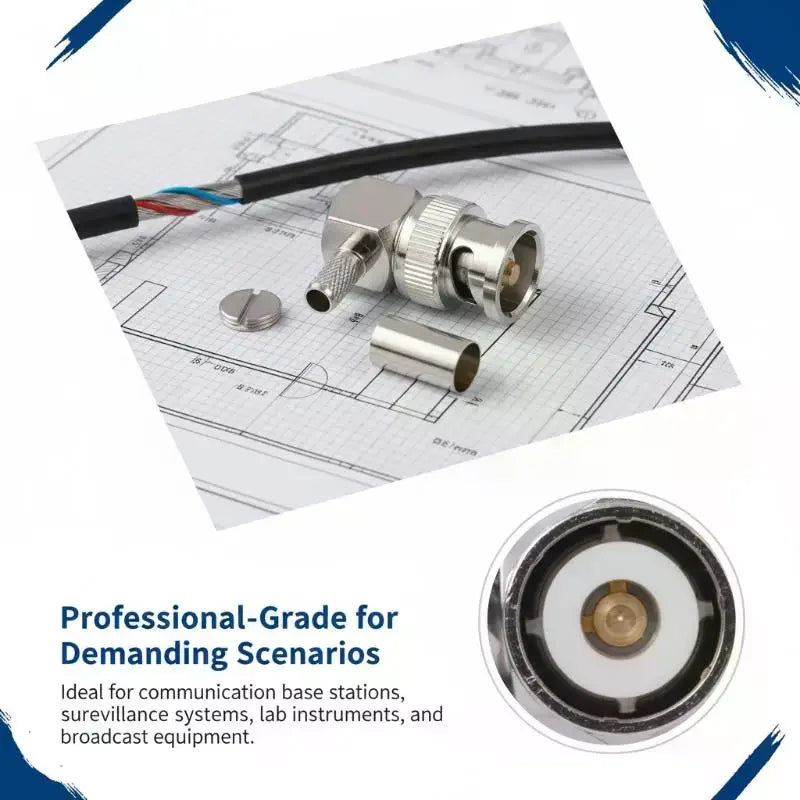

90° BNC Male Right Angle Crimp RF Connector 50 Ohm – RG58 RG142

90° BNC Male Right Angle Crimp RF Connector – 50 Ohm | RG58, RG142, RG400, RG223, LMR195

Get a rock-solid, low-loss RF connection in tight spaces with this 90-degree BNC male right angle crimp connector. Designed for 50-ohm coaxial cables including RG58, RG142, RG400, RG223, and LMR195, this adapter delivers reliable signal transmission for amateur radio, test equipment, CCTV, and RF lab applications. The right-angle design makes it perfect for routing cables along walls, panels, or equipment enclosures where space is limited.

Key Features

• Impedance: 50 ohms – ideal for standard RF and coaxial cable applications
• Body Material: Nickel-plated copper/metal for corrosion resistance and durability
• Conductor: Gold-plated copper for superior conductivity and oxidation resistance

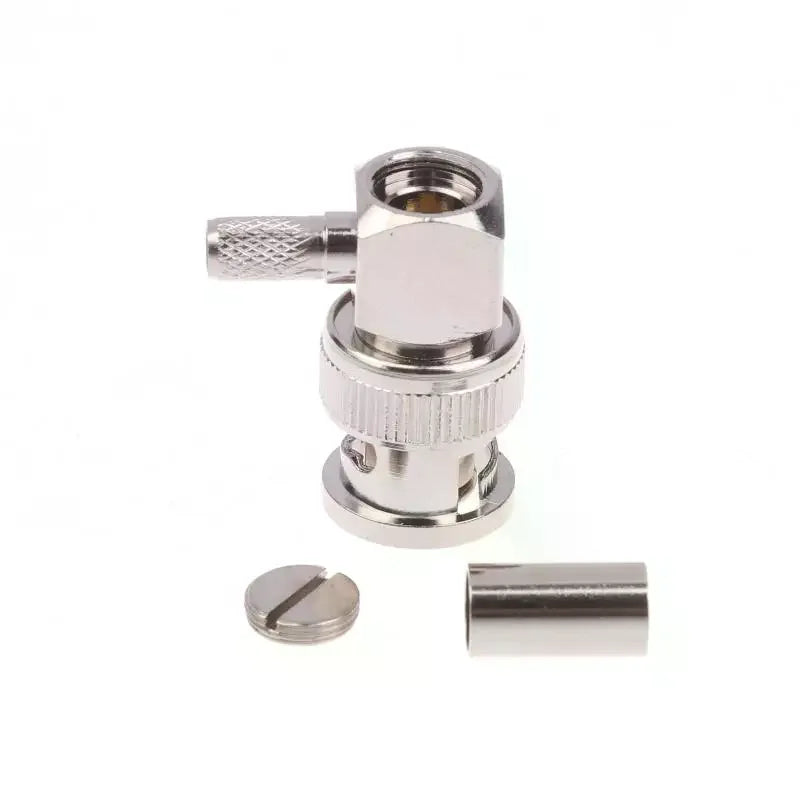

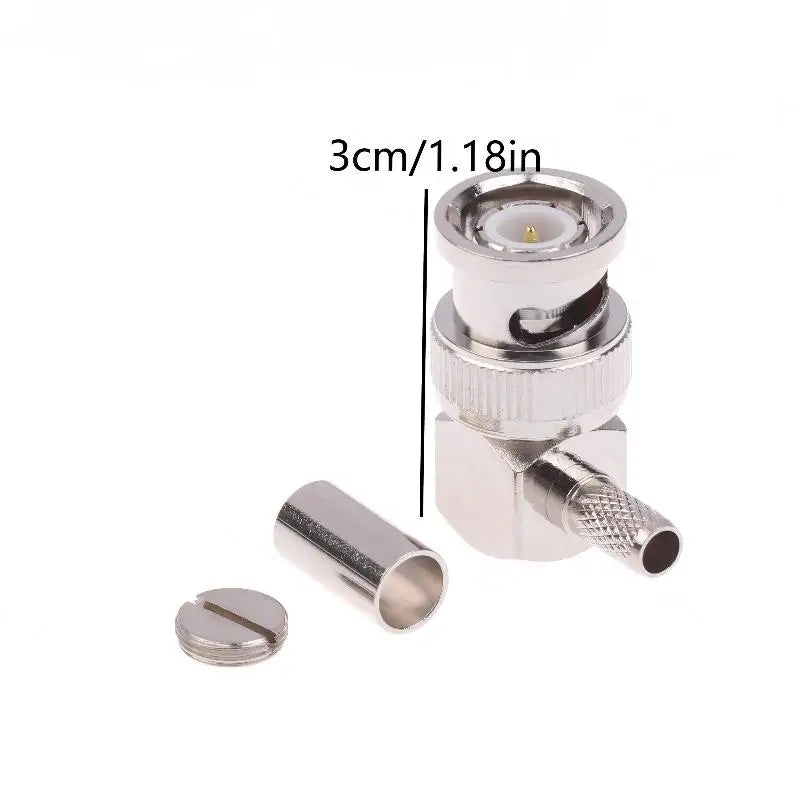

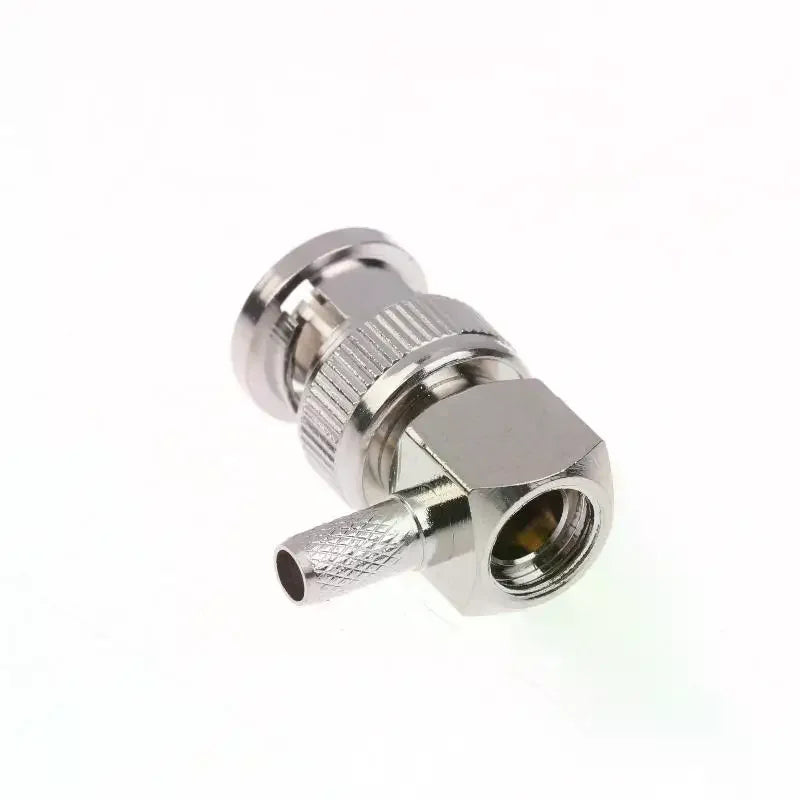

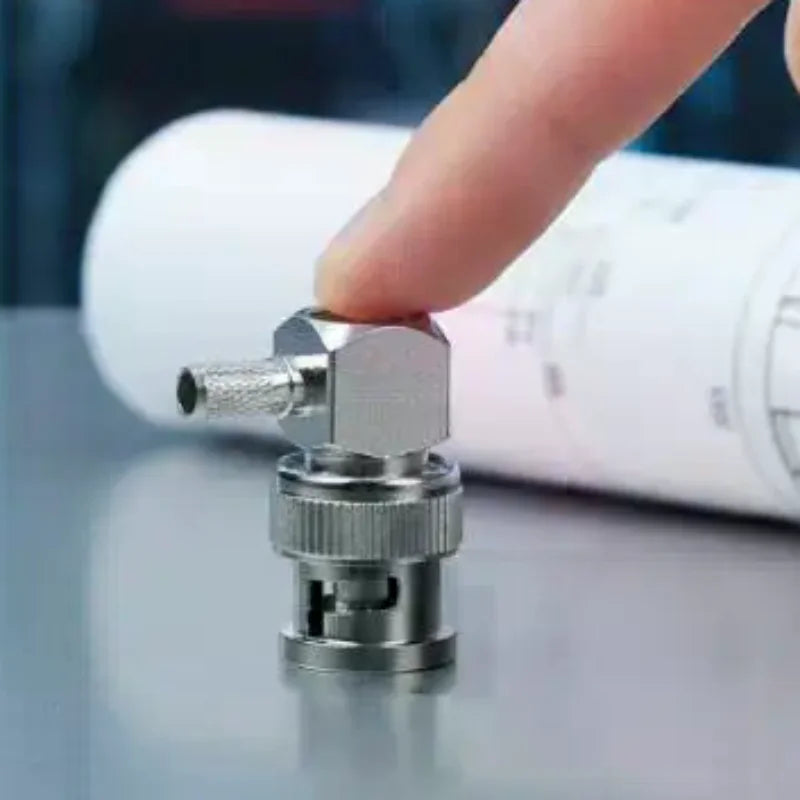

• Connector Type: BNC Male, 90° Right Angle Crimp

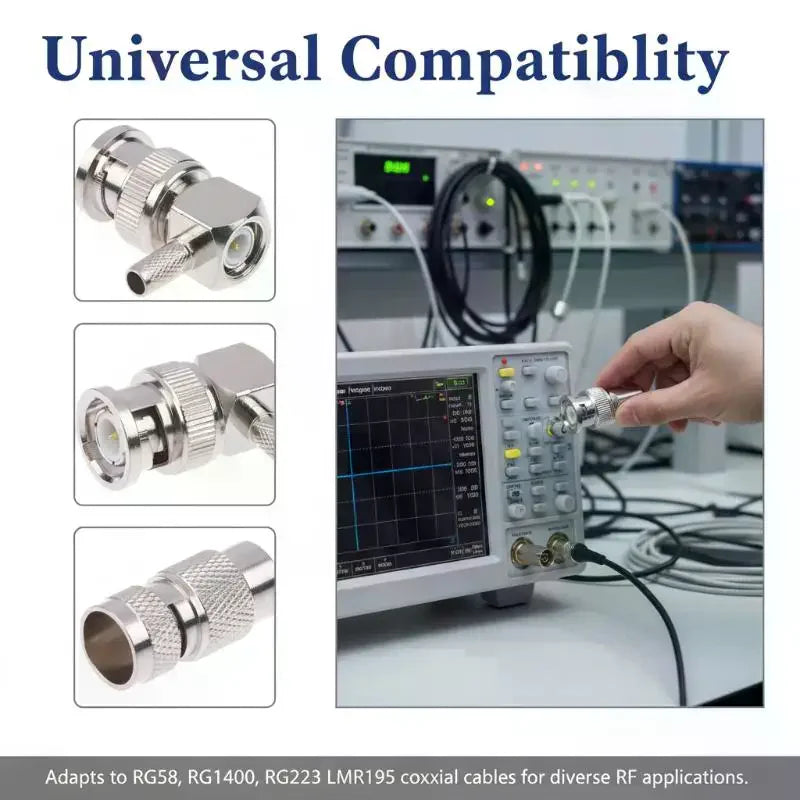

• Compatible Cables: RG58, RG142, RG400, RG223, LMR195 coaxial cables
• Low Voltage Rated: Below 50V AC or 75V DC

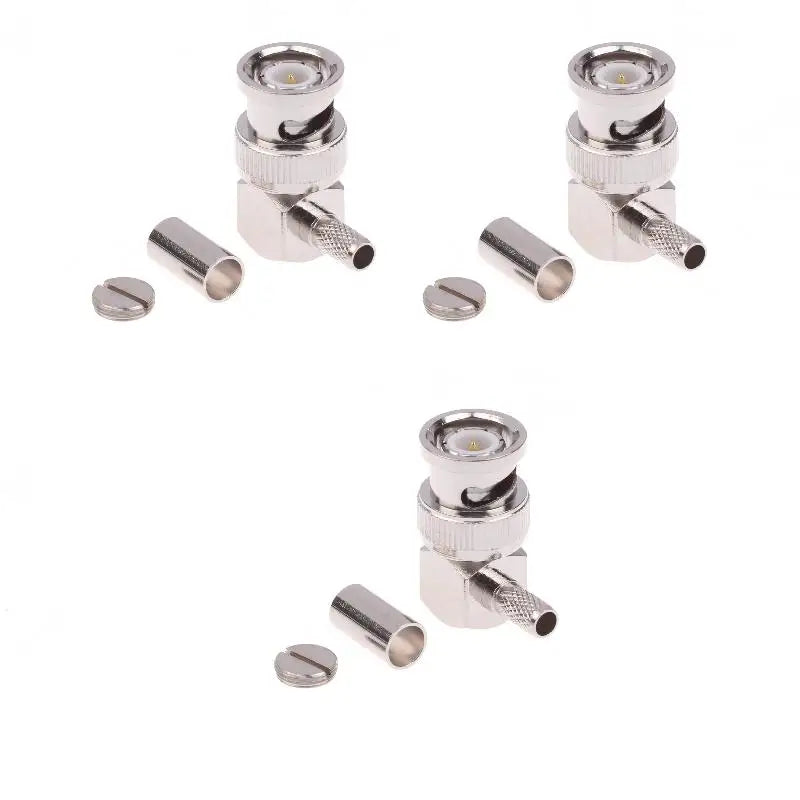

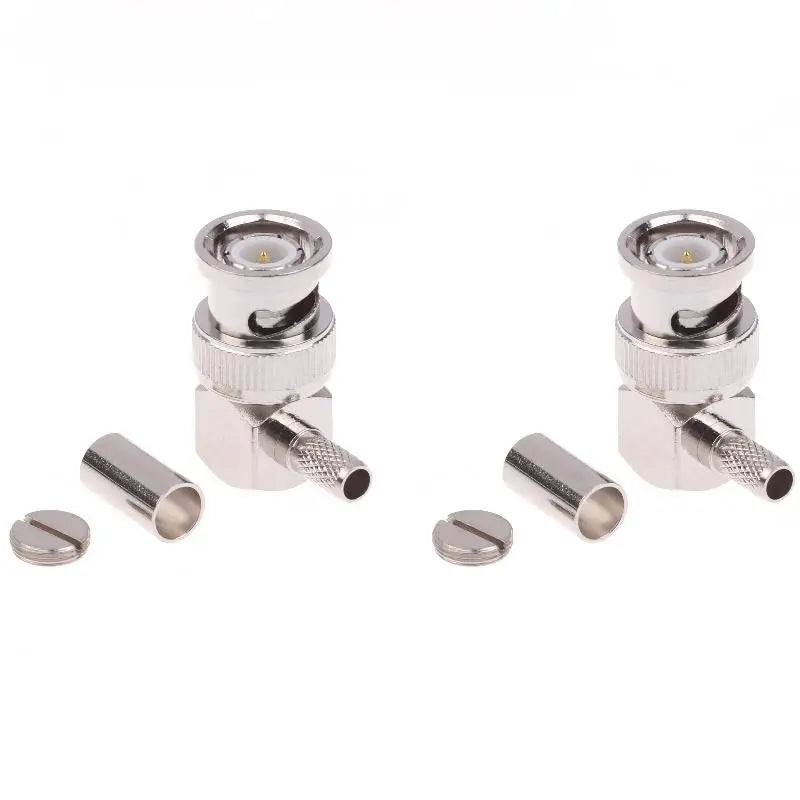

• Package Options: Available in 1, 2, or 3-piece sets
• 100% new and high quality construction

Why Choose This BNC Right Angle Connector?

Whether you're building a custom RF assembly, replacing a worn connector, or routing coax in a crowded equipment rack, this right-angle BNC crimp connector gives you the flexibility and signal integrity you need. The gold-plated center conductor minimizes contact resistance while the nickel-plated body ensures long-term mechanical reliability.

Made in Mainland China.

Compatible Applications

• Amateur / Ham Radio installations
• CCTV and surveillance systems
• RF test and measurement equipment
• Network analyzers and signal generators
• Wireless communication systems

Technical Specifications

For more information on RF connector standards and coaxial cable specifications, visit the NIST Electronics & Electrical Engineering Laboratory.

You May Also Like

• "1% Better Every Day" Motivational Canvas Wall Art Print
• "Be Silly Be Honest Be Kind" Quote Canvas Wall Art Print

Frequently Asked Questions

Q: What coaxial cables are compatible with this 90-degree BNC crimp connector?

A: This BNC male right angle crimp RF connector is compatible with RG58, RG142, RG400, RG223, and LMR195 coaxial cables — all common 50-ohm coax types used in RF, radio, and test equipment applications.

Q: What is the impedance of this BNC RF connector adapter?

A: This connector has a standard 50-ohm impedance, making it suitable for most RF, amateur radio, CCTV, and laboratory signal applications that use 50-ohm coaxial cable systems.

Q: Why choose a right angle (90°) BNC connector instead of a straight one?

A: A 90-degree right angle BNC connector is ideal when cable routing space is limited — such as along equipment panels, in crowded enclosures, or when cables need to run parallel to a surface rather than straight out from a port. It reduces mechanical stress on both the connector and the cable.

Q: What materials are used in this BNC crimp connector?

A: The body is made from nickel-plated copper/metal for corrosion resistance, while the center conductor features a gold-plated copper finish for excellent conductivity and long-lasting performance.
