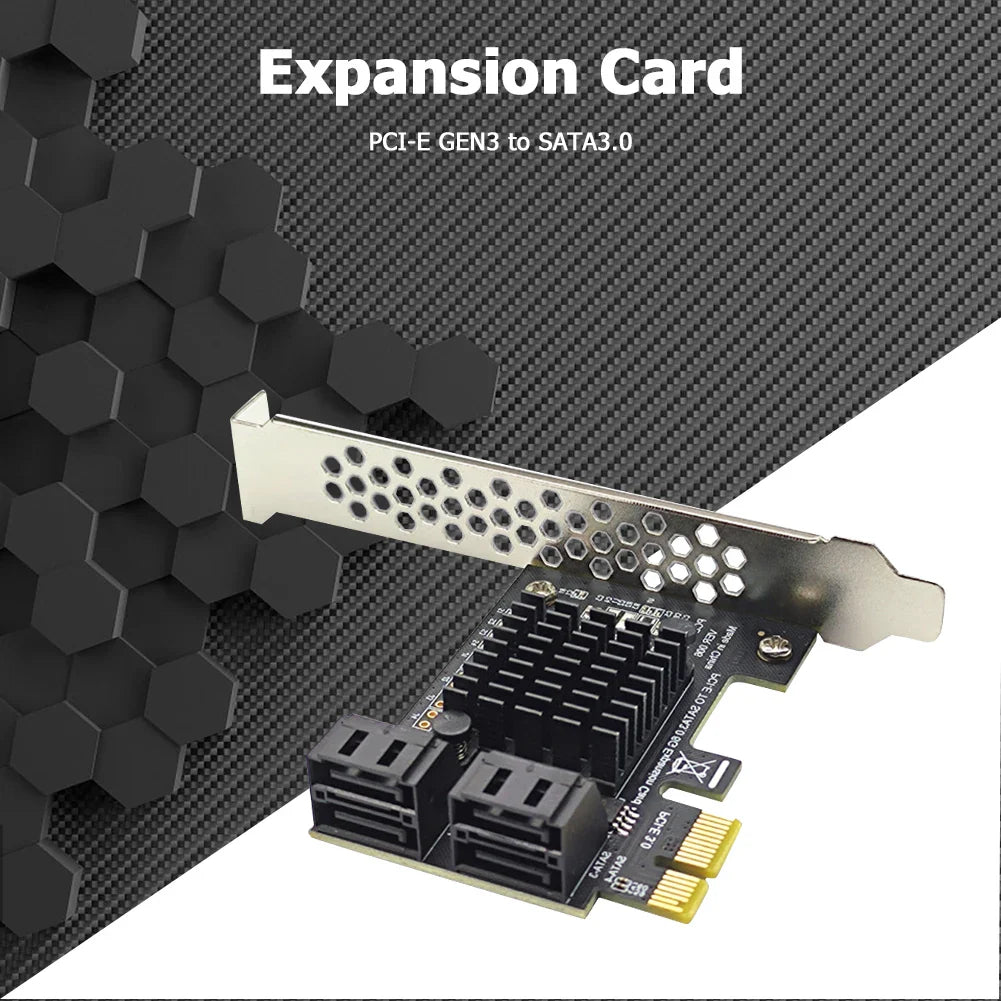

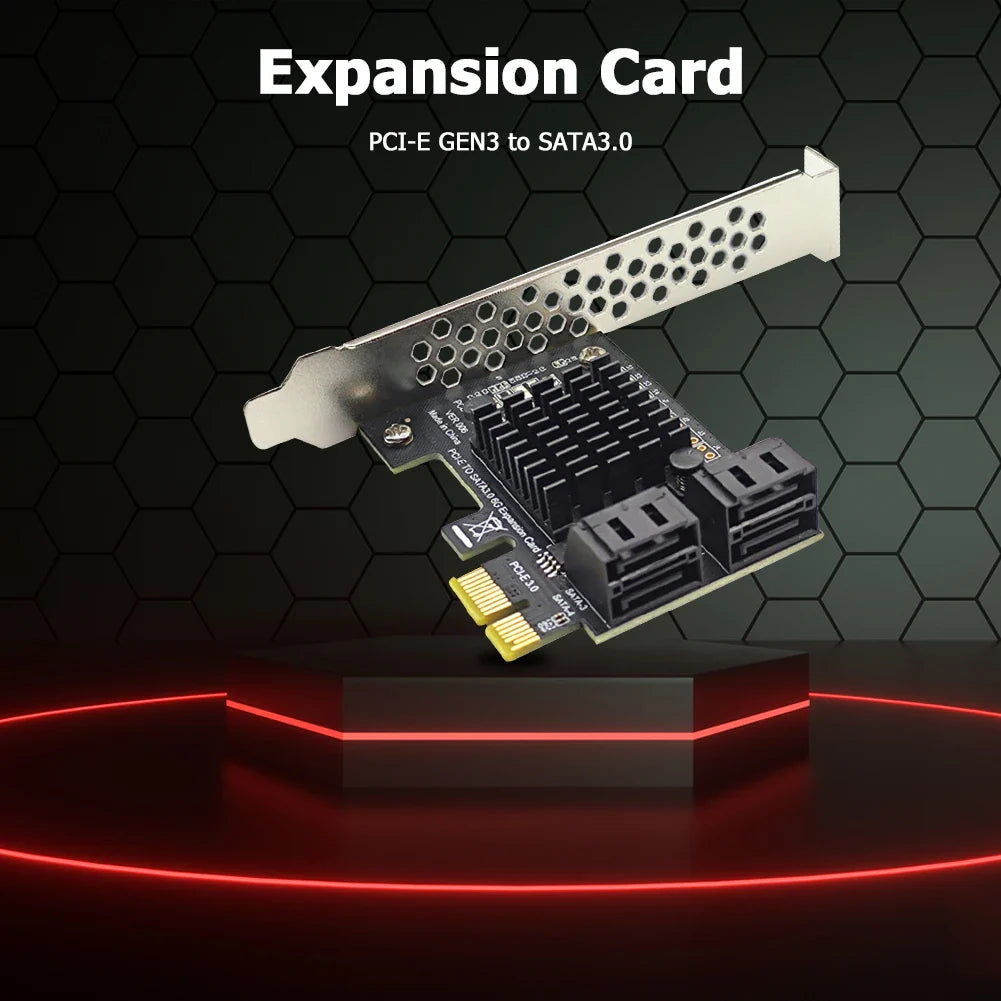

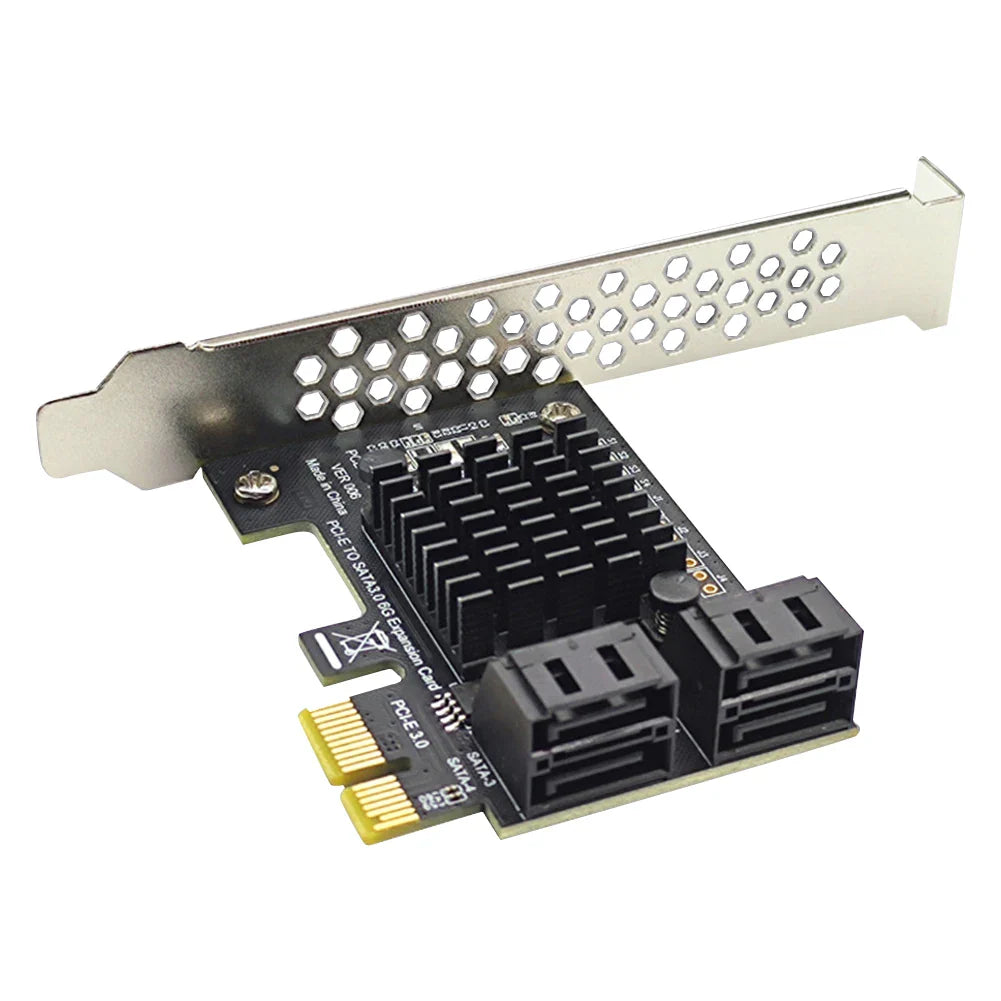

Expand Your Storage with the ASM1064 4-Port SATA III PCIe Card
Need more SATA ports for your HDDs or SSDs? The VODOOL ASM1064 4-Port SATA III PCIe Expansion Card is the fast, reliable solution to add four full-speed 6Gbps SATA 3.0 ports to any desktop PC via a single PCIe x1 slot. Whether you're building a NAS, expanding a workstation, or adding extra drives to a home server, this card delivers stable, high-speed performance right out of the box.
Made in Mainland China.
Key Features
- ASM1064 Controller Chip: Industry-proven chipset ensures fast, stable SATA data transfer speeds up to 6Gbps per port.
- 4 x SATA III Ports: Connect up to four SATA HDDs or SSDs simultaneously — ideal for storage expansion, RAID setups, or NAS builds.
- PCIe x1 Interface: Fits in any available PCIe x1, x2, x4, x8, or x16 slot for maximum motherboard compatibility.
- Blue LED Activity Indicator: Solid blue light when a drive is connected; flashing blue when reading/writing data — monitor drive activity at a glance.
- Hot Swap Support: Safely connect and disconnect SATA drives without powering down your system.
- SATA Backward Compatible: Supports SATA 6Gbps, 3Gbps, and 1.5Gbps drives — works with virtually any SATA device.
- PCIe 3.0 Compatible: Fully conforms to PCIe v3.0 specification and is backward compatible with PCIe v2.0 and v1.0.

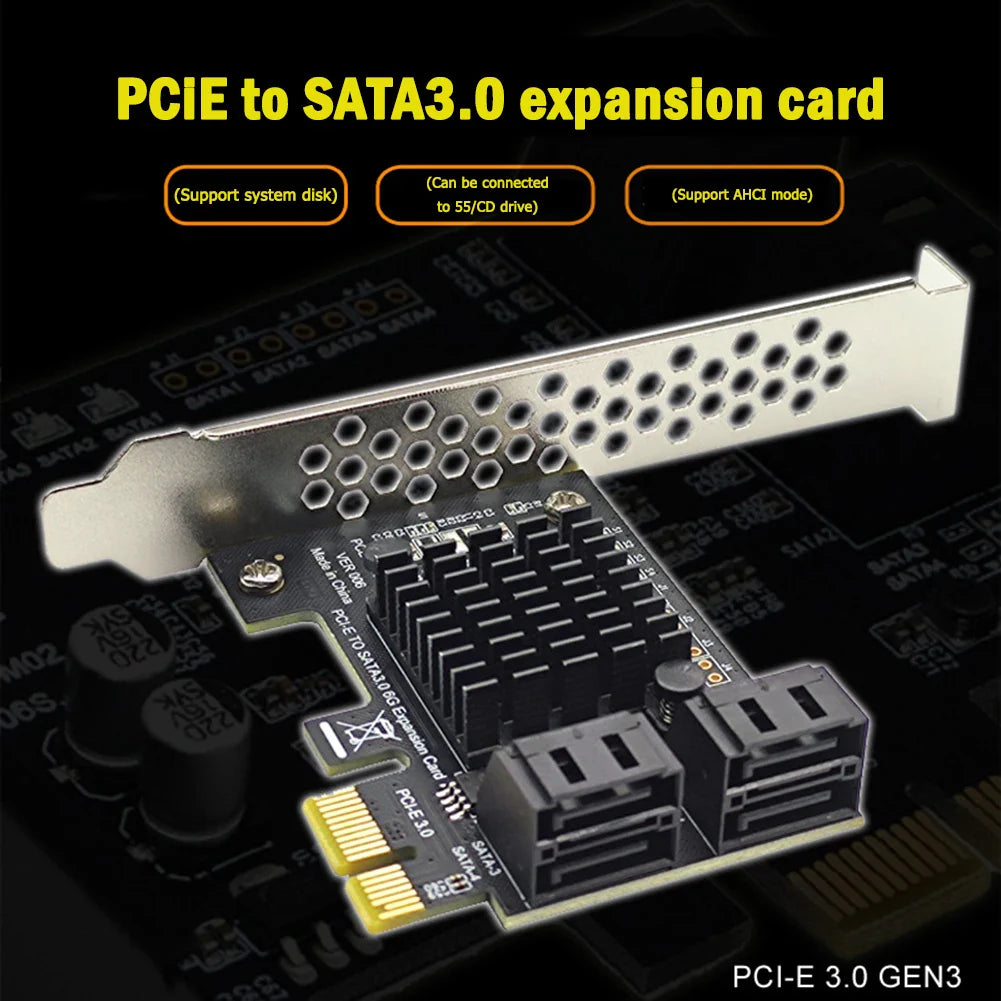

- AHCI 1.0 & NCQ Support: Native Command Queuing (NCQ) improves multi-drive performance and responsiveness.
- Half-Height Bracket Included: Supports 2U small chassis and compact builds with the included low-profile/half-height bracket.
- Broad OS Support: Compatible with Windows 8, Windows 10, and Linux.
Specifications
| Controller Chip | ASM1064 |
| Bus Interface | PCI Express x1 (compatible with x1, x4, x8, x16) |
| Expansion Ports | 4 x SATA III (6Gbps) |
| Transfer Speed | 6Gbps / 3Gbps / 1.5Gbps |

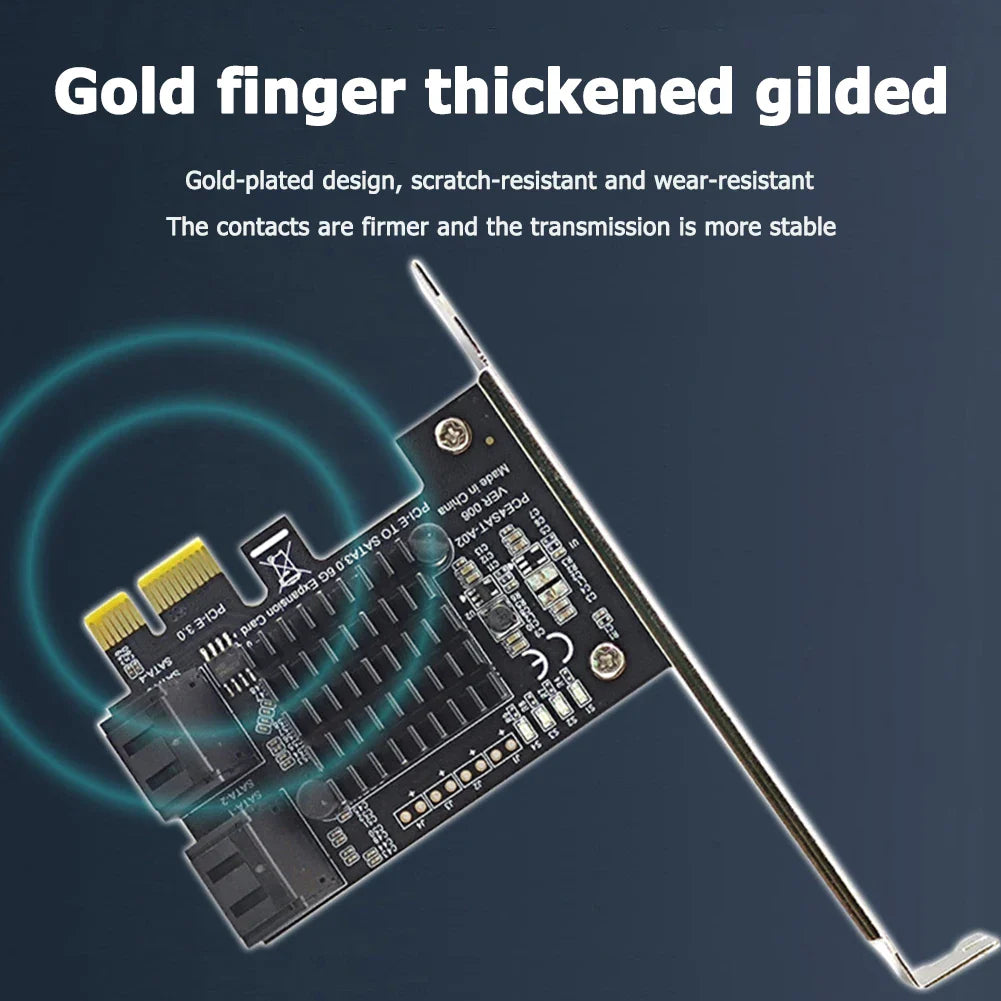

| PCB Color | Black Gold Plate |
| OS Support | Windows 8, Windows 10, Linux |
| Certification | CE |
| Product Dimensions | 120 × 71 × 53 mm (4.72 × 2.80 × 2.09 in) |
| Product Weight | 75g |
What's in the Box
- 1 × SATA PCIe Expansion Card (ASM1064)
- 1 × Half-Height Bracket
Related Products You May Like
- 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw Type
- 100W Dual-Port Car Charger – Fast Charging
- 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection
Further Reading
For guidance on safely working with computer components and expansion cards, refer to the U.S. Consumer Product Safety Commission (CPSC) for consumer electronics safety standards.
Learn more: SATA
Frequently Asked Questions
Q: Is the ASM1064 SATA PCIe card compatible with my motherboard?
A: Yes — this card uses a PCIe x1 interface and is physically and electrically compatible with PCIe x1, x2, x4, x8, and x16 slots. As long as your motherboard has at least one available PCIe slot of any size, you can use this card.
Q: Does this SATA expansion card support hot swapping drives?
A: Absolutely. The ASM1064 controller chip supports hot swap, meaning you can connect or disconnect SATA drives while the system is running — ideal for flexible storage management without rebooting.
Q: Will this 4-port SATA card work with Windows 11 or older versions of Linux?
A: The card is officially tested and supported on Windows 8, Windows 10, and major Linux distributions. Many users also report successful use on Windows 11, as the ASM1064 chip is widely recognized by modern operating systems. Check for the latest drivers from ASMEDIA if needed.
Q: Can I use both the full-height and half-height brackets?
A: The package includes a half-height (low-profile) bracket, making it suitable for compact 2U chassis. A standard full-height bracket is pre-installed on the card for standard ATX cases. Both form factors are supported.
