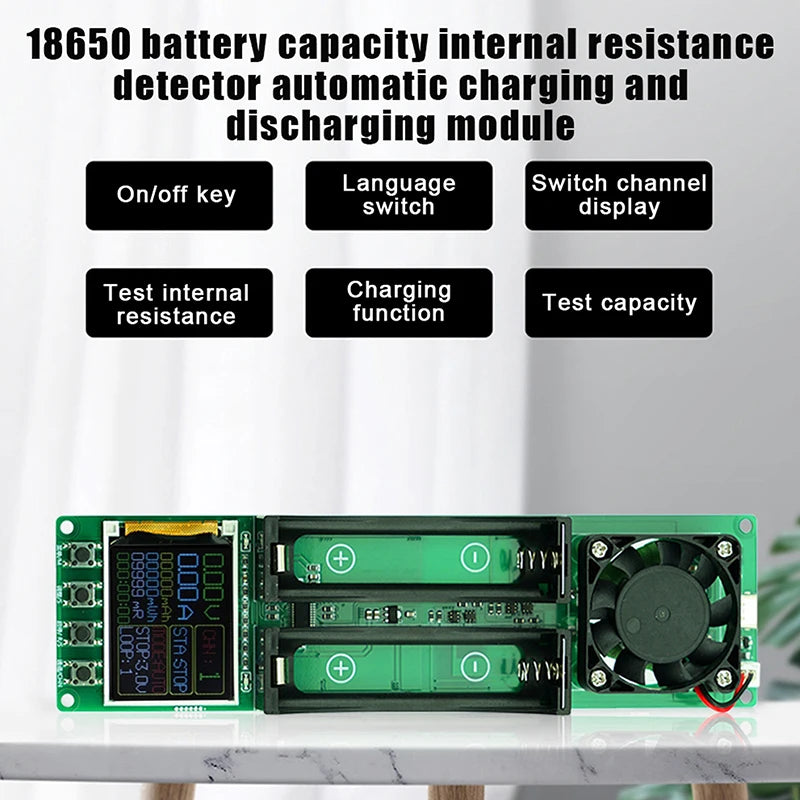

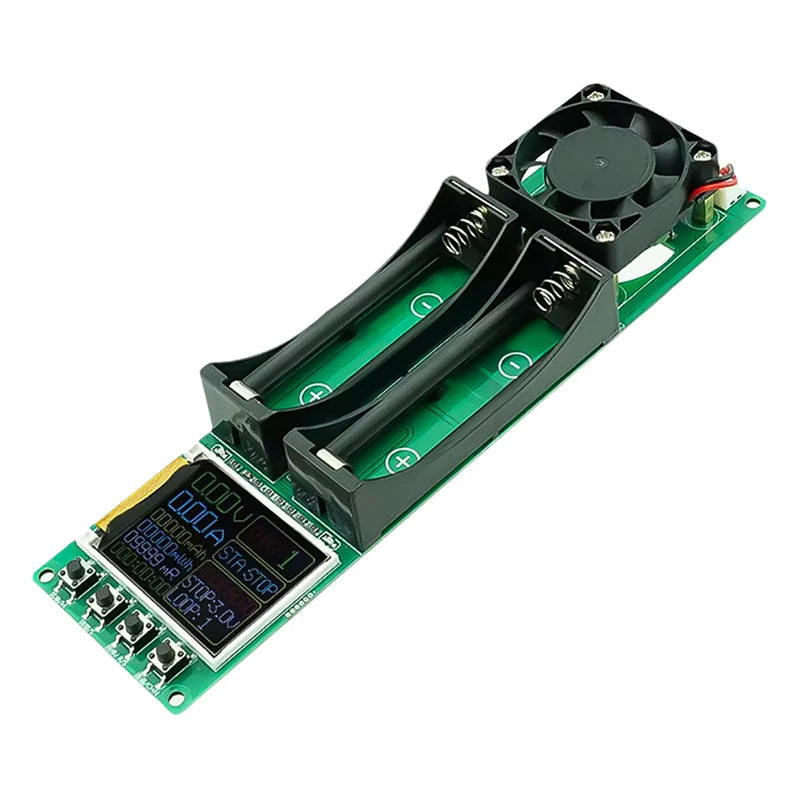

HELTC 2-Channel 18650 Battery Capacity Tester with Internal Resistance Measurement

Take the guesswork out of battery health with the HELTC 2-Channel Digital Battery Capacity Tester. Designed for hobbyists, makers, and electronics enthusiasts, this compact dual-channel tester accurately measures mAh, mWh, and internal resistance for 18650 and compatible lithium-ion cells — all from a single, easy-to-use device powered via USB Type-C.

Key Features

Dual-Channel Testing: Test two batteries simultaneously for faster throughput and direct comparison.
Internal Resistance Measurement: Uses the DC two-wire method to accurately measure a battery's internal resistance — a key indicator of cell health and performance.
1A Charge & Discharge: Supports up to ~1A charging (auto cut-off at 4.2V, stops when current drops below 0.1A) and ~1A discharge with 11 adjustable stop-discharge voltage steps (2.5V–3.5V).
Automatic & Cyclic Modes: Run automated charge-then-discharge sequences or set up to 9 charge/discharge cycles (in automatic mode) for thorough capacity evaluation.
Fan Active Cooling & Overheat Protection: A built-in fan actively dissipates heat during operation, and automatic overheating protection keeps testing safe and reliable.

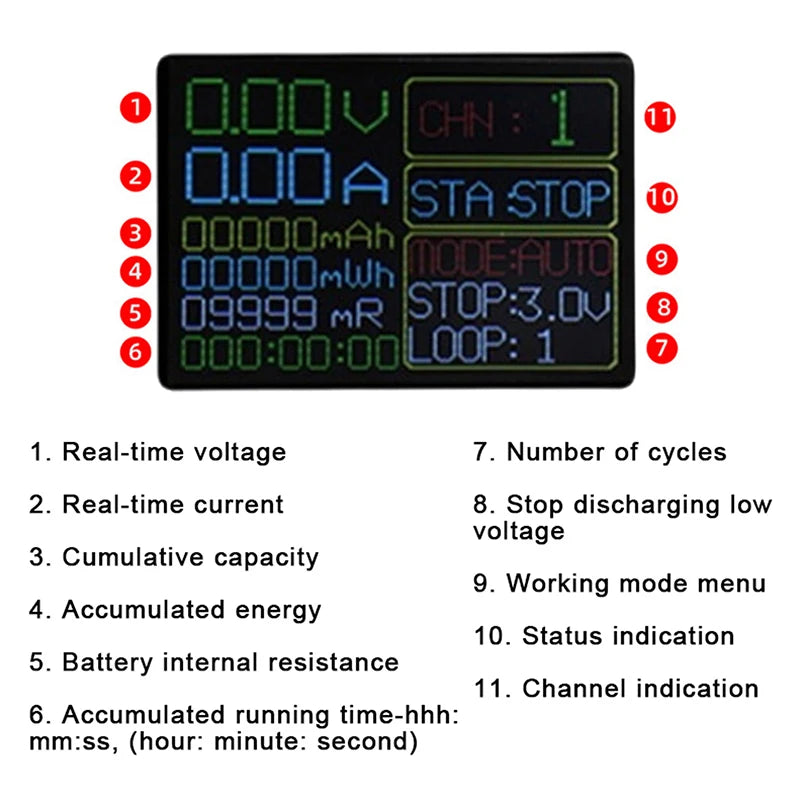

Status Alerts: On-screen alerts notify you of key events during the testing process.
English Language Interface: Clear, easy-to-read English menus for intuitive operation.

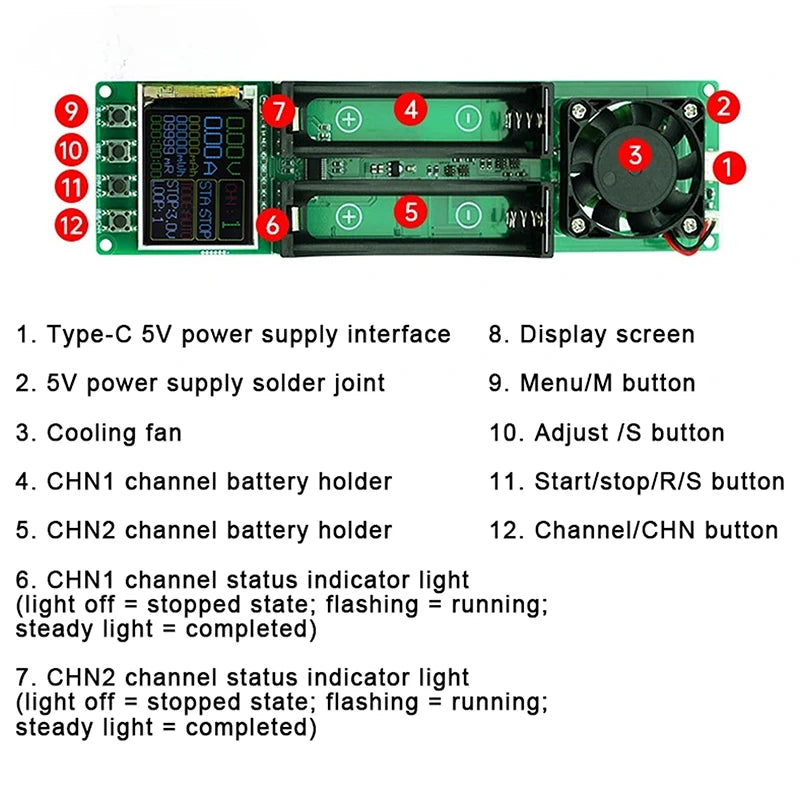

Type-C Power Interface: Powered at DC 5V via the included Type-C power supply and cable — no proprietary connectors.

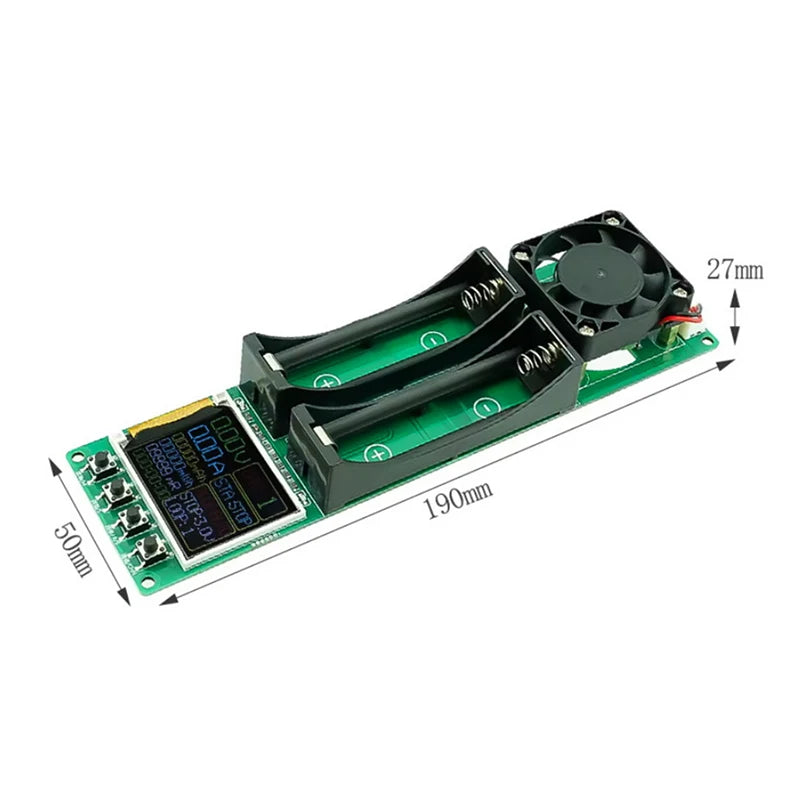

Compact & Durable: Plastic and metal construction at just 190 × 50 × 27 mm — fits neatly on any workbench.

Specifications

Working Voltage	DC 5V (via Type-C)
Compatible Batteries	Lithium-ion cells with discharge stop voltage 2.5V–3.5V, start voltage 2.8V, full charge 4.2V
Channels	2 independent channels
Charge Current	Up to ~1A; auto cut-off at 4.2V full charge
Discharge Current	Up to ~1A (non-adjustable)
Stop Discharge Voltage	2.5V – 3.5V, 11 adjustable steps
Cyclic Testing	1–9 cycles (automatic mode only)
Cooling	Active fan cooling
Overheat Protection	Yes
Dimensions	190 × 50 × 27 mm
Material	Plastic + Metal
Country of Origin	Made in Mainland China

What's in the Box

1× 2-Channel Battery Capacity & Internal Resistance Tester
Type-C power supply and cable (included)
Note: Batteries are NOT included.

Note: This device does not support lithium iron phosphate (LiFePO4) battery charging. Discharge current is non-adjustable. Power failure saves setup parameters only — measurement data is not retained after a power loss. Slight color variation from product images may occur due to monitor settings and lighting conditions.

Explore More Electronics & Tools

Looking for more electronics essentials? Check out our related products:

"1% Better Every Day" Motivational Canvas Wall Art Print — a great addition to any maker's workspace.
"Best Seat In The House" Retro Quote Canvas Wall Art Print — perfect for your workshop or hobby room.

For guidance on safe battery handling and electronics best practices, refer to the U.S. Consumer Product Safety Commission (CPSC) Lithium Battery Safety Resources.

Frequently Asked Questions

Q: What types of batteries are compatible with this 18650 battery capacity tester?

A: This tester is compatible with lithium-ion batteries that have a discharge stop voltage between 2.5V and 3.5V, a start voltage of 2.8V, and a full charge voltage of 4.2V. This includes standard 18650 Li-ion cells. It does not support lithium iron phosphate (LiFePO4) battery charging.

Q: Can I test two batteries at the same time?

A: Yes! The tester features two independent channels, allowing you to measure the mAh, mWh capacity, and internal resistance of two batteries simultaneously — saving you time when evaluating a batch of cells.

Q: What does internal resistance measurement tell me about a battery?

A: Internal resistance is a key indicator of a battery cell's health and age. A lower internal resistance generally means a healthier, higher-performing cell, while a higher reading suggests wear or degradation. This tester uses the DC two-wire method for accurate internal resistance readings.

Q: How many charge/discharge cycles can I program?

A: In automatic mode, you can set between 1 and 9 consecutive charge/discharge cycles. This is useful for conditioning new cells or thoroughly evaluating capacity over multiple cycles.
