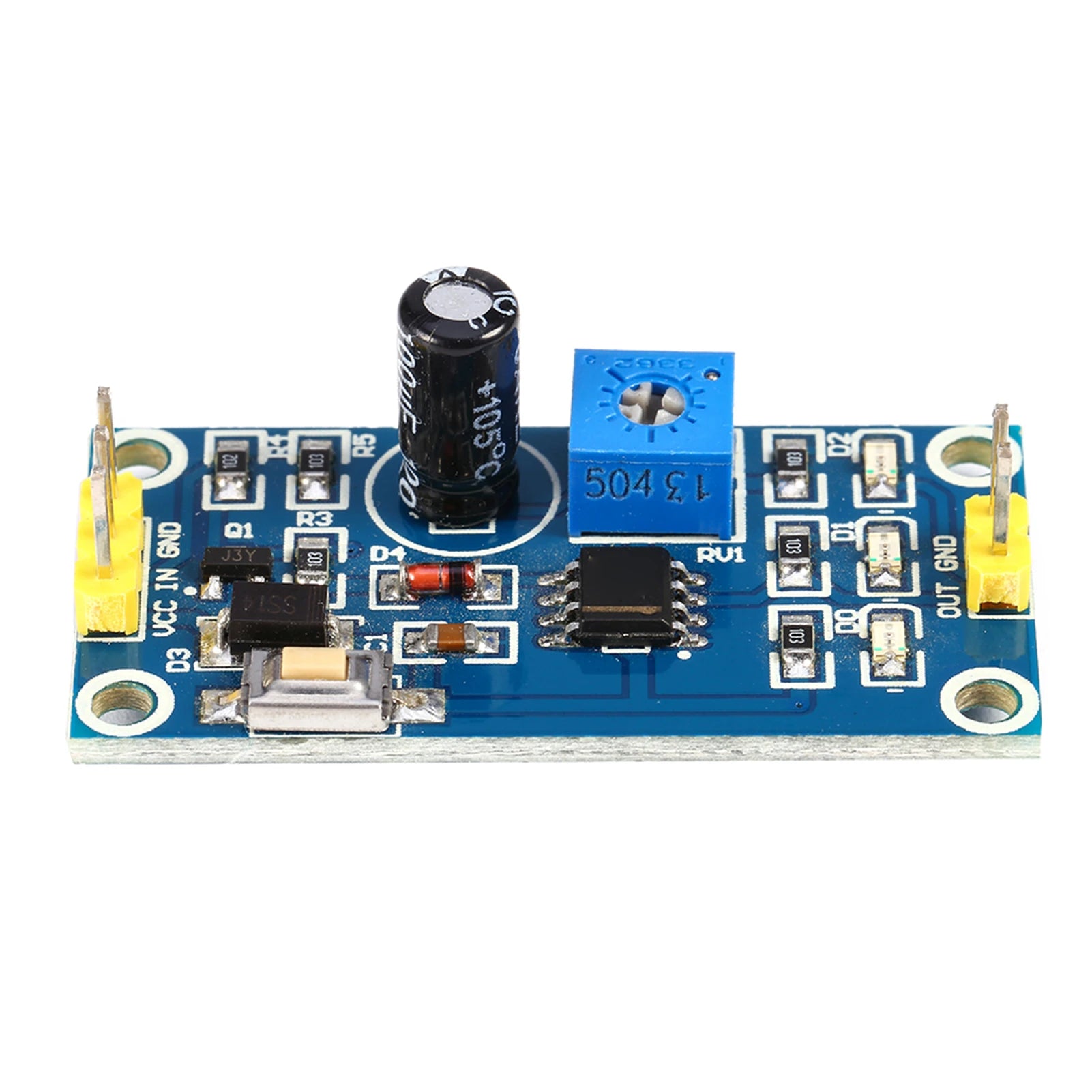

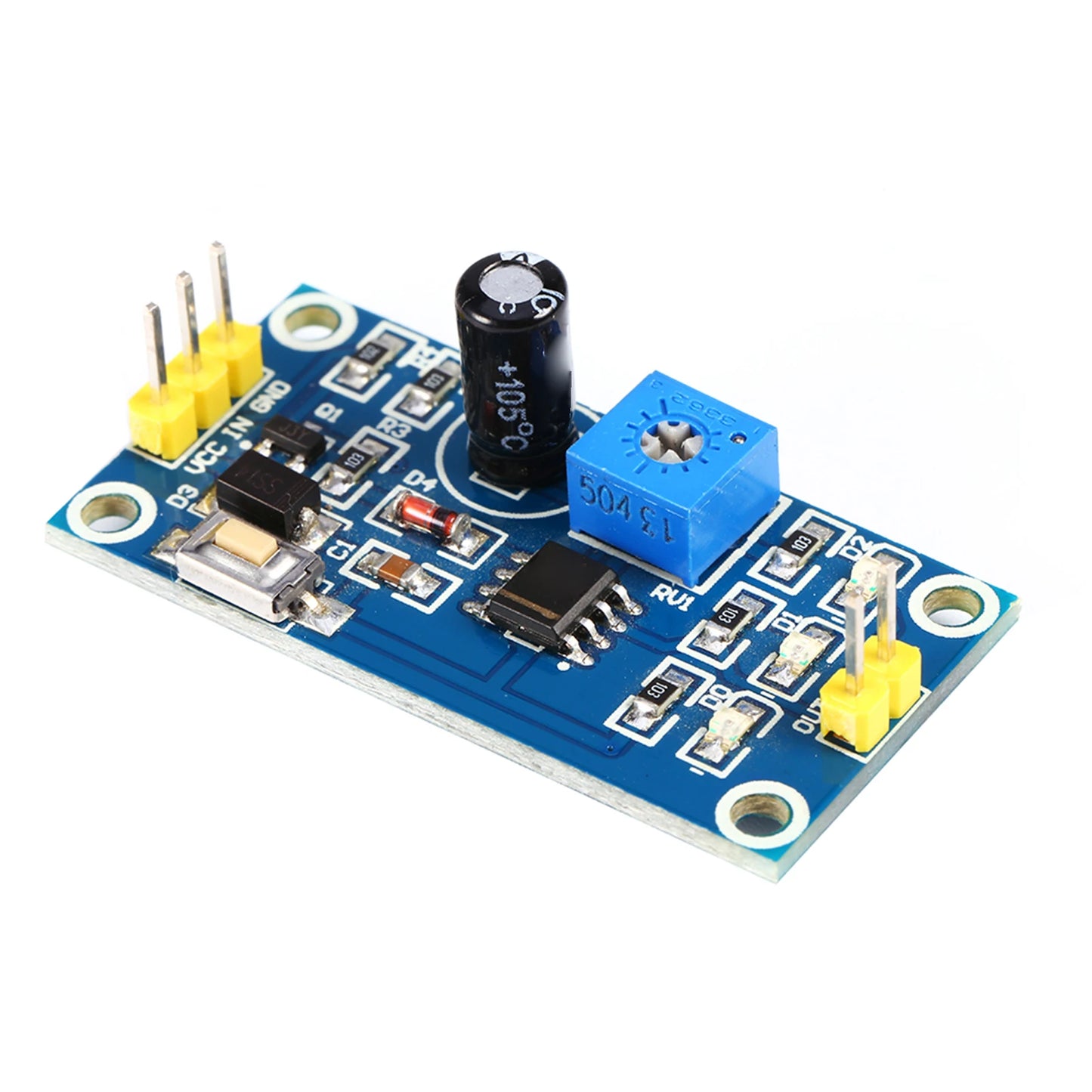

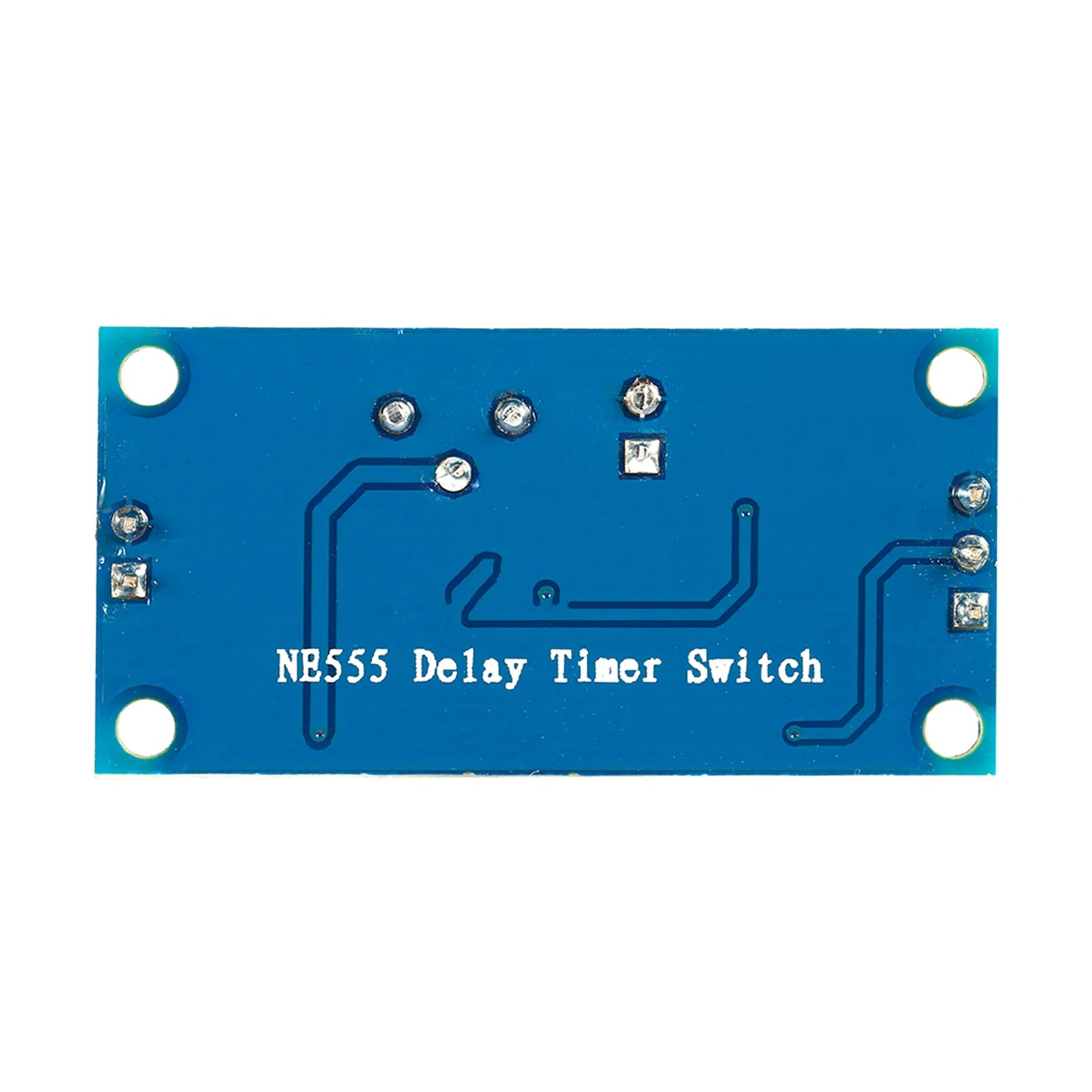

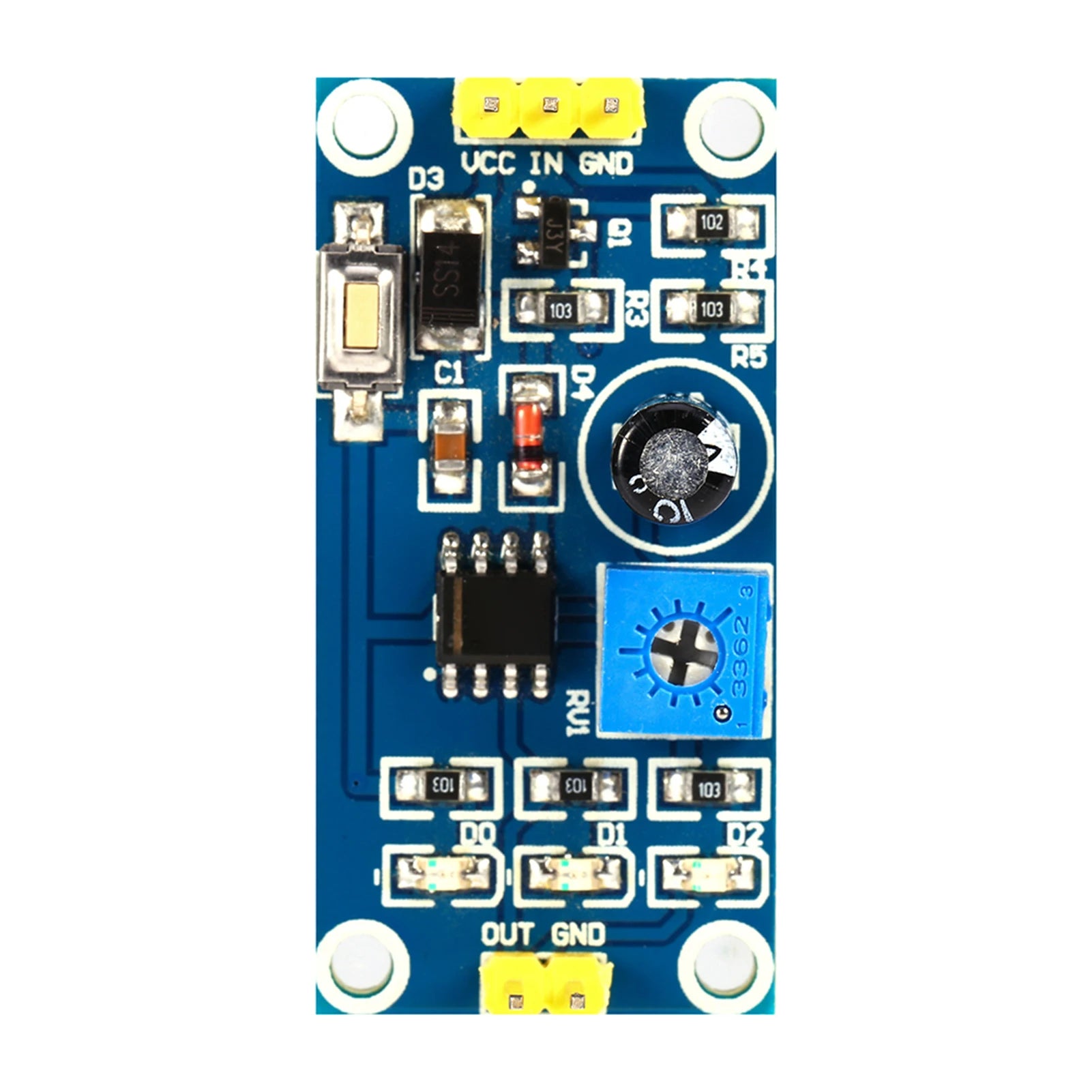

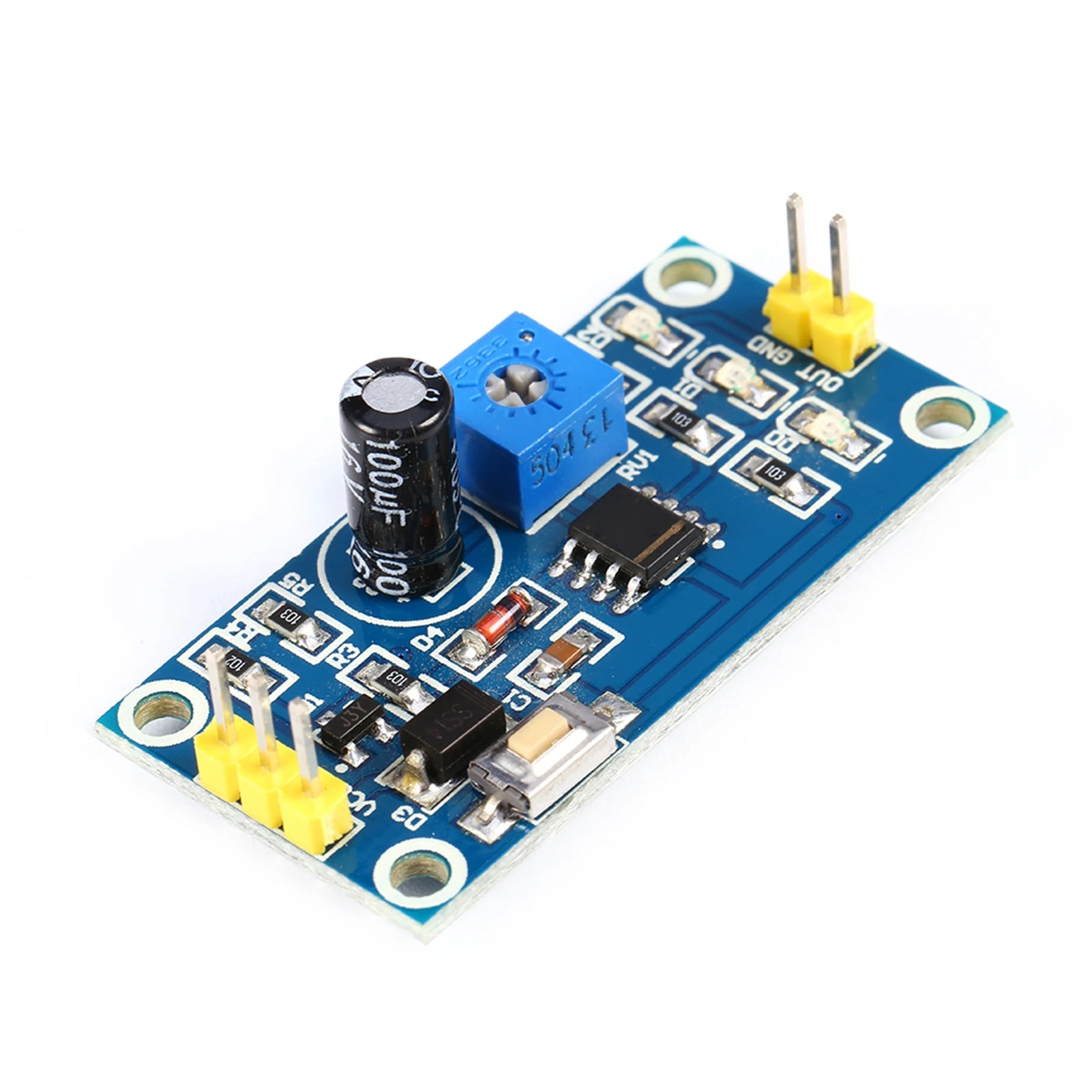

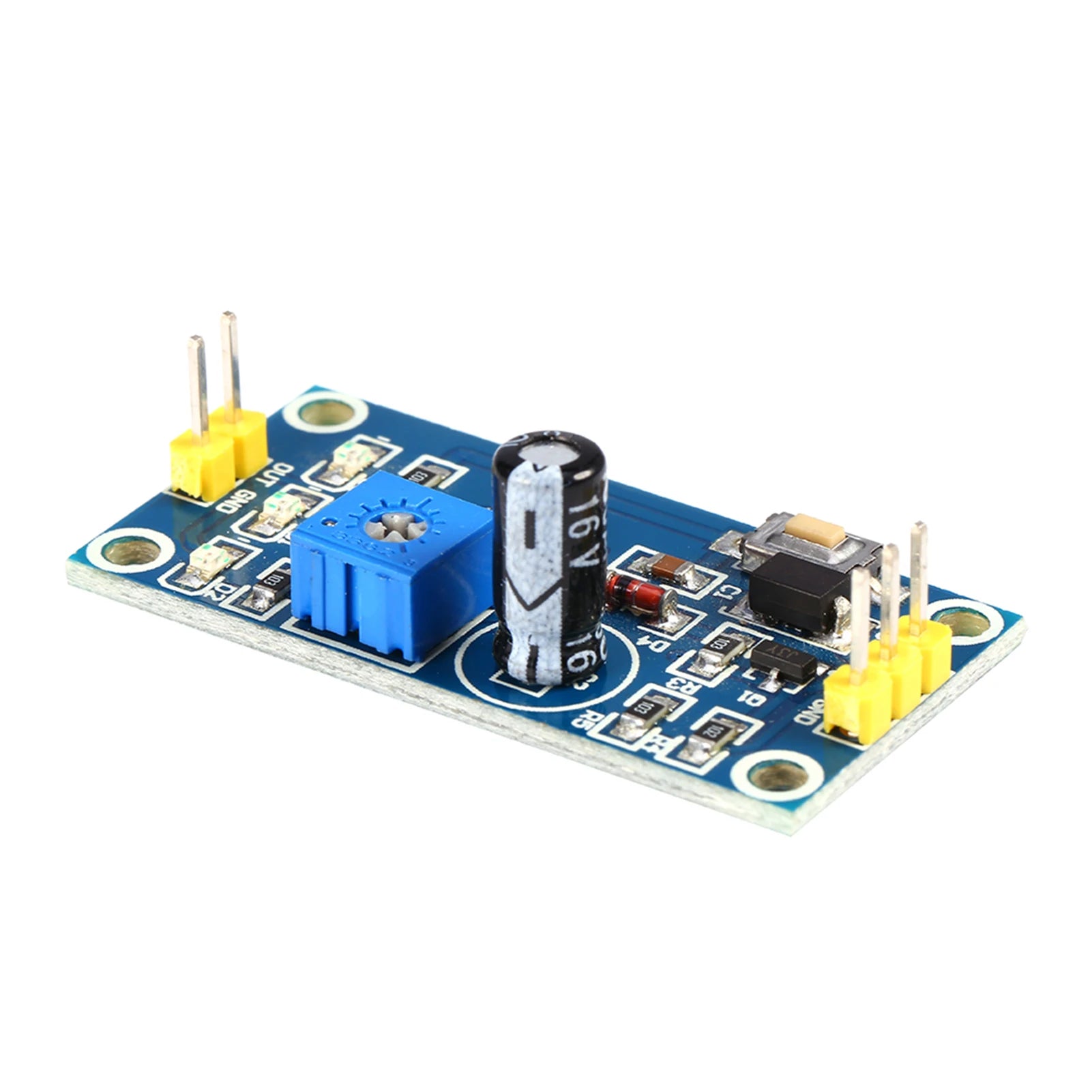

0-120s Delay Relay 5-12V Timer NE555 Adjustable Module Board Test

Discover the 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module Board Test — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

0-120s Delay Relay 5-12V Timer NE555 Adjustable Module On Board Test Button:

Specification:

Features:
1. After power-up, when there is an external trigger signal, the module start delay, and outputs a signal, when delay time over ,the signal output end.
2. Adjustable delay time (0-120 seconds).
3. With led light indicates the output level.
4. Can connect relay module ,achieve to control large current work status.
5. With input power indicator.
6. On-board test button, you can use IT as a trigger button.
Specification:
Condition: 100% Brand New
Input: VCC: 5-12V
GND: Ground
IN: Trigger terminal: high level effective
Output: OUT: output signal, when no trigger is low level, after triggered is high level,restore the low level after the delay ends
GND: Ground
Working Voltage: 5-12V
Size: 40x20mm
Package Includes:
1 x Adjustable NE555 Module
:

:

Frequently Asked Questions

Q: What is the 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module?

A: The 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module is a quality decor pick. After power-up, when there is an external trigger signal, the module start delay, and outputs a signal, when delay time over ,the signal output end.

Q: How do I use the 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module?

A: The 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module?

A: The 0-120s Delay Relay 5-12V Timer NE555 Adjustable Module stands out in our decor range — Adjustable delay time (0-120 seconds).
