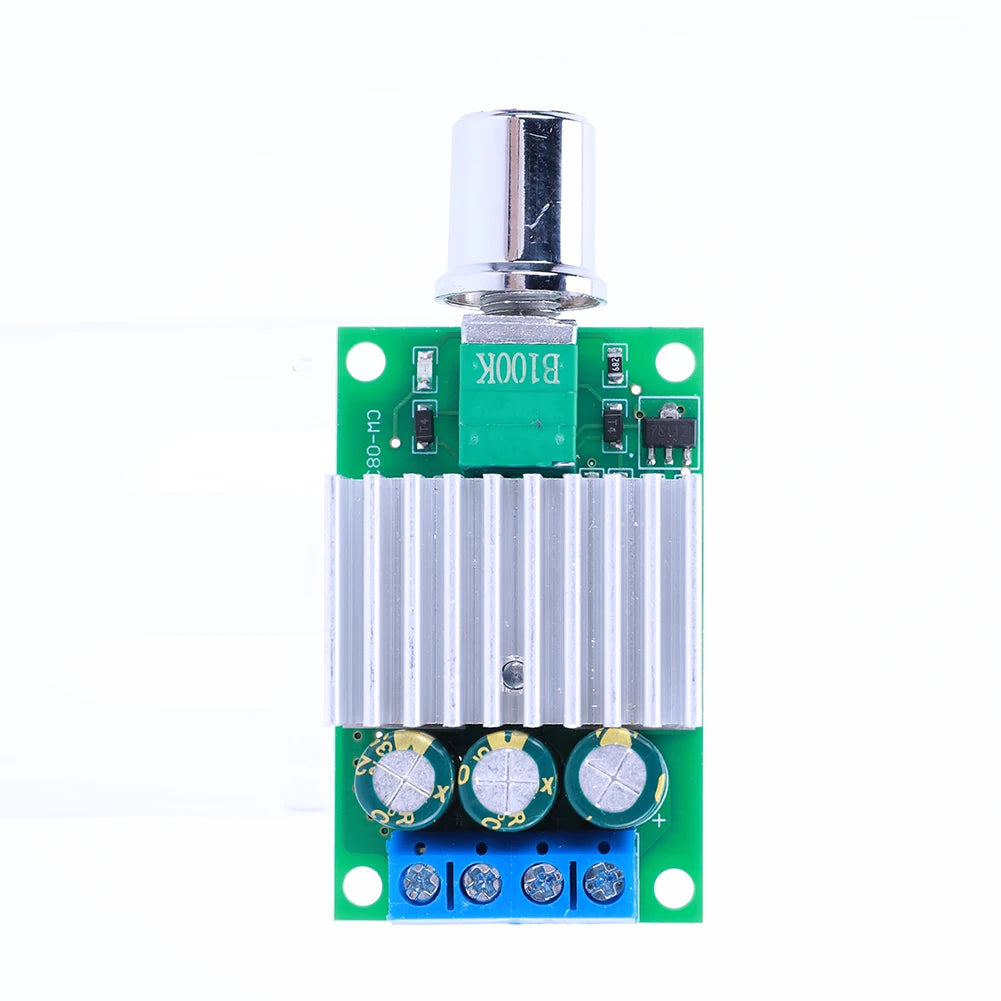

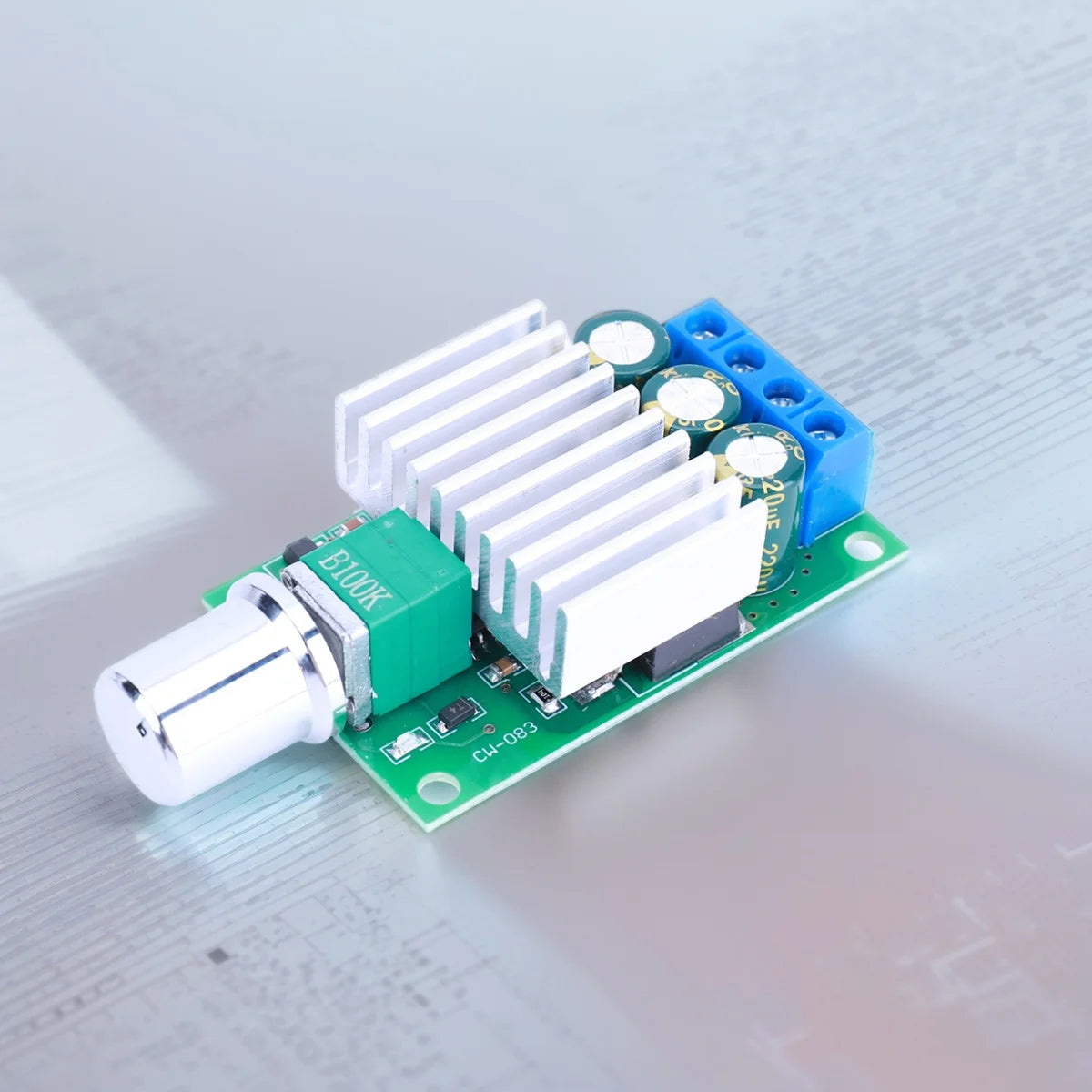

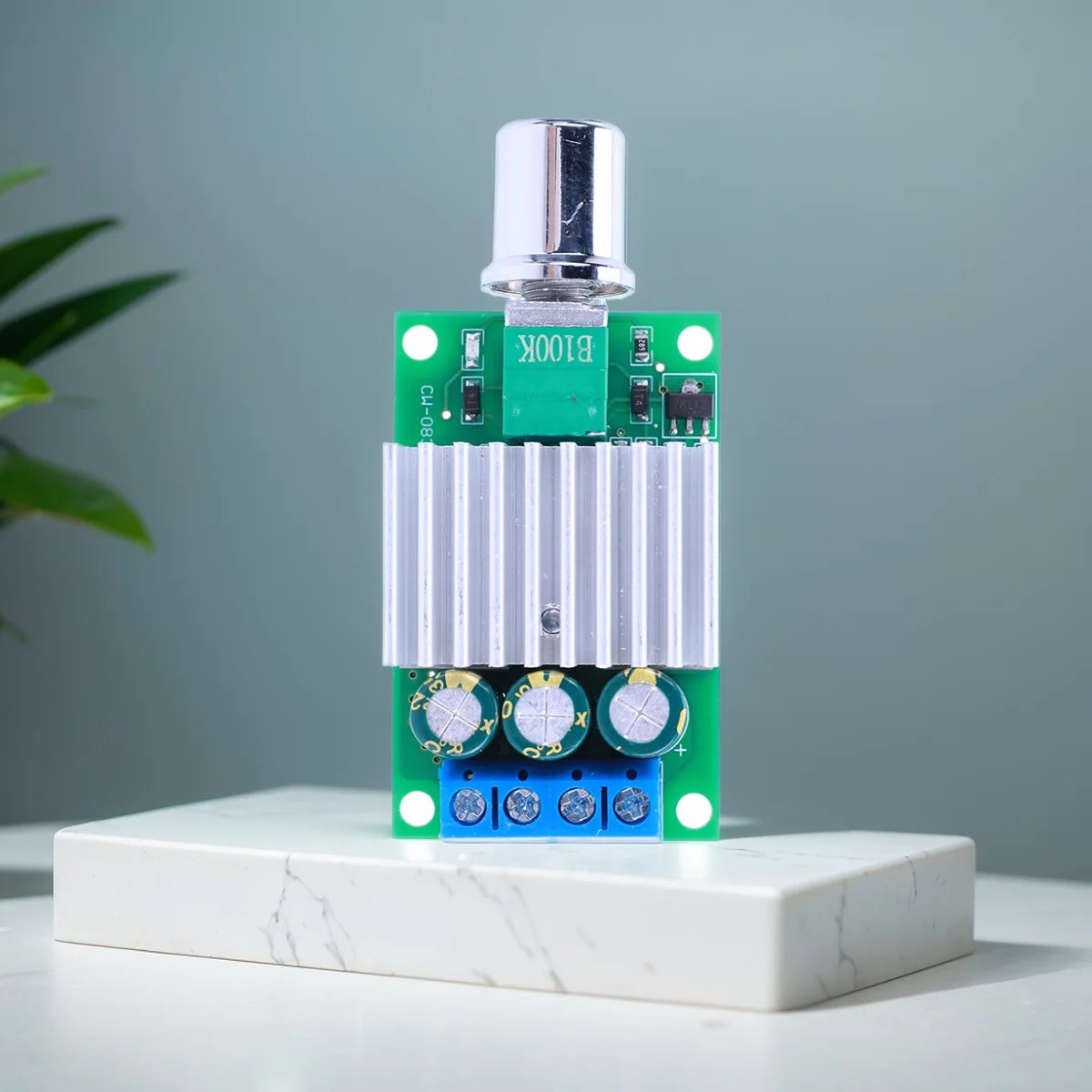

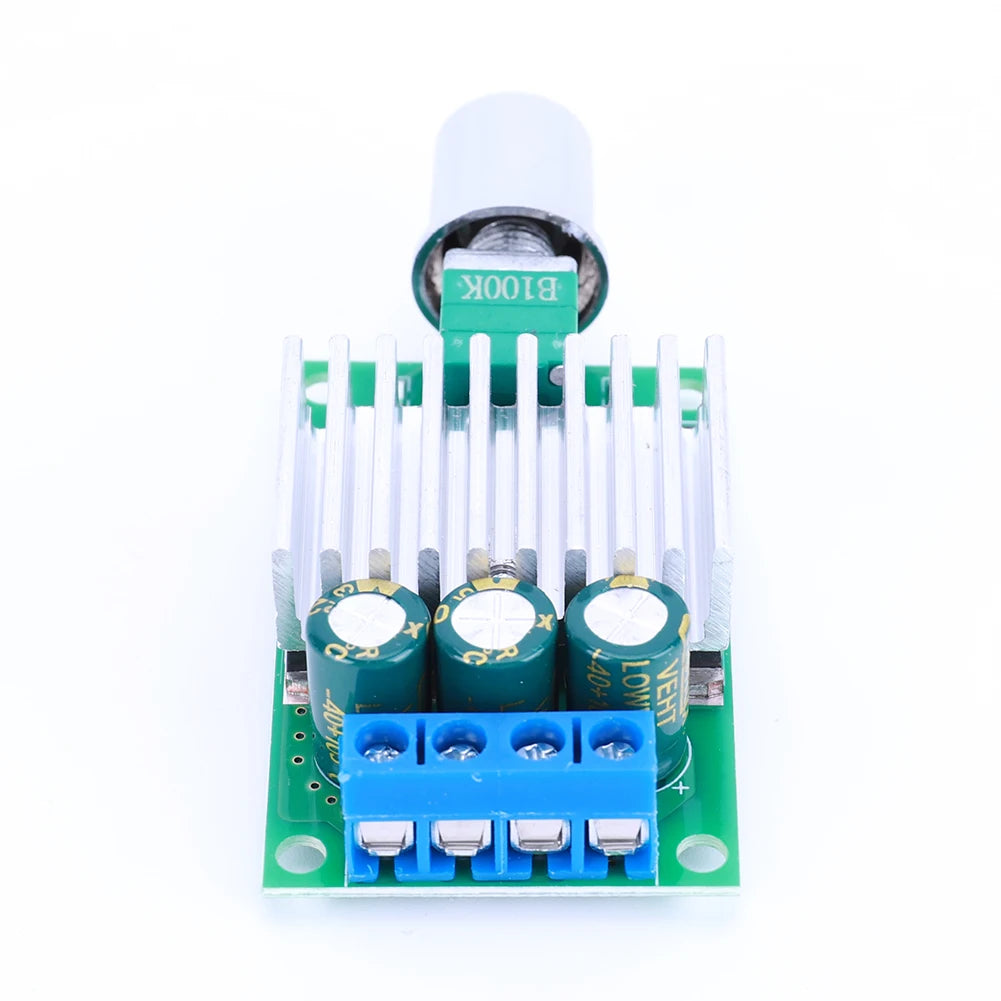

PWM DC Motor Speed Controller – 10A 12V–30V Adjustable Dimmer Switch

Precise Speed Control for Motors, Fans & LED Lights

Take full control of your DC-powered devices with this compact and reliable PWM speed controller. Whether you're managing a cooling fan, a small motor, or an LED light strip, this controller gives you smooth, stepless speed adjustment from 0 to 100% — all in a palm-sized package.

Key Features

• Adjustable speed control: 0–100% via built-in rotary knob
• Wide input voltage range: DC 12V–30V (compatible with 12V and 24V systems)
• Rated current: 7A continuous | Max: 10A
• Built-in protection: overload, over-temperature, and short-circuit protection

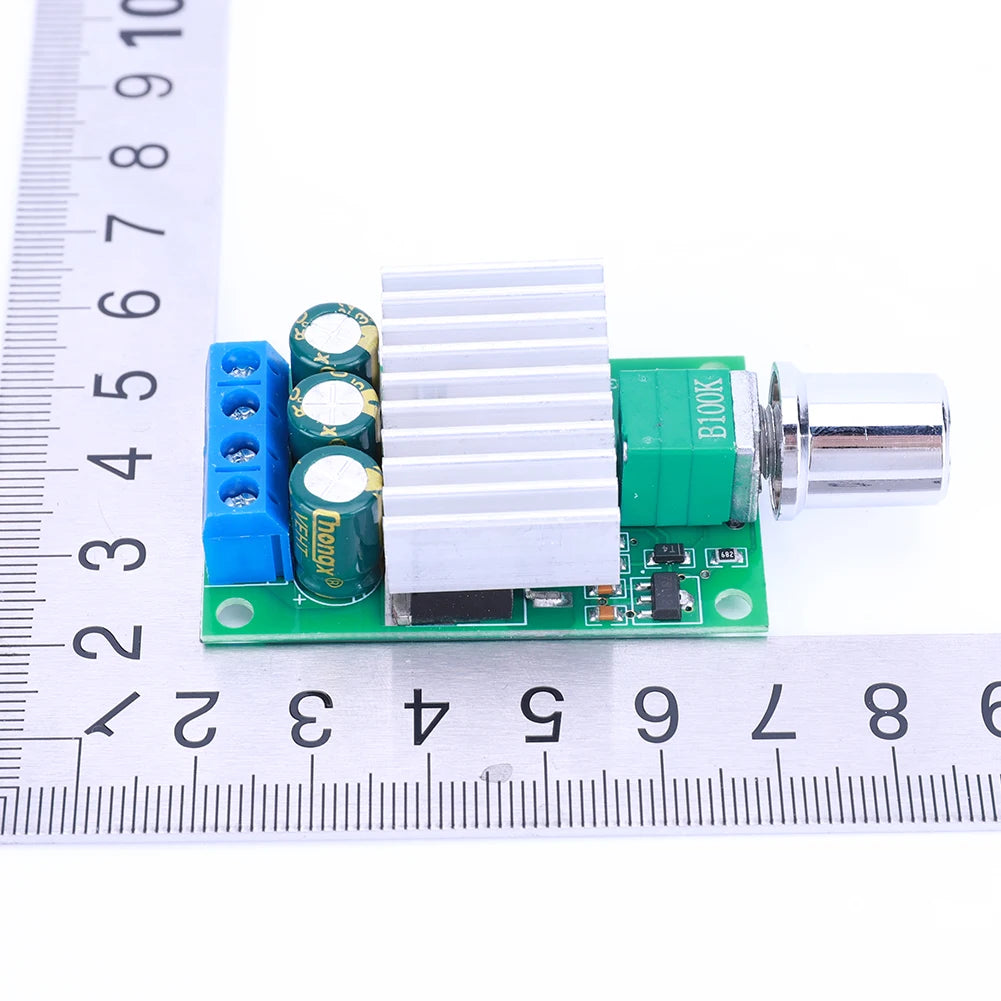

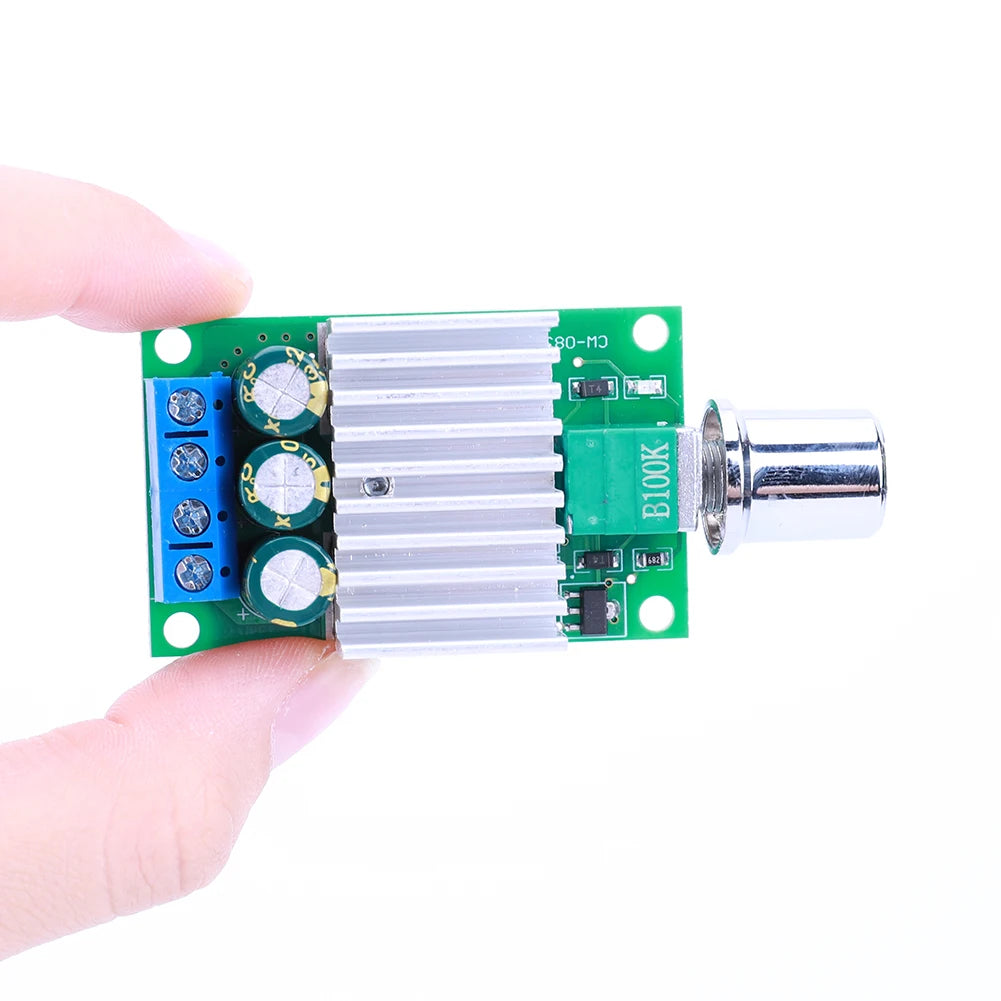

• Compact and lightweight: 65 x 31 x 16mm — easy to install in tight spaces
• Works with DC fans, motors, LED lights, and other compatible DC loads

Specifications

• Input Voltage: DC 12V–30V
• Rated Current: 7A | Max Current: 10A
• Speed Adjustment: 0–100% (PWM)
• Dimensions: 65 x 31 x 16mm

Perfect for DIY electronics projects, automotive applications, workshop setups, and home automation. Simple to wire up and built to last.

⚠️ FDA Disclaimer: This product is an electronic control device and is not a medical device. It has not been evaluated by the U.S. Food and Drug Administration. Always follow proper electrical safety practices during installation. Consult a qualified electrician if needed.

Controlador de Velocidad PWM para Motor DC – Interruptor Dimmer Ajustable 10A 12V–30V

Tome el control total de sus dispositivos alimentados por DC con este compacto y confiable controlador de velocidad PWM. Ya sea que esté gestionando un ventilador de enfriamiento, un pequeño motor o una tira de luces LED, este controlador le ofrece un ajuste de velocidad suave y continuo del 0 al 100%.

Características Principales

• Control de velocidad ajustable: 0–100% mediante perilla rotatoria integrada
• Amplio rango de voltaje de entrada: DC 12V–30V (compatible con sistemas de 12V y 24V)
• Corriente nominal: 7A continuo | Máx: 10A
• Protección integrada: sobrecarga, sobretemperatura y cortocircuito
• Compacto y ligero: 65 x 31 x 16mm — fácil de instalar en espacios reducidos
• Compatible con ventiladores DC, motores, luces LED y otras cargas DC compatibles

Especificaciones

• Voltaje de entrada: DC 12V–30V
• Corriente nominal: 7A | Corriente máxima: 10A
• Ajuste de velocidad: 0–100% (PWM)
• Dimensiones: 65 x 31 x 16mm

⚠️ Aviso de la FDA: Este producto es un dispositivo de control electrónico y no es un dispositivo médico. No ha sido evaluado por la Administración de Alimentos y Medicamentos de los EE. UU. Siga siempre las prácticas de seguridad eléctrica adecuadas durante la instalación.
