LCC261 1080P USB Video Capture Card | AHD CVI TVI CVBS H.264

LCC261 1080P Analog Video Capture Card – Multi-Format USB Encoder

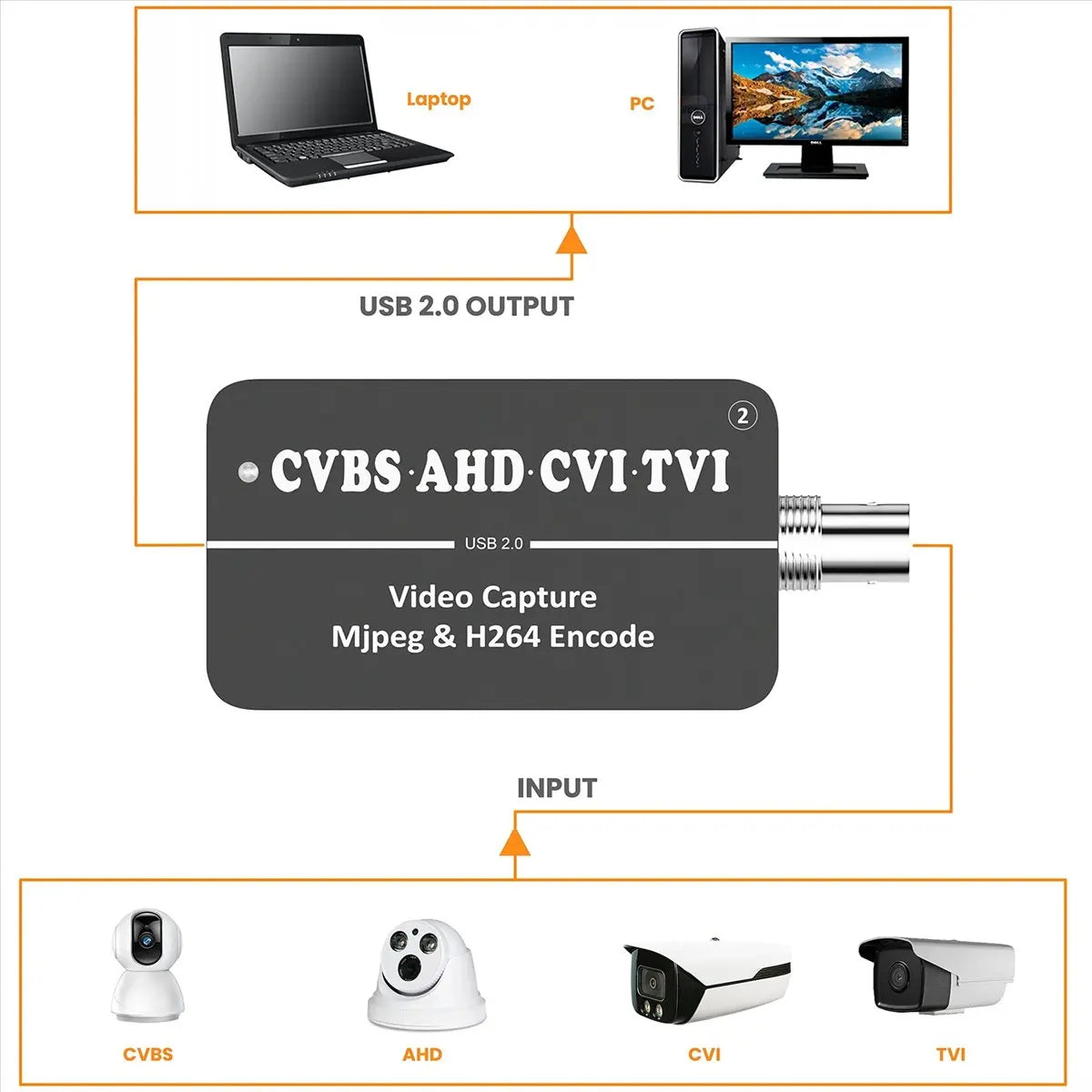

Bring your analog surveillance cameras and video sources into the digital world with the LCC261 HD Video Capture Card. Designed for professionals and enthusiasts alike, this powerful USB capture card supports AHD, TVI, CVI, and CVBS input formats and encodes video in both H.264 and MJPEG — giving you the flexibility to preview, transmit, and store high-quality video with ease.

Whether you're digitizing security camera feeds, creating a live streaming setup, or archiving analog video, the LCC261 delivers rock-solid performance at up to 1920×1080p @ 60fps.

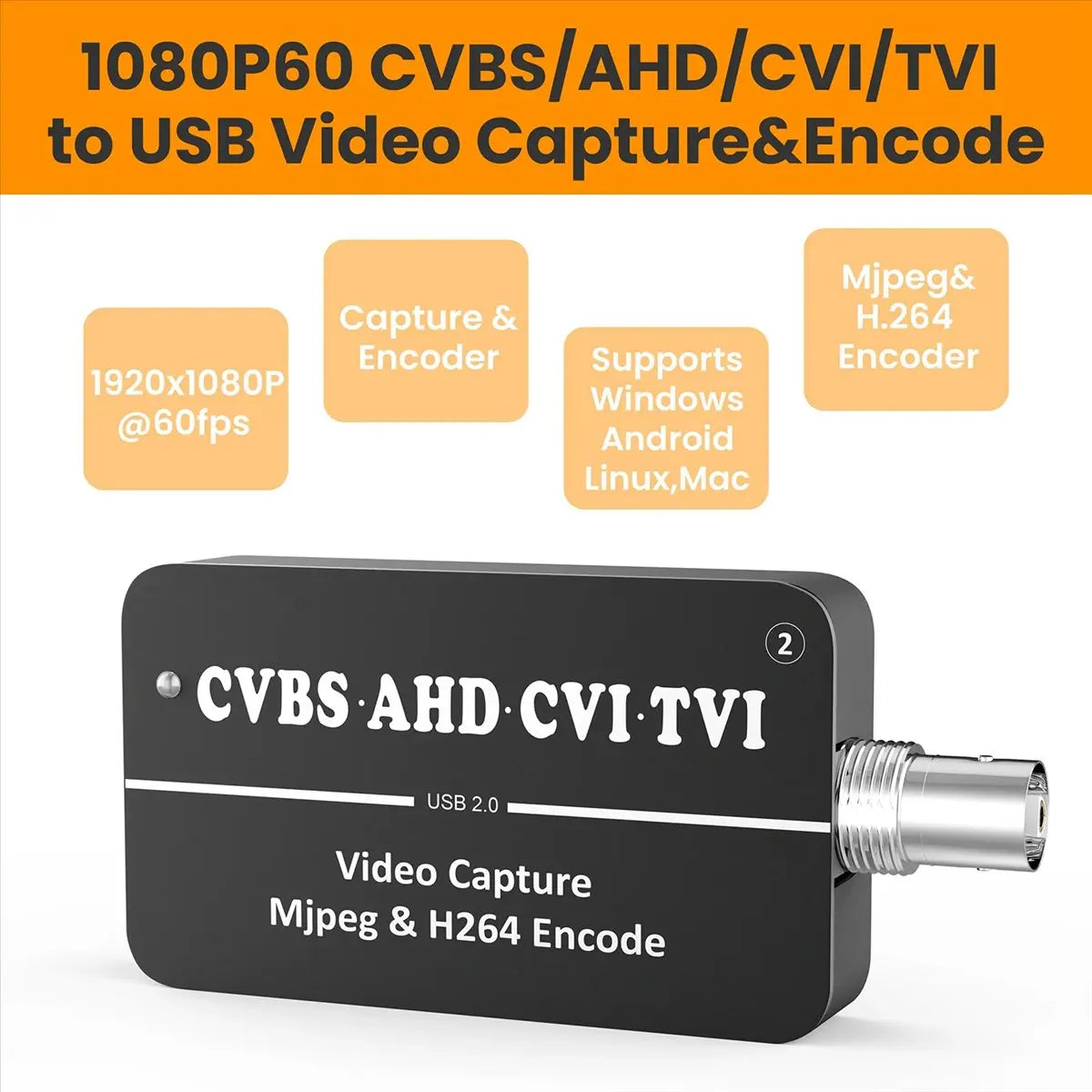

Key Features

• Multi-Format Support: Compatible with AHD, TVI, CVI, and CVBS analog video standards — no extra adapters needed.
• Full HD Resolution: Captures up to 1920×1080p @ 60fps for crisp, smooth video output.

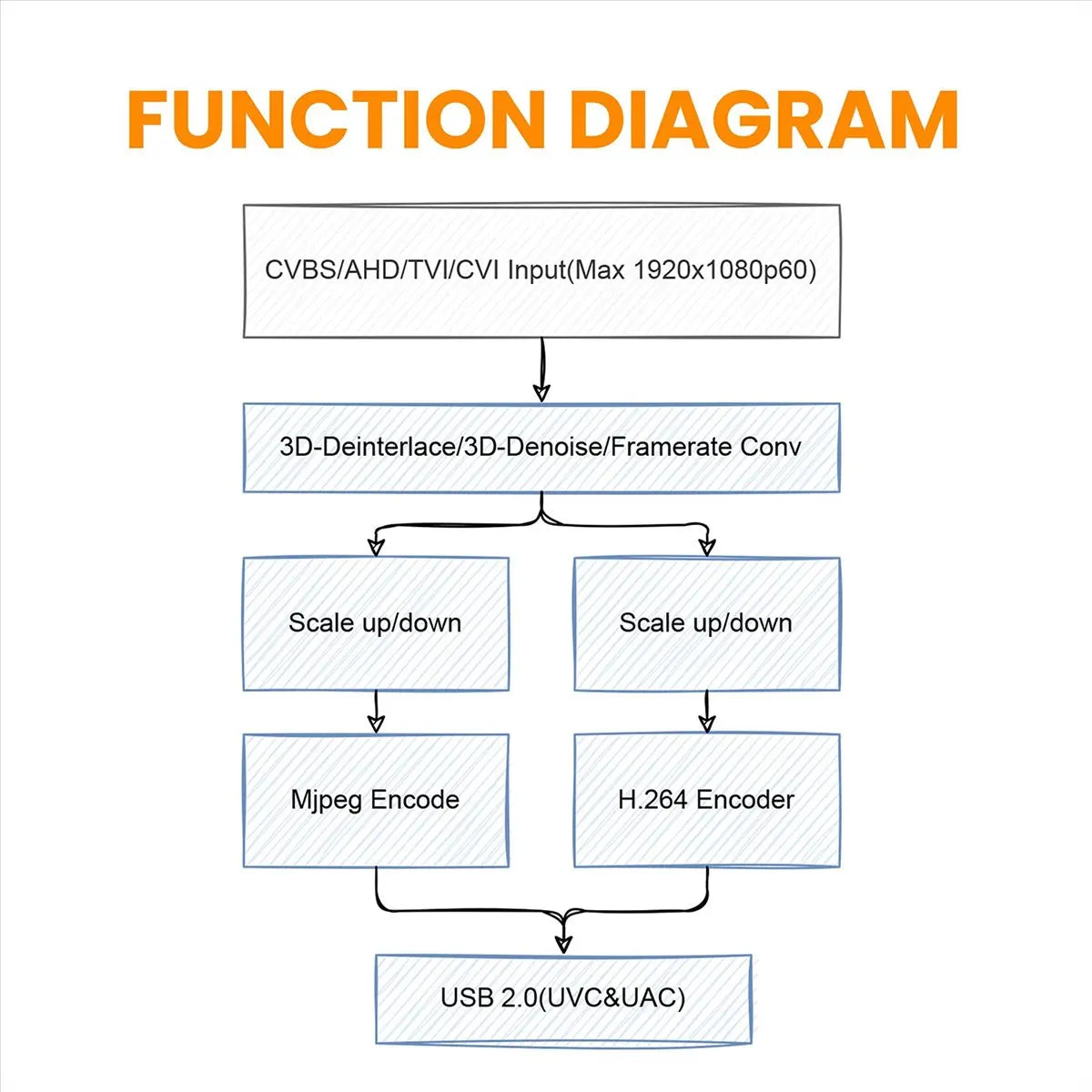

• Dual Stream Encoding: Simultaneously outputs an MJPEG stream (ideal for real-time preview) and an H.264 stream (optimized for transmission and storage).
• Auto Resolution Recognition: Automatically detects input resolution and frame rate — plug in and go.
• Adjustable Video Parameters: Fine-tune brightness, contrast, saturation, and H.264 bit rate to your exact needs.
• OSD Support: Customize on-screen display text overlays for professional-looking output.
• Power-Off Memory: Settings are saved even when the device is powered off — no need to reconfigure every session.
• UVC Plug-and-Play: Works as a standard USB Video Class device — no proprietary drivers required on most systems.

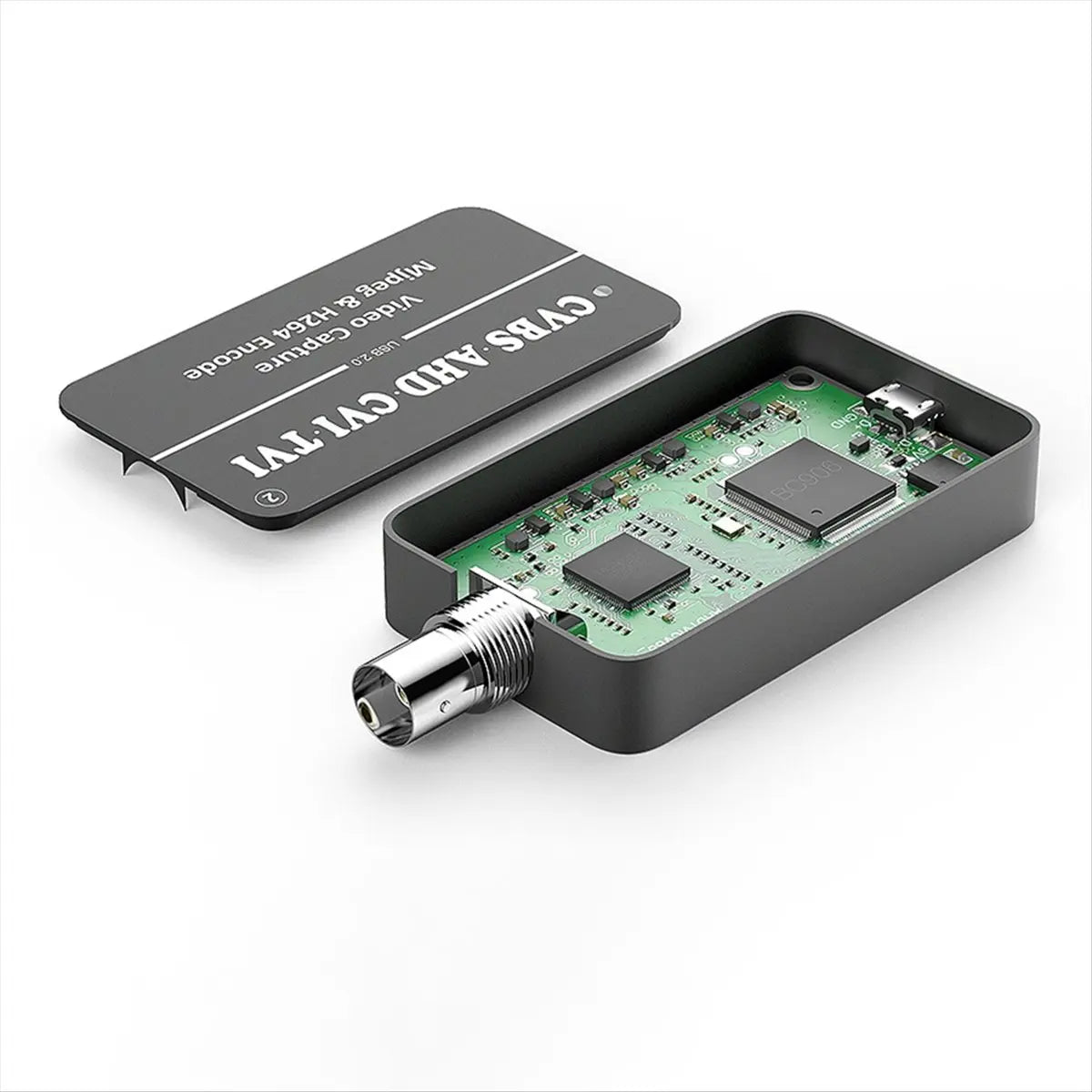

• Durable Aluminum Alloy Body: Lightweight yet rugged enclosure in a sleek black finish for reliable long-term use.

System Compatibility

• Windows 7 / 8 / 8.1 / 10 / 2008 / 2008R2 / 2012 (x86 & x64)
• macOS 10.12 and later
• Android
• Linux (Ubuntu 12.04–16.10, CentOS 7)

Technical Specifications

• Model: LCC261
• Input Formats: AHD / TVI / CVI / CVBS
• Output Interface: USB (UVC)
• Max Resolution: 1920×1080p @ 60fps
• Encoding: H.264 & MJPEG (dual stream)
• Color: Black
• Material: Aluminum Alloy
• Country of Origin: Made in Mainland China

What's in the Box

• 1 × LCC261 Video Capture Card

Related Products You May Like

Looking to build out your video setup? Check out these popular accessories:

• 1-In-2-Out HDMI Splitter Cable 1080P 3D – TV Monitor Projector
• Video Capture Cards & Streaming Devices
• 1.35m Selfie Stick Tripod | Bluetooth Remote & Auto Phone Holder

Learn More About Video Encoding Standards

For a deeper understanding of video compression and USB video standards, visit the

To learn more about video capture and streaming technology, explore resources at

Frequently Asked Questions

Q: What analog video formats does the LCC261 USB capture card support?

A: The LCC261 supports AHD, TVI, CVI, and CVBS analog video input formats, making it compatible with a wide range of analog security cameras and video sources without requiring additional adapters.

Q: Does the LCC261 video capture card require special drivers to install?

A: No. The LCC261 operates as a standard UVC (USB Video Class) device, meaning it is plug-and-play on most operating systems including Windows, macOS, Android, and Linux — no proprietary drivers needed in most cases.

Q: What is the maximum resolution supported by this USB capture card?

A: The LCC261 supports up to 1920×1080p at 60fps for full HD video capture. It also supports 720P and other standard resolutions with automatic detection.

Q: What is the difference between the MJPEG and H.264 streams on this capture card?

A: The LCC261 outputs two simultaneous streams. The MJPEG stream is optimized for low-latency real-time preview, while the H.264 stream is compressed for efficient storage and network transmission — ideal for recording and remote monitoring applications.
